Naim Audio
NAC 202
Preamplifier
(Made In England) + Naim Audio
FlatCap XS
Power Supply
(Made In England)

Overview …..

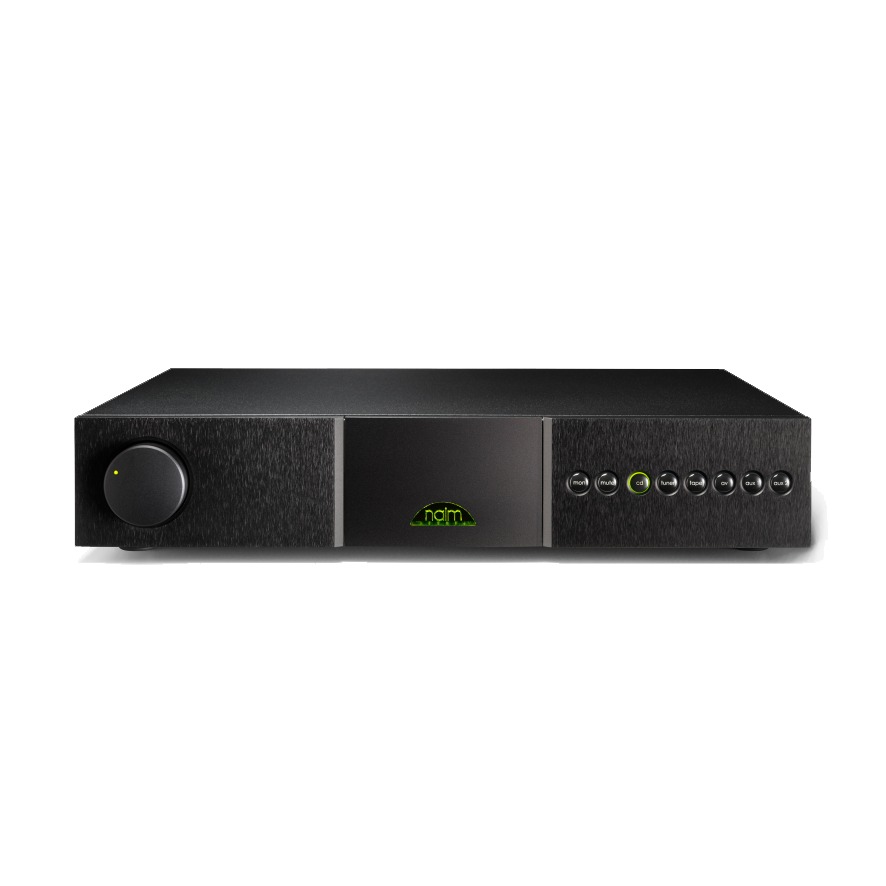

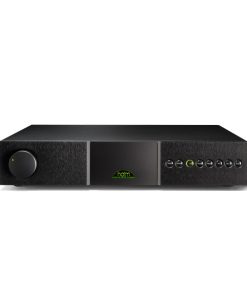

The NAC 202 introduced a new level of technical and musical performance to our range of preamplifiers, along with elegant new styling.

Low-resonance circuit boards and anti-vibration, resonance controlling feet minimise the effect of microphonic vibration on the highly sensitive electronic components while carefully matched precision rotary potentiometers with precious metal wipers are used to preserve musical integrity and ensure long-term stability. The intelligent balance control combines a high quality motorised potentiometer for the best performance with intelligent circuitry to indicate the centre position.

The NAC 202 also features a silent microprocessor that sleeps during listening and controls all aspects of the amplifier including: protection circuits that continuously monitor the power supplies ensuring safe shut down in the event of a power cut; user-configurable RC5 input and Smart IR system for remote control integration of Naim Audio products.

Features …..

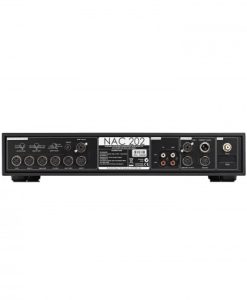

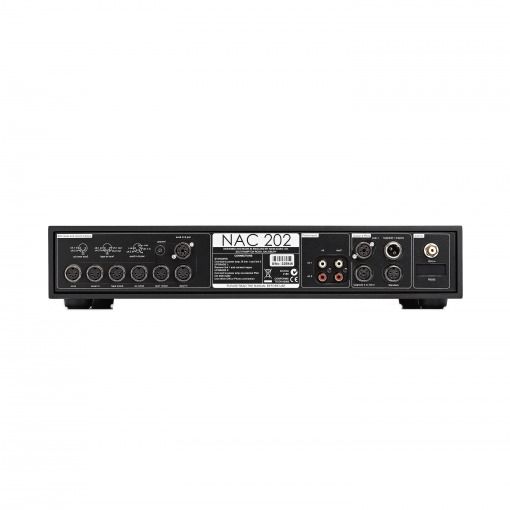

Support for both DIN and RCA inputs to ease connection into a wider range of systems
User configurable unity-gain AV input
Powered input for use with StageLine or Prefix phono stage
RC5 input and Smart IR system for remote control integration of Naim Audio products
Optional RS232 input/output for use in full home automation systems
Can be powered from the preamp inputs of the NAP 155 XS or NAP 200 power amplifier or external power supply (see Upgrade Path)

Specification …..
Product Name : Naim NAC 202 Preamplifier
Output Power : Naim phono amplifier
Analog Output : 2 x variable (DIN), 3 x line level
Analog Input : 4 x DIN, 2 x RCA
Input Impedance : 47kΩ
Supply Voltage : 24V
Power Consumption : 11VA
Mains Supply : 1 x Hi-Cap/SuperCap
Power Supply Options : NAP 155 XS, NAP 200, FlatCap XS, HiCap, SuperCap
Dimensions : 87 x 432 x 314 mm
Weight : 7.0 kg

Overview

Features

• Dual-rail power supply with four 24V power outputs
• Four low-noise regulators
• Black-anodised chassis with brushed front panel plus anti-vibration feet
