NuPrime
LPS-205
Linear Power Supply

Specification

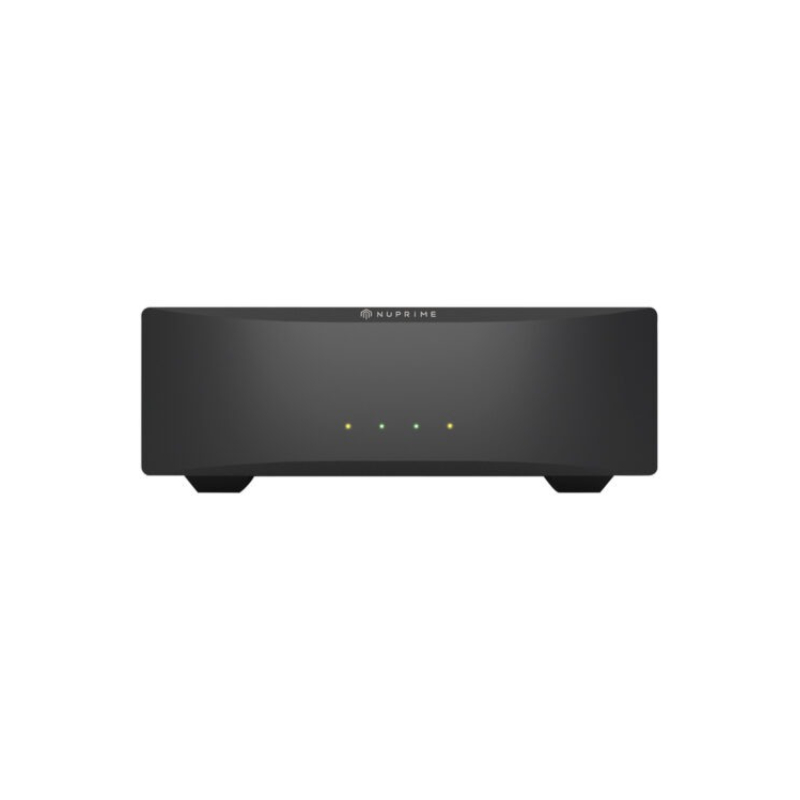

LED status display for Standby, In-Use, and Protection state
• Input: 230VAC or 115VAC 50/60Hz (with voltage selector)
• Output: Two sets of DC 5V/2A isolated and independent outputs (Zone 1 & Zone 2)
• Output connectors: Two sets of 5.5 X 2.1 female socket and two sets of USB-A female socket
• Total power 28W
• Product Dimension: 155 mm (W) X 115 mm (L) X 58 mm (H)
• Weight: 1.3 KG
• Package Dimension: 250 mm (W) X 220 mm (L) X 120 mm (H)
• Package Weight: 2.5 KG

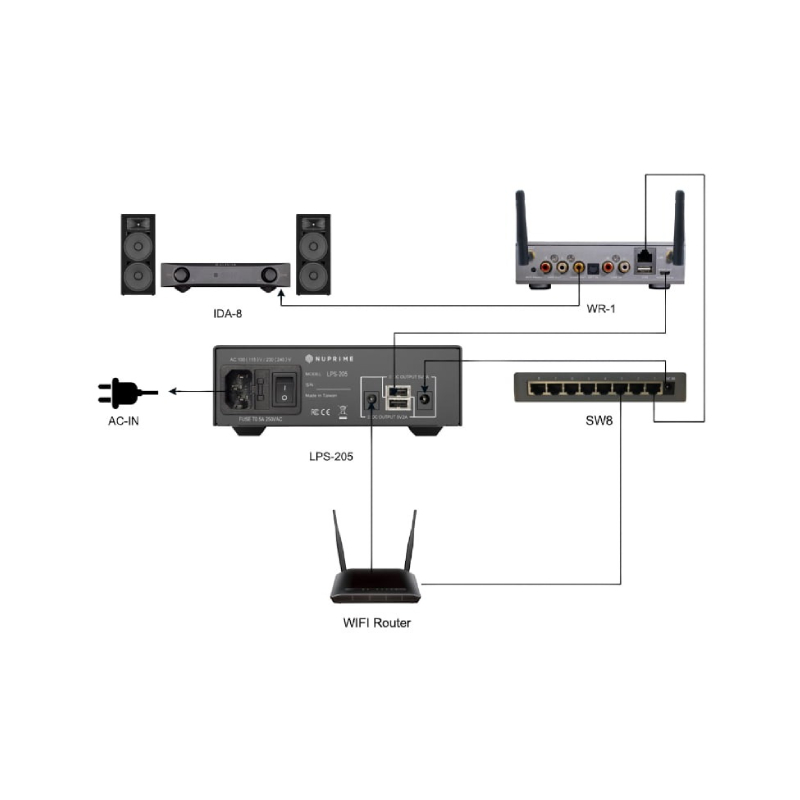

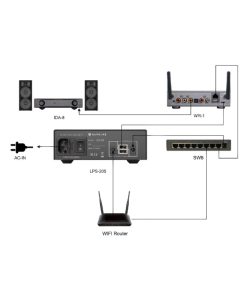

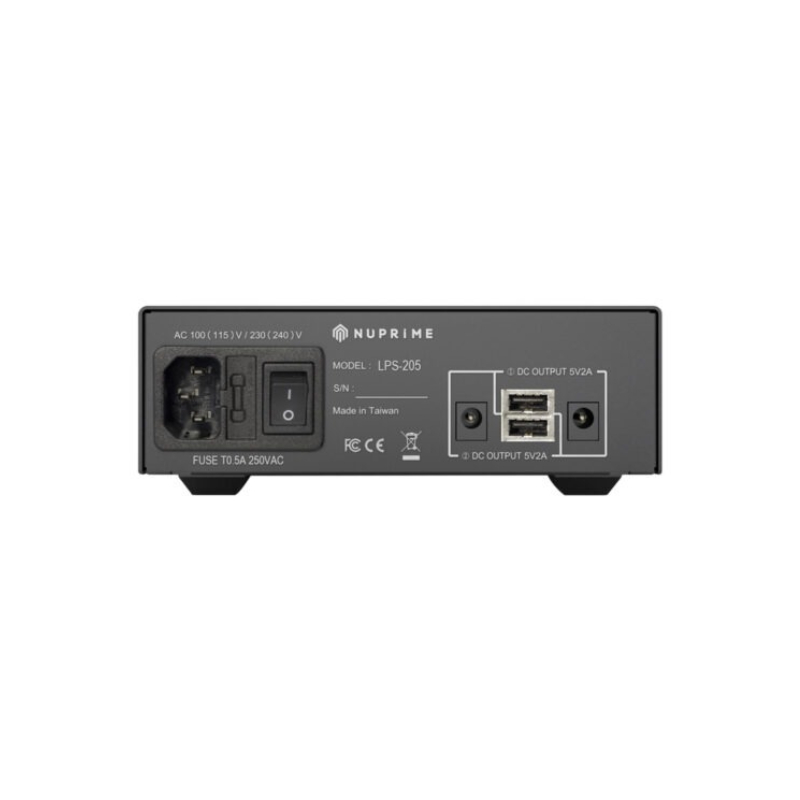

Note: If you have two different devices that need 2A current, connect them to two different group as shown in the back panel for USB-A and 5.5×2.1 connectors.
