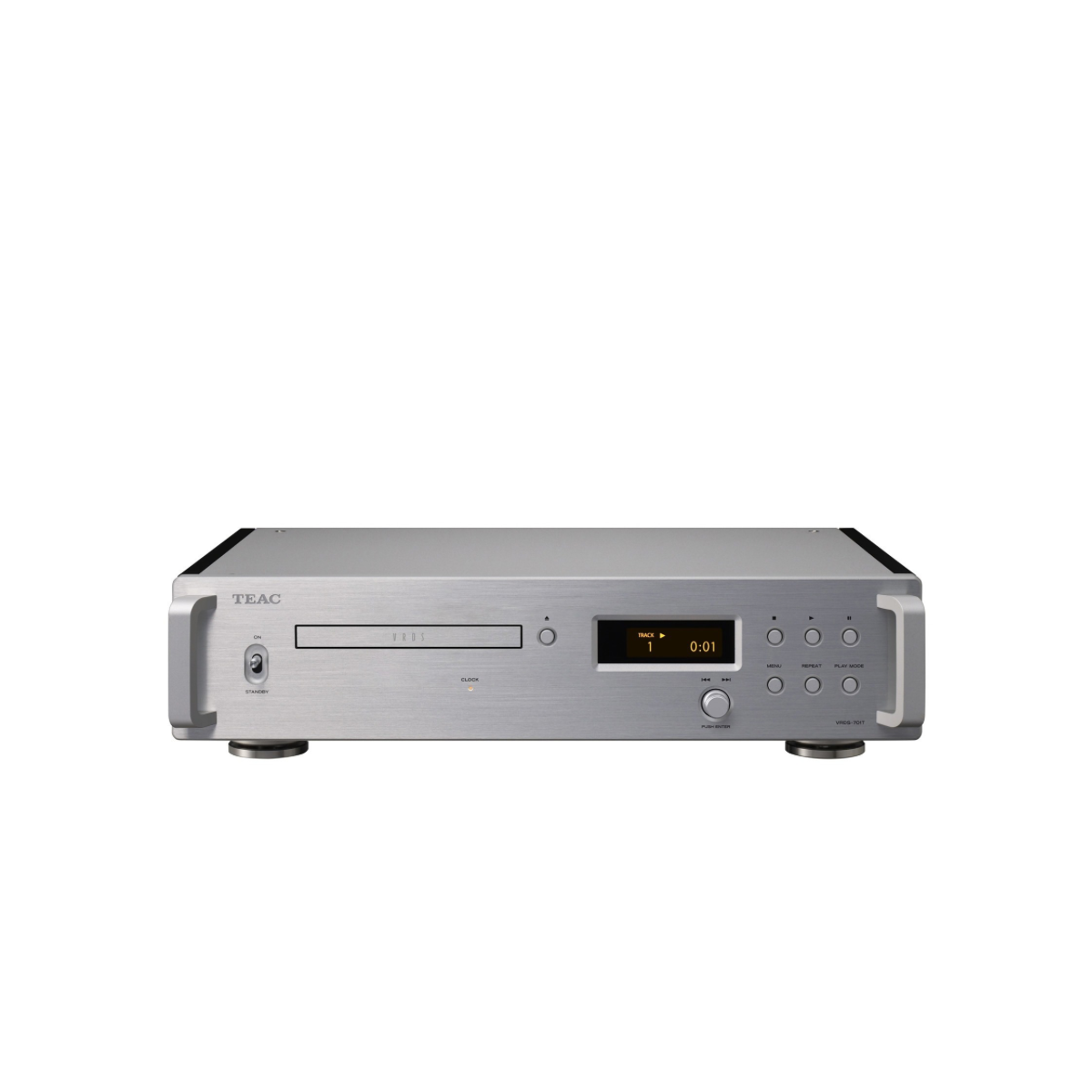

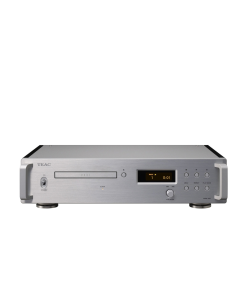

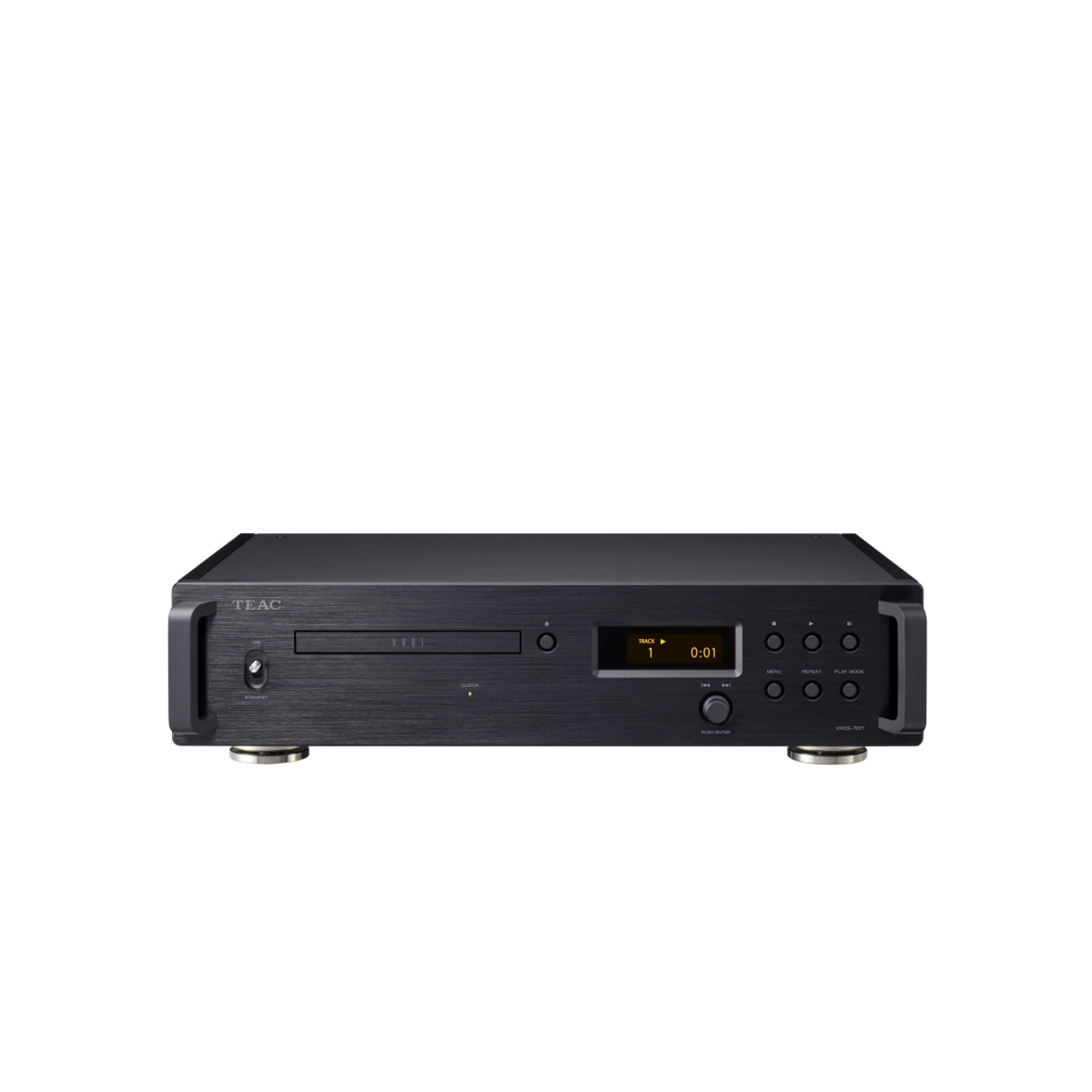

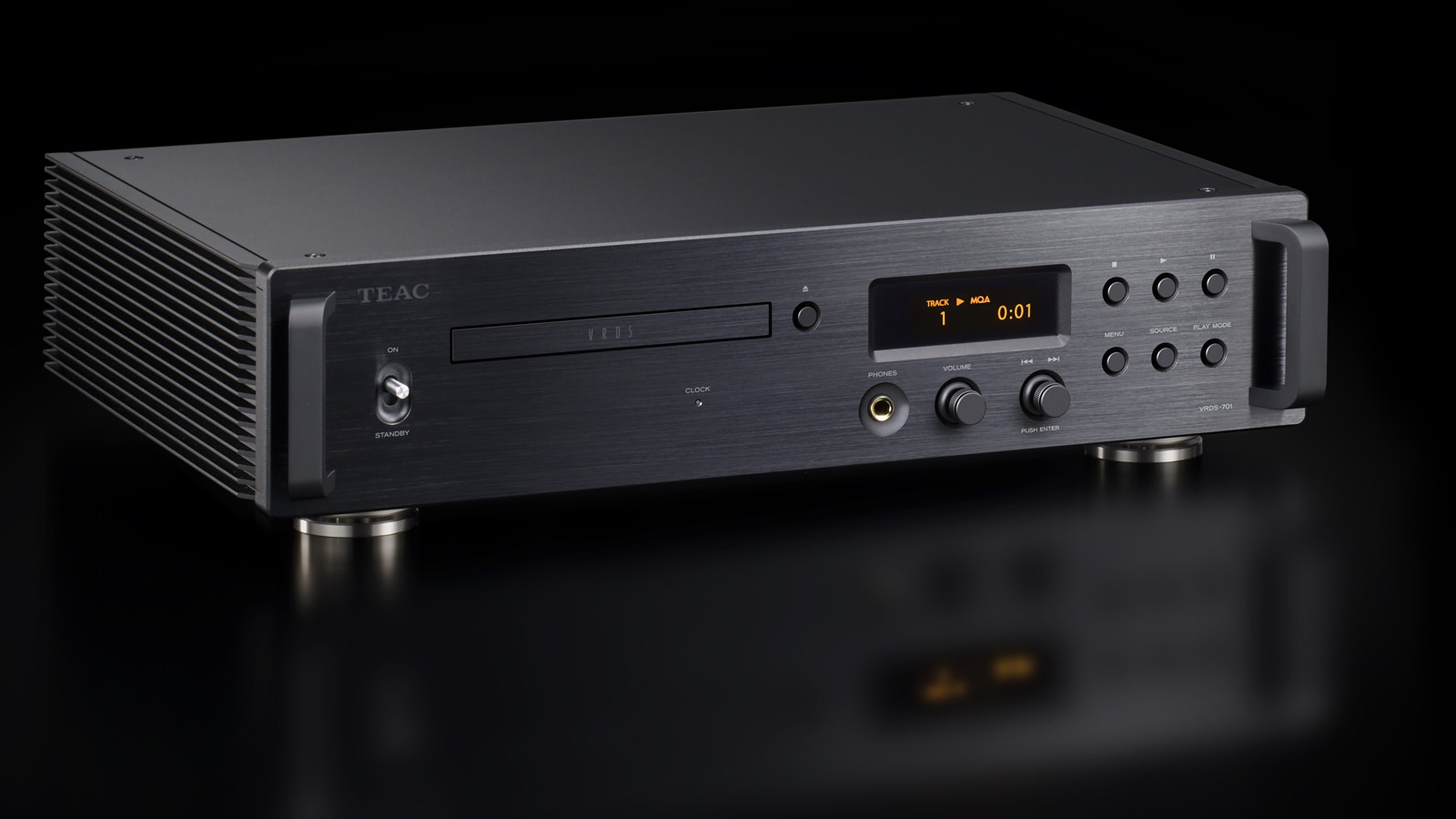

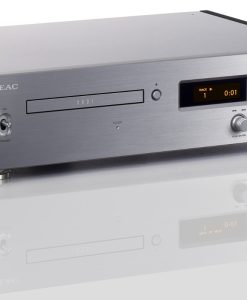

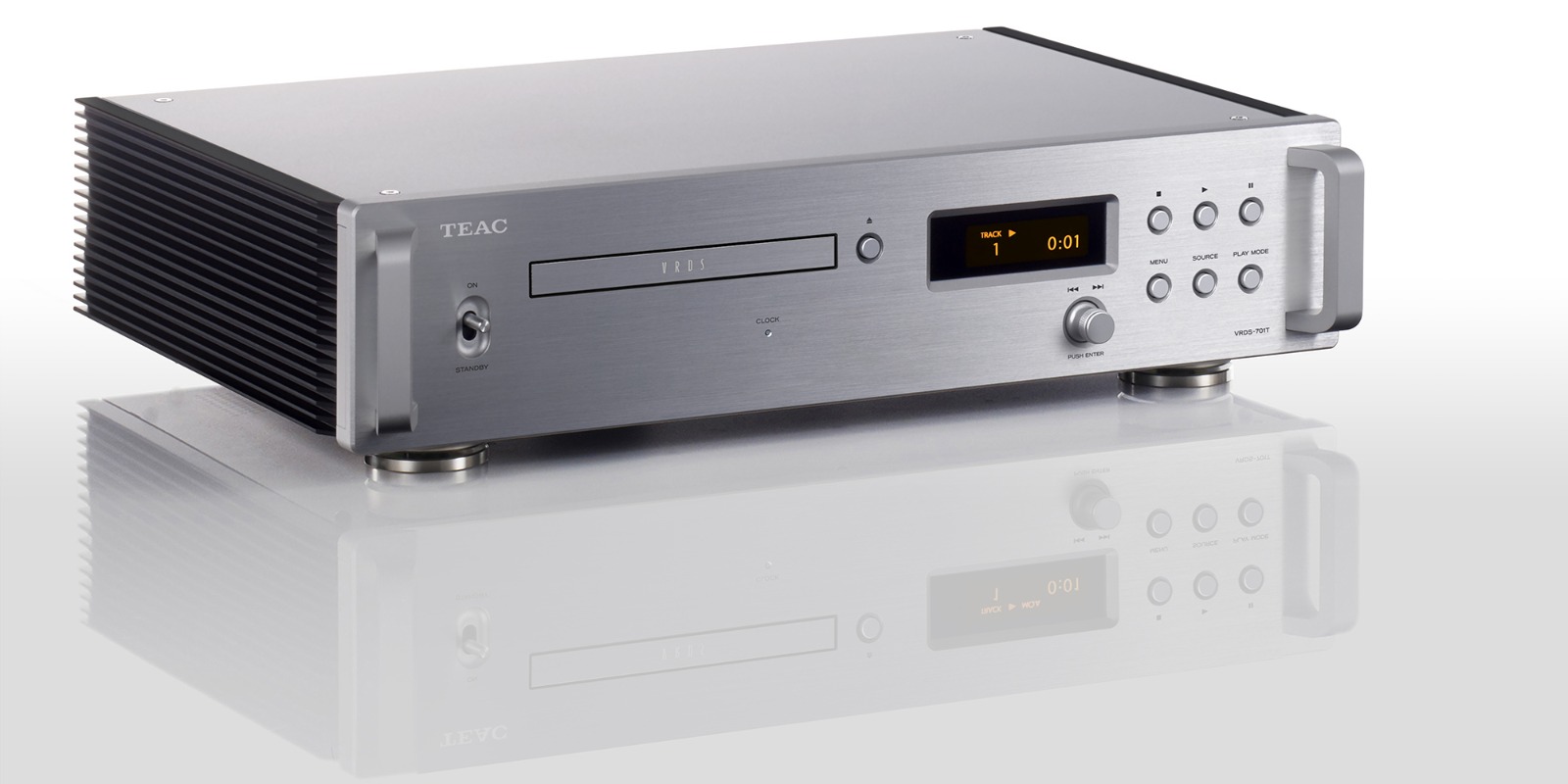

TEAC
VRDS-701
CD Player
(Pre-Order)

Commemorating the 70th anniversary of our founding, this model brings innovation and epitomizes TEAC strengths, including a newly-developed VRDS mechanism.

The VRDS-701 CD player employs a newly-developed VRDS mechanism and a TEAC original discrete DAC “TRDD 7”.
The VRDS is a TEAC-original CD drive mechanism that reduces rotation vibration and other unwanted vibration
by clamping the CD to an aluminum turntable with the same diameter in order to maximize inertial mass.

Furthermore, instead of an ordinary DAC IC for the DAC section, which is crucial to audio quality,
the VRDS-701 has a “TRDD 7” discrete DAC that incorporates our unique algorithms in a discrete circuit.

Unconstrained by conventional CD player definitions, the VRDS-701 is enhanced with future-forward functionality.
The ability to play MQA CDs using full MQA decoding capabilities and support for 22.5MHz DSD and
384kHz/32-bit PCM formats as a USB DAC are some of the features that make it more than just a CD player.

Features at a glance …

-A newly developed VRDS mechanism is used for the CD drive

-An original TEAC-designed discrete DAC “TRDD 7” is used for the digital audio converter, which is key to determining audio quality

-Fully-balanced dual mono circuit structure realizes outstanding channel separation

-Direct connection with a power amplifier is possible thanks to volume control that uses a TEAC-QVCS analog preamp circuit

-Along with MQA CD playback, full MQA decoding of digital input is possible

-As a USB DAC, 22.5MHz DSD and 384kHz/32-bit PCM data can be played back

-2×, 4× and 8× upconversion using RDOT-NEO

-10MHz external clock input

-Analog, digital input/output and CD drive circuits each have dedicated toroidal core transformers

-Original TEAC-HCLD2 enhanced-current output buffer circuit

-Headphone amp has a high output circuit with low distortion, high signal-to-noise ratio and a high 2000V/μs through rate

CD section ….
Supported media :
Audio CD, CD (CD-R/CD-RW) * 8cm CDs not supported.

Frequencey response :
5Hz to 80kHz (+1dB, –6dB)

S/N ratio :
108dB (A-weight, 1kHz)

Total harmonic distortion:
0.002% (1kHz, LPF: 20Hz to 20kHz)

Analog audio outputs …
Balanced …
Connectors : XLR × 1 pair

Maximum output level :
2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB)
4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB)
12Vrms (1kHz, Full scale, 10kΩ loaded, VARIABLE)

Output impedance : 220Ω

Unbalanced …
Connectors : RCA × 1 pair

Maximum output level:
2.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED 0dB)
4.0Vrms (1kHz, Full scale, 10kΩ loaded, FIXED +6dB)
6Vrms (1kHz, Full scale, 10kΩ loaded, VRIABLE)

Output impedance: 180Ω

Digital audio inputs :
USB
Connector :USB Type-C × 1 (USB2.0 or more)

Supported formats :
PCM 16 / 24 / 32bit
44.1k / 48k / 88.2k / 96k / 176.4k / 192k / 352.8k / 384kHz

DSD : 2.8M / 5.6M / 11.2M / 22.5MHz

COAXIAL …
Connector : RCA × 1
Input level : 0.5Vp-p
Input impedance : 75Ω

Supported formats :
PCM 16 / 24bit
32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD 2.8MHz

OPTICAL …
Connector : TOS (JEITA RC5720C) × 1
Input level : –24.0 to –14.5dBm peak

Supported formats :
PCM 16 / 24bit
32k / 44.1k / 48k / 88.2k / 96k / 176.4k / 192kHz
DSD 2.8MHz

Digital audio outputs …
COAXIAL
Connector : RCA × 1
Output level : 0.5Vp-p
Output impedance : 75Ω

OPTICAL
Connector : TOS (JEITA RC5720C) × 1
Headphones out
Connector : ¼″ (6.3mm) Stereo jack × 1
Maximum output : 500mW + 500mW (into 32Ω)

Clock sync input …
Connector : BNC × 1
Input frequency : 10MHz
Input impedance : 50Ω

Input level
Rectangle wave : Equivalent to TTL level
Sine wave : 0.5 to 1.0Vrms

External control …
Trigger in : (12V TRIGGER IN)
Connector : 3.5mm Mono mini jack × 1

Input level : 12V, 1mA

Trigger out : (12V TRIGGER THRU)
Connector : 3.5mm Mono mini jack × 1
Output level ; 12V
Maximum curret supply : 100mA

Power : AC220-240V, 50/60Hz

Power consumption : 20W
Standby power : 0.4W

Overall dimensions :
444 (W) × 111 (H) × 333 (D) mm (including protrusions)

Weight :
11.1kg

Operating temperature :
+5℃ to +35℃

Operating humidity :
5％ to 85％ (no condensation)

Storage Temperature range :
−20℃ to +55℃

Included accessories :
AC cord, Remote control (RC-1338), Foot pads × 3, Owner’s manual

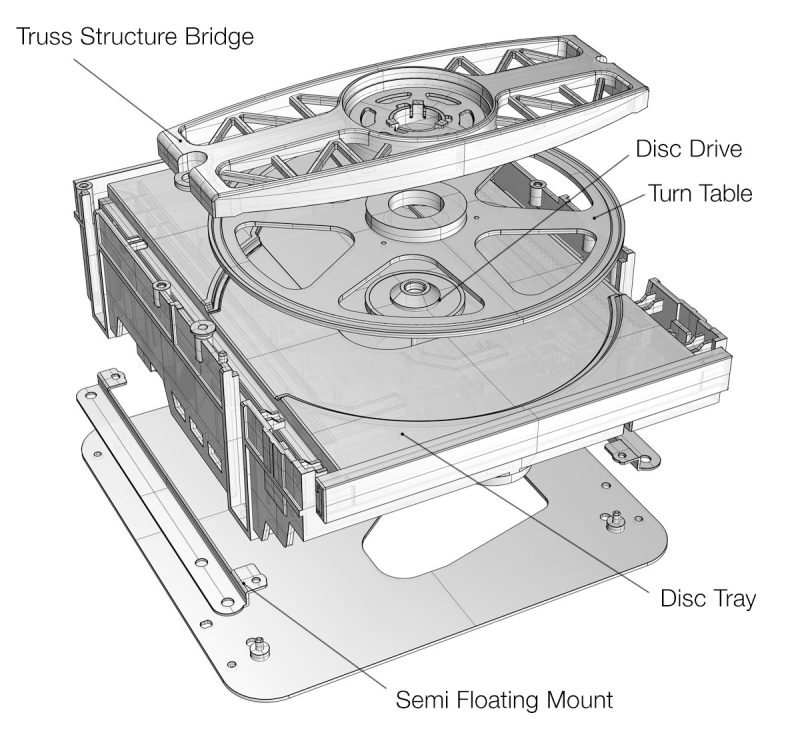

Newly-developed VRDS mechanism
Starting with a drive we developed that has a long record of use in professional applications, we added VRDS technologies, which are part of our TEAC legacy.

Vibration-Free Rigid Disc-Clamping System (VRDS)
This TEAC-original CD drive mechanism reduces rotation vibration of the disc itself as well as unwanted mechanism vibration by clamping the CD to an aluminum turntable with the same diameter and maximizing inertial mass in order to stabilize rotation. Servo current is reduced with the turntable by correcting disc warping and distortion and improving the relative optical axis precision of the pickup and disc pit side. This realizes reduced disc reading errors and outstanding audio quality.

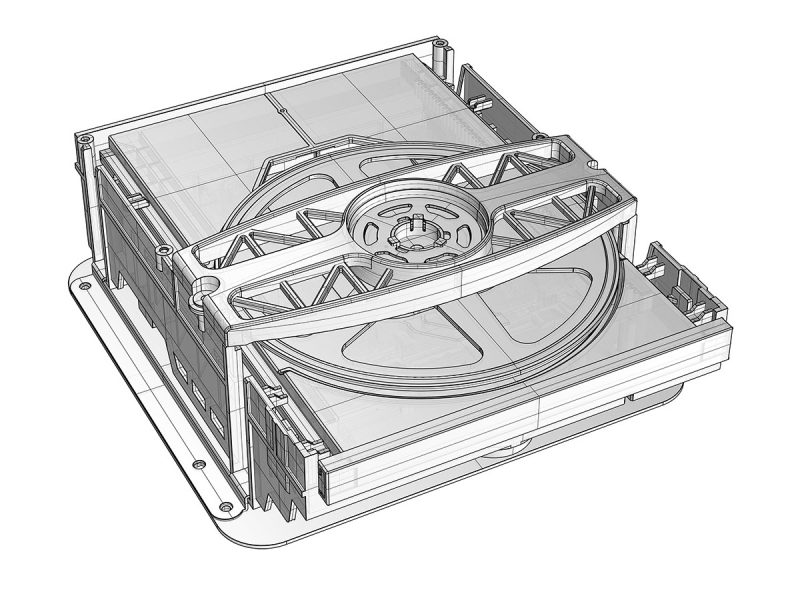

Bridge section supports the VRDS
For the bridge that supports the turntable, we carefully selected lightweight materials that are very rigid and do not transmit vibration. By naturally settling vibrations quickly, we have realized a wide, dynamic sound. The bridge, which has a torus structure made of resin, is only fixed on one side, and propagation of vibration from the CD mechanism to the opposite side through the bridge is suppressed, so the entire mechanism minimizes unwanted sympathetic vibrations.

Semi-floating mounting
The entire CD mechanism is mounted on the sub-chassis in a semi-floating state. By controlling the transmission of vibrations between the CD mechanism and the chassis, the impact of sympathetic vibrations is abated, and natural playback sound is realized throughout the frequency range. By isolating motor vibrations from the main chassis, sympathetic vibrations within the chassis are prevented. At the same time, the CD mechanism is also isolated from external vibrations. Reading precision is also increased by isolating the CD mechanism from external vibrations.

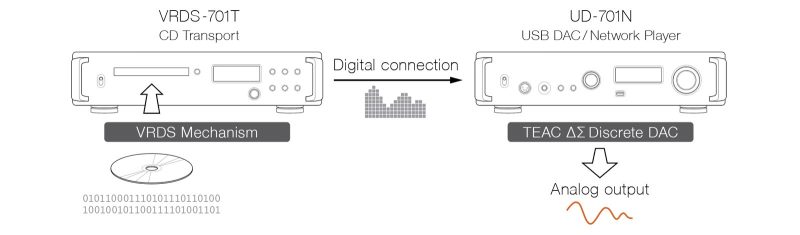

Enhanced digital output
By eliminating the DAC function, the internal circuitry has been optimized for digital output. We have pursued higher audio quality by, for example, using larger components that did not fit in more limited space.

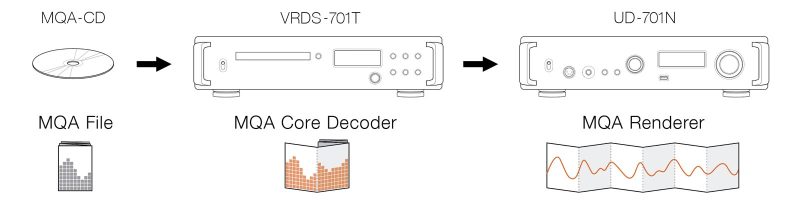

MQA CDs can be played back using the built-in MQA core decoder
The VRDS-701T has a built-in MQA core decoder and can digitally output MQA CDs at 88.2 kHz . Moreover, when used together with a DAC that has an MQA rendering function, playback using MQA full decoding is also possible.

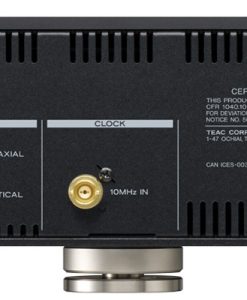

10MHz external clock input
The 10MHz clock input allows synchronization with an external clock. In addition to improving audio quality during playback with the VRDS-701T, this also enables synchronization of the entire system with a clock generator.

Power supply enhanced using 2 high-capacity toroidal core transformers
Independent high-capacity toroidal core transformers are dedicated to the digital control section and the CD mechanism. These 2 high-capacity toroidal core transformers enable current to be supplied with greater stability.

Thorough design for vibration control
Power transformers, which tend to generate vibration, are mounted on a floating structure, separating and isolating them from the bottom panel. The side fins for heat dissipation have been tailored so that each one has a different length in order to eliminate sympathetic vibrations.

Three supporting pinpoint feet made of machined steel with a unique structure
The circuit board attachment screws have been kept to a minimum. Furthermore, steel pinpoint feet that use an original TEAC design with a new structure to provide a suitable amount of play in the connection between them and the bottom panel, are employed to thoroughly control vibrations that could affect audio quality.

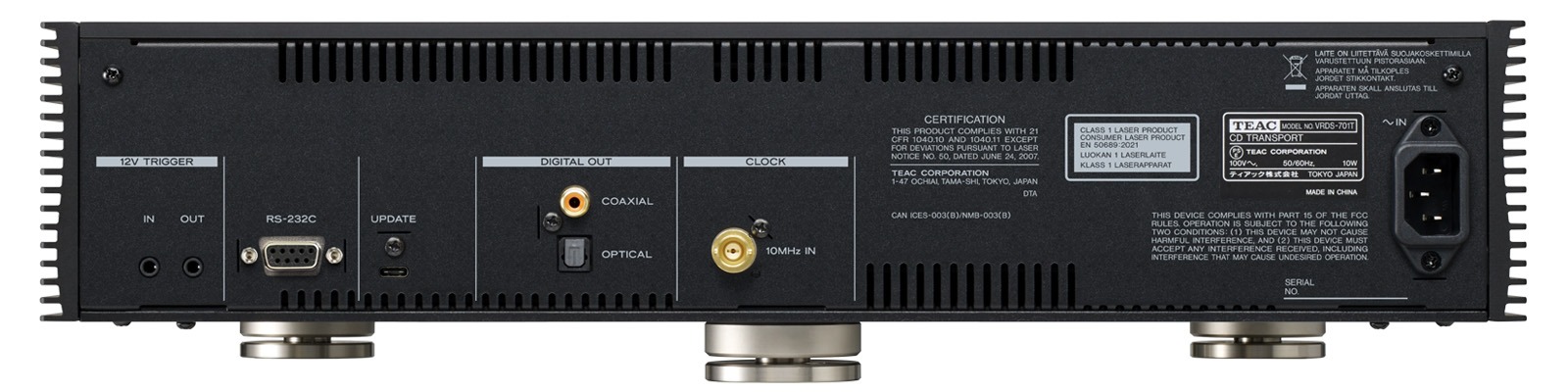

Control connectors enable coordinated use with other devices
RS-232C is present for integration with popular control systems, and trigger input and output connectors enable power coordination with other devices.
