Goldmund<br>TELOS 2800<br> Mono Power Amplifier

Goldmund
TELOS 2800
Mono Power Amplifier
(Swiss Made)

THE SOUND OF EXCELLENCE

At the core of the Telos 2800 mono power amplifier lies Goldmund’s proprietary Telos® amplification technology, a meticulously engineered Class A/B circuit that fuses the linearity of analog components with a high-bandwidth architecture. The result? Unparalleled sonic purity, delivering ultra-low distortion and maximum efficiency—setting new standards in high-fidelity audio.

ABSOLUTE SPEAKER CONTROL

Goldmund’s Telos® amplifiers are designed to deliver pure power with absolute precision, ensuring the integrity of the audio signal is never compromised. Proper driver control allows for impeccable sound reproduction, free from distortion and unwanted artifacts.

This is particularly crucial for low frequencies, where woofer diaphragms often suffer from excessive motion, leading to unwanted vibrations. By refining the linearity of every amplification stage, Telos® technology virtually eliminates harmonic and intermodulation distortion. Meanwhile, its high-bandwidth circuit minimizes group delay distortion, ensuring impeccable timing and sonic coherence.

UNCOMPROMISED SIGNAL PURITY

Goldmund’s advanced circuit architecture takes precision to another level. By separating high and low-current circuits, it prevents feedback and interference, ensuring pristine audio transmission. The integration of Mechanical Grounding™ technology efficiently channels vibrations directly into the ground—eliminating unwanted resonances.

PRECISION IN EVERY DECIBEL

A sophisticated output impedance reduction system enhances micro-dynamics, controls excessive woofer overshoot in high-power conditions, and eliminates an unnaturally “boomy” bass. Despite its power output, the Telos 2800 delivers flawless performance from the very first watt. Whether you’re enjoying a delicate piano passage at whisper-quiet levels or a full-scale orchestral crescendo at concert volume, the amplification remains pure, dynamic, and distortion-free.

EXCELLENCE IN THE REAL WORLD

Many amplifiers excel under ideal lab conditions, performing flawlessly with resistive loads. But real-world listening with passive loudspeakers is different. Goldmund’s amplifiers go beyond traditional benchmarks, ensuring flawless technical performance in both scenarios. They bring music to life exactly as it was intended.

TIMELESS CRAFTSMANSHIP

Every aspect of the Telos 2800 is a fusion of high-end engineering and aesthetic mastery:

Seamless Aluminum Chassis: Crafted from precision-machined, micro-blasted aluminum, the monolithic chassis delivers exceptional structural integrity and understated elegance. The joint-free design, standard in grey with an optional black finish, exemplifies refined minimalism. Sculpted wavy sides echo Goldmund’s latest design language, lending the unit a mineral-like aesthetic that harmonizes effortlessly with every other component in the collection. For the Chinese market, a distinctive gold accent ring graces the top panel, while international models feature a tone-on-tone grey ring for a unified, sophisticated look.

Advanced Electromagnetic Shielding: The solid aluminum structure acts as a fortress against electromagnetic interference (EMI), ensuring an undisturbed, ultra-pure signal path.

EVERY DETAIL MATTERS

Optimized Thermal Management: The chassis, with 10 to 12mm-thick aluminum panels and a 30mm-thick radiator, serves as a powerful passive heat sink, ensuring silent, effective cooling.
Heavy-Weight Structure: A robust, heavy-weight design ensures stability, while resin-coated transformers minimize mechanical and electronic vibrations, eliminating unwanted resonances.
Conic Feet Technology: A crucial component of Goldmund’s Mechanical Grounding™ system, these precision-engineered feet direct vibrations into the ground, preventing resonance buildup.

For more information:

Contact : Dicky Ng 012-3308893
Contact : John Yew 016-2861000
Email : [email protected]

Weight	62 kg

Specification

Goldmund TELOS 2800 Mono Power Amplifier Specifications
Output Power	Maximum power (IEC60065): 450 Wrms on 8 Ω / 1 % THD
Damping Factor	600 at 1 kHz / 8 Ω
Distortion	IMD (SMPTE), unloaded: < 0.05 % THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output
Output Floor Noise	Analog input terminated with RCA Shorting Caps, unloaded: < 3 μV from 20 Hz to 20 kHz
Gain	35 dB, +/- 9 dB (adjustable in 3 dB increments)
Input	Max level before clipping: Analogue input: 1 Vrms Digital input: -6 dBFS
Output	Max level before clipping, 1 % THD, unloaded: 170 Vpp
Power Supply	Nominal line voltage: 115 V or 230 V Input voltage range: +/- 15 % 3200 VA Toroidal Power Transformer Capacitor bank: 109’600 μF
Rated Power Consumption	IEC 60065, 1/8 Output Power at 8 Ω: 365 W

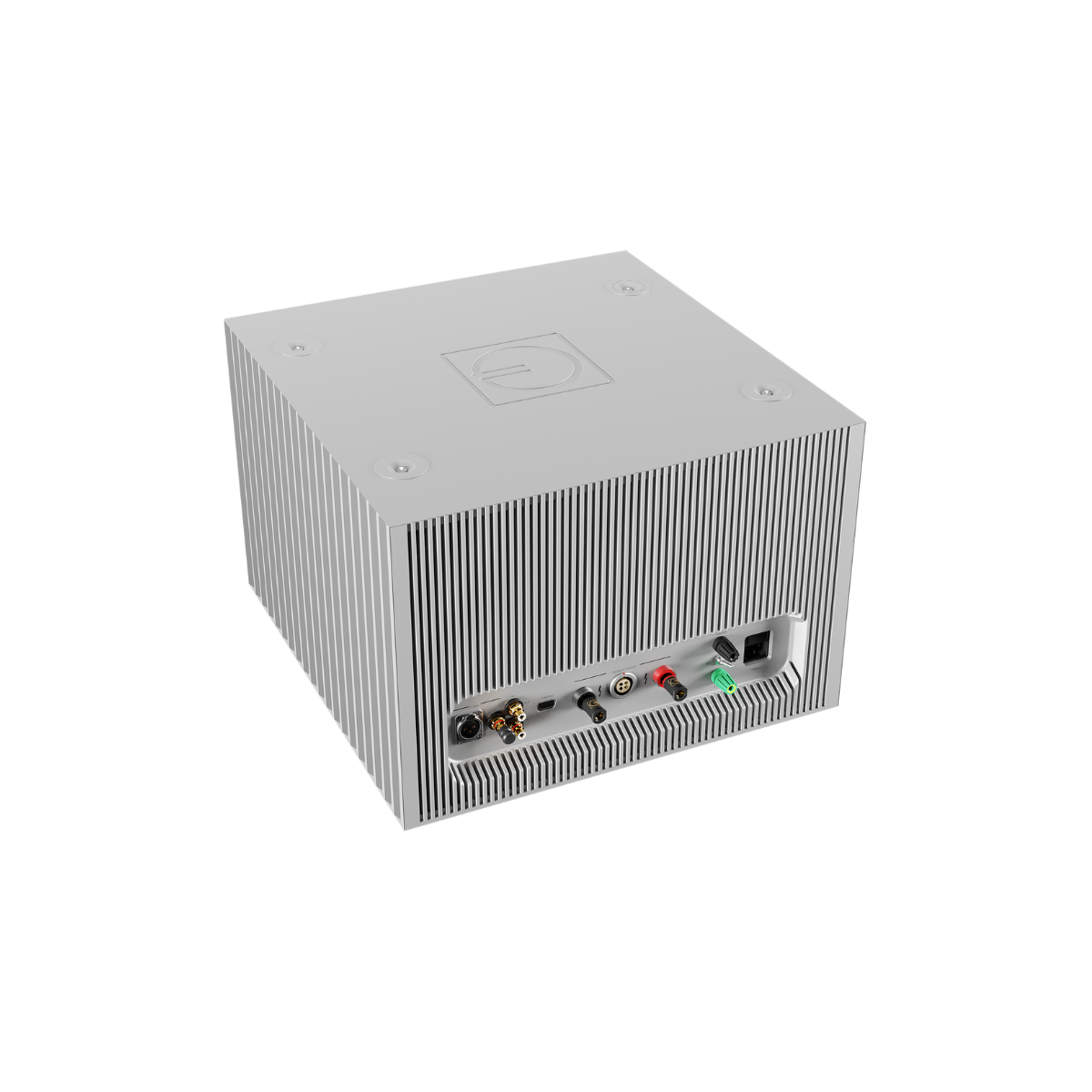

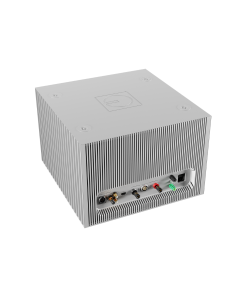

Rear Panel	1 x Power cord: universal socket 3 lugs 1 x Main fuse (4 A slow-blow for 230 V); (8 A slow-blow for 115 V) 1 x Green-yellow AC earth binding post (with bridge connection) 1 x Ground lift switch 2 x output binding posts (red & black) 1 x output Goldmund speaker 4B type connector 1 x Analogue RCA input (unbalanced connector) 1 x Analogue XLR input (balanced connector) 1 x Digital input and output RCA connectors 1 x RS232 command connector
Dynamic Range	22 kHz measurement bandwidth (flat), true RMS unloaded: 117 dB
Size & Weight per Unit	44 W x 32 H x 46 D (cm) 17.3 W x 12.6 H x 18.1 D (inch) 59 kg
Color	Silver Grey
