-12%

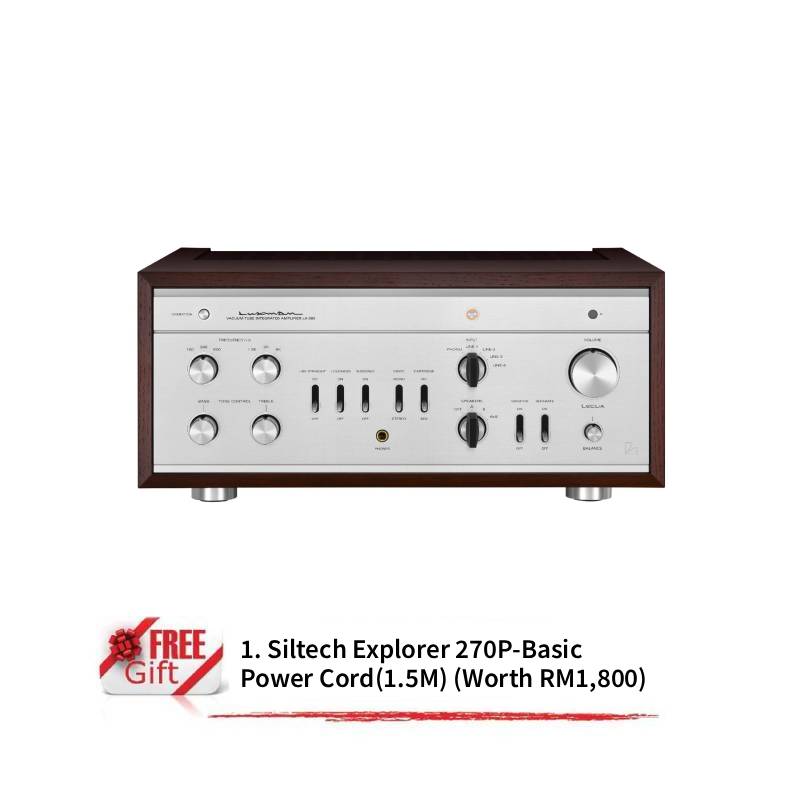

Luxman
LX-380
Vacum Tube
Integrated Amplifiers
(Made In Japan)

RM29,920.00

Categories: Amplifiers, Integrated Amplifiers, Luxman Tags: Free Gift, Luxman

Overview

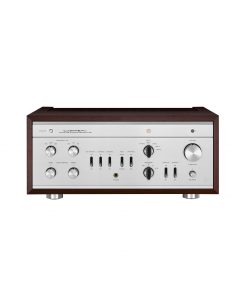

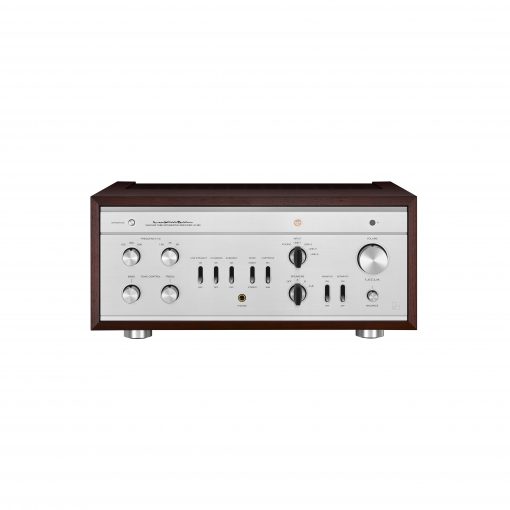

The LX-380 represents a new era in golden ‘38’ series vacuum tube integrated amplifiers from LUXMAN. Providing an exceptionally deep resonance of sound sources of various ages and genres, the LX-380 combines LECUA* – a computerized attenuator which carefully reproduces the dynamism of each performance – with a power amplifier circuit that expresses the rich musicality of the 6L6GC output tube. Housed in a wooden case that is reminiscent of the 28 series, the LX-380 appeals to a new generation with a winning combination of cutting edge technology and traditional know-how. *LECUA is an abbreviation of Luxman Electric Controlled Ultimate Attenuator.

Features

Vacuum tube 6L6G output configuration

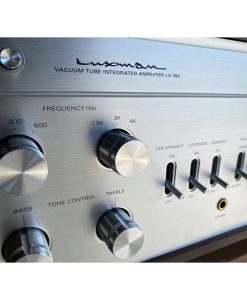

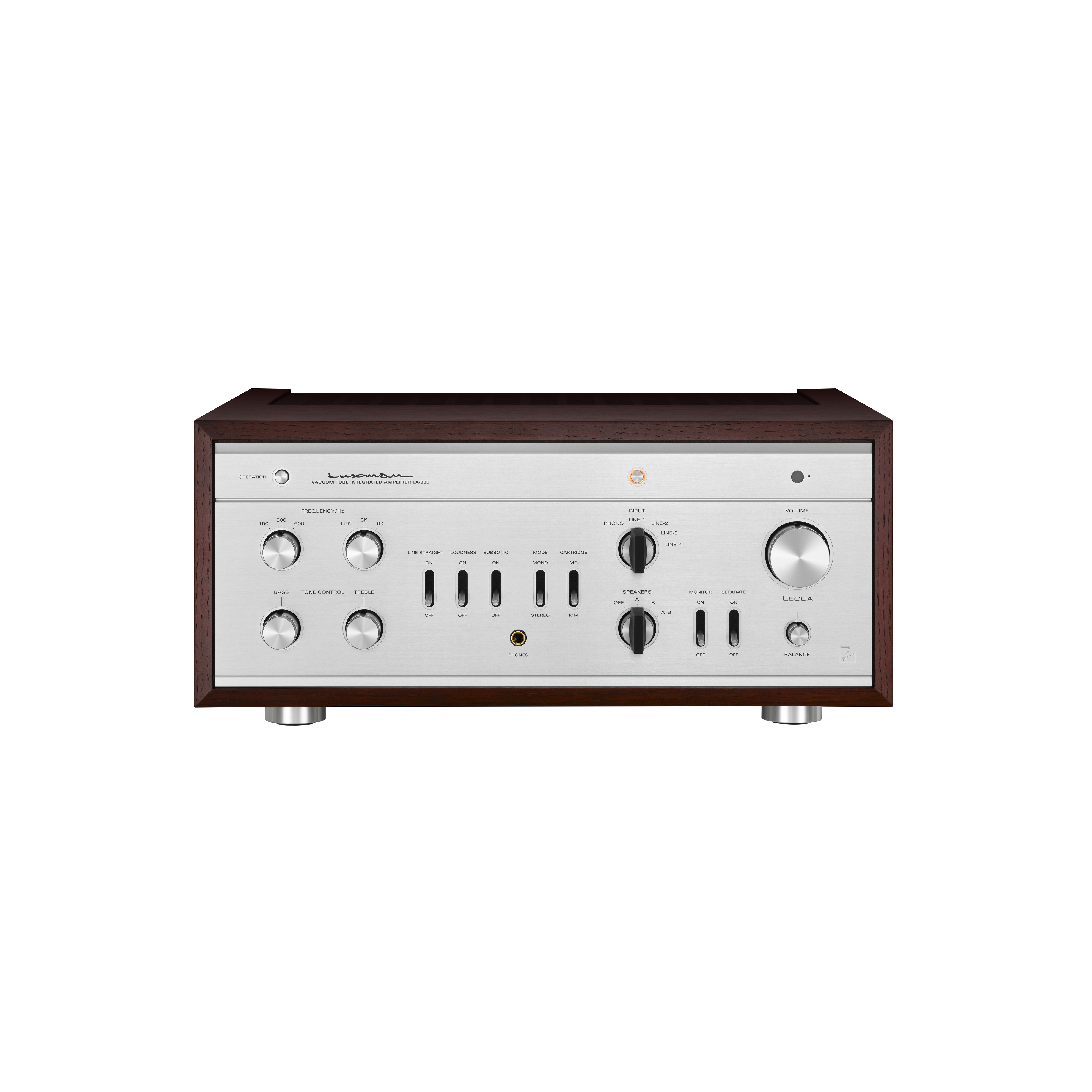

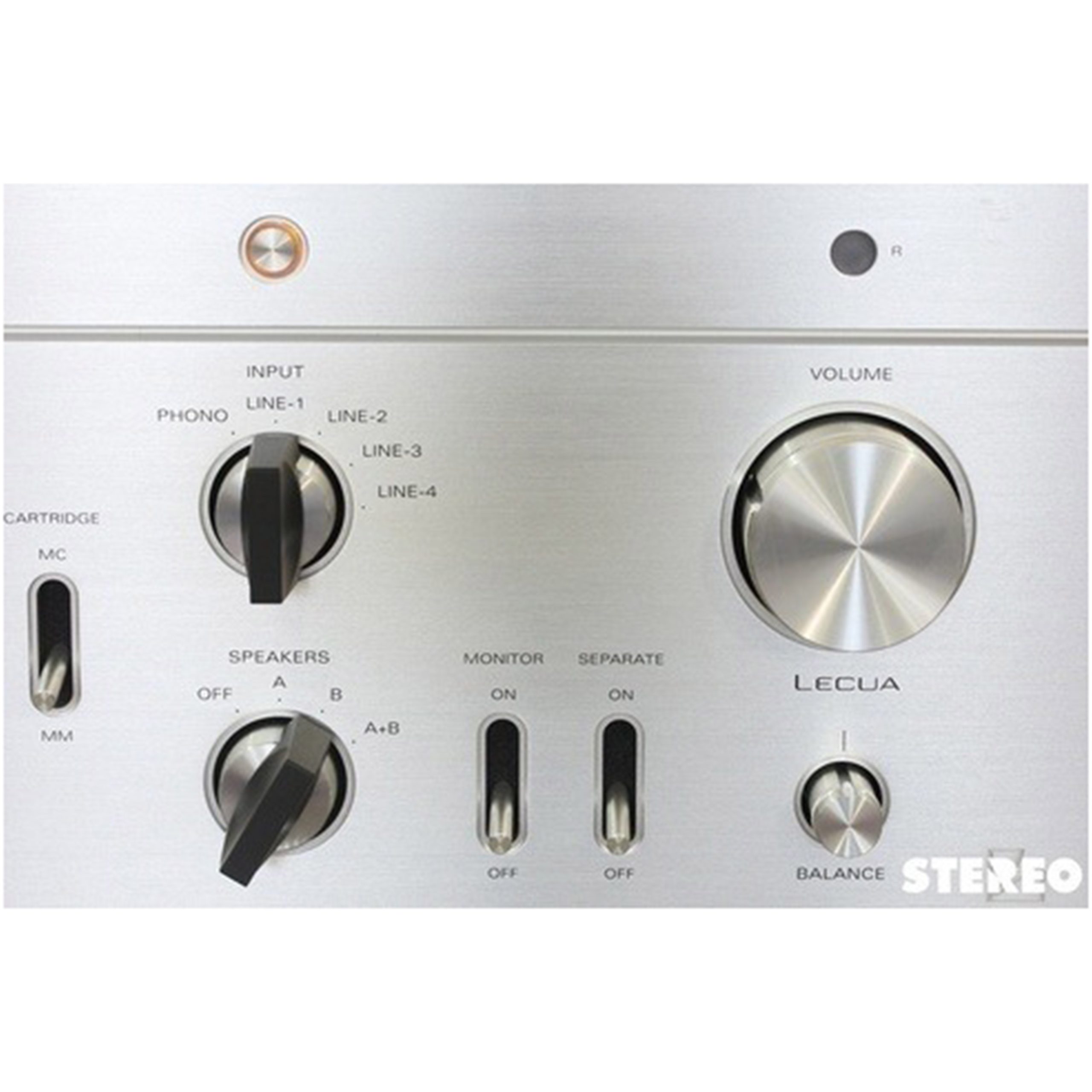

Classical knob layout and wooden case
The first-ever vacuum tube amplifier to feature LECUA
Expandability options

For more information:

Contact : Dicky Ng 012-3308893
Contact : John Yew 016-2861000
Email : [email protected]

Weight	19 kg

Specification

Rated output	20W + 20W (6Ω), 18W + 18W (8Ω), 14W + 14W (4Ω)
Input sensitivity/input impedance (PRE OUT :1V)	PHONO (MM): 3.0mV/47kΩ PHONO (MC): 0.38mV/100Ω LINE: 180mV/47kΩ, MAIN-IN: 690mV/100kΩ
Output voltage	RECOUT: 180mV, PRE OUT: 1V
Frequency response	PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 80kHz (+0, -3.0dB)
Total harmonic distortion	1% or less (6Ω, 1kHz)
S/N ratio (IHF-A)	PHONO (MM): 84dB or more PHONO (MC): 67dB or more LINE: 95dB or more
Volume adjustment	LECUA
Circuit	Driver: Mullard, Output: beam tetrode connection

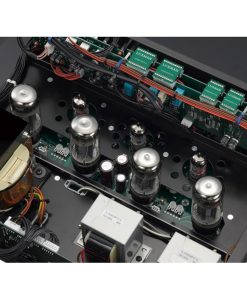

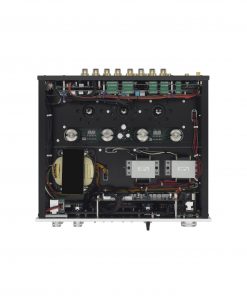

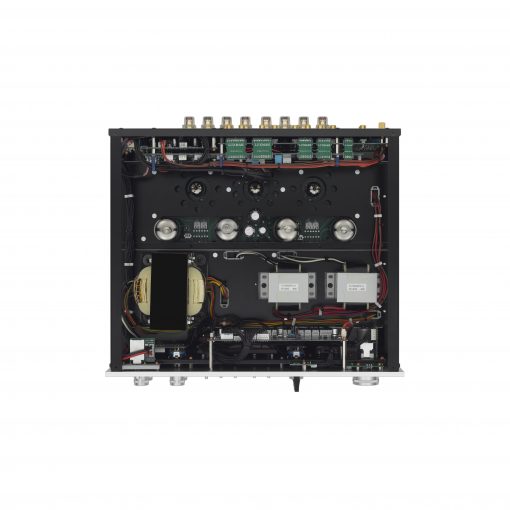

Vacuum tubes	6L6GC×4, ECC82×3
Rated output	20W + 20W (6Ω), 18W + 18W (8Ω), 14W + 14W (4Ω)
Input sensitivity/input impedance (PRE OUT :1V)	PHONO (MM): 3.0mV/47kΩ PHONO (MC): 0.38mV/100Ω LINE: 180mV/47kΩ, MAIN-IN: 690mV/100kΩ
Output voltage	RECOUT: 180mV, PRE OUT: 1V
Frequency response	PHONO: 20Hz to 20kHz (±0.5dB) LINE: 20Hz to 80kHz (+0, -3.0dB)
Total harmonic distortion	1% or less (6Ω, 1kHz)
S/N ratio (IHF-A)	PHONO (MM): 84dB or more PHONO (MC): 67dB or more LINE: 95dB or more
Volume adjustment	LECUA
Circuit	Driver: Mullard, Output: beam tetrode connection
Vacuum tubes	6L6GC×4, ECC82×3
Output configuration	Push-pull

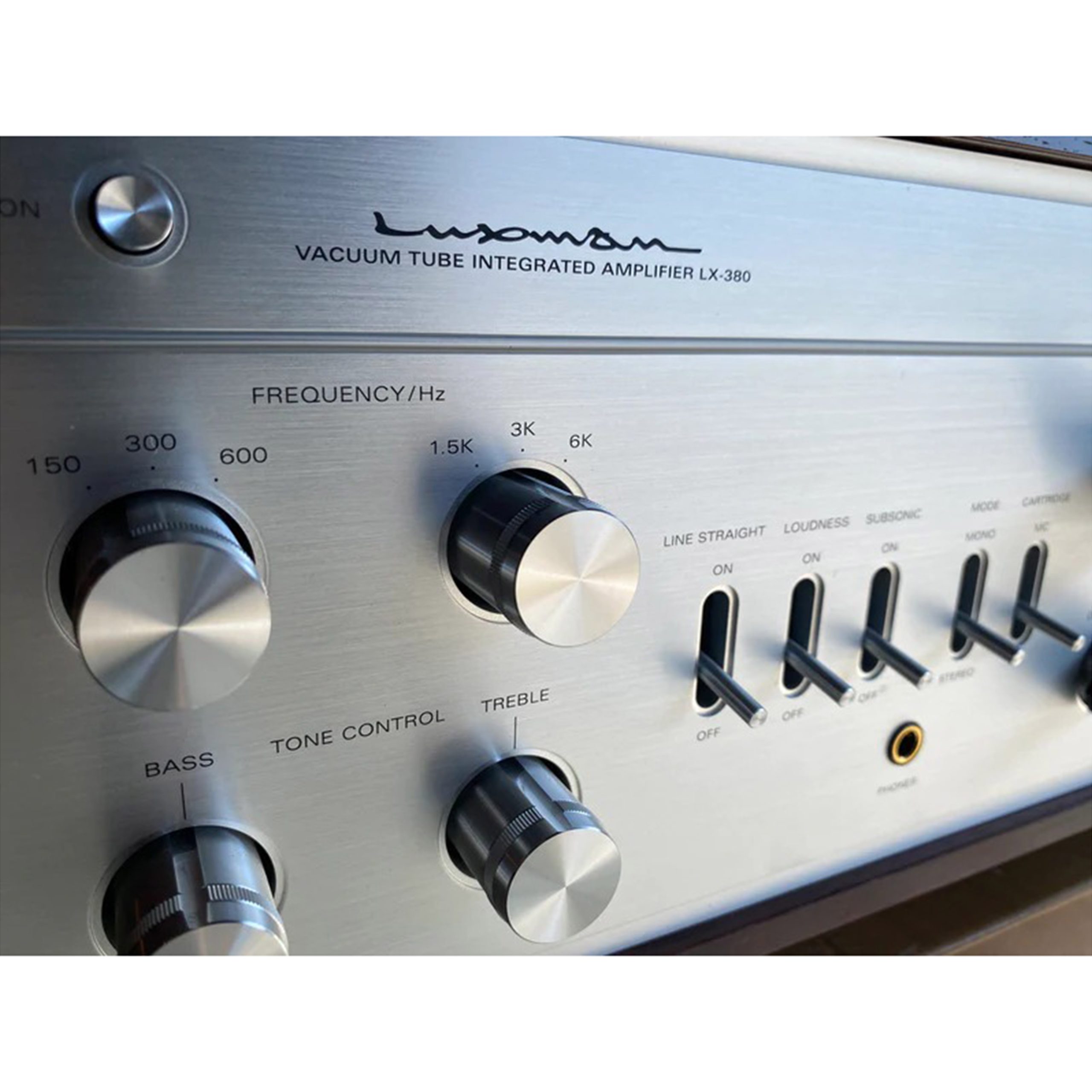

Max. amount of tone control	±8dB, turnover frequency switch-over system BASS: 150 / 300 / 600Hz, TREBLE: 1.5k / 3k / 6kHz
Power supply	230V~(50Hz) / 115V~(60Hz)
Power consumption	127W
External dimensions	440(W) x 197(H) x 403(D) mm front side knob of 25mm and rear side terminal of 28mm included in depth
Net weight	17.6kg (main unit)

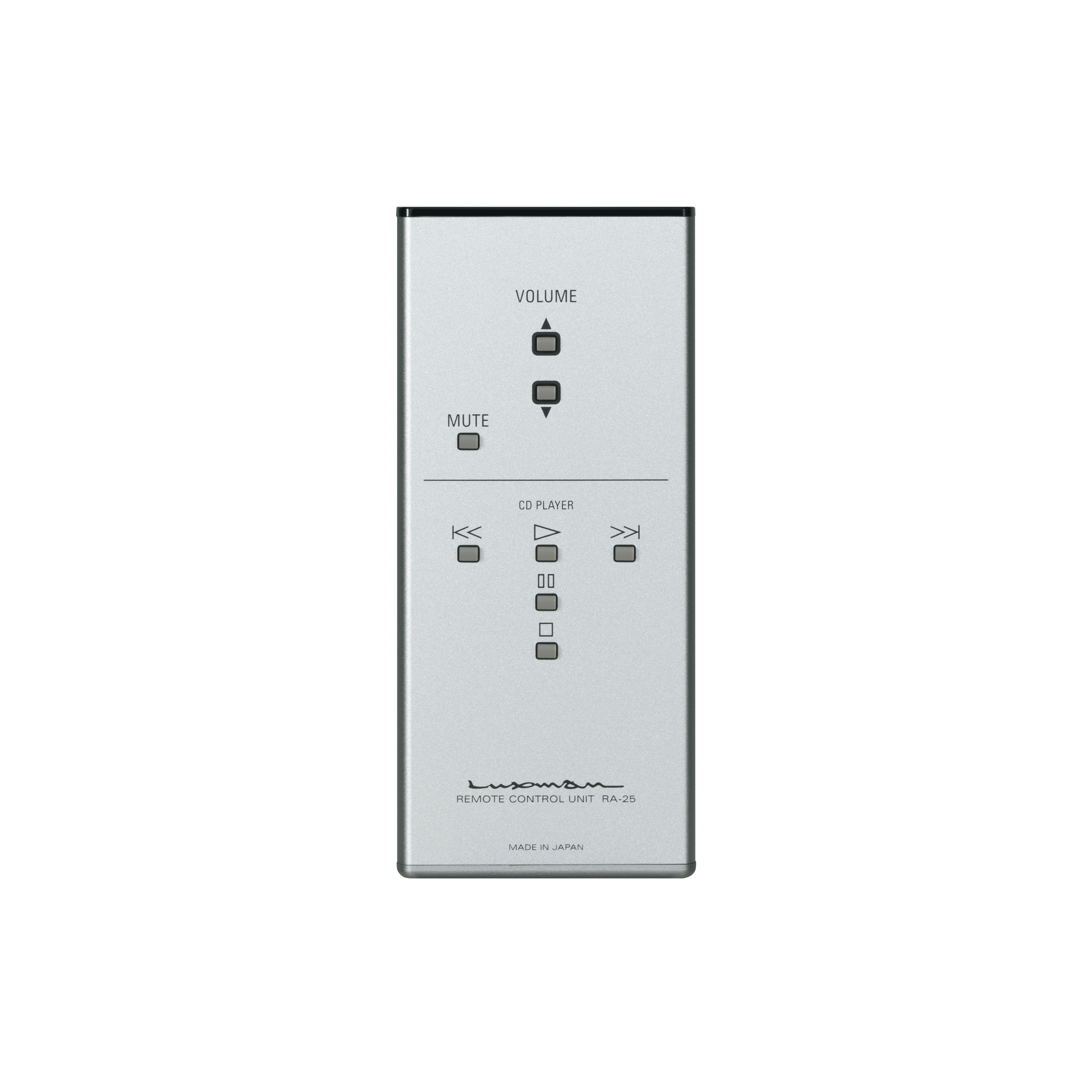

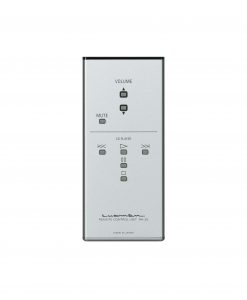

Accessories	Remote controller (RA-25) Power cable
Speaker terminal Supported Y-lug terminal dimension	Width of part a: 15mm or less Width of part b: 8mm or more * Connection may not be performed depending on the shape of the Y-lug terminal.

Product Reviews

“Its sound mostly mirrored what I heard from the phono stage: spectrally correct, fundamentally musical, clean, transparent, and with an evenhanded balance. Though my experience with headphones is limited, I found the sound of the LX-380’s headphone amp quite satisfying, and would often listen this way late at night.” #SoundStage! Hi-Fi

https://www.soundstagehifi.com

“…the Luxman LX-380 could be the holy grail for modern hi-fi enthusiasts leaning towards different listening priorities with a clear focus on detail extraction, flat-line accuracy and “wire-like” flow-through transparency.” #audioFi.net

https://audiofi.net/2020/04/luxman-lx-380-amplifier-a-modern-take-on-the-vintage/
