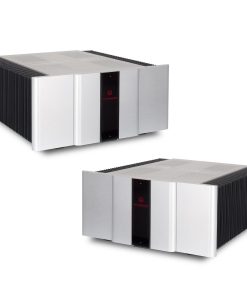

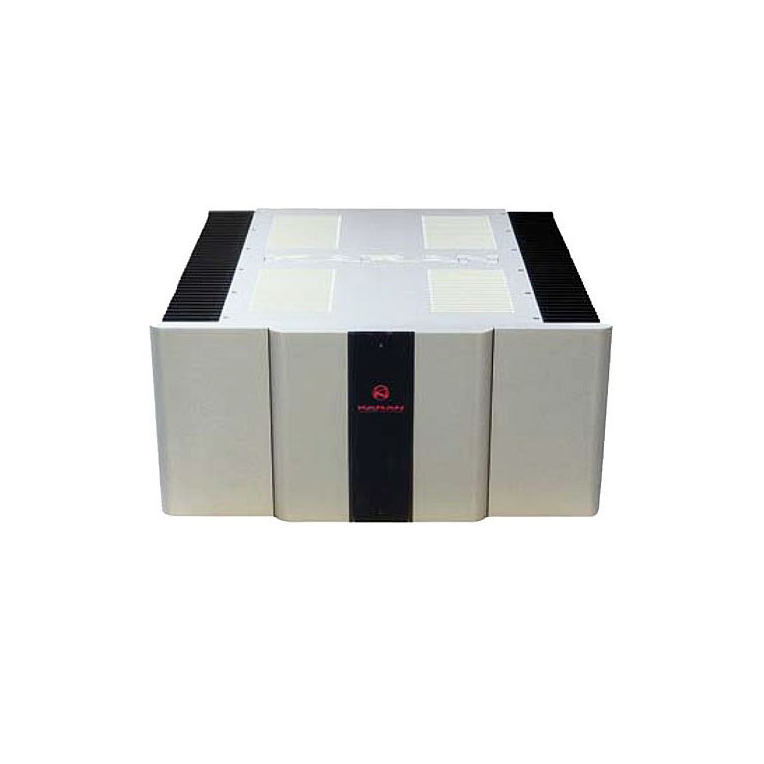

Karan Acoustics

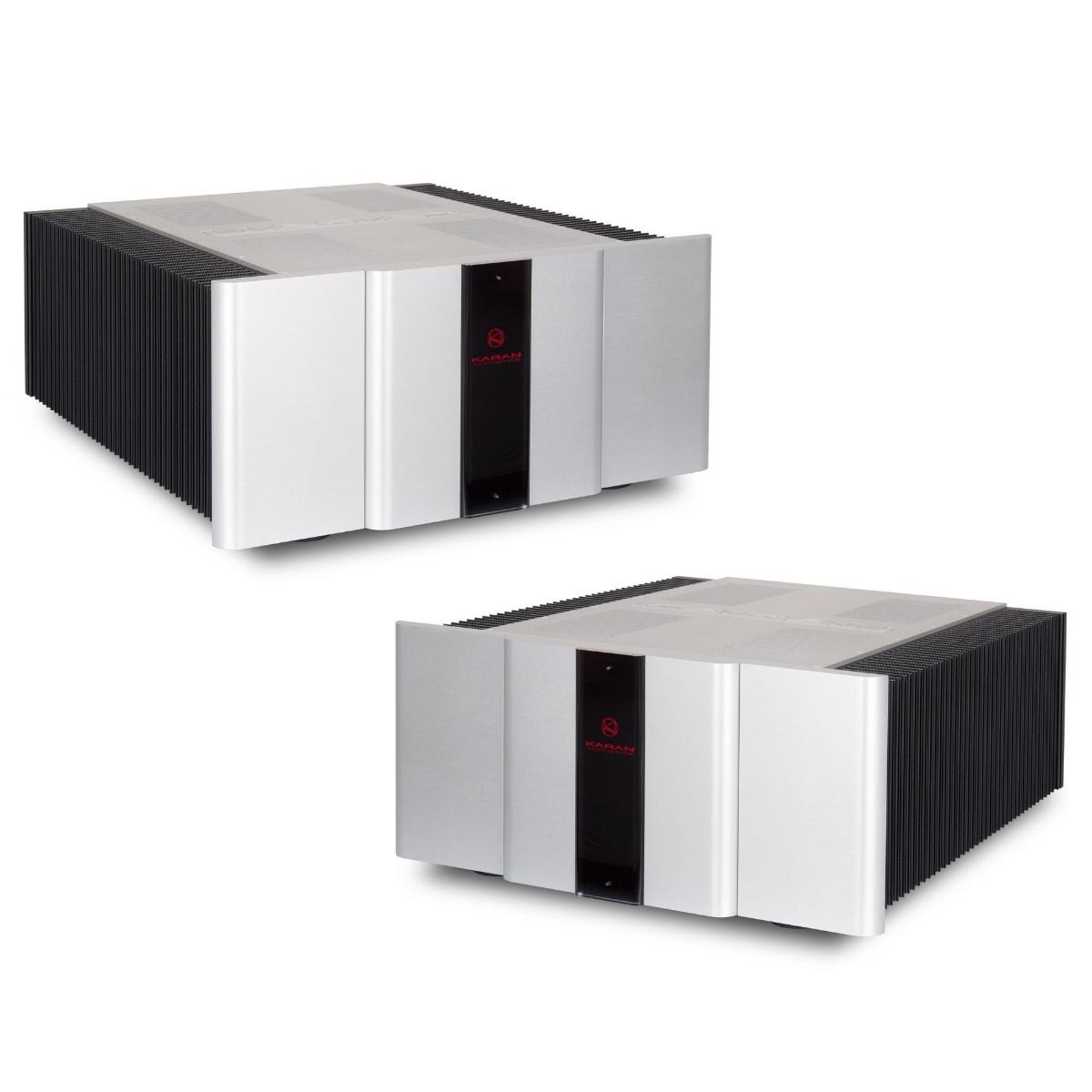

KA M2000
Power Amplifier ( 2pcs Monoblock)
(Made In Europe)

Overview

For those who will settle for nothing less than the ultimate. If you wish to reach the stars, these monsters will certainly bring you there. Derived directly from our great stereo KA S 600 amplifier, the differences being that these are mono power amplifiers, have some special circuits developed for better work of monoblocks, and that their power ratings are 2.000/3.600/5.400 W into 8/4/2 Ohms.

Huge power of KA M 2000 will drive any loudspeaker to its maximum capabilities with incredible ease. Power isn’t the only advantage of these magical monoblocks. Their naturalness and musicality will give you completely new experiences and knowledge by listening to music from your music library, regardless if your volume is set high or low.

Experience and relaxation which you will feel while listening to these, by all means, fascinating monoblocks, will be something completely new. As music experience is something very personal, it is hard to describe it, and the best way is to experience it and enjoy its magic endlessly.

Technical data

• Extremely short signal path, 24k gold plated circuit boards.
• 40 ultra fast Sanken RET output power devices per channel, with a total current capability of 800 Amperes;
• 8 stages of voltage regulation.
• Current feedback topology, with no overall feedback and with only 0.02% Intermodulation distortion (IMD) at rated power output into 8 Ohms.

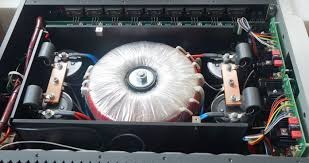

• Each channel uses a custom molded 1,500 VA extremely low noise toroidal transformer and 132.000 µF of total capacitance.
• 2 custom power cords each for channel

– 24k gold plated circuit boards;

– Vishay resistors on critical places

– Custom made Teflon/Copper capacitors on critical places

– Cardas internal wiring

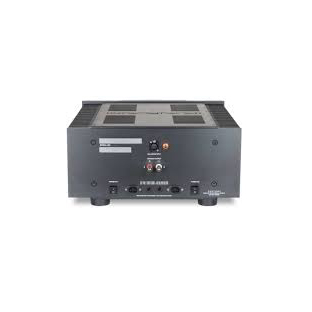

– Top WBT 0705Ag speaker Binding Posts

– Top WBT 0210Cu RCA Nextgen Sockets

– Furutech IEC Input Connectors

– Furutech Fuses

– Frequency response DC-300kHz +0, -3 dB;

– S/N ratio better than -112 dB at rated output into 8 Ohms;

– Damping factor better than 10.000:1 into 8 Ohms, 20Hz…20kHz;
