UNLEASHING PURE POWER
At its core lies Goldmund’s proprietary Telos® amplification technology, a meticulously engineered Class A/B circuit that merges the linearity of analog components with a high-bandwidth architecture. The result? Unparalleled sonic purity with ultra-low distortion and maximum efficiency.
MASTERY IN MOTION
Telos® amplifiers are designed for absolute speaker control, providing clean power while preserving the integrity of the audio signal. Proper driver control ensures high-fidelity sound reproduction without distortion or unwanted artifacts.
This is particularly key in low frequencies, preventing woofer diaphragms from excessive motion and, hence, unwanted vibrations. By enhancing linearity of each amplification stage, Telos® technology virtually eliminates harmonic and intermodulation distortion. A higher-bandwidth circuit reduces group delay distortion, ensuring impeccable timing and sonic coherence.
SONIC PERFECTION, ENGINEERED
Goldmund’s advanced circuit architecture separates high and low-current circuits, preventing feedback and interference for pristine audio signal transmission. The integration of Mechanical Grounding™ technology further enhances signal purity by channeling vibrations directly into the ground.
The sophisticated output impedance reduction improves micro-dynamics, controls excessive woofer overshot in high-power conditions, and eliminates unnaturally “boomy” bass, guaranteeing absolute sonic transparency.
FROM WHISPER TO ROAR
Despite its immense power, the Telos 4800 delivers exceptional performance from the very first watt. Whether at whisper-quiet volumes or at full-volume orchestral energy, its amplification remains pure, dynamic, and distortion-free—offering an immersive listening experience like no other.
PRECISION MEETS AESTHETICS
- Seamless Aluminum Chassis: Precision-machined from micro-blasted aluminum, its sleek, joint-free chassis offers both structural integrity and aesthetic refinement. Standard in grey or black finishes*.
- Advanced Electromagnetic Shielding: The solid aluminum structure acts as a barrier against EMI, ensuring pure, undisturbed sound.
- Optimized Thermal Management: Its 15mm-thick aluminum panels and 40mm-thick radiator chassis serve as an integrated passive heat sink, maintaining optimal operating temperatures.
BUILT FOR SONIC PURITY
- Heavy-Weight Structure: A robust, heavy-weight envelope ensures maximum stability, while specialized resin-coated transformers minimize mechanical and electronic vibrations eliminating unwanted resonances.
- Conic Feet Technology: A core element of Goldmund’s Mechanical Grounding™ system, these feet effectively evacuate vibrations into the ground, preventing resonance buildup.
- Gold-Plated Copper Components: Screws, connectors, and heat sinks are crafted from gold-plated copper for superior conductivity and minimal signal loss.
BUILT FOR SONIC PURITY
- Heavy-Weight Structure: A robust, heavy-weight envelope ensures maximum stability, while specialized resin-coated transformers minimize mechanical and electronic vibrations eliminating unwanted resonances.
- Conic Feet Technology: A core element of Goldmund’s Mechanical Grounding™ system, these feet effectively evacuate vibrations into the ground, preventing resonance buildup.
- Gold-Plated Copper Components: Screws, connectors, and heat sinks are crafted from gold-plated copper for superior conductivity and minimal signal loss.
THE PURSUIT OF ABSOLUTE TRANSPARENCY
Each amplifier undergoes rigorous objective testing and subjective listening evaluations to ensure it delivers the purest, most immersive sound experience possible.
- Near-zero noise
- Near-zero vibration
- No overheating
- Near-zero harmonic distortion
- Near-zero intermodulation & ultra-low TIM distortion
- Exceptionally high dynamic range
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 200 kg |
|---|
Specification
| Power Output | 1050 Wrms @ 8 Ω (1% THD), 2100 Wrms @ 4 Ω, 2200 Wrms @ 2 Ω |
| Total Harmonic Distortion (THD) | < 0.005% (20 Hz – 20 kHz at 30 Vrms) |
| Damping Factor | 600 at 1 kHz / 8 Ω |
| Dynamic Range | 117 dB |
| Output Noise | < 3 µV (20 Hz – 20 kHz) |

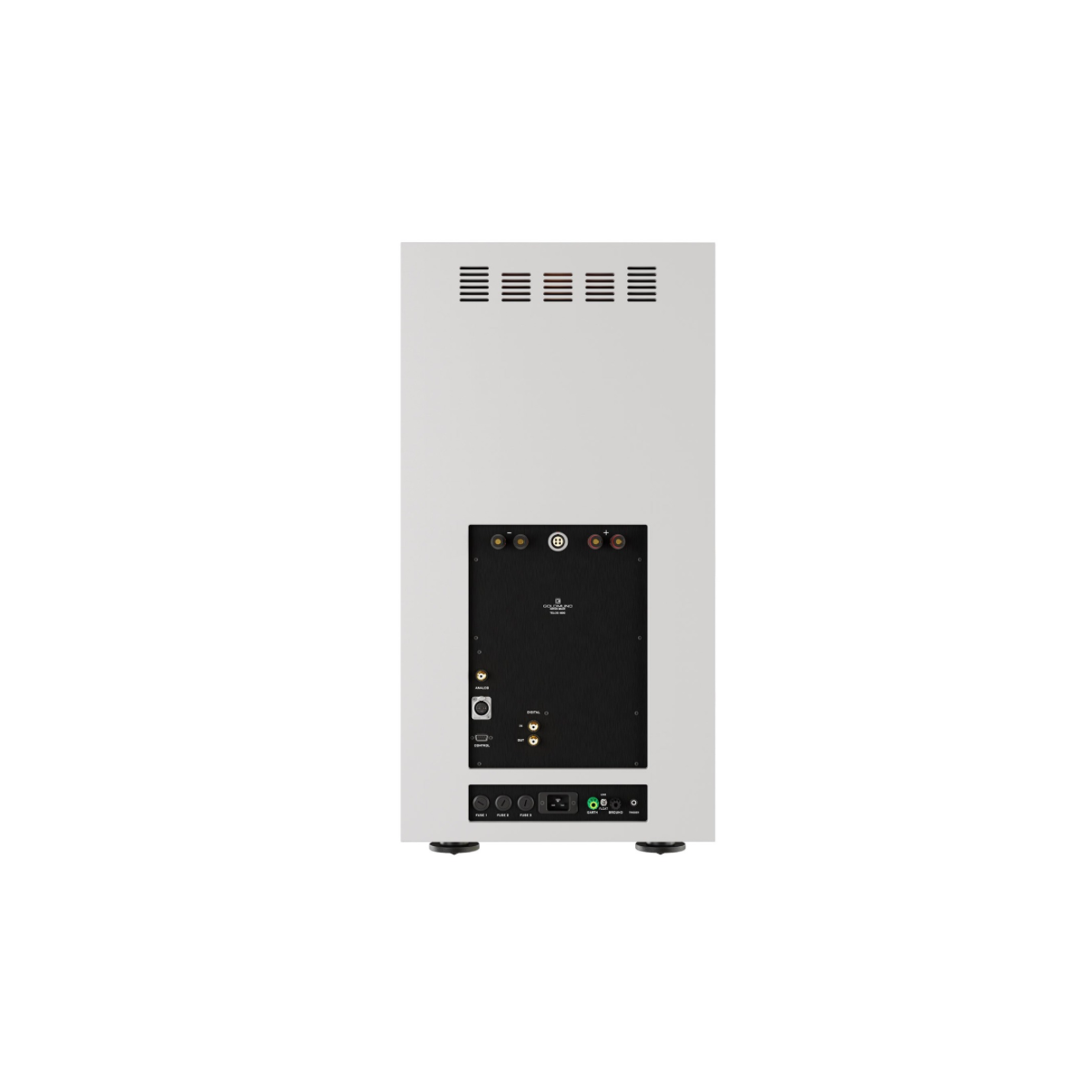

| Input / Output | Balanced XLR, Unbalanced RCA, Digital RCA I/O, 5-way Binding Posts, 4B-type Speaker Connectors |
| Gain | 35 dB (± 9 dB adjustable in 3 dB steps) |
| Chassis | 15mm aluminum panels with 40mm radiator for passive cooling |
| Design | MKP silver-metallized polypropylene capacitors, copper ground plane |
| Dimensions | 420W x 826H x 500D mm |
| Weight | 195 kg (429 lbs) |
| Protection | DC offset, short-circuit, thermal protection |
| Operating Voltage | 115V / 230V (universal power socket) |
