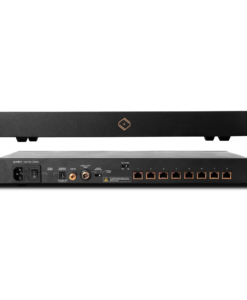

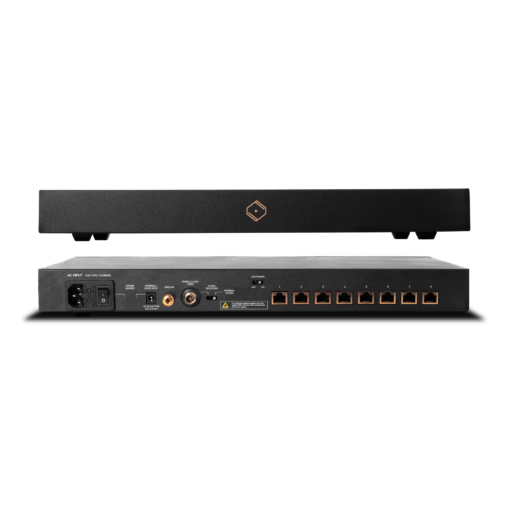

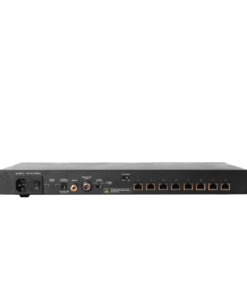

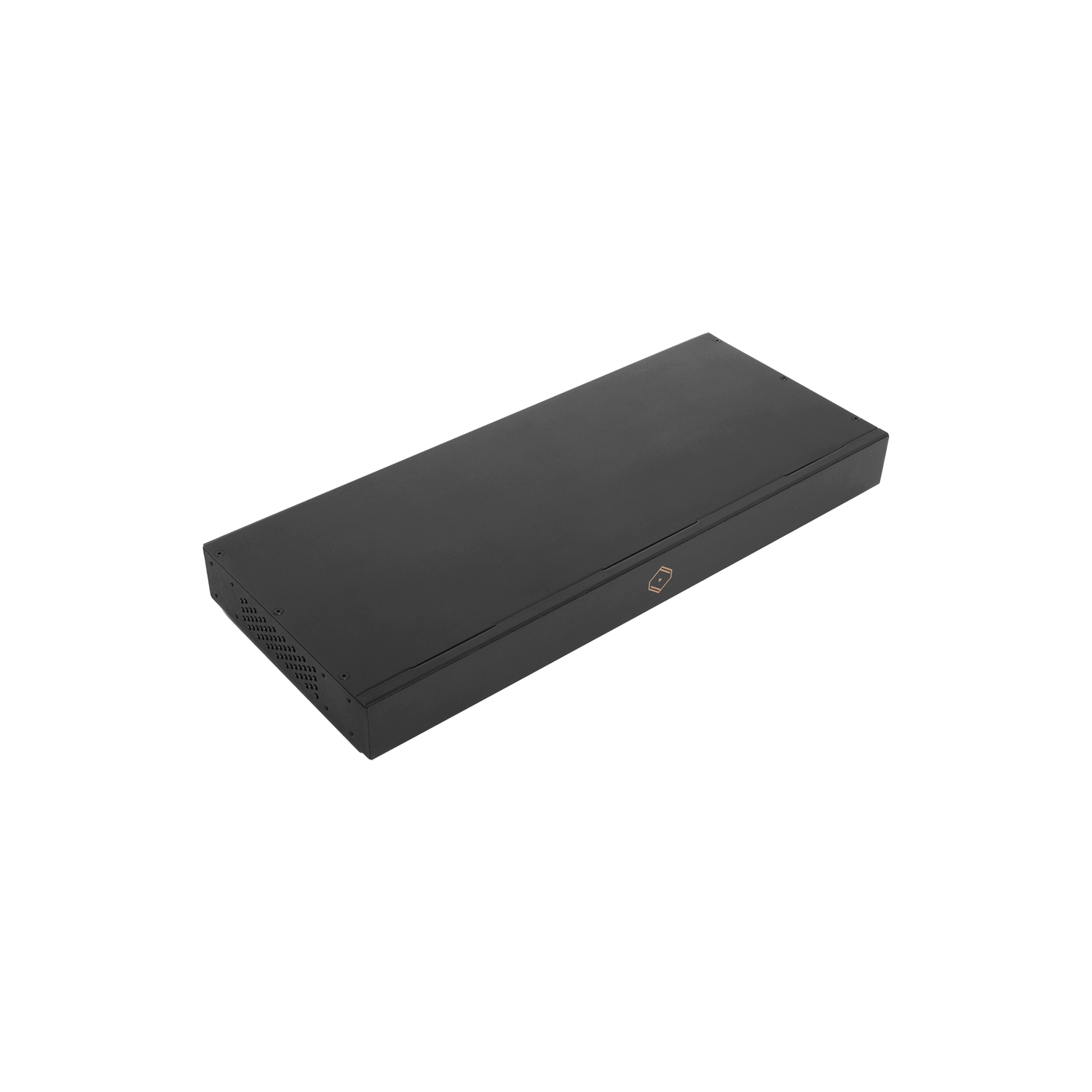

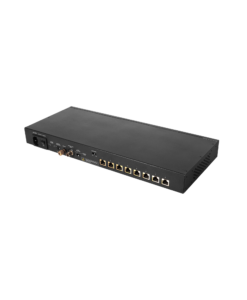

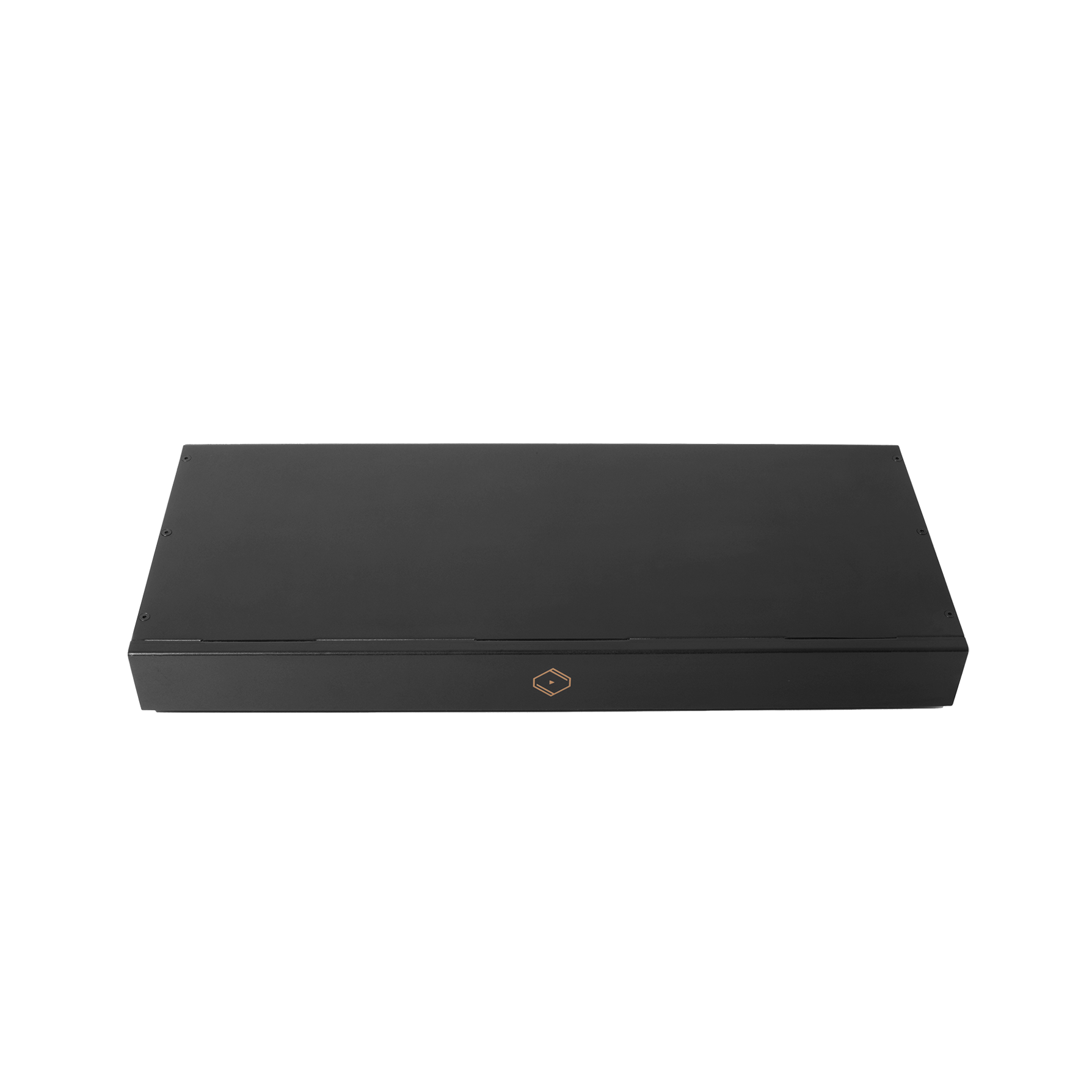

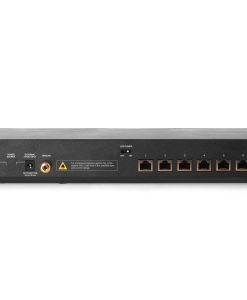

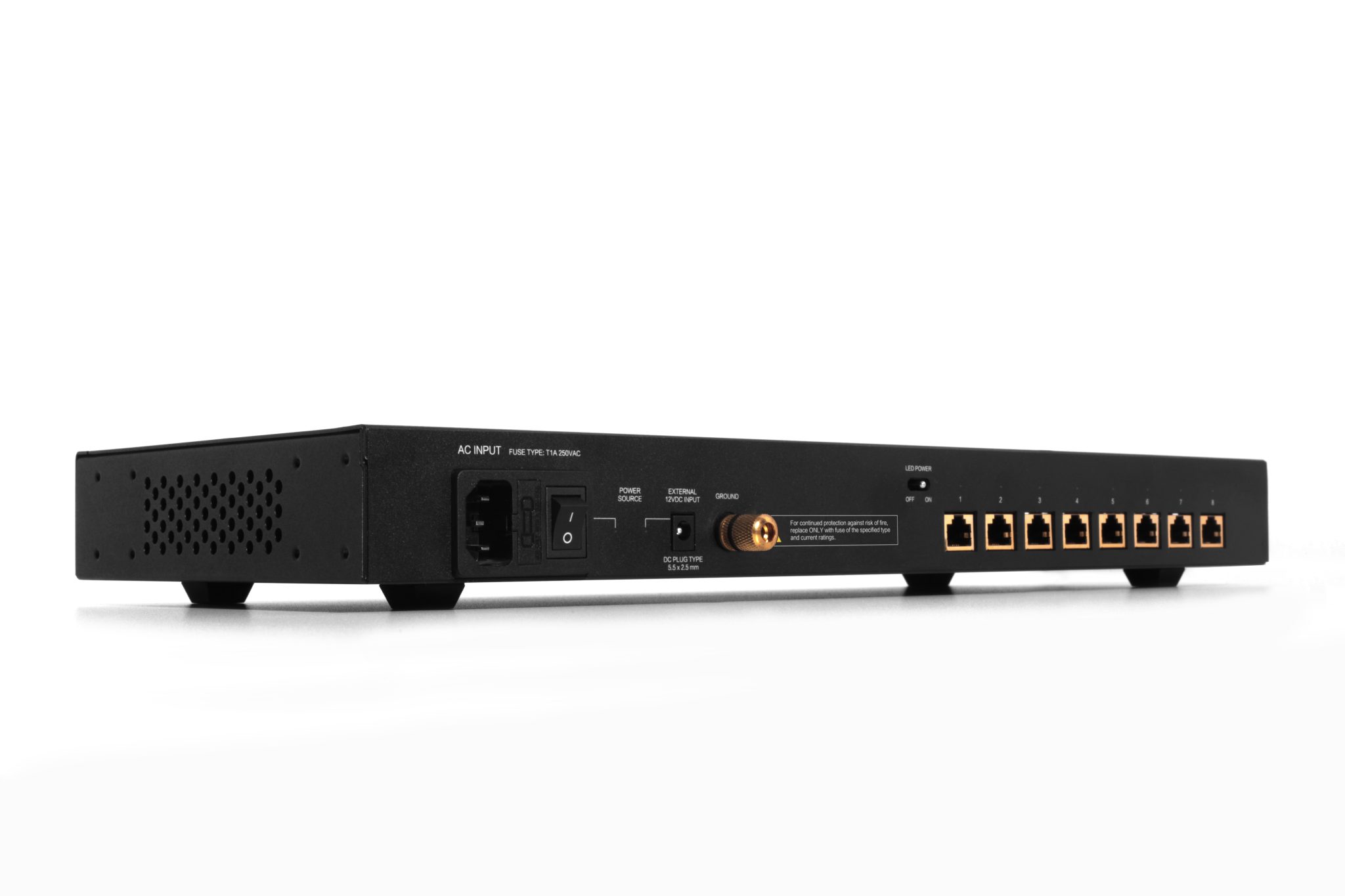

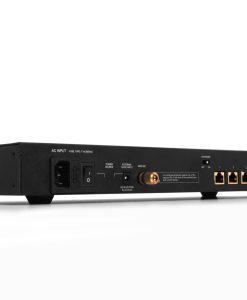

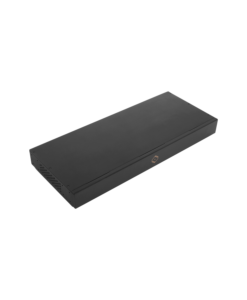

Silent Angel Bonn N8 Pro
Silent Angel Bonn N8 Pro network switch is an advanced unit with a built-in high-quality Radar Grade power module and EMI absorber.
Unique and Advanced Designs

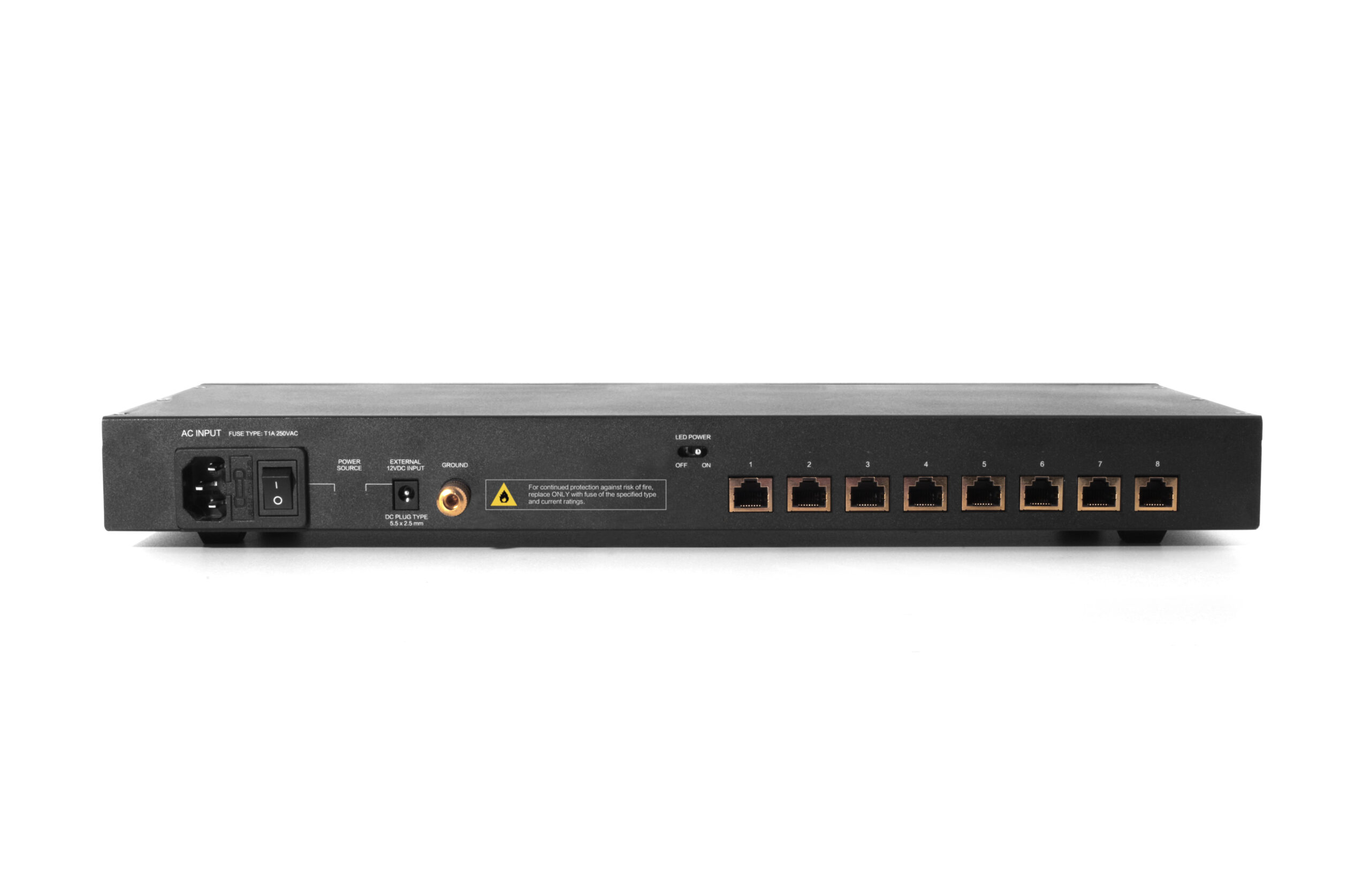

- Eight gold-plated enclosed Gigabit Ethernet Ports with spaced out ports to physically reduce possible signal interference.
- Class-leading Radar-Grade internal switching power supply module, which is exclusive to noise-sensitive acoustic equipment.
- Perfectly timed data transmission.
- TCXO (Temperature Compensation Crystal Oscillator) greatly lowers network latency issues and jitter effects.
EMI ABSORBER
Silent Angel claims that by adopting a Radar Grade power module, a highly efficient DC/DC converter and a low-rippled LDO regulator circuit on the power board, the Bonn N8 Pro presents a low 28mV(Vp-p) power signal when compared to many regular switches that present at 122mV(Vp-p). One of Silent Angel’s signature features, a high-permeability EMI absorber, is embedded in the power board with the aim of diminishing electronic noise (ranges from 1M to 18GHz).
Clock Precision

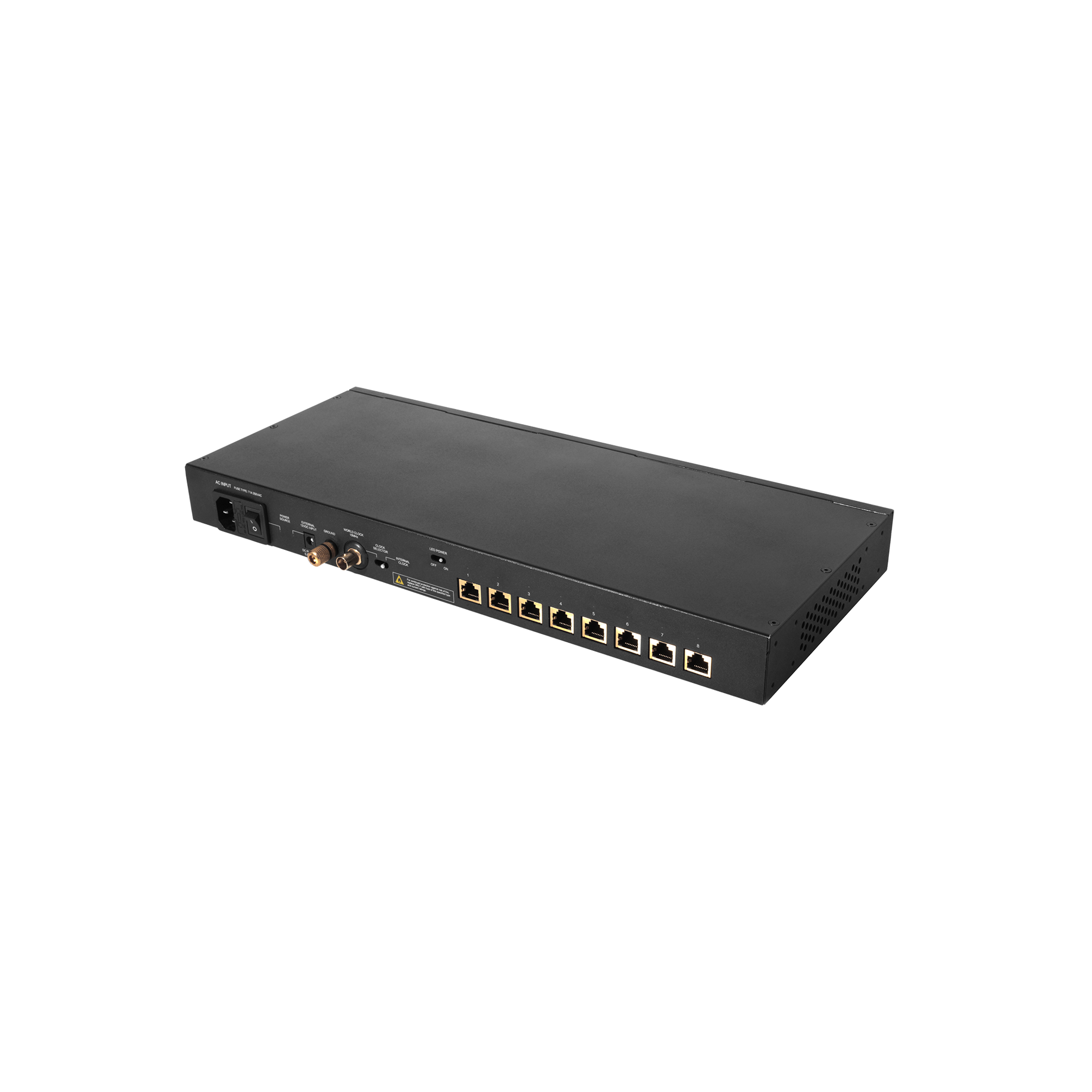

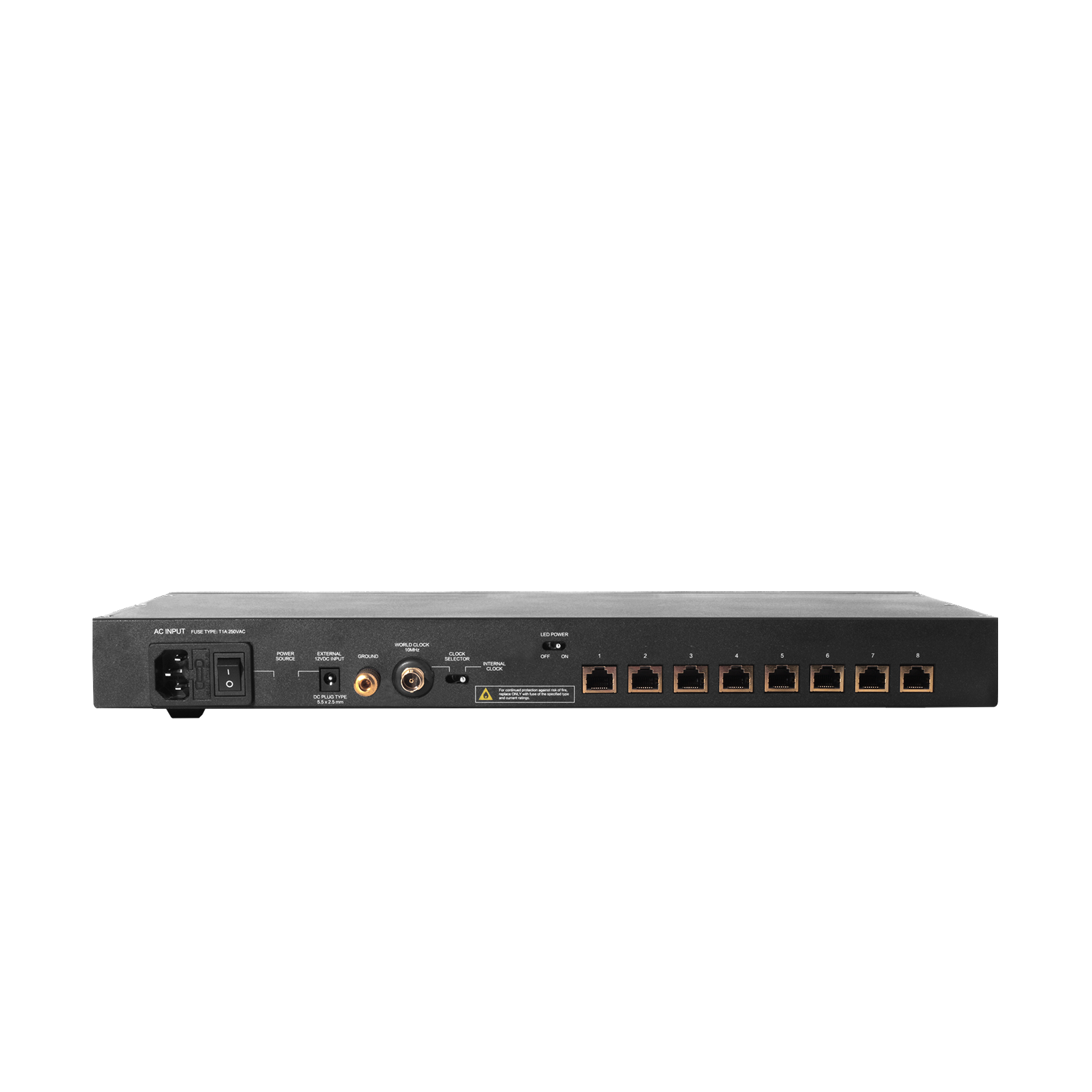

There are two models available, the N8 PRO-CLK with a 10MHz external World Clock input*, and the N8 PRO without the input. With a 0.1ppm with high thermal stability, the advanced model Bonn N8 Pro-CLK uses a BNC interface 10MHz world clock input that further synchronizes the clock signals.
Enhanced with interference-reduction and clock-precision techniques, the Bonn N8 Pro is dedicated to optimizing sensitive high-frequency audio system networks. Cable organization also becomes easier thanks to the widened 5mm space between each of the eight 1um-gold plated GbE ports, allowing better signal and usability.
Radar Grade Power Module
Sporting a high-efficiency DC/DC converter and a low-rippled LDO regulator circuit on the power board, the Bonn N8 Pro presents a low 28mV(Vp-p) power signal when compared to regular switches that present at 122mV(Vp-p).
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 3 kg |
|---|
Specification
| Power Input: | IEC (AC) 100-240V, 50/60Hz (DC) 12V/0.8A at max |
| Power Consumption: | 10 Watt at max |
| Ethernet Port: | Pure gold-plated 1GbE RJ45 port x 8 |
| Interface: | Clock input switch x 1 (external/internal) |
| BNC interface | 10MHz external World Clock |
| Silent Angle specialized TCXO clock module | LED indicator switch x 1 Grounding Port x 1 |
| LED Indicator: | Power LED (Green) x 1 at the front panel Port Status LED x 8 (Light on when linked; Flash when it’s active at the rear panel) |
| Green: | 1000Mbps; Amber: 100Mbps |
| Temperature: | Operating: 32 ~ 86 °F Storage: -4 ~ 158 °F |
| Humidity: | Operating: 10% ~ 90% RH (non-condensing) |
| Storage: | 5% ~ 95% RH (non-condensing) |
| Dimensions: | 17.37 (W) inch x 2.05 (H) inch x 6.89 (D) inch |
| Weight: | 2.7 kg |
Product Reviews
“The N8 Pro is clearly good at keeping noise out of the streaming network, it performs better than expected for the price, and it would be intriguing to find out how a power supply upgrade would benefit results. If past experience is anything to go by, it will likely be worth the asking price.” #Hi-Fi Plus
https://hifiplus.com/articles/silent-angel-bonn-n8-pro-network-switch/
“The Silent Angel Bonn N8 Pro is a very capable network switch, it keeps a lot of noise out and allows connected components to perform close to their best. […] it can be further upgraded with a word clock and better grounding is icing on a nicely baked cake.” #The Ear.net
https://the-ear.net/review-hardware/silent-angel-bonn-n8-pro/
