Overview

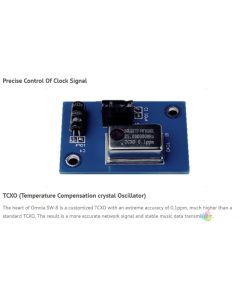

Precise Control Of Clock Signal

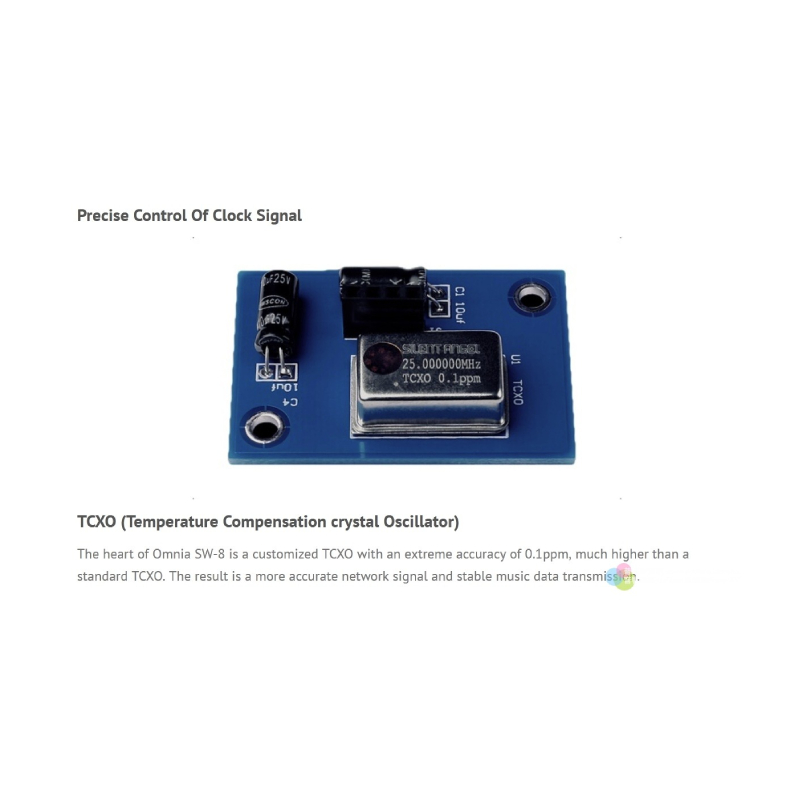

TCXO (Temperature Compensation crystal Oscillator)
The heart of Omnia SW-8 is a customized TCXO with an extreme accuracy of 0.1ppm, much higher than a standard TCXO. The result is a more accurate network signal and stable music data transmission.

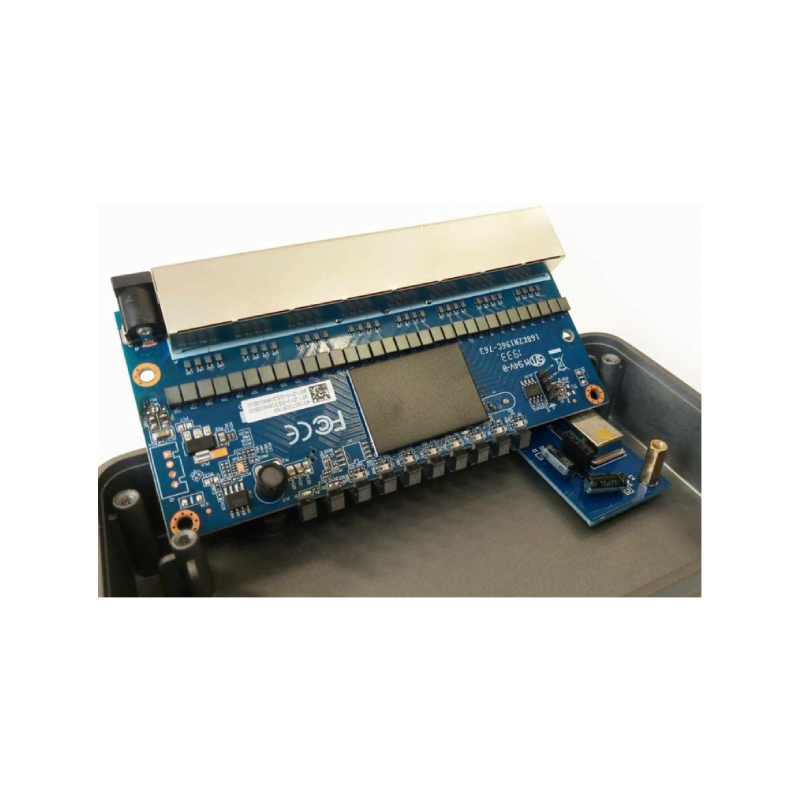

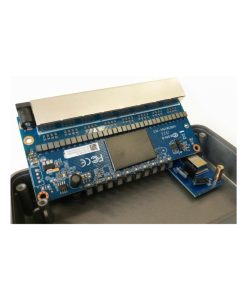

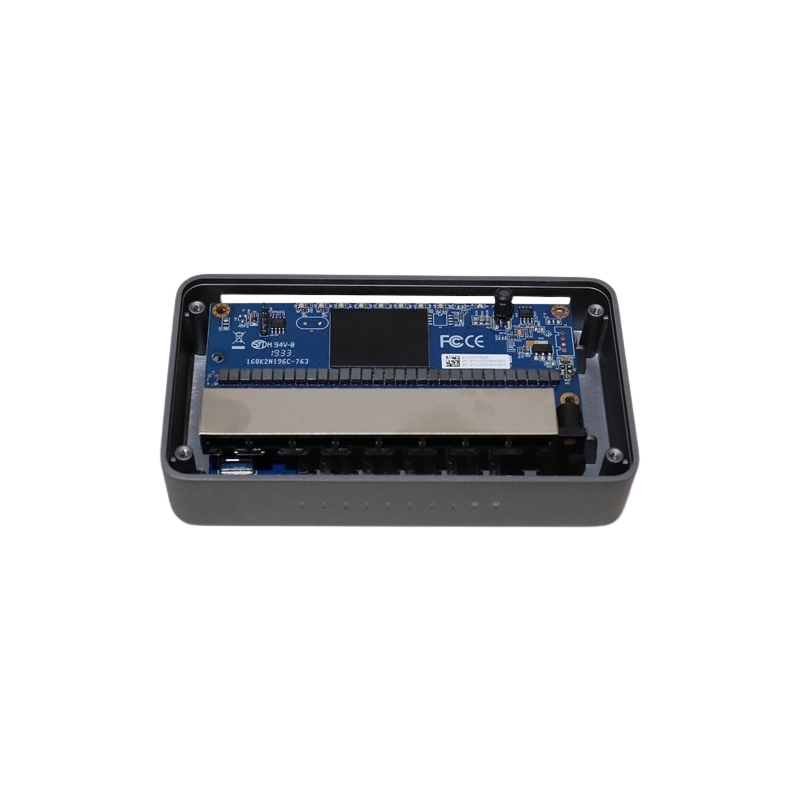

Main Circuit Board
- Two electrical noise isolation circuits, with noise rejection rate 17dB, for power circuit.
- Two electrical noise isolation circuits, with noise rejection rate 20dB, for clock generation circuit.
- This noise isolation circuit ensures Omnia SW-8 to generate stable network signals.
High Permeability EMI Absorber
The Omnia SW-8 utilizes EMI absorber at the inner side of the bottom case to further reduce circuit noise.
Result In Jitter Improvement
The quality of network signal from Omnia SW-8 is 90% better than that of a general switch in jitter measurements.
Regular Home Switches jitter is as high as 705 ps.
Omnia SW-8 jitter is much lower (369 ps)

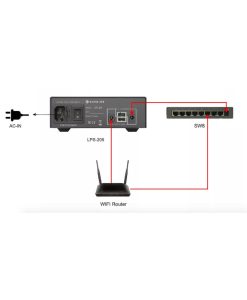

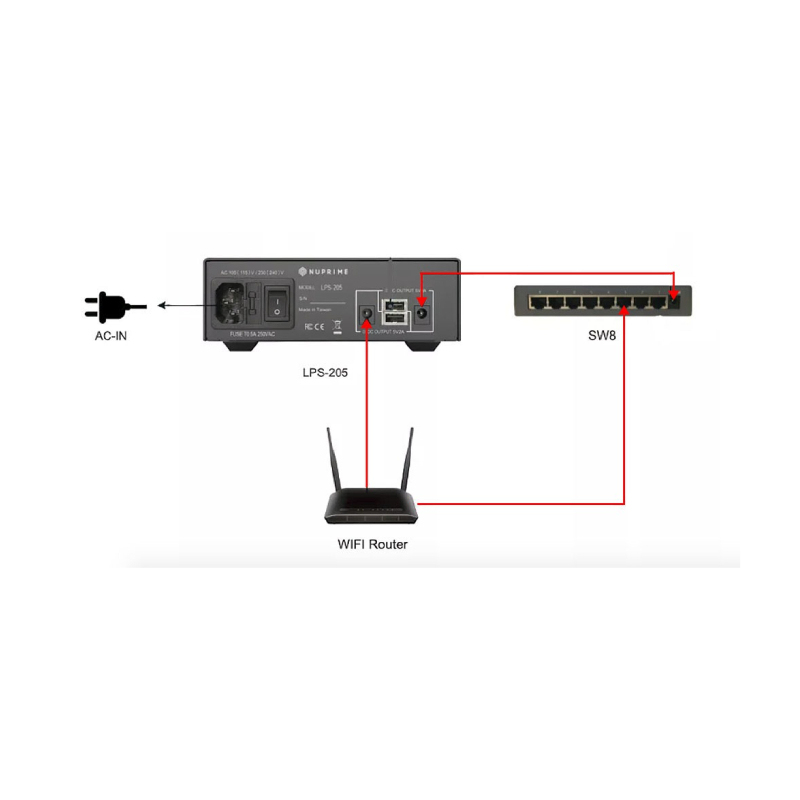

Recommended Setup
For best performance, connect Omnia SW-8 to the router and all network audio components to Omnia SW-8.
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 1.3 kg |
|---|
Specification
- Interface: 8 x Audio Grade 100 / 1000 Base-T
- LED
- 1 x Power LED (Green)
- 1 x Alarm LED (Red)
- 8 x Port Status LEDs (Link / Activity)
- Main Clock Accuracy: 0.1 ppm at 25 °C
- EMI Absorber: Silent Angel Noise Absorber (SANA)
- Noise Isolator
- Main Power Circuit: 17.78 dB @ 100MHz x2
- Clock Gen. Circuit: 20.79 dB @ 100MHz x2
- Medical Grade Power Supply
- Aluminum case
- External Power: 5VDC at 1A Max. 5W. The power adaptor meets 2 X MOPP isolation regulation, which is highest level in medical grade, and has ultra low leakage current (<100μA)
- Product Dimension: 154.5mm x 85mm x 26mm
- Weight: 1.2 Kg (Gross Weight)
- Temperature
- Operating 0 ~ 35 °C
- Storage -20 ~ 70 °C
- Humidity
- Operating: 10% ~ 90% RH (non-condensing)
- Storage: 5% ~ 95% RH (non-condensing)
