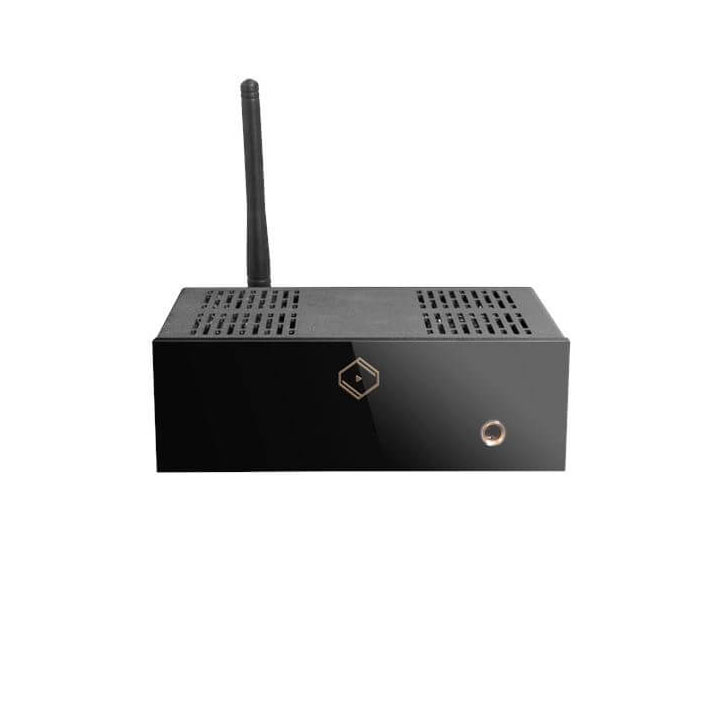

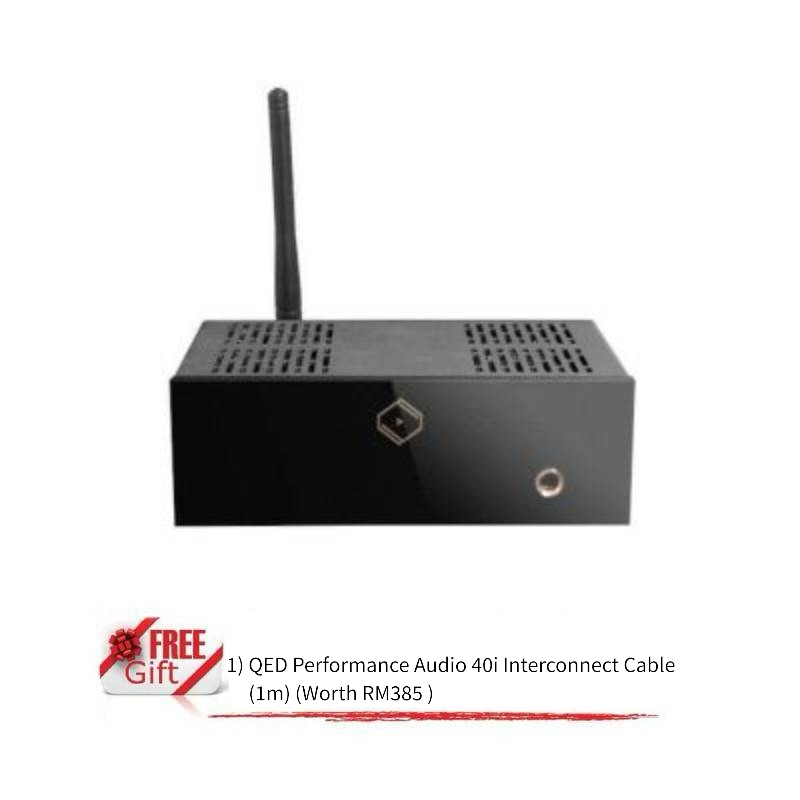

Silent Angel
Bremen B1
Network Streamer
(Music Player)

Specification

• Available Colour	Black
  Power Input	(DC) 5V/2A at max
  Power Consumption	10W at max
  Headphone Jack	6.35 mm headphone jack 33 Ohm: – 1mW, THD+N : 0.0035% – MAX : 375mW THD+N : 0.002%590 Ohm: – Max : 27.5mW, THD+N : 0.0015%

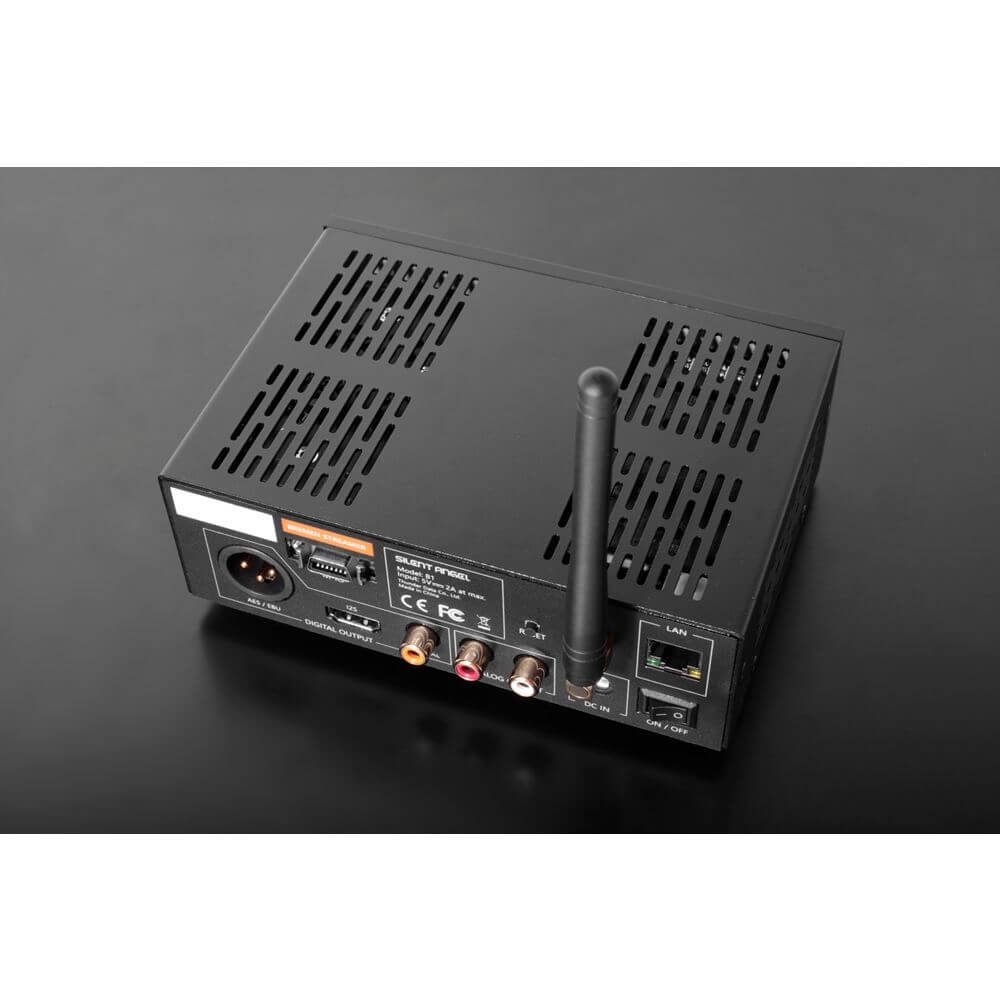

  Digital Outputs	AES/EBU port x 1 I2S port x 1 Coaxial port x 1 – Supports up to PCM 192KHz
  Analog Output	RCA (L+R) – 2Vrms THD+N : 0.00134 / 0.00164% – Frequency response : 20Hz ~20KHz+- 0.5dB – SNR : 108dB
  M-IO	M-IO port x 1 for peripheral access
  Ethernet	100Mbps RJ45 x 1 – works well with high-performance NAS(Network Attached Storage) – connecting to Gigabit LAN port of a router or audio switch

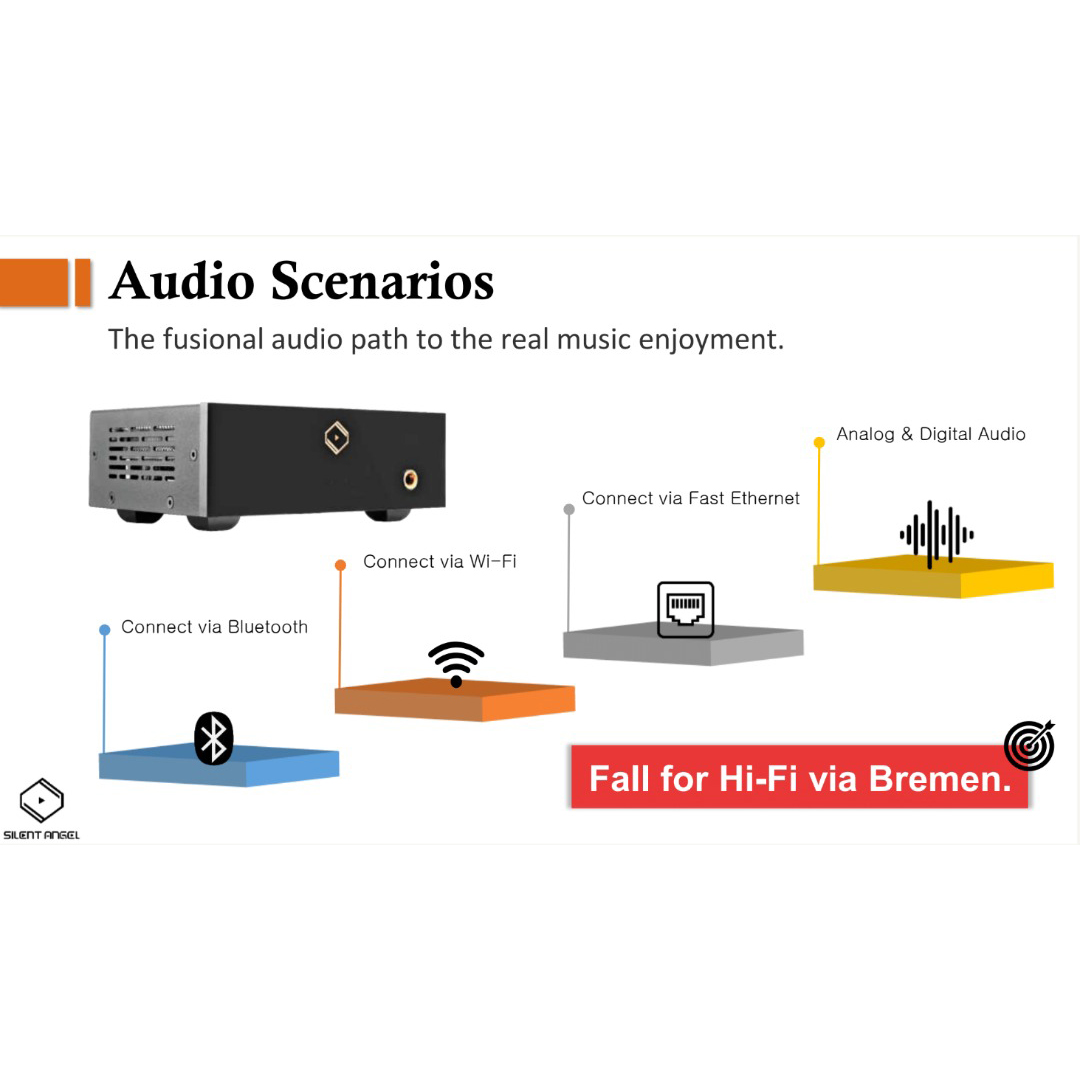

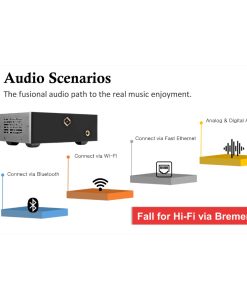

  Wireless Connection	Wi-Fi 802.11 a/b/g/n 2.4GHz Bluetooth 4.2.
  LED Indicator	Mute LED x 1 (Red) Power LED x 1 (Green)System Status LED x 1 (Amber) – Fast blinking: System is booting. – Slow blinking : Connecting to Wi-Fi, Bluetooth, or Ethernet. – Static on: Successfully connected.Playing and Bluetooth Status LED x 1 (Green) – Static on: Playing music – Slow blinking: Choosing to connect by Bluetooth, and it’s connecting – No light: Successfully connected
  Temperature	Operating: 32 ~ 86 °F Storage: -4 ~ 158 °F
  Humidity	Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 95% RH (non-condensing)
  Dimensions	6.11(W) inch x 1.99(H) inch x 4.34(D) inch 155(W) mm x 50.4(H) mm x 110(D) mm
  Weight	1.99 lbs / 0.9 kg
