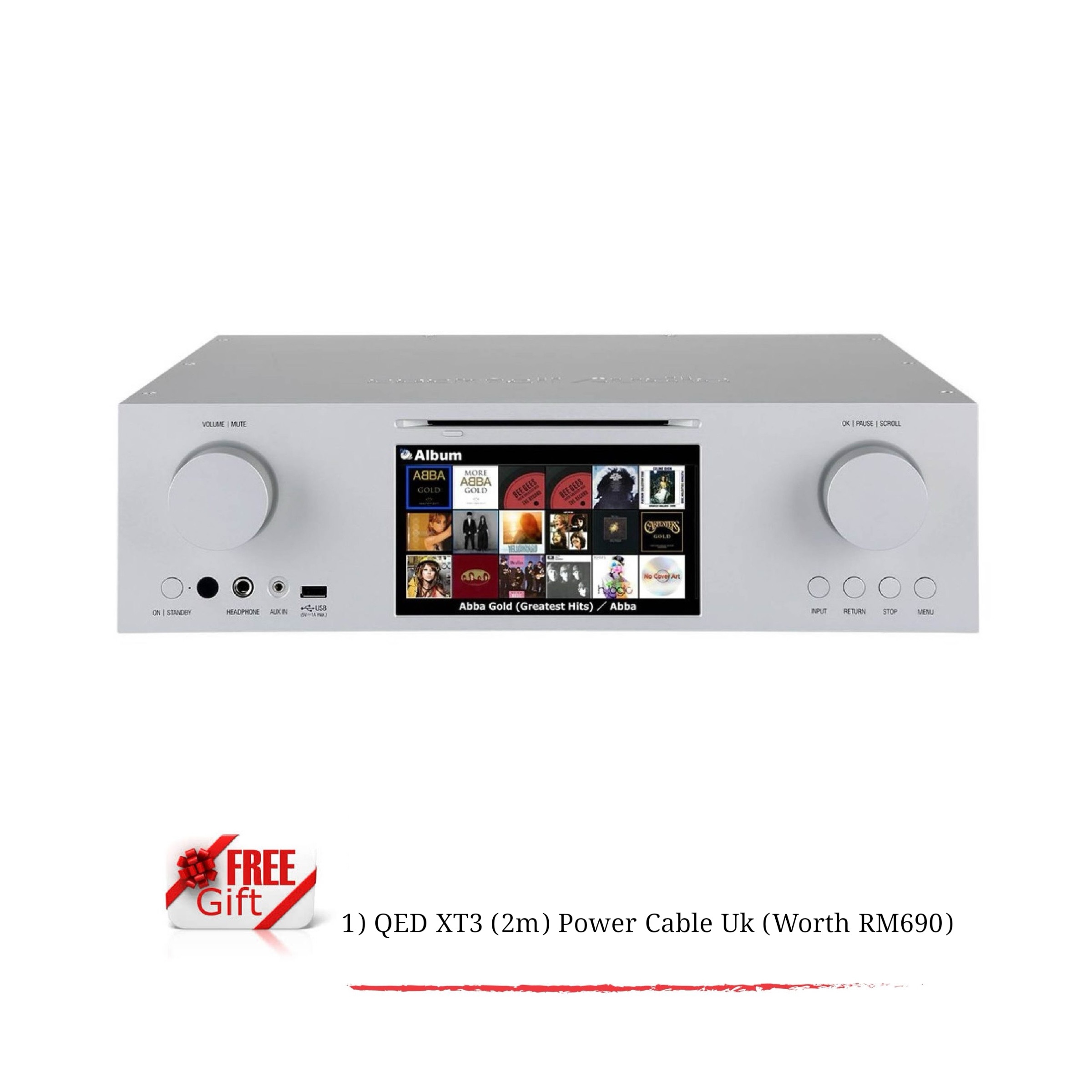

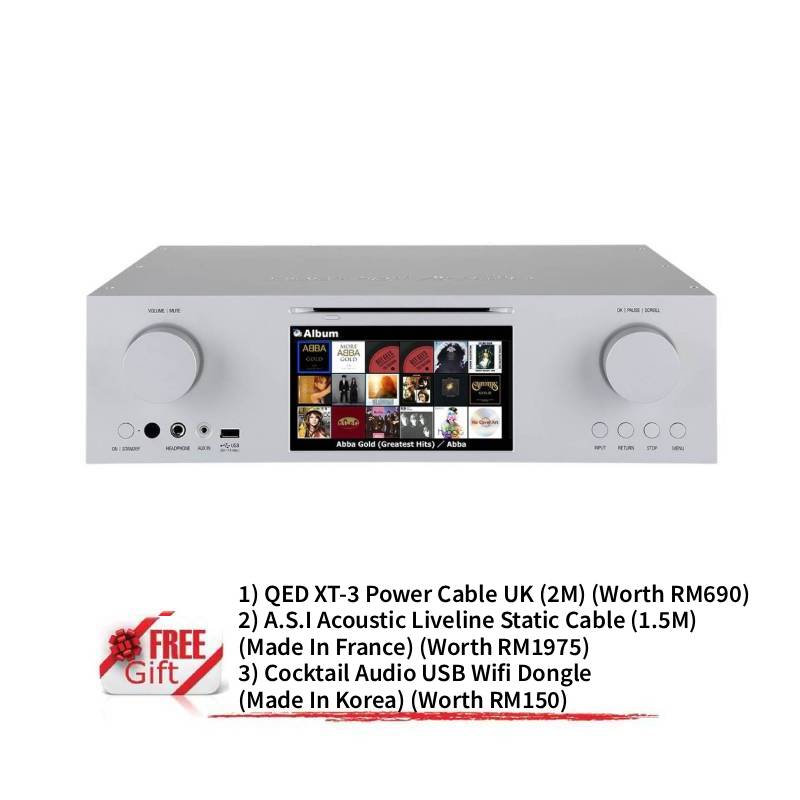

Overview

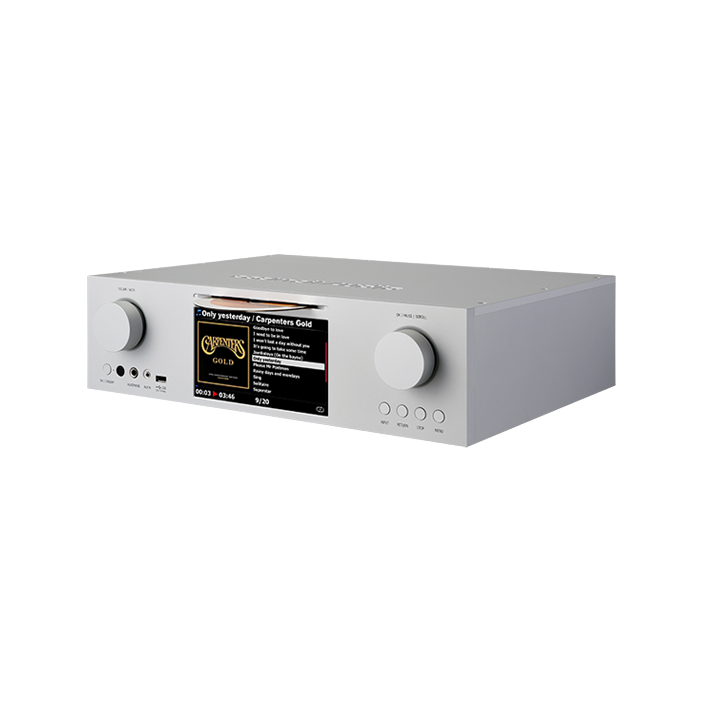

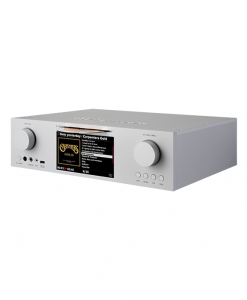

Feel great and dynamic sound created by a combination of SABRE PRO Flagship ES9038PRO DAC and OPA627BP Precision High-Speed OP Amp. The X45Pro is the world’s highest performance multi-purpose Music Player with the functions of DAC, CD Ripper, Network Streamer, Music Recorder and much more for the audiophiles, equipped with SABRE PRO Flagship ES9038PRO DAC chip supporting up to PCM 768Khz sample rate and native DSD512 and delivering an unprecedented Dynamic Range, and OPA627BP Precision High-Speed Operational Amplifier.

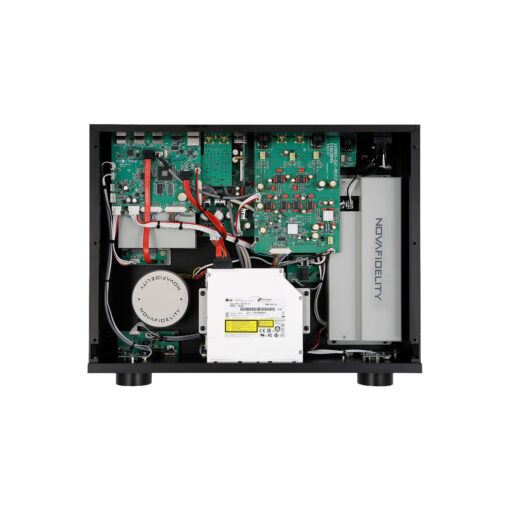

To minimize electrical and idle noises, power source circuit for digital and analogue parts is designed isolatedly, and Toroidal Transformer and SMPS are completely shielded with aluminum. The X45Pro whole enclosure is precisely crafted with beautiful glass-sanding aluminum, which is fabricated by precision CNC machine. The overwhelming and various functions offered by our custom-designed software developed by in-house R&D team complete the X45Pro as a wonderful device for the audiophiles.
Features
- Equipped with high-performance Quad Core ARM Cortex A9 processor running at 1.0Ghz
- SABRE PRO Flagship ES9038PRO DAC chips supporting up to PCM 768Khz sample rate and native DSD512
- OPA627BP Precision High-Speed Operational Amplifier
- 16 Core Microcontroller with Advanced RISC Architecture for high performance USB DAC function
- USB Audio Class 2.0 Output built-in to connect an external USB DAC

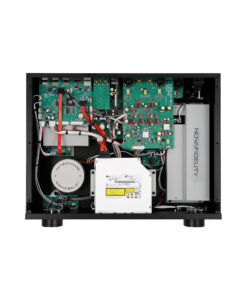

- Isolated power source circuit design for digital and analogue parts
- Toroidal transformer and SMPS are completely shielded with aluminum to minimize idle noise and electrical noise
- High speed optical disk drive for quick CD ripping
- Phono Input(Moving Magnet) for turntable
- 7 inch TFT LCD(1024 x 600 pixels) screen for intuitive GUI
- DAB+/FM Tuner built-in
- Giga Fast Ethernet(10/100/1000Mbps) built-in
- Support up to 8TB(Tera Bytes) storage like 3.5″/2.5″ hard disk or SSD
- Whole enclosure is crafted with beautifully anodised and precisely CNC-machined aluminum
- Equipped with top-quality connectors
- HDMI Out connector for an external screen like TV as its GUI screen or audio signal out
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 15 kg |
|---|---|
| Color | Black, Silver |
Specification
| Model name | cocktailAudio X45Pro | ||
|---|---|---|---|
| Host CPU & Memory | CPU : Quad Core ARM Cortex A9 running at 1.0GHz | ||
| Main Memory : DDR-1066 1GByte | |||
| NAND Flash 8GByte | |||
| CD Player | Type | Front Loading | |
| Supported media | CD, CD-DA, CD-R, CD-RW, DVD-R/RW | ||
| Display | 7.0″ TFT LCD(1,024 x 600pixels)(* able to connect to ext. screen via HDMI out) | ||
| Interface | Key & Jog(Volume/Scroll), IR Remote Control, Customized Remote App for iOS and Android devices, Web Interface | ||

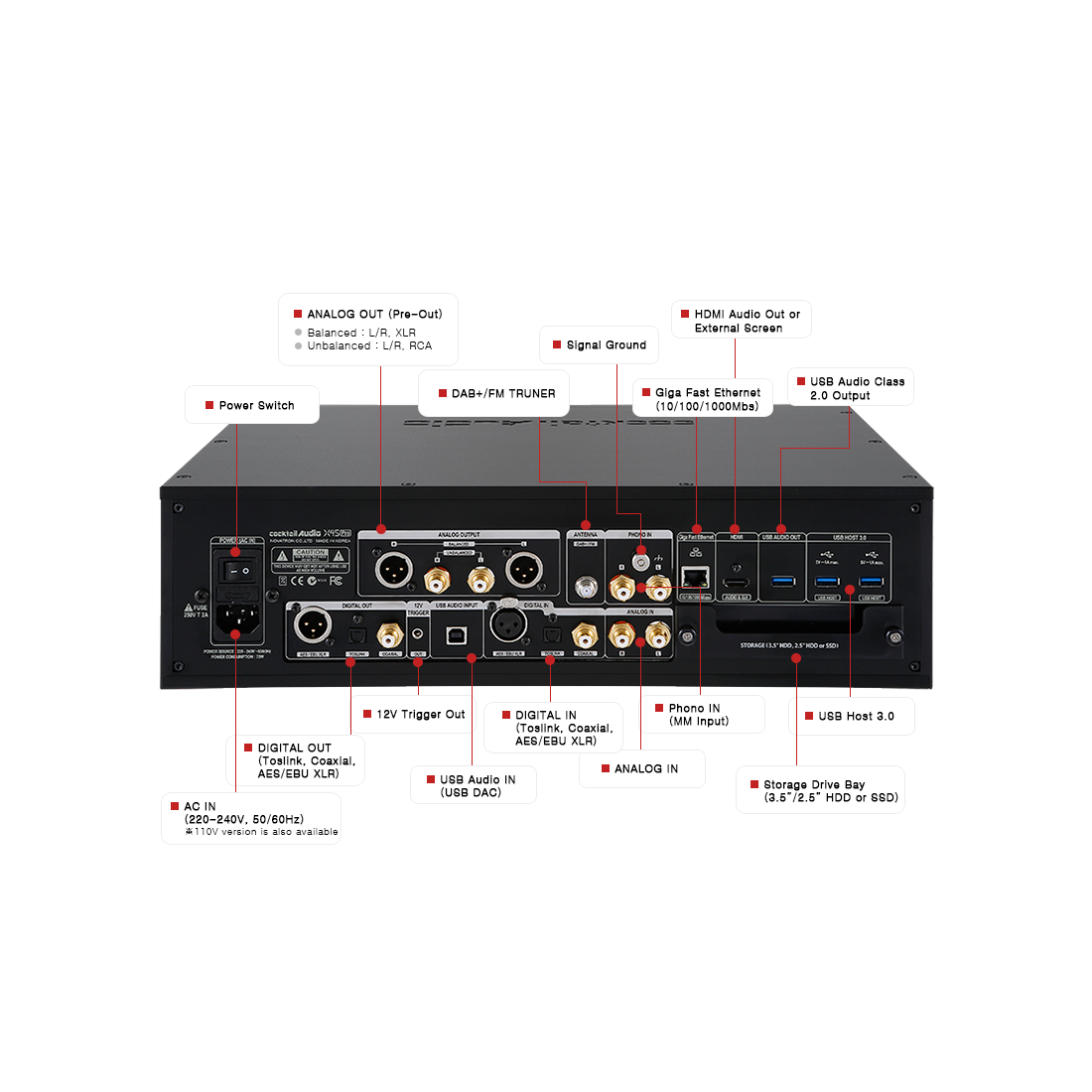

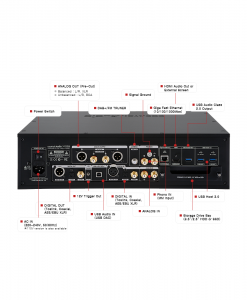

| Analog Out (SABRE Flagship ES9038PRO DAC) |
Balanced(PRE-OUT) | XLR, Dynamic Range: 137dB (Max 6.5Vrms, Stereo) THD +N: 0.0003% | |
| Unbalanced(PRE-OUT) | RCA, Dynamic Range: 137dB (Max 2Vrms, Stereo) THD +N: 0.0003% | ||

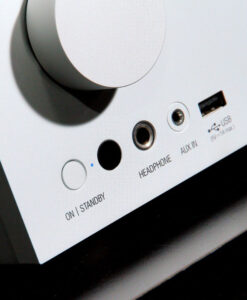

| Headphone Out | 6.35mm Jack, 100mW+100mW@1Khz, 600ohm, 0.006% THD | ||
| Digital out (Variable/Fixed) |
COAXIAL x 1 | S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz | |
| TOSLINK x 1 | S/PDIF, Sample rate: up to 24bit/192KHz | ||
| AES/EBU/XRL x 1 | 110ohm, Sample rate: up to 24bit/192KHz | ||
| USB Audio x 1 | USB Audio Class 2.0 Output | ||
| HDMI Out x 1 | HDMI Audio Out(*Shared with HDMI Out for external screen) | ||
| Analog Input | LINE In x 1 | L&R RCA at the rear, default 2Vrms(controllable 1~4Vrms) | |

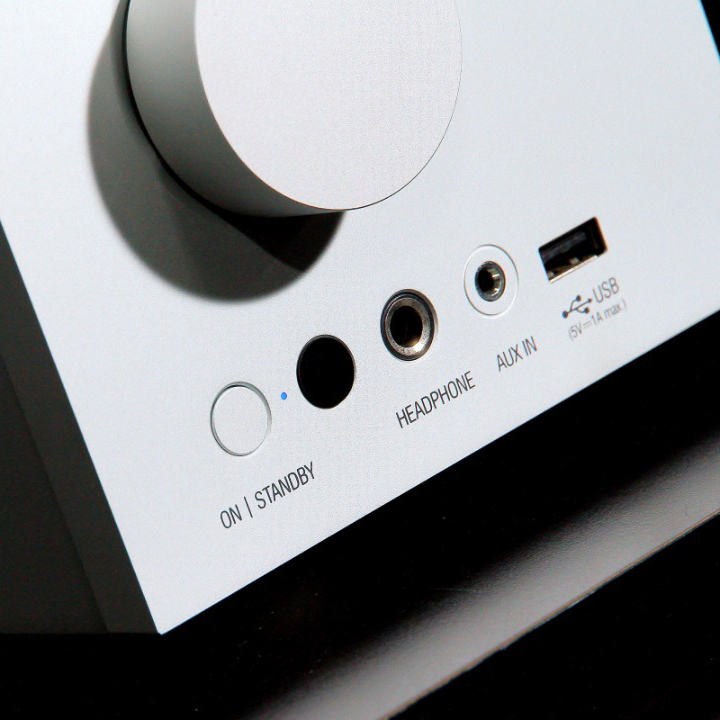

| Aux In x 1 | 3.5mm Phone Jack on the front, default 1Vrms(controllable 0.5~2Vrms) | ||
| Phono In x 1 | MM Input, default 7.5mVrms(controllable 3.75~15mVrms) | ||
| Digital Input | COAXIAL x 1 | Sample Rate: up to 24bit/192Khz | |
| TOSLINK x 1 | Sample Rate: up to 24bit/192Khz | ||
| AES/EBU XLR x 1 | Sample Rate: up to 24bit/192Khz | ||
| USB Audio Input (USB DAC) |
USB B type connector, USB Audio Class 2.0 input (support up to PCM 768Khz/32Bit, DSD Native 512, and MQA file) |
||
| Supported Storage | Hard Disk | 2.5″ SATA, up to 2TB | * Bigger capacity of storage will be supported by firmware update when available in the market |
| SSD | 3.5″ SATA, up to 8TB | ||
| SSD | 2.5″ SATA, up to 2TB | ||
| Tuner | DAB+/FM | Selectable for DAB/DAB+ or FM Radio | |

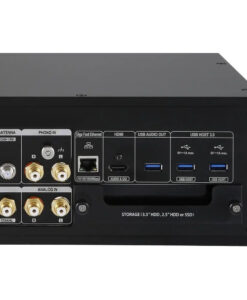

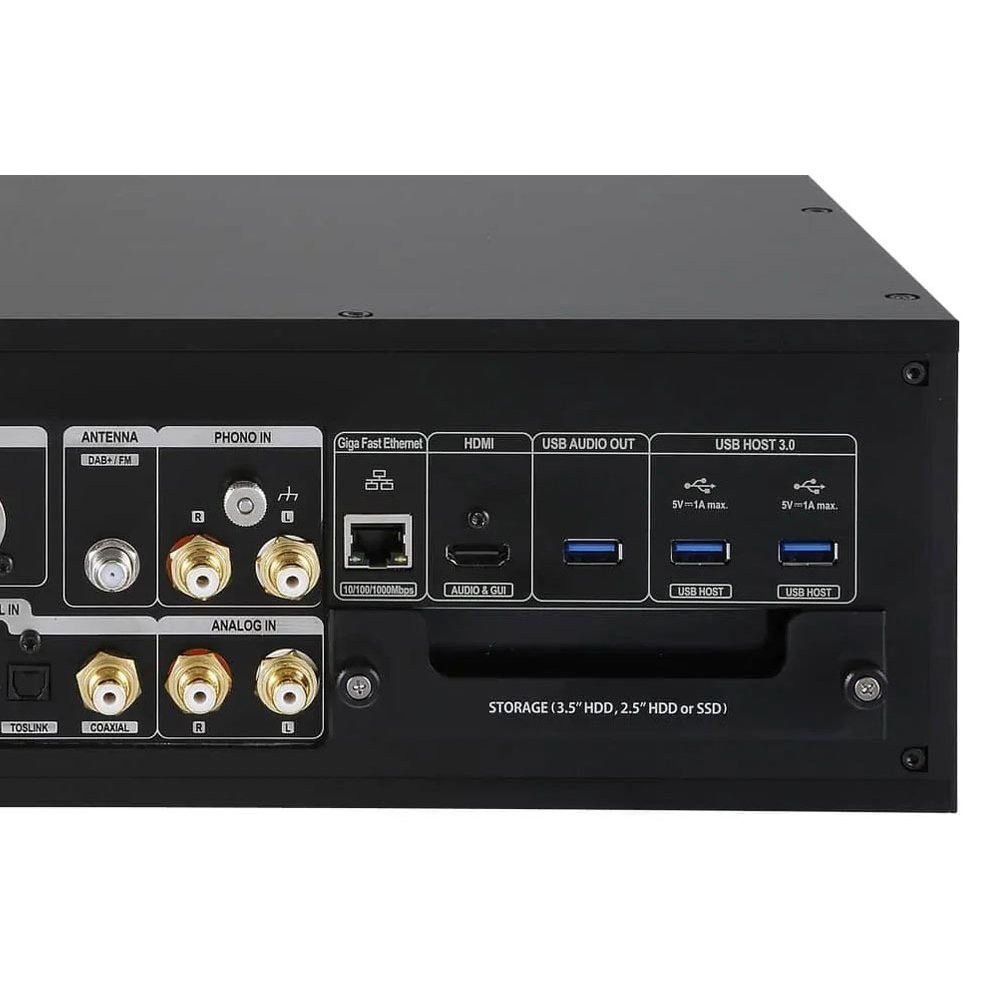

| Connectivity | USB Host | USB3.0(5V/1A) x 2 at rear USB2.0(5V/1A) x 1 at front |
|
| Network | Wired | Giga Fast Ethernet(10/100/1000Mbs) | |

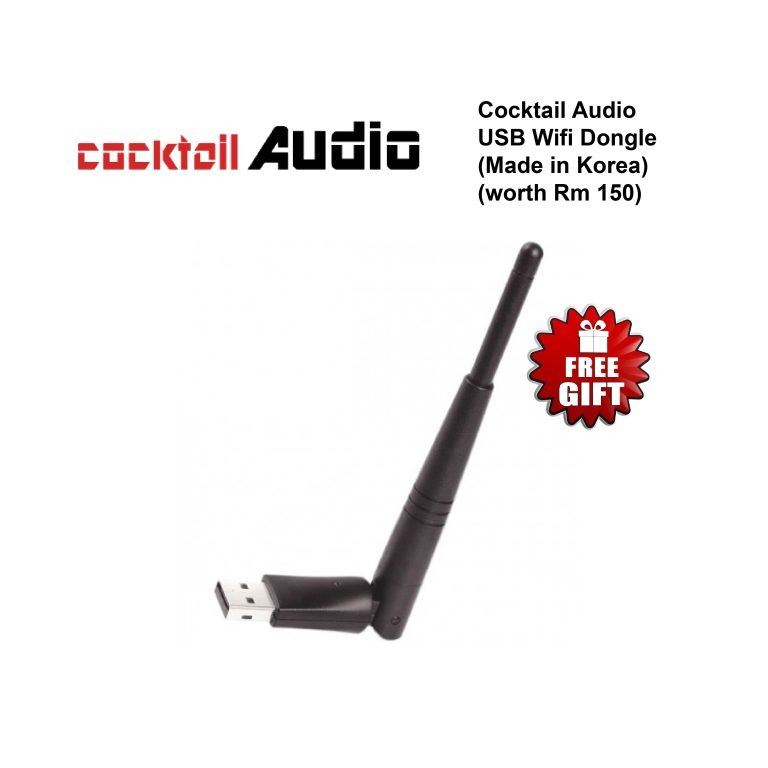

| Wireless(Option) | ※ 802.11b/g/n WiFi USB dongle(Option) | ||
| HDMI Out | Connect to external screen(* Shared with HDMI Audio Out) | ||
| Codec&Format supported | MQA, PCM 768Khz/32Bit, DSD(DSD64, DSD128, DSD256, *DSD512), DXD(24Bit/352.8KHz), HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, CAF, Ogg Vorbis, PCM, M3U, PLS, etc (* Note : DSD512 is supported by Analog Out only) |
||
| Network Protocols Supported |
UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc | ||
| Internet Services |
Internet Radio | Airable | |
| Online Music Services | TIDAL, TIDAL MQA, Deezer, Qobuz, Napster, Spotify Connect (* Note: Amazon Music will be available via firmware update) |
||
| Supported OSD languages | English, German, French, Spanish, Italian, Polish, Dutch, Russian, Traditional Chinese, Korean,(To be added by request) | ||
| Isolated Power management | Toroidal Transformer | For audio signal management | Toroidal & SMPS are shielded to minimize electrical noise |
| 70W internal SMPS | For digital CPU management | ||
| 12V Trigger Out | Max 200mA, 12V | ||
| Power Source | 220V area | AC 220V – 240V, 50/60Hz | |
| 110V area | AC 110V – 120V, 50/60Hz | ||
| Mechanical | Material | Whole chassis is based on CNC-machined high quality aluminum | |
| Dimension | Without foot | 440mm(W) x 329mm(D) x 118mm(H) | |
| With foot | 440mm(W) x 329mm(D) x 130mm(H) | ||
| Weight | 13.2Kg (Device only without accessory and carton box) | ||
| Certificate | CE, FCC, EMI, etc | ||
Product Reviews
“For the combination of its extreme versatility in function, ability to play all hi-res formats, and excellent sound quality, all in one box, the Cocktail Audio X45 Pro leaves the competition in the dust. This vinyl lover has finally found his digital mate!” #Part-Time Audiophile
https://parttimeaudiophile.com/2019/06/14/cocktail-audio-x45-pro-music-player-dac-review/
“The Cocktail Audio X45Pro is a many (many) function device, rolling up a server, streamer, DAC, tuner, CD player/ripper, MM phono stage, and preamplifier in one box. For the right buyer, it can be a one and done solution taking care of all your digital needs (and then some), vinyl, and even an additional line level analog source (if there’s anything left!” #Twittering Machines
