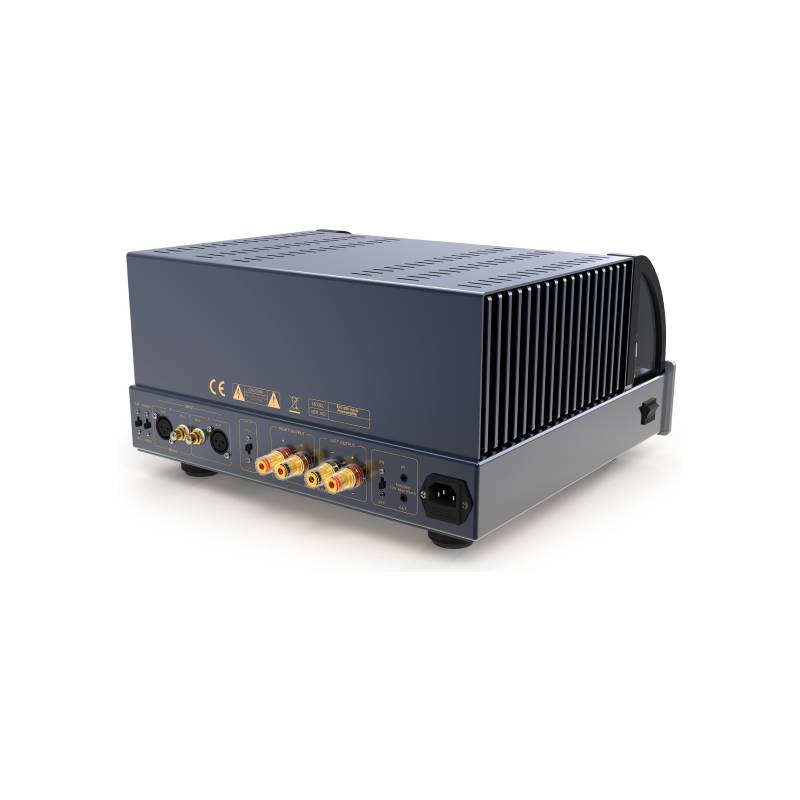

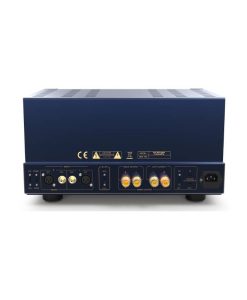

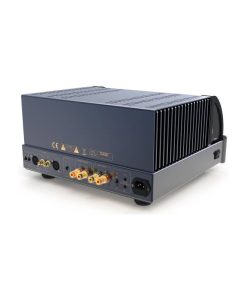

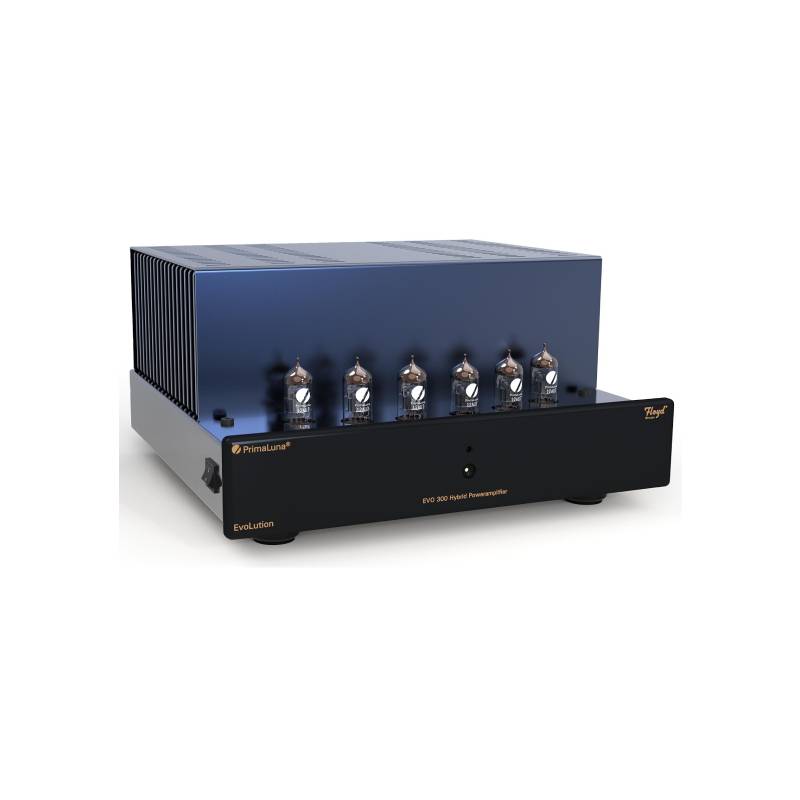

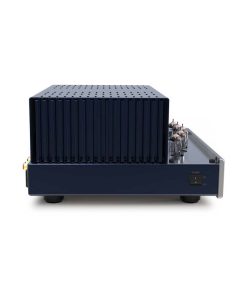

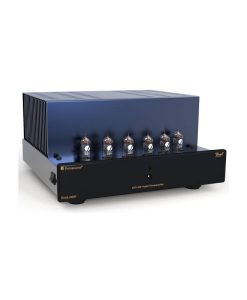

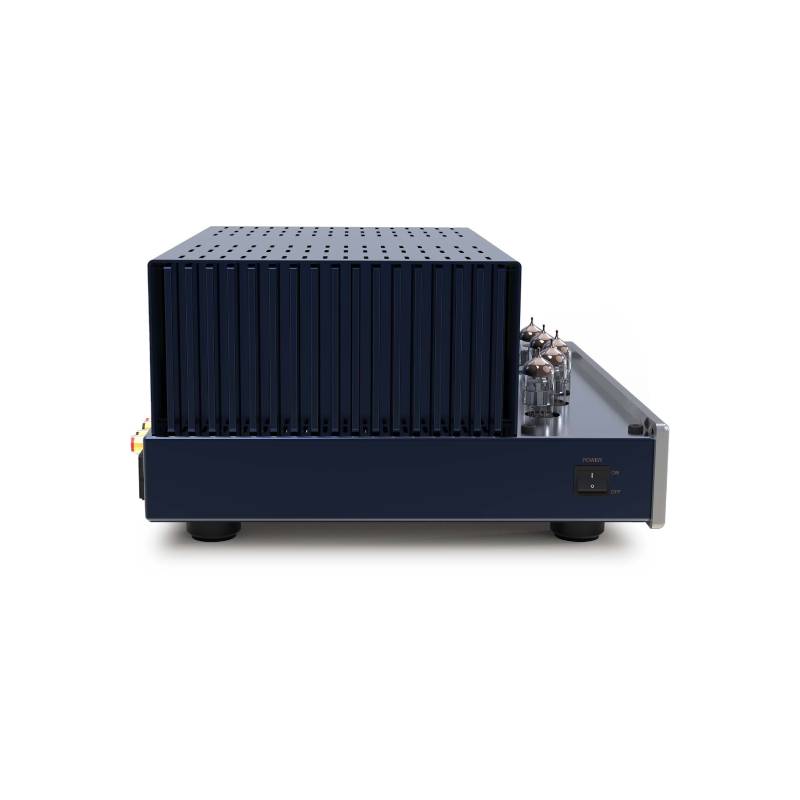

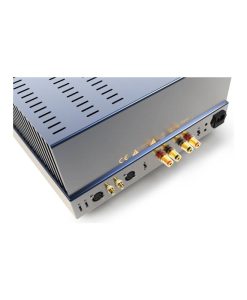

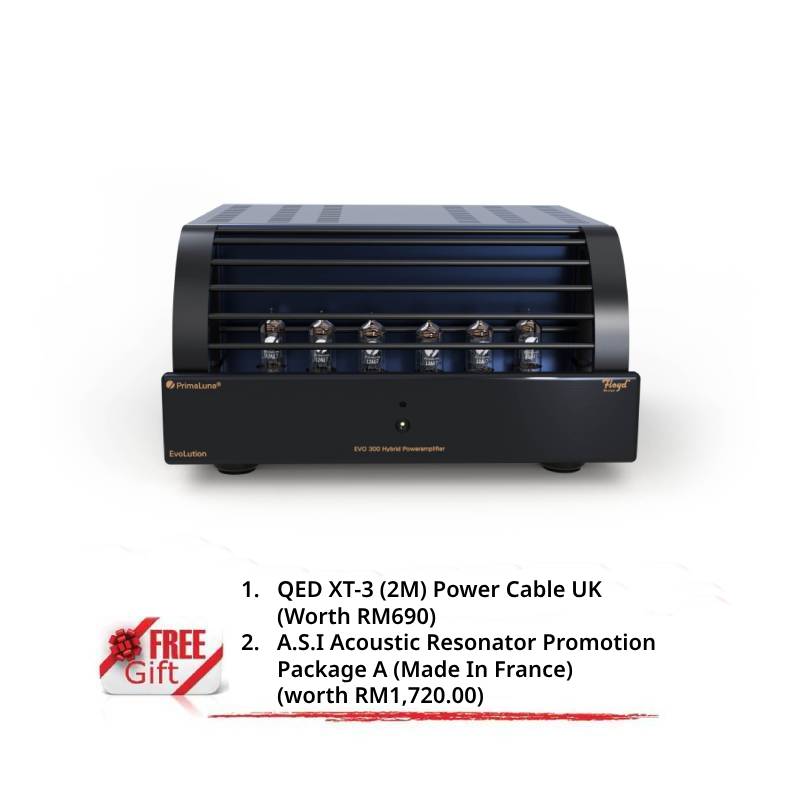

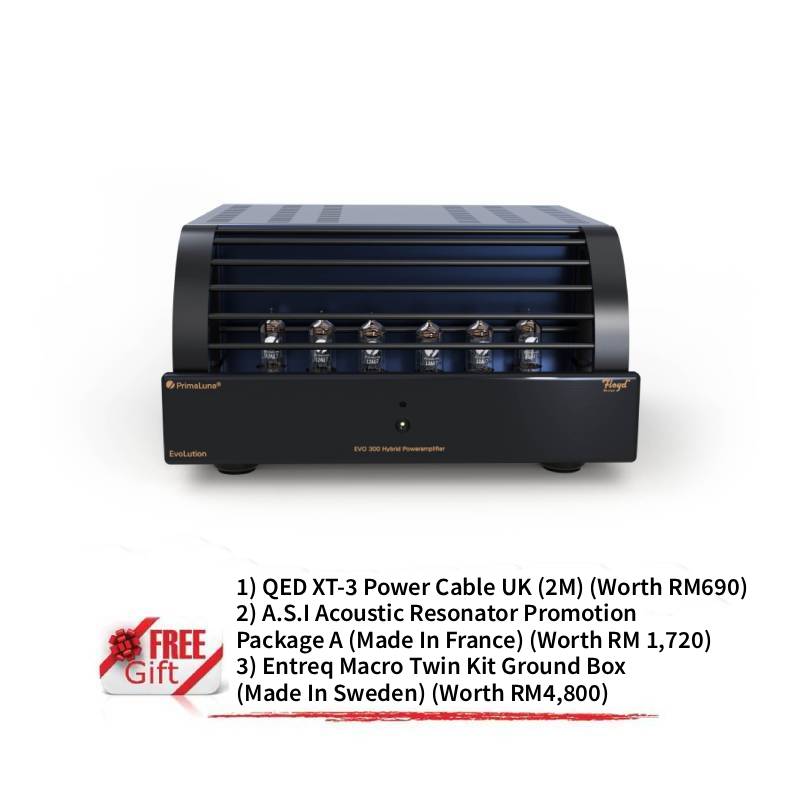

Primaluna
Evo 300 Hybrid
Power Amplifier

Specification

Power 8 Ohm > 100 Watts per stereo channel (typical 115 Watts)
> 220 Watts per mono channel (typical 245 Watts)

Power 4 Ohm > 150 Watts per stereo channel (typical 160 Watts)
> 300 Watts per mono channel (typical 303 Watts)

Frequency Response 10 Hz – 80 kHz +/- 3 dB

THD with AABB < 0.2% 100W @ 8 Ohm (stereo)
< 0.2% 245W @ 8 Ohm (mono)

S/N Ratio -105dB (A-Weighted)

Input Impedance 32 kOhm (RCA), 4.9 kOhm (XLR) for stereo
18 kOhm (RCA), 50 kOhm (XLR) for mono

Input Sensitivity 805 mV (RCA), 901mV (XLR) for stereo
1330 mV (RCA), 1340 mV (XLR) for mono

Total Gain 30 dB (H), 24 dB (L)

Power Consumption 104 Watts (no signal in); 645W@4R

Weight Net weight: 68.3 lbs / 31 kg

Dimensions 15.9″ x 15.2″ x 8.1″ / 405 x 385 x 205 mm (L x W x H)

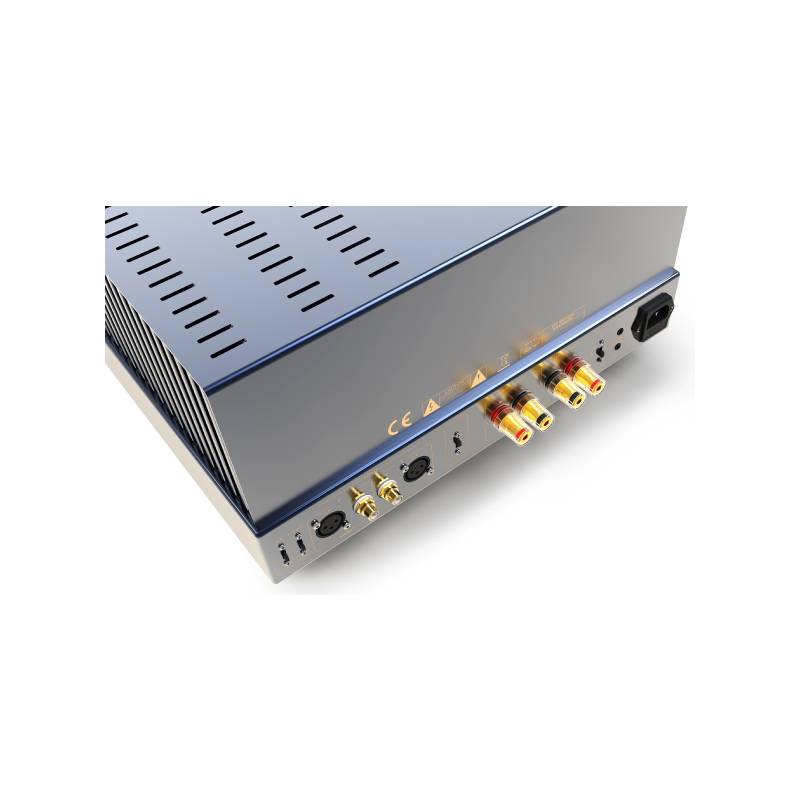

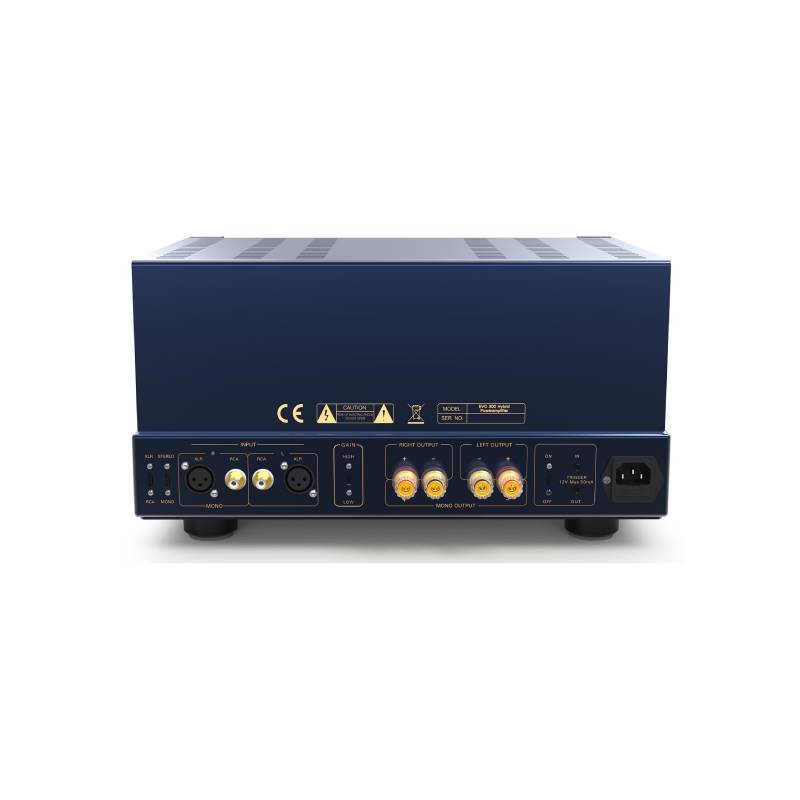

Inputs 1 pairs Stereo RCA, 1 pair Stereo XLR

Outputs Stereo tap

Tube Complement 6 x 12AU7

Damping Coefficient 300 (1 kHz) for stereo
150 (1 kHz) for mono
