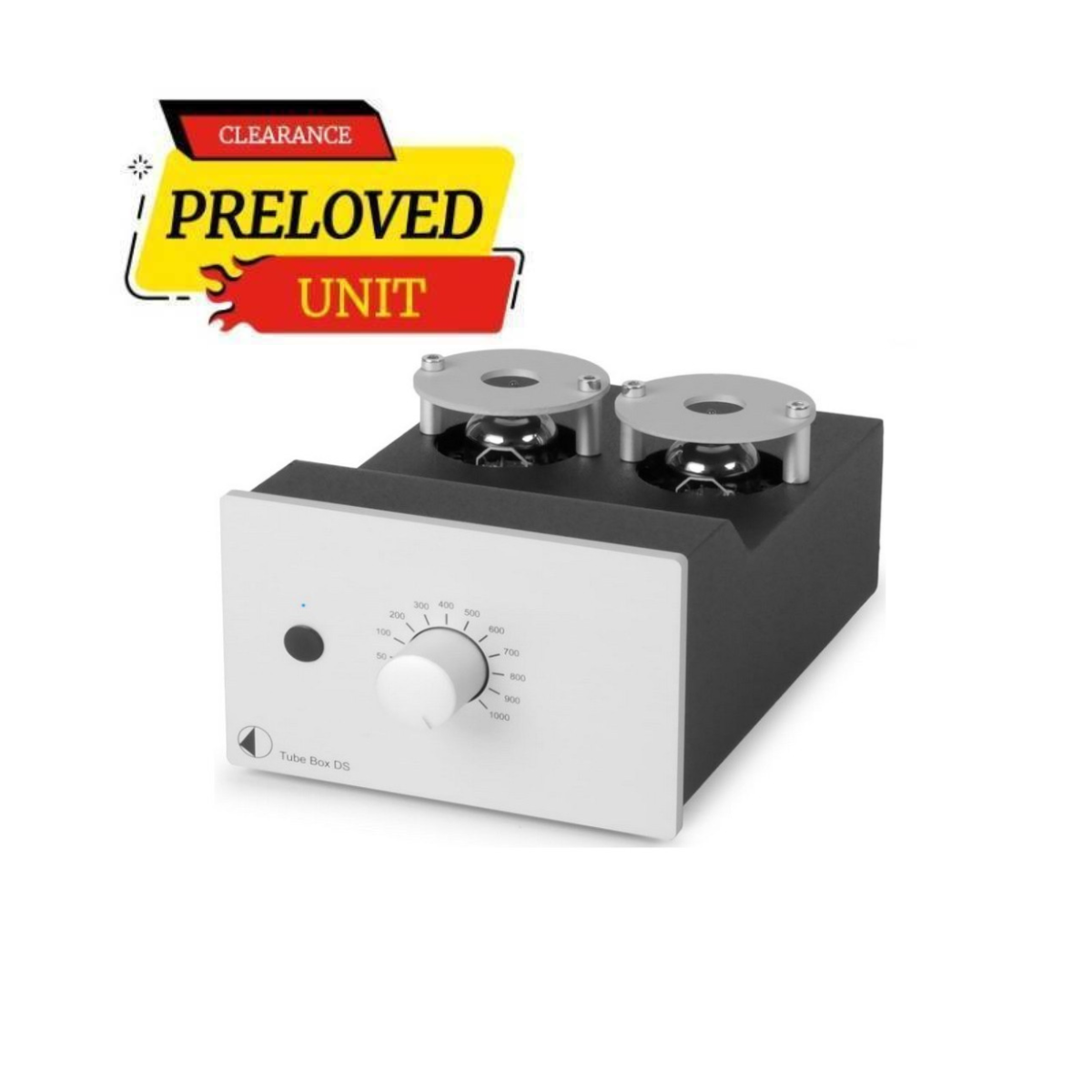

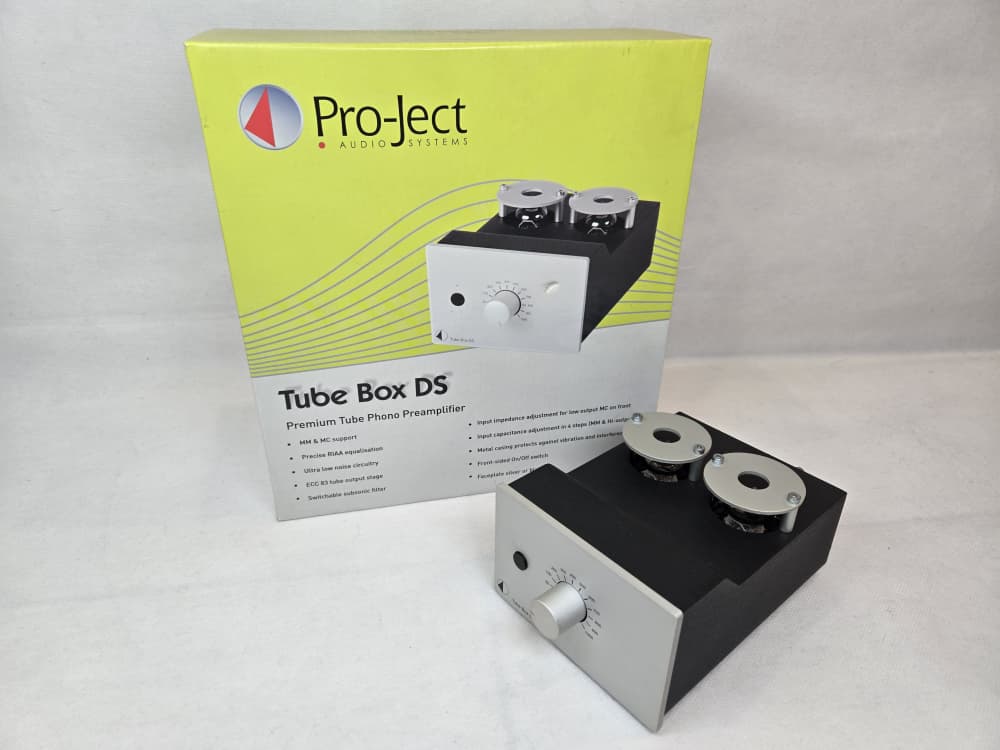

Pro-Ject Audio System
Tube Box DS MM/MC
Phono Stage< br> (Made In Europe)
(New was RM3,960.00)

Premium phono preamplifier with tube output and high end sound! This precision tube phono preamplifier benefits from outstanding circuit technology from Dr. Sykora and uses ultimate components. For the first time a variable selection of input impedance for MC cartridges can be done while playing a record! Other features include input capacitance for MM cartridges and switchable subsonic, that prevents your amplifier and speakers of ultra low rumble below 20Hz. All components including tube output and polypropylene capacitors are audiophile- grade and guarantee a breathtaking sound experience. A perfect upgrade for ambitious vinyl lovers

Sound Character …
-fuller and more organic presentation
-larger soundstage
-smoother treble
-richer vocals
-good depth and ambience

Compared with many solid-state phono stages, it tends to sound less clinical and more relaxed. Owners often describe it as having more weight and dimensionality while remaining reasonably quiet for a tube design.

Strengths …
-Very flexible cartridge matching
-Supports both MM and MC cartridges
-Adjustable loading without opening the chassis
-Good upgrade platform for tube rolling
-Strong value in mid-level to high-end vinyl systems

• MM & MC support
• Precise RIAA equalisation
• Ultra low noise circuitry

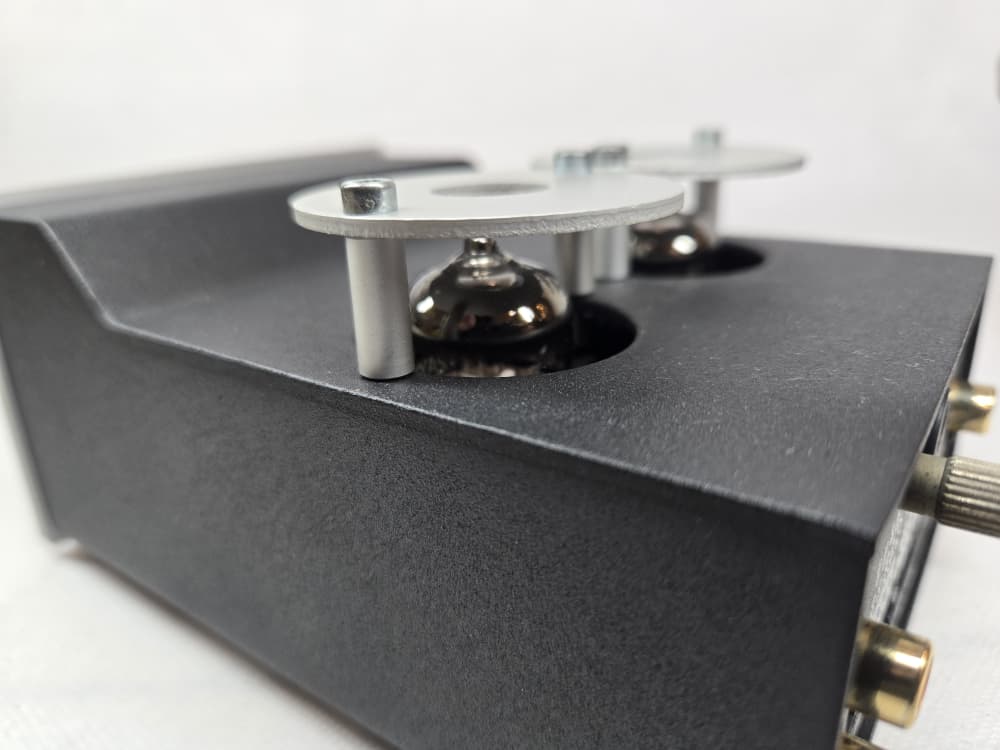

• ECC 83 tube output stage

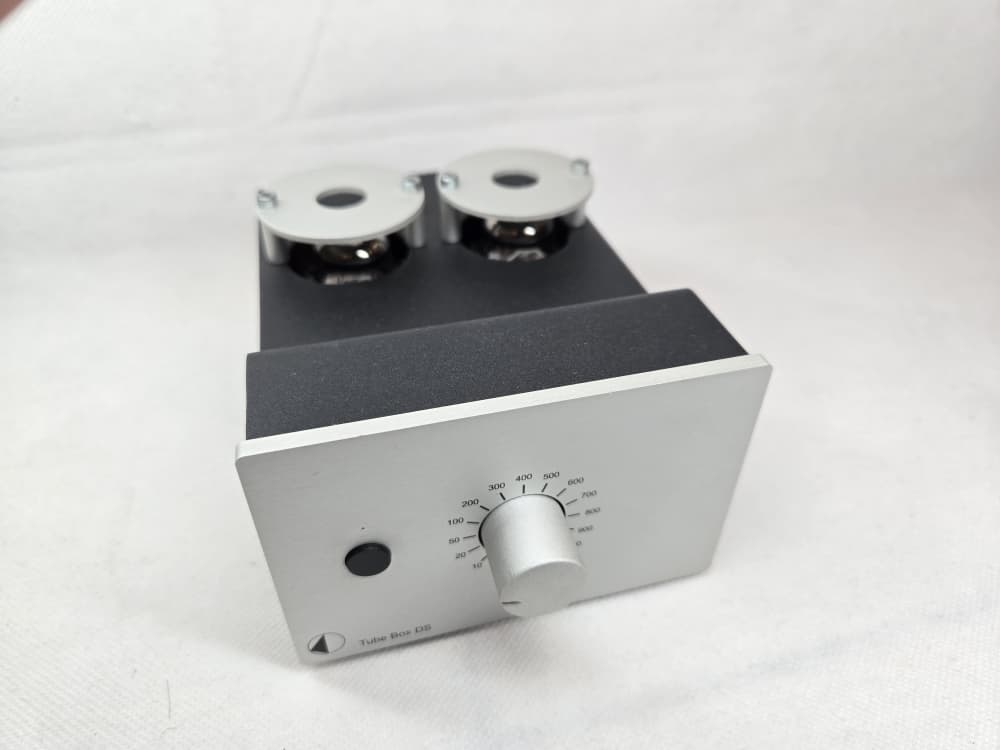

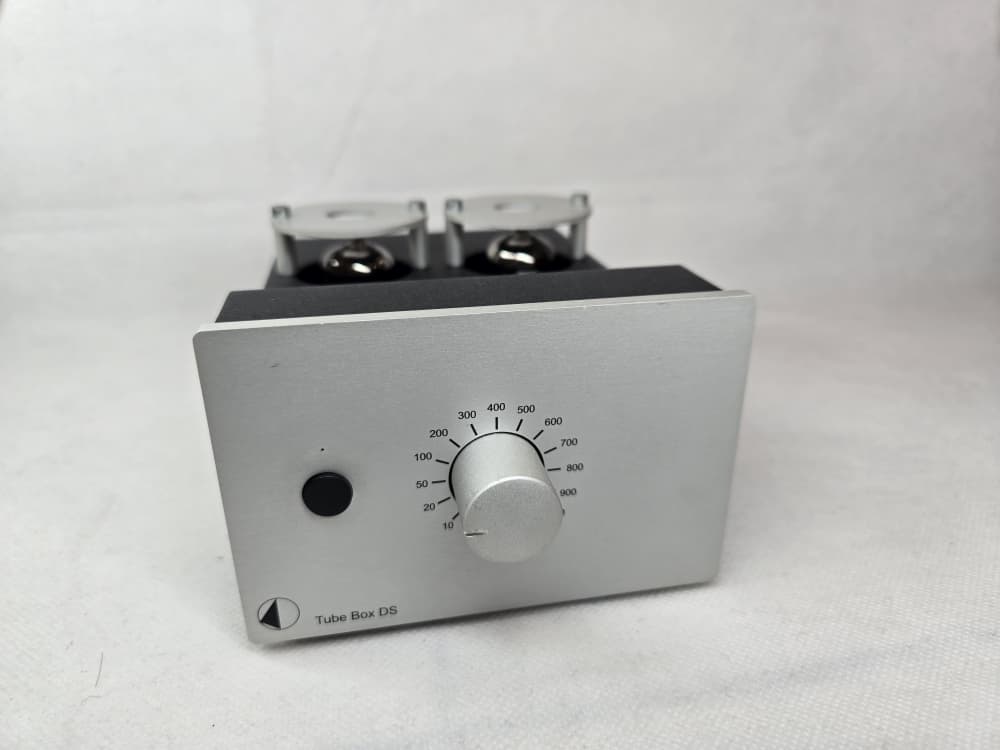

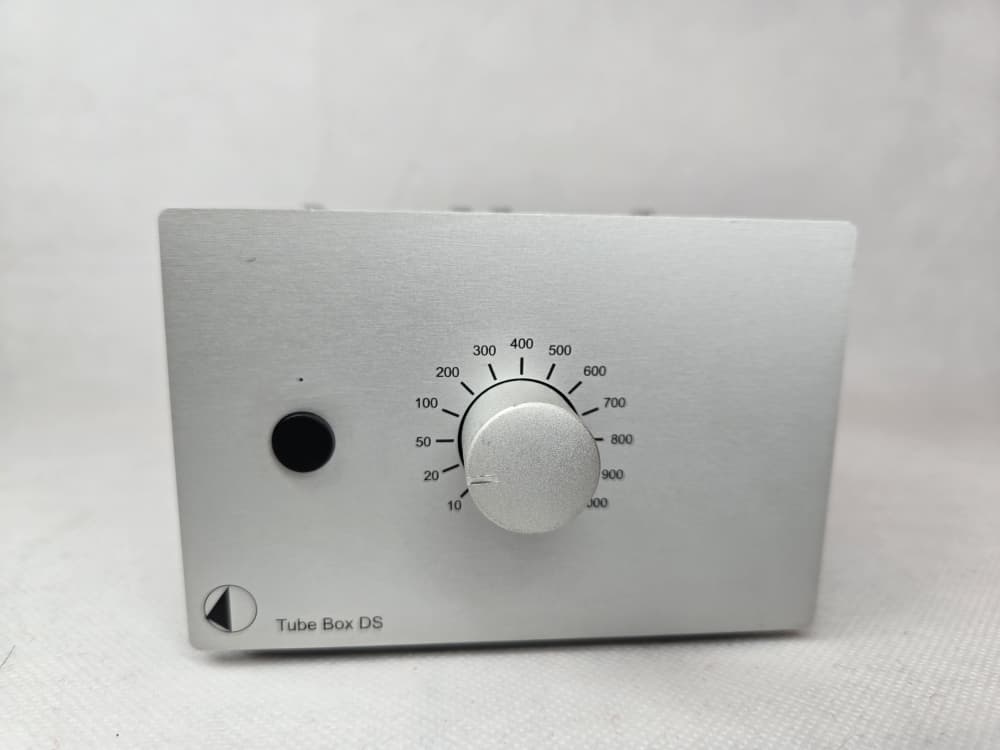

• Input impedance adjustment for low output MC on front
• Input capacitance adjustment in 4 steps (MM & Hi-output MC)

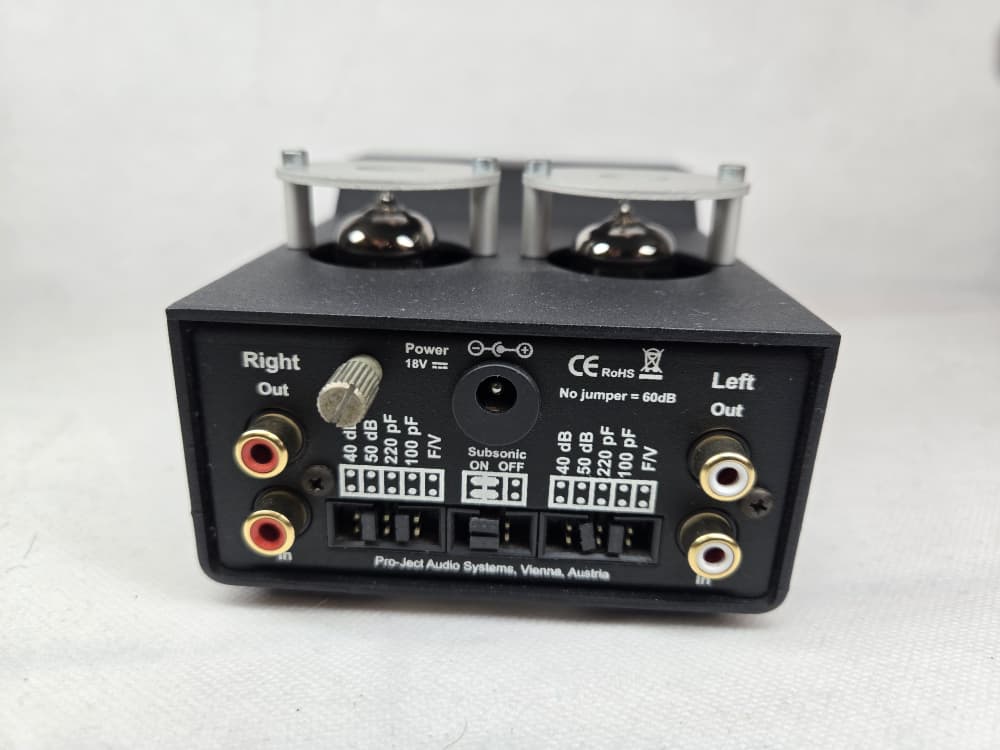

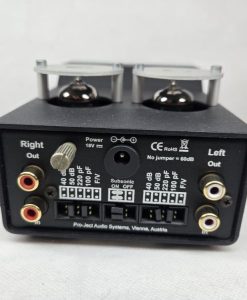

• Switchable subsonic filter
• Gold plated RCA sockets

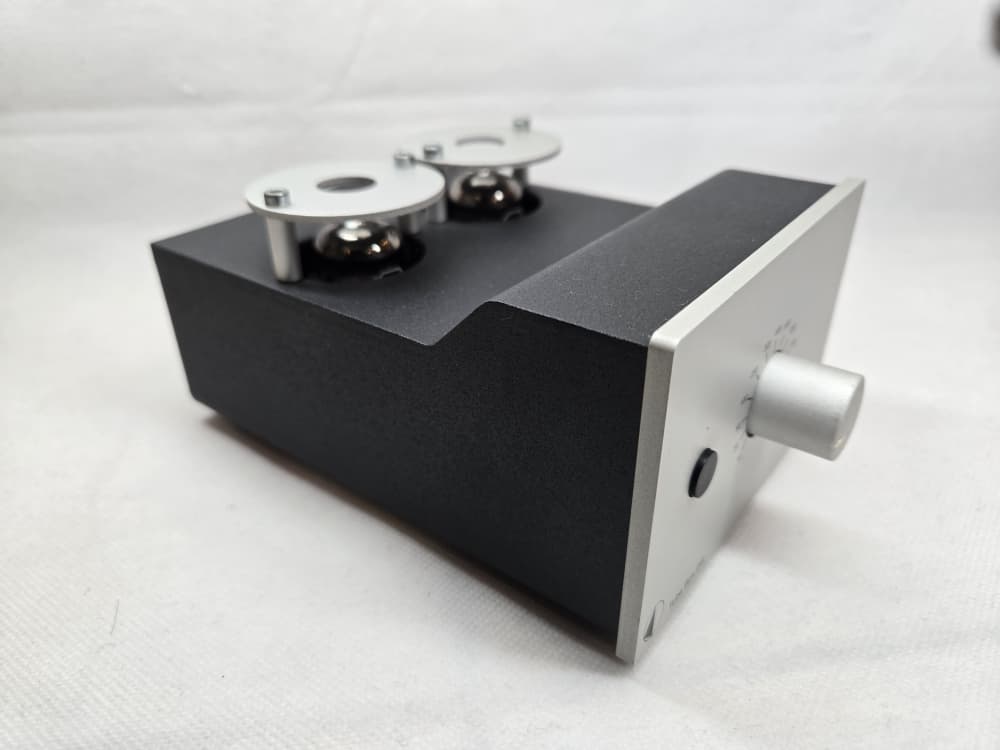

• Metal casing protects against vibration and interference
• Front-sided On/Off switch
• Faceplate silver or black

-Tube assembly: 2x ECC83 (12AX7)
-Input impedance for low output MC: VARIABLE 10 ohms –
1000 ohms
-Capacitance (MM): 47pF / 147pF / 267pF / 367pF
-Gain MM / MC: 40 / 50 / 60 dB
-Signal-to-noise ratio: 93dBA
-THD: < 0,1%
-RIAA curve accuracy: within. 0,5dB/20Hz – 20kHz
-Subsonic filter: 20Hz @ 18dB/octave

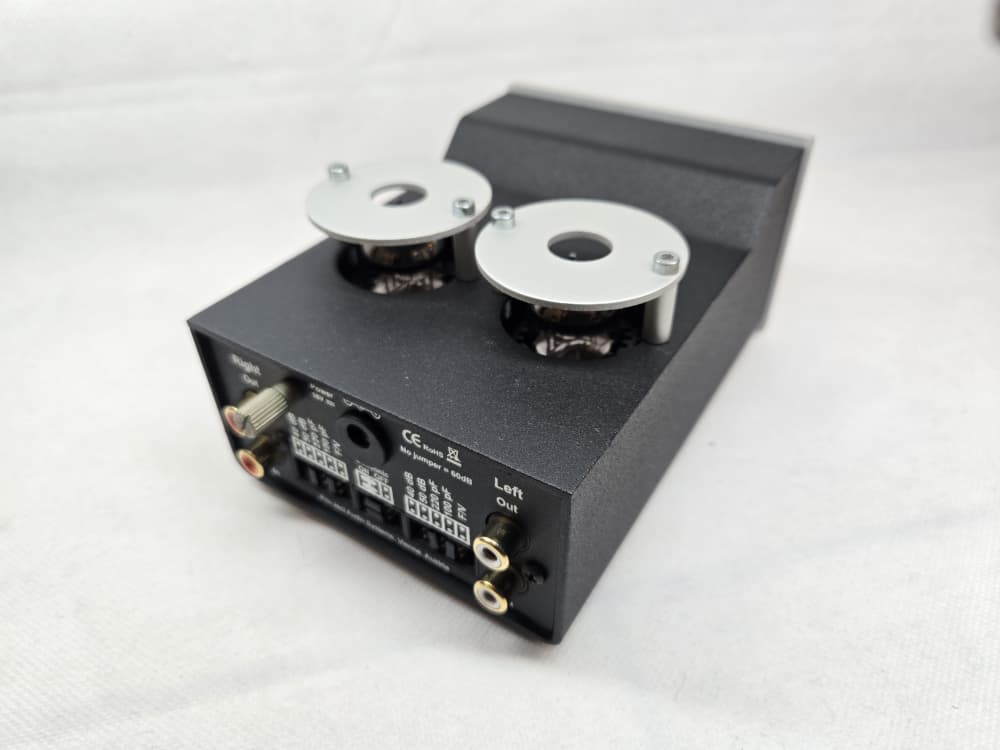

-Input / Output: RCA

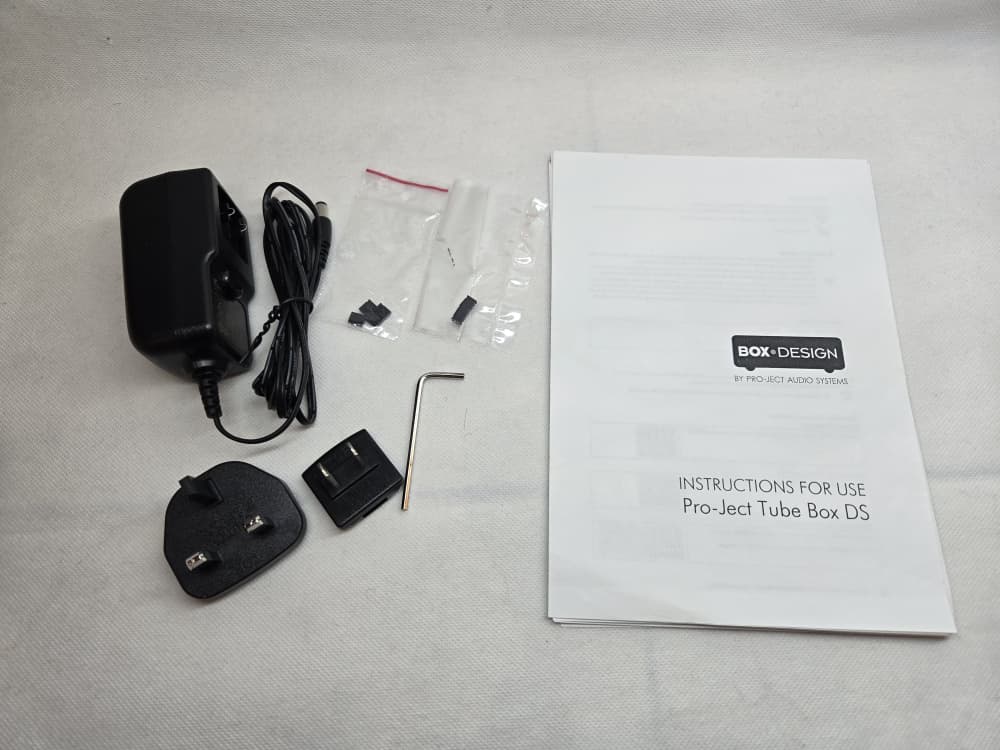

-Power supply: 18V/1000mA DC; 220 – 240V, 50Hz
-Power consumption: max 490mA DC / < 1 watt standby
-Dimension W x H x D (D with sockets): 103 x 72 x 144 (156)mm
-Weight: 1100g without power supply
