Overview

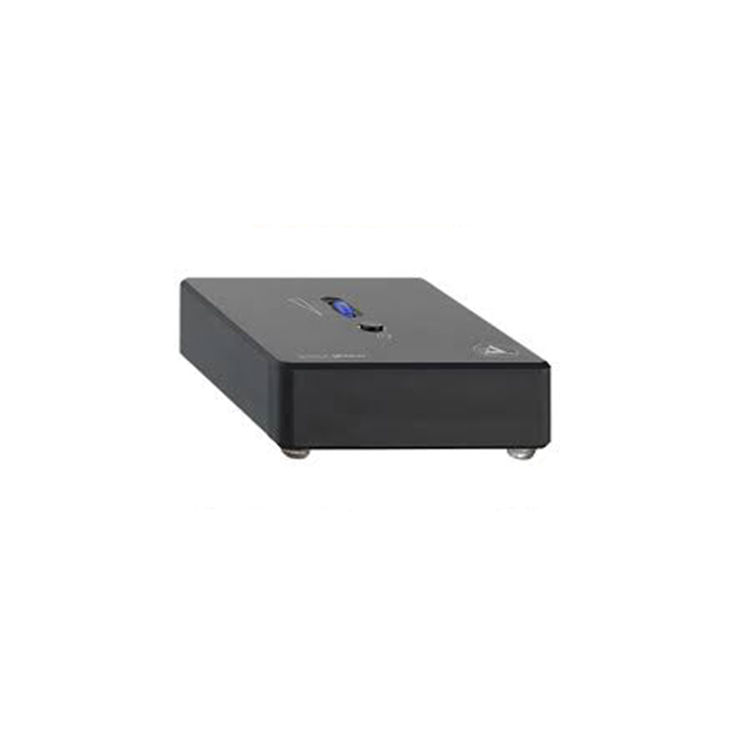

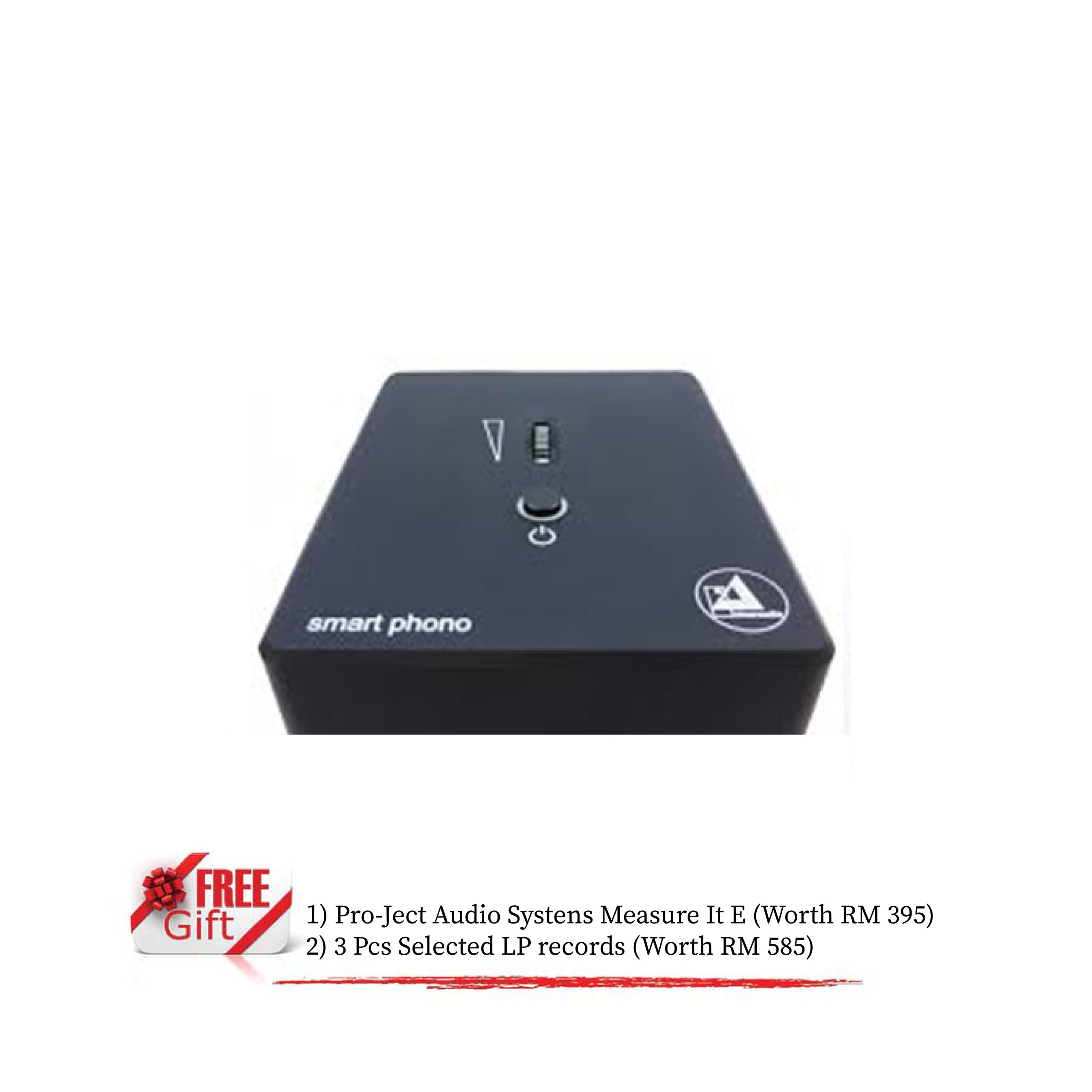

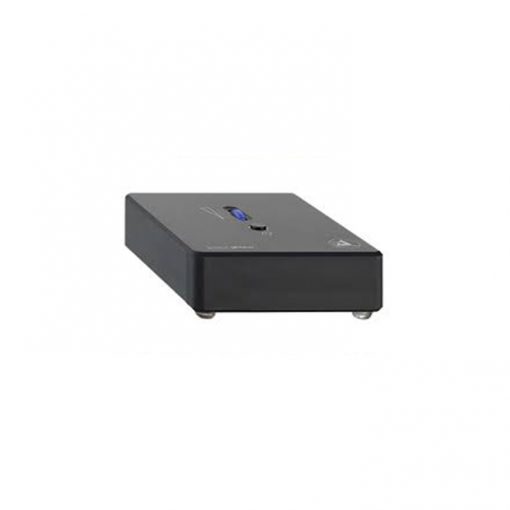

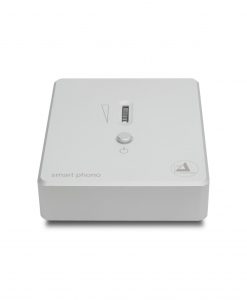

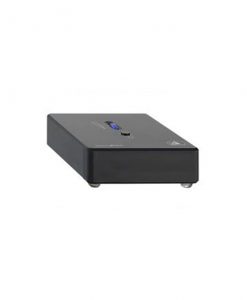

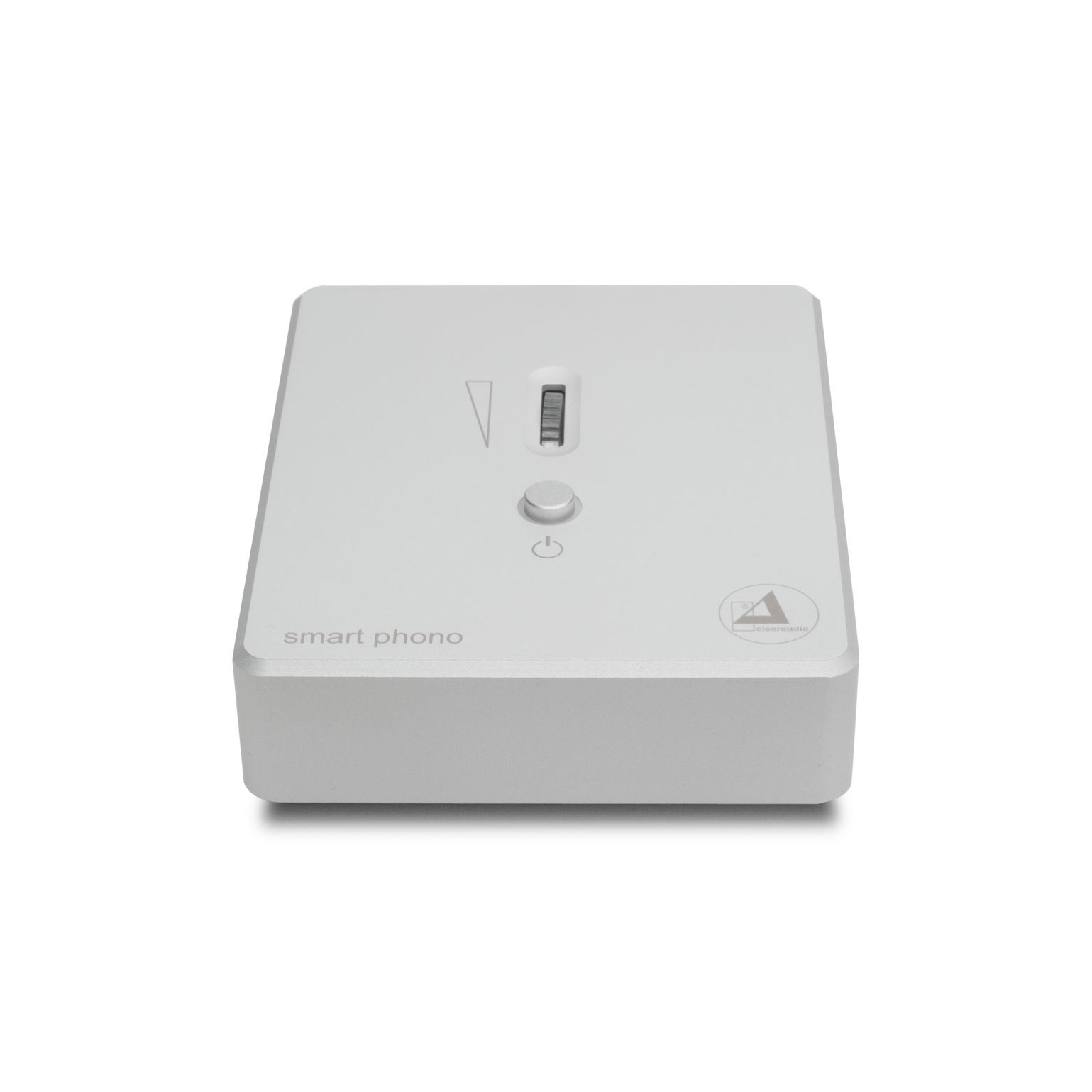

A light 620-gram phonostage that seduced the worldwide audio press. The only thing that is ‘entry level’ about this product is its price. A minimalist aluminium housing that contains one of the best sounding phonostages in its market. Up to 54 decibels gain at one kilohertz and an extremely linear frequency response deliver unprecedented quality at this price point. For MM and MC cartridges there are two separate circuit designs using SMD technology, which are selected by a slide switch on the underside.
The Clearaudio Smart Phono V2 Phono Stage’s miniature size means that signal path lengths are kept extremely short which leads to a pure and noise-free musical reproduction, much greater than that of typical products in this price range. The external power supply keeps the delicate phono signal away from mains power, minimising hum and noise. High quality gold plated input and output RCA terminals on the Clearaudio Smart Phono V2 Phono Stage give a superb contact which will not degrade over time. Switching is provided for both MM (moving magnet) and MC (moving coil) cartridges, making the Clearaudio Smart Phono V2 Phono Stage compatible with virtually all phono cartridges.
Features
- Massive precision CNC-machined solid aluminium block
- Signal path lengths are kept extremely short
- Pure and noise-free musical reproduction

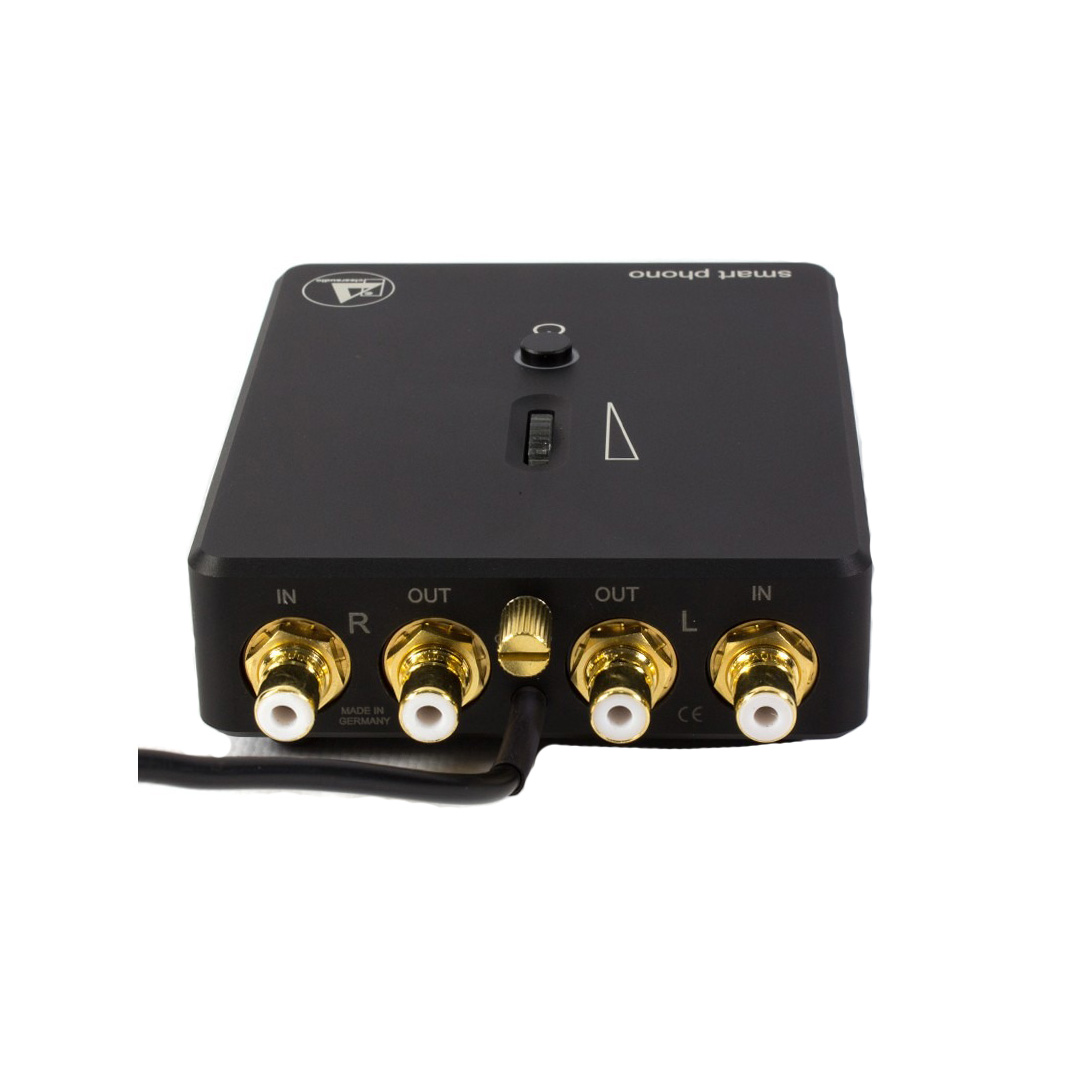

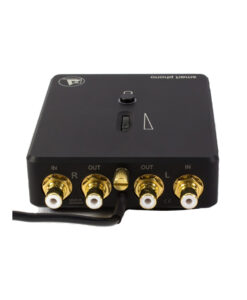

- High quality gold plated input and output RCA terminals
- Switching is provided for both MM (moving magnet) and MC (moving coil) cartridges
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 1 kg |
|---|---|
| Version | Silver, Black |
Specification
| Amplification @ 1 kHz | 54 – 68 dB (MC mode) 34 – 48 dB (MM mode) |
| Input impedance | 50 Ohm, 100 Ohm, 500 Ohm, 1 kOhm, 5 kOhm / 150 pF, 250 pF, 400 pF / MC mode 47 kOhm / 150 pF, 250 pF, 400 pF / MM mode |

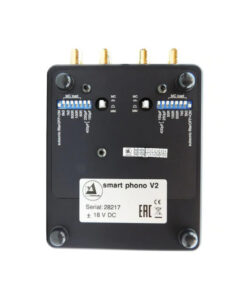

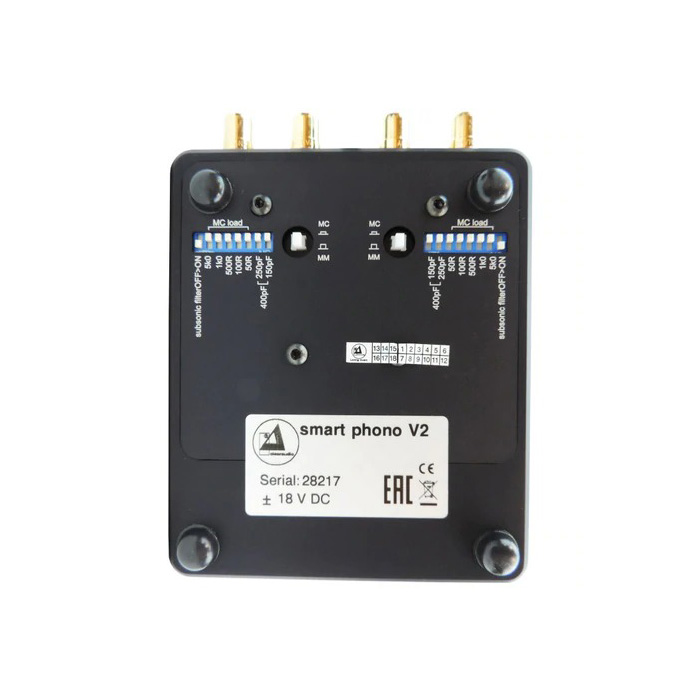

| MM / MC input | switchable (at bottom) |
| Subsonic Filter | switchable (at bottom) |
| RIAA | delay time: 75 μs / 318 μs / 3180 μs |
| RIAA accuracy | ± 0.3 dB @ 10 Hz – 100 kHz |
| THD | < 0,004% MC (“A” weighted @ 1 kHz / -1 dB @ Max) |
| Headroom | 18 dB / MC (Gain Control on MAX) |
| Signal to noise ratio | 72 dB / MC (“A” Weighted) 85 dB / MM (“A” Weighted) |
| Channel separation | > 90 dB @ 1 kHz / opposed channel hot-wired |
| Max. output voltage | 10 V eff. (1 kHz) |
| Power supply | ± 18 V DC / 300 mA (external power supply) |
| Output connections | unbalanced (RCA) |
| Power consumption | Max. consumption: 2.7 Watt Consumption in operation: 2.7 Watt Off mode: 0.0 Watt |
| Total weight | Approx. 600 gram (Preamp and power supply) |
| Dimensions (W/D/H in inches) | 3.74 x 4.92 x 1.34 |
| Dimensions (W/D/H in mm) |
95 x 125 x 34 |
Product Reviews
“The Clearaudio smart phono V2 was a helluva phono stage for the money. For a phono stage under a grand, you will likely struggle to find better than this diminutive unit. […] If you feel your vinyl needs a little extra spice, this unit adds just enough in a tasteful and never overdone way that I found very appealing. ” #Part-Time Audiophile
https://parttimeaudiophile.com/2023/04/14/clearaudio-smart-phono-v2-review/
