c|AQWO 2 is the second generation of this most sophisticated converter from the Métronome brand. Now equipped with two conversion lines (ESS and AKM), it retains the famous Métronome feature that allows you to choose your output mode (transistor or tube) at any time according to your listening preferences (optional).
A second option will make the c|AQWO 2 one of the most efficient network players, delivering a performance with an exceptionally detailed soundstage, while remaining warm and analog. Musicality and emotion are there.

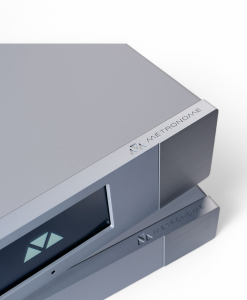

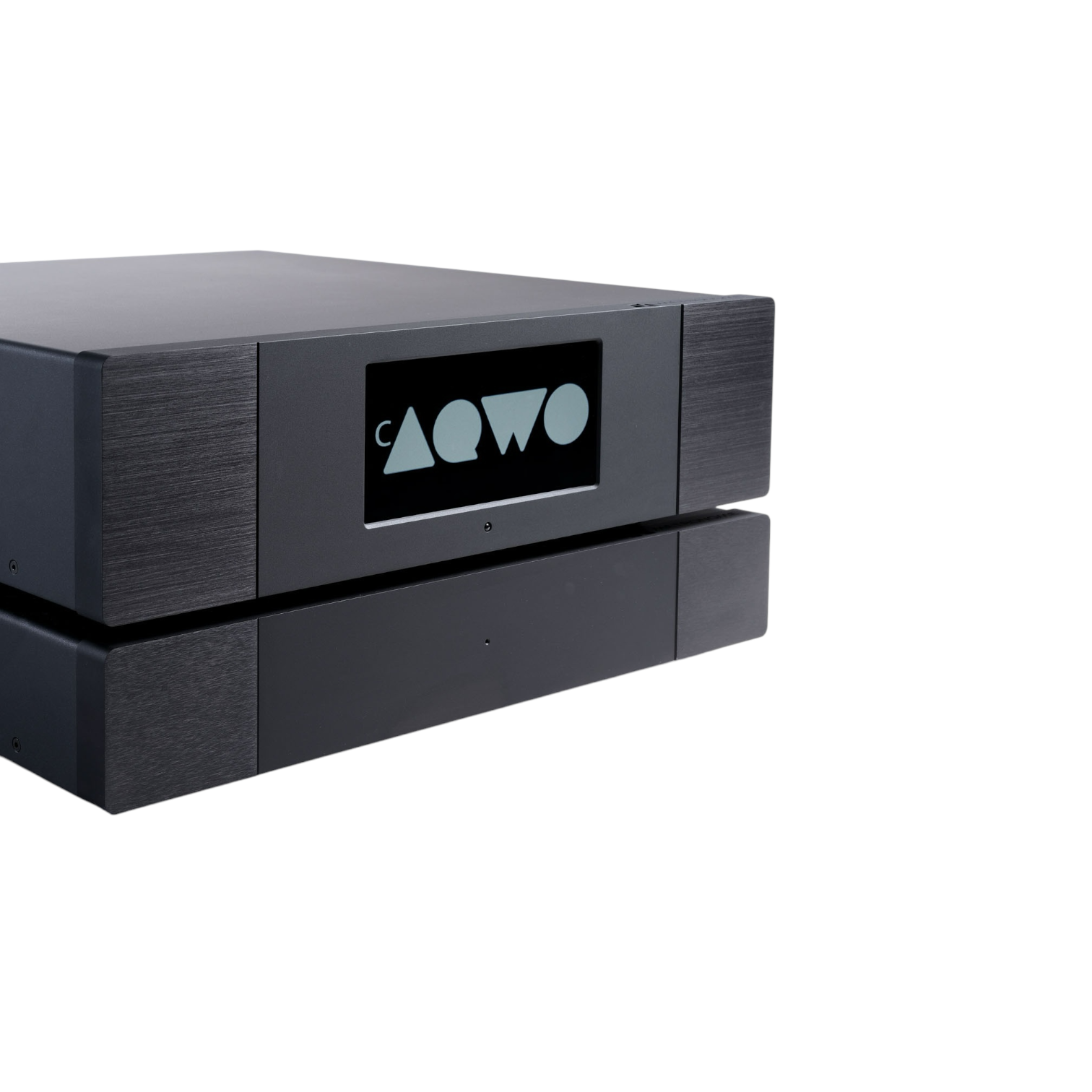

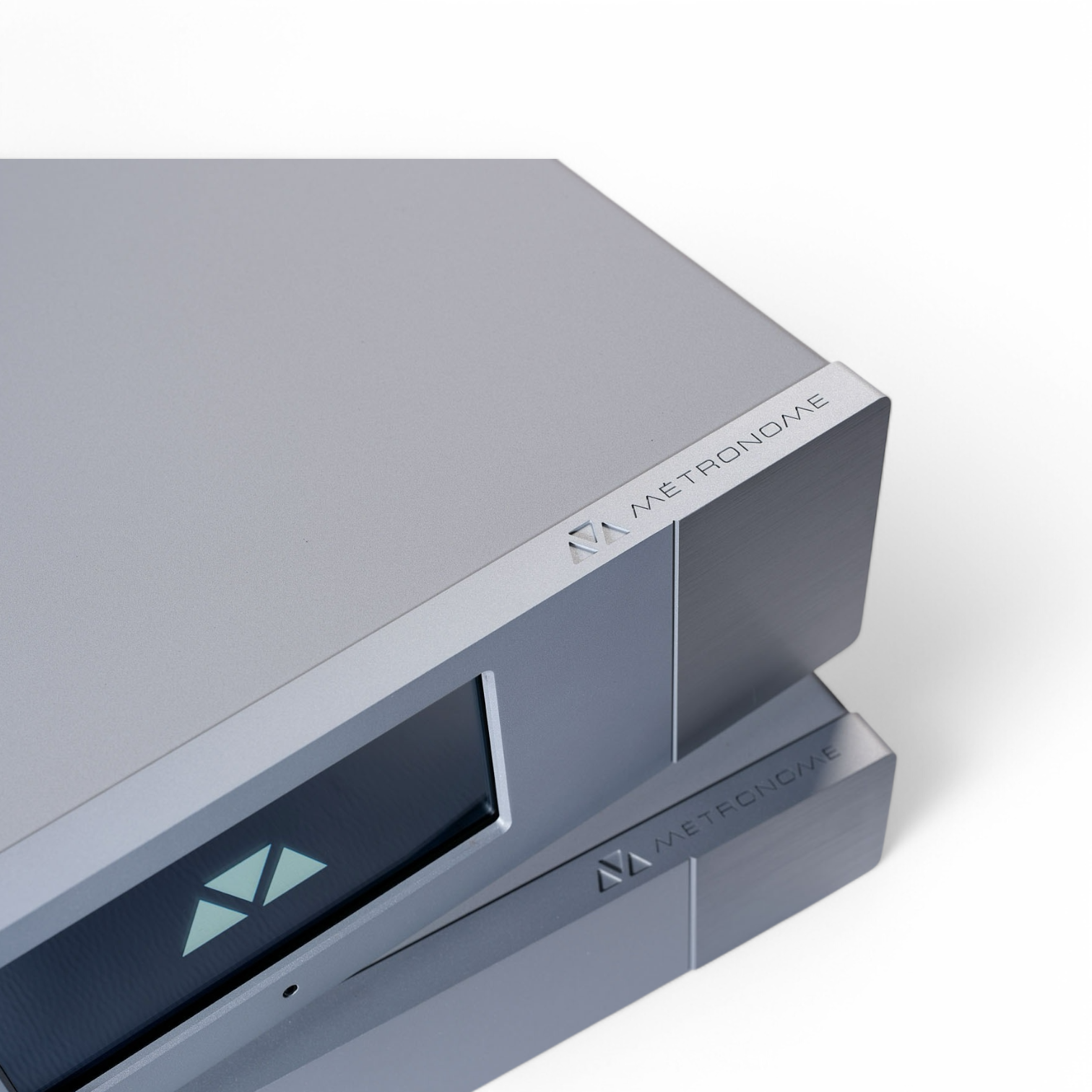

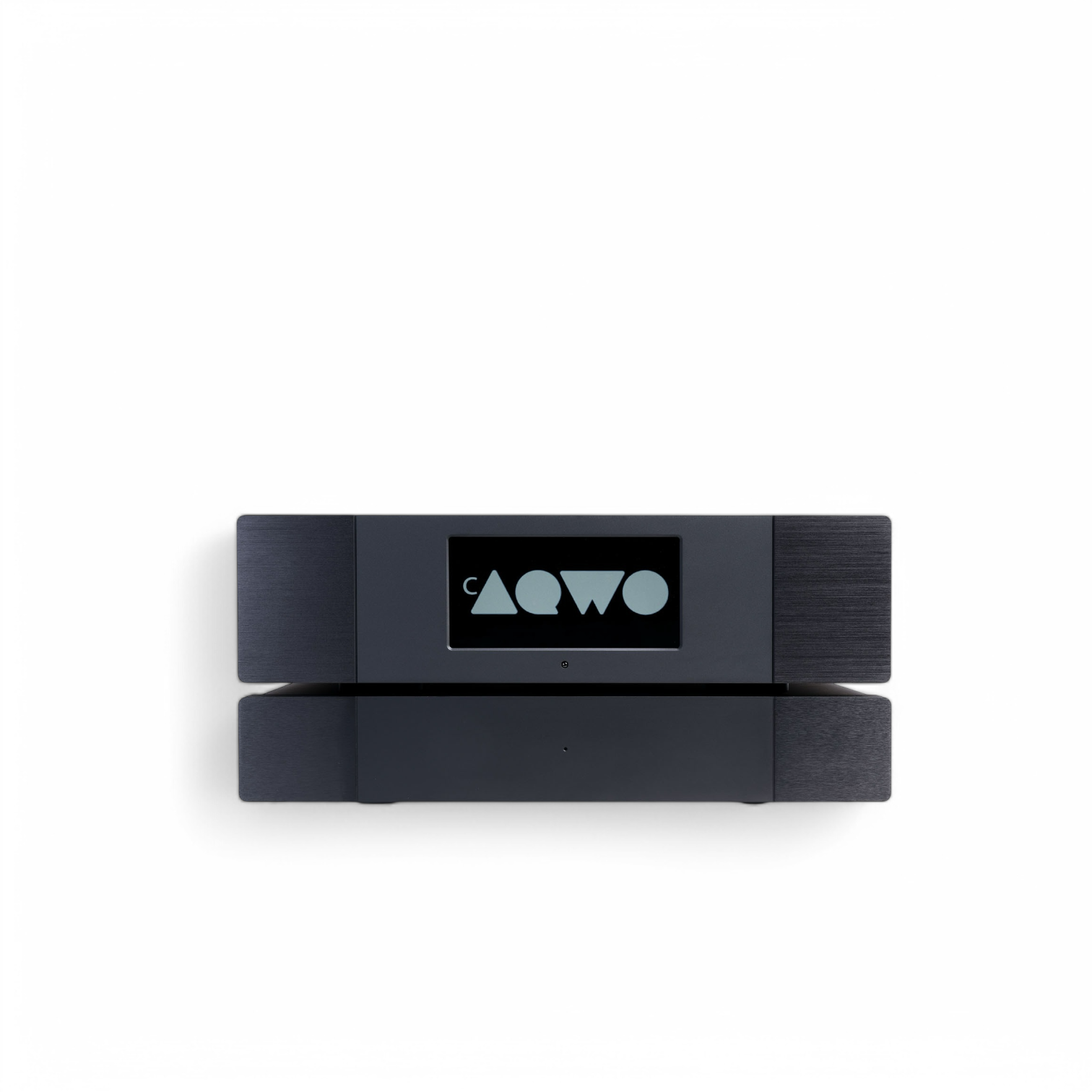

The two boxes of the c|AQWO 2 are available in two beautiful finishes, silver or black aluminum.
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 30 kg |
|---|
Specification
CONVERSION PROCESSORS ….
Reference
AKM: AK4499EX
ESS: ES9039MPRO
THD+N
AKM: -124 dB
ESS: -122 dB
Dynamic range
AKM: S/N 135 dB
ESS: S/N 137 dB
ANALOG OUTPUTS …..
RCA
Output impedance: 100 Ohms
Max. output level (0dB): 3V
XLR
Output impedance: 150 Ohms
Max. output level (0dB): 3V
STREAMING (option)
Wi-Fi
Dual Band (2,4 & 5 GHz)
Ethernet
1 x Port Ethernet 10 / 100 / 1000
USB
1 x Port USB 2.0 (for external storage)
MQA
Renderer MQA 44.1 à 384 kHz / 32 bits
SUPPORTS OF PROTOCOLS
DLNA/UPnP, Spotify Connect, Roon Ready,
Deezer, TIDAL Connect, Qobuz, Bugs, vTunner
Internet Radio
Format
PCM: 44.1 to 384 kHz / 32 bits
DSD: DSD64 to DSD256 Native
Resolution :
32 bits / 768 kHz dual-mono, 2 internal converter chips
Internal characteristics :
Dynamic range capacity : 175 dB / Distorsion + noise : -140 dB
Internal processing 32 bit / Frequency bandwidth 32 – 211 kHz
Analogic output integrates 2 output modes :
Solid state / tube (whan option implemented)
2 tubes JAN6922 Class A polarization
Bandwidth : 10 Hz – 50 kHz +/- 0.1 dB
Dynamic range capacity : 140 dB

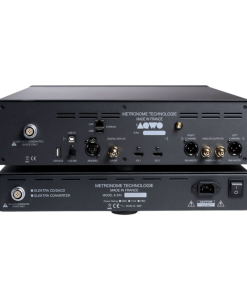

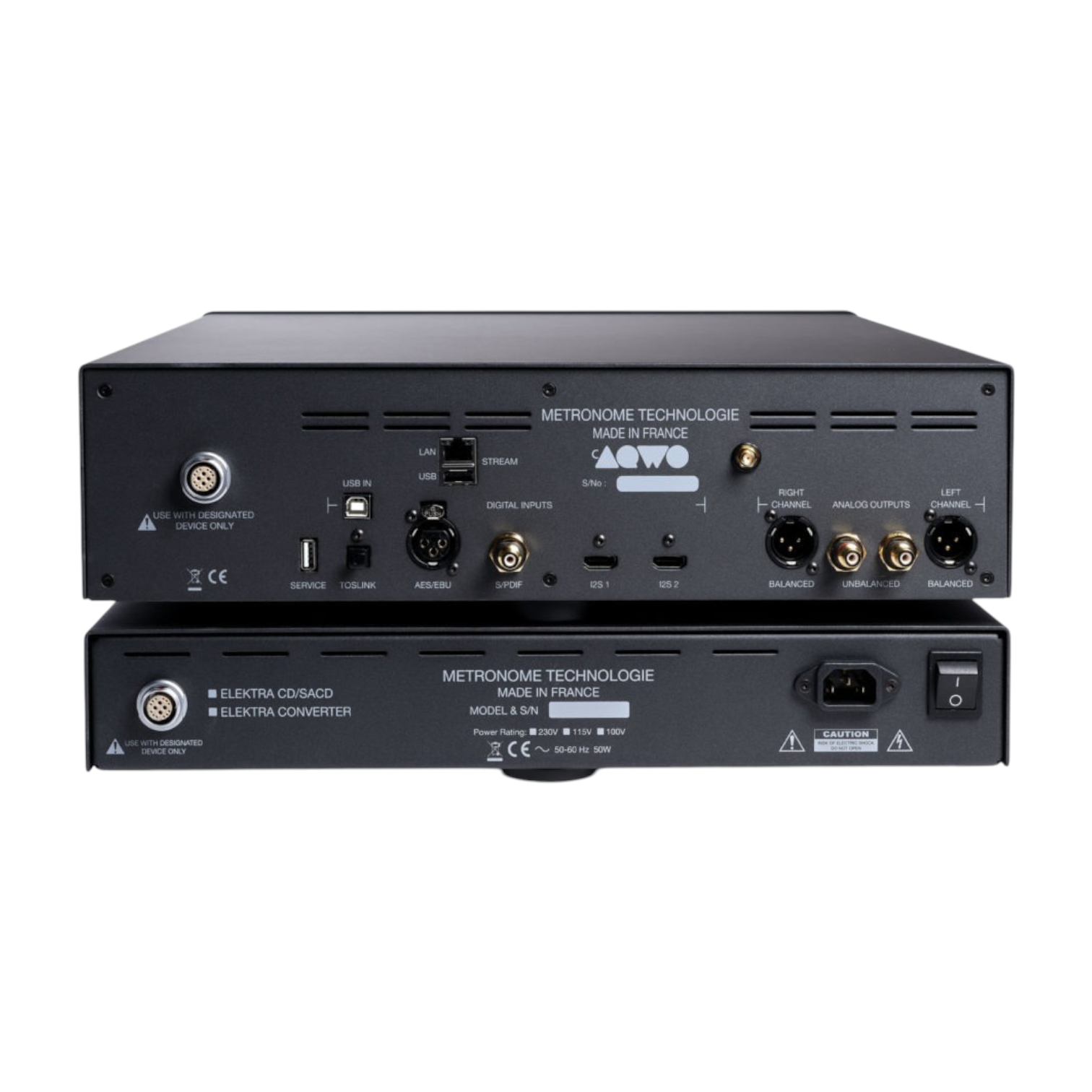

Digital inputs :
All inputs accept signals from 44.1 to 192 kHz :
S/PDIF 75 Ohms RCA connector
AES/EBU 110 Ohms XLR connector
Optical Toslink connector
HDMI and USB type B : PCM from 44.1 to 384 kHz, DSD up to 22.5MHz
Analogic outputs :
Unbalanced adjustable 1.4 – 2.5 – 3 V RMS @0dB -47 KOhms – RCA connectors
Balanced adjustable 1.4 – 2.5 – 3 V RMS @0 dB – 600 Ohms – XLR connectors
Power supply :
4 toroidal transformers with 11 independent regulation lines
Voltage :
100 VAC – 50/60 Hz Japan
120/240 VAC – 50/60 Hz Other countries
Other characteristics :
Consumption : 90 VA max
Dimensions (LxHxP) : 430 x 120 x 420 mm
Weight : 12 kg
