Pro-Ject Audio Systems

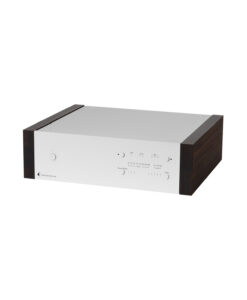

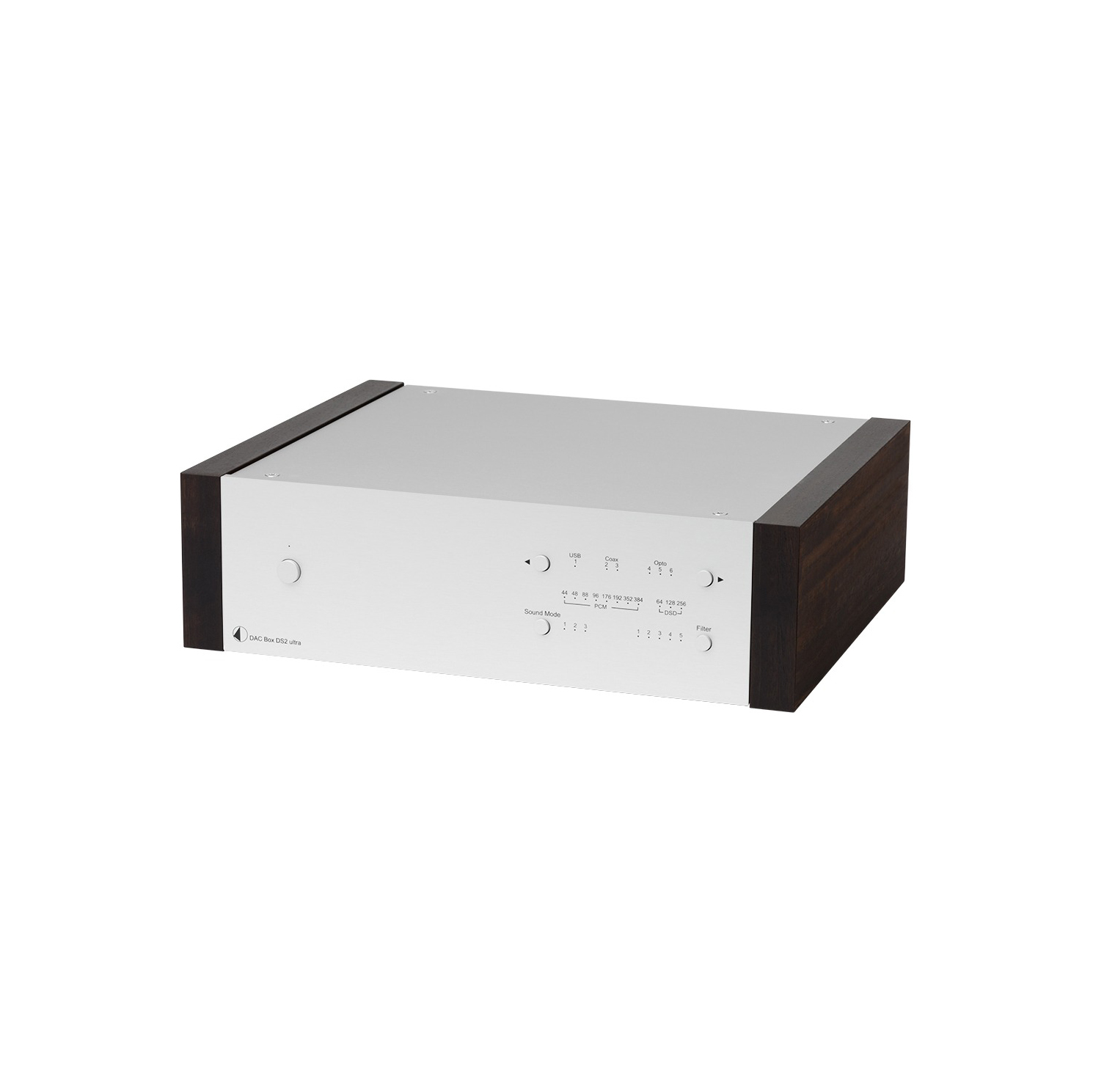

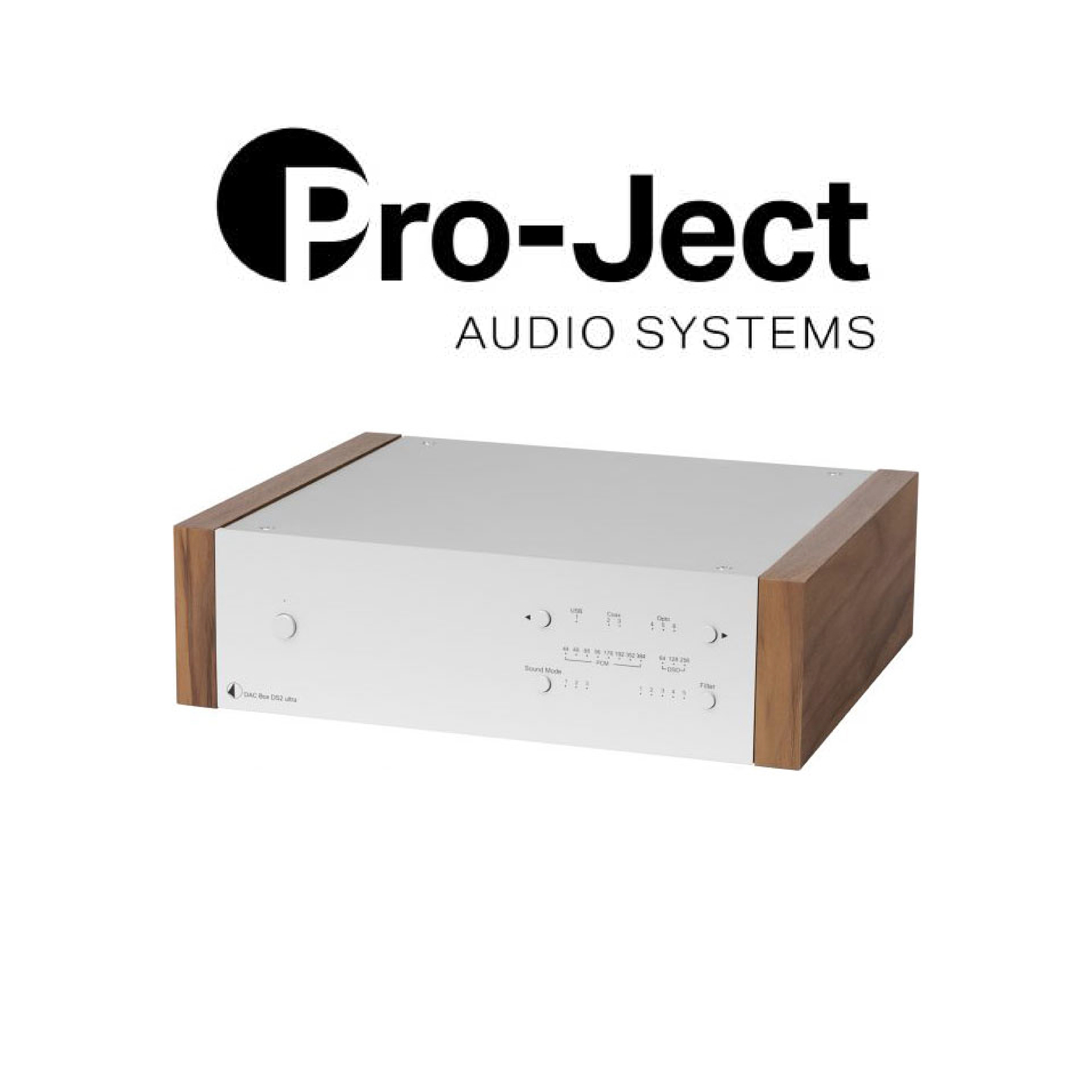

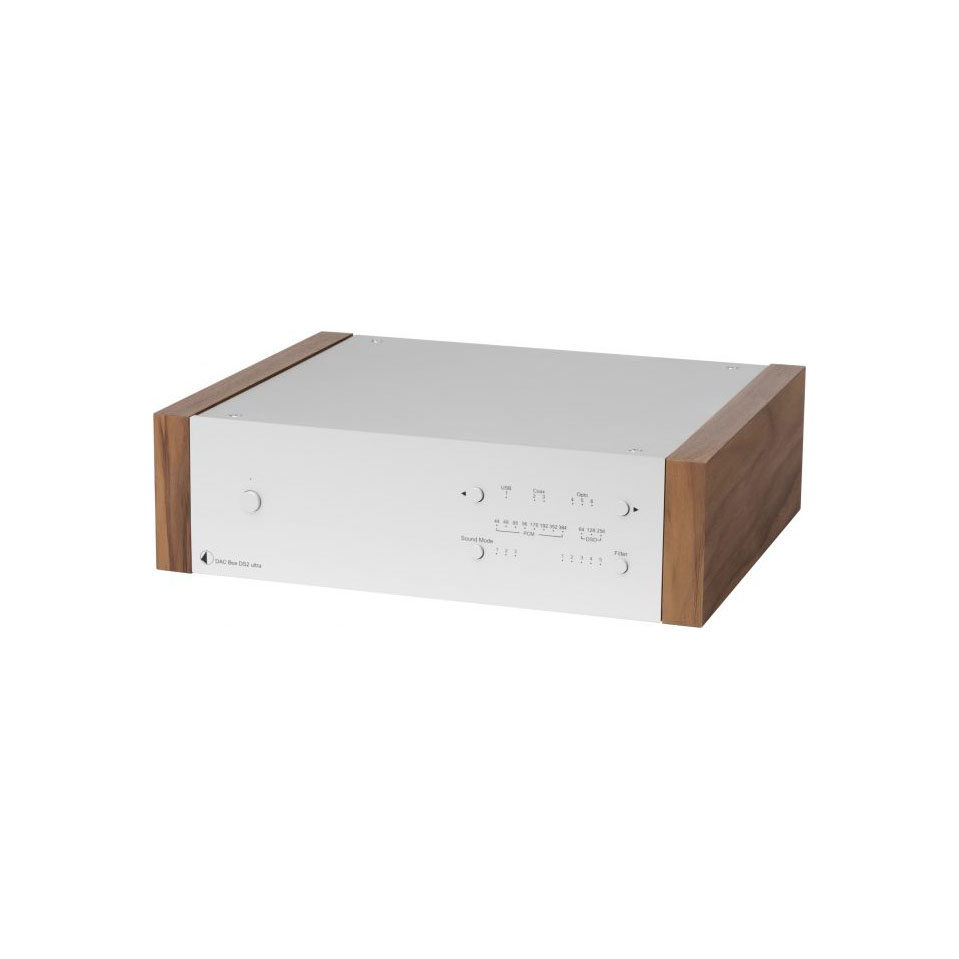

DAC Box DS2 Ultra(Made In Europe)
RM3,850.00 RM3,080.00
Overview
The advanced DAC Box DS2 ultra is an universal and very flexible D/A converter of the highest class. It offers full DSD256 support and upsampling of all input signals to 768kHz from USB, coaxial and optical inputs. This realizes high-resolution sound playback with a rich sound field and bass representation with less distortion.
Due to its class-leading audio performance DAC Box DS2 ultra is an ultimate high end bargain!
Features
- Top grade AK4490 D/A chip (32-bit PCM 768kHz / DSD256)
- 6 Inputs: 1x USB, 3x optical (TOSlink®), 2x coax (S/PDIF)
- Up to 32bit/768kHz asynchronous USB (XMOS technology)
- DSD64, DSD128 & DSD256 (DSD over PCM)
- Audio Class 2 (USB 2.0 High Speed) driver for Windows included
- Up to 24bit/192kHz for optical & coax inputs
- 5 selectable digital filter characteristics
- 3 selectable sound modes
- High-end ultra low phase oscillator with superior noise rejection
- RCA line level solid-state analogue output stage
- Ultra linear & ultra low noise circuitry
- Separate power supplies for every stage with advanced filter technology
- Upgradeable with optional linear power supply
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 3 kg |
|---|---|
| Colour Options | Silver + Eucalyptus |
Specification
| D/A-converter | AK4490 32-bit PCM 768kHz / DSD256 |

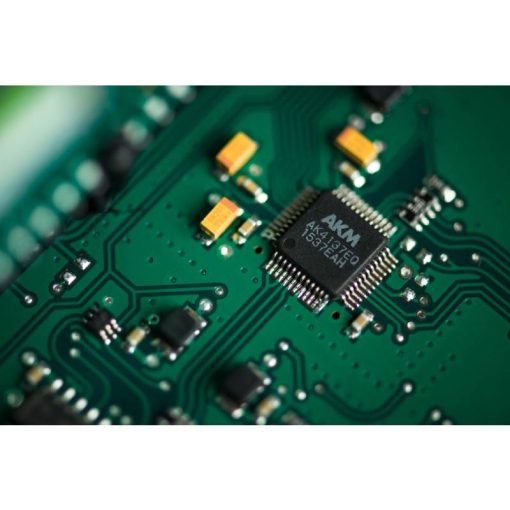

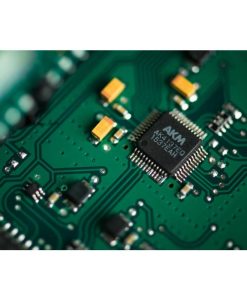

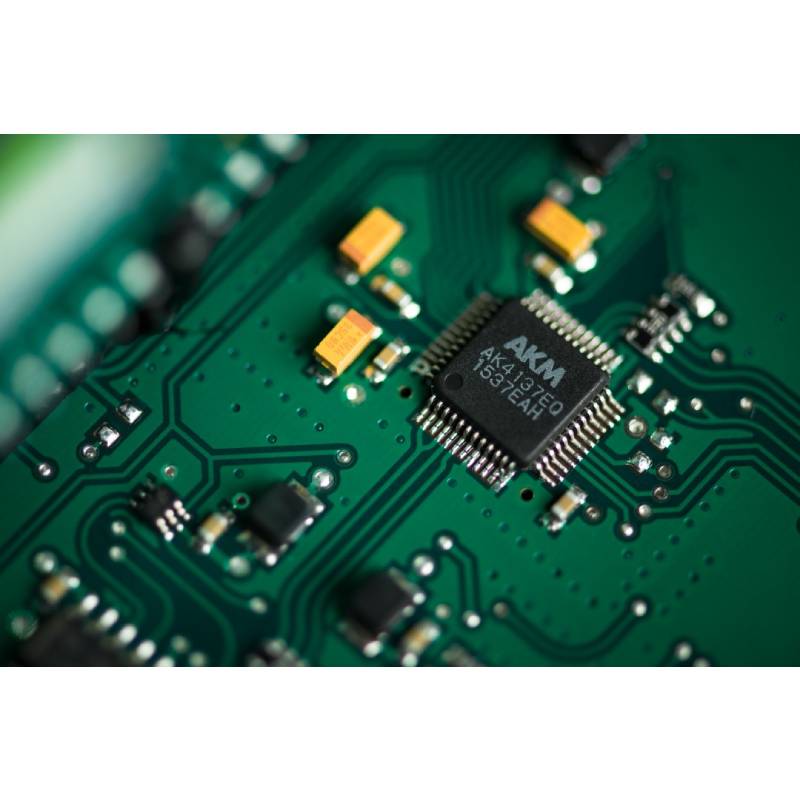

| Sampling rate converter | AK4137EQ upsampling to 768kHz |
| Samplingrates | USB: up to 32bit/768kHz, DSD256 (DoP) |
| Coaxial: up to 24bit/192kHz | |
| Optical: up to 24bit/192kHz | |
| DSD-support | DSD64, DSD128 and DSD256 |
| Filter settings | 5 different selectable on front |

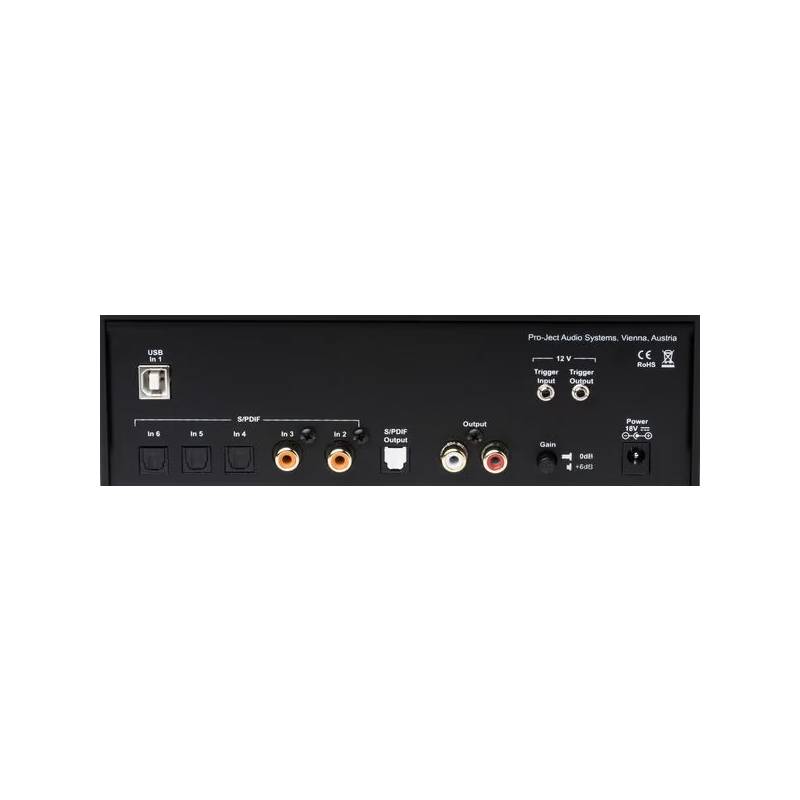

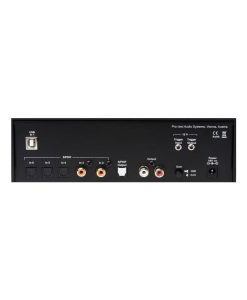

| Digital inputs | USB B |
| 3 x Optical (TOSlink®) | |
| 2 x Coaxial (S/PDIF) | |
| Frequency response | 20Hz – 50kHz (+0/-1dB) |
| Analogue output | RCA/Cinch (Line) |
| Output voltage | 2.2 Veff (switchable +6 dB gain gives 4.4 Veff ) |
| Digital output | Optical (TOSlink®) |
| THD | 0.00085% |
| Crosstalk | -117 dB (10kHz@0dB) |
| Signal to Noise Ratio | 113 dB (20Hz – 20kHz) |
| Power consumption | <1 Watt standby, 600mA max |
| Power supply | 18V/1000mA DC (included) |
| Dimensions W x H x D | 206 x 71 x 220 mm (Alu), incl. sockets |
| 240 x 72 x 220 mm (Wood), incl. sockets | |
| Weight | 1410 g (Alu), without power supply |
| 1880 g (Wood), without power supply |
Product Reviews
“The real star here is the DS2 Ultra. Bearing in mind that it is a relatively affordable DAC, there is a ceiling to its performance in absolute terms. If you’re willing to splash more coin, you can get more detail resolution, a silkier treble and midrange as well as deeper, more dynamic bass.” #audioFi.net
https://audiofi.net/2021/09/pro-ject-dac-box-ds2-ultra-cd-box-ds2t-past-to-present/
