Estelon

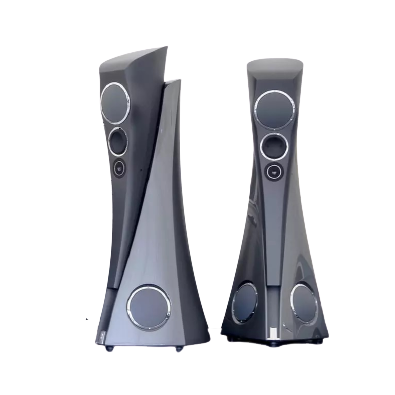

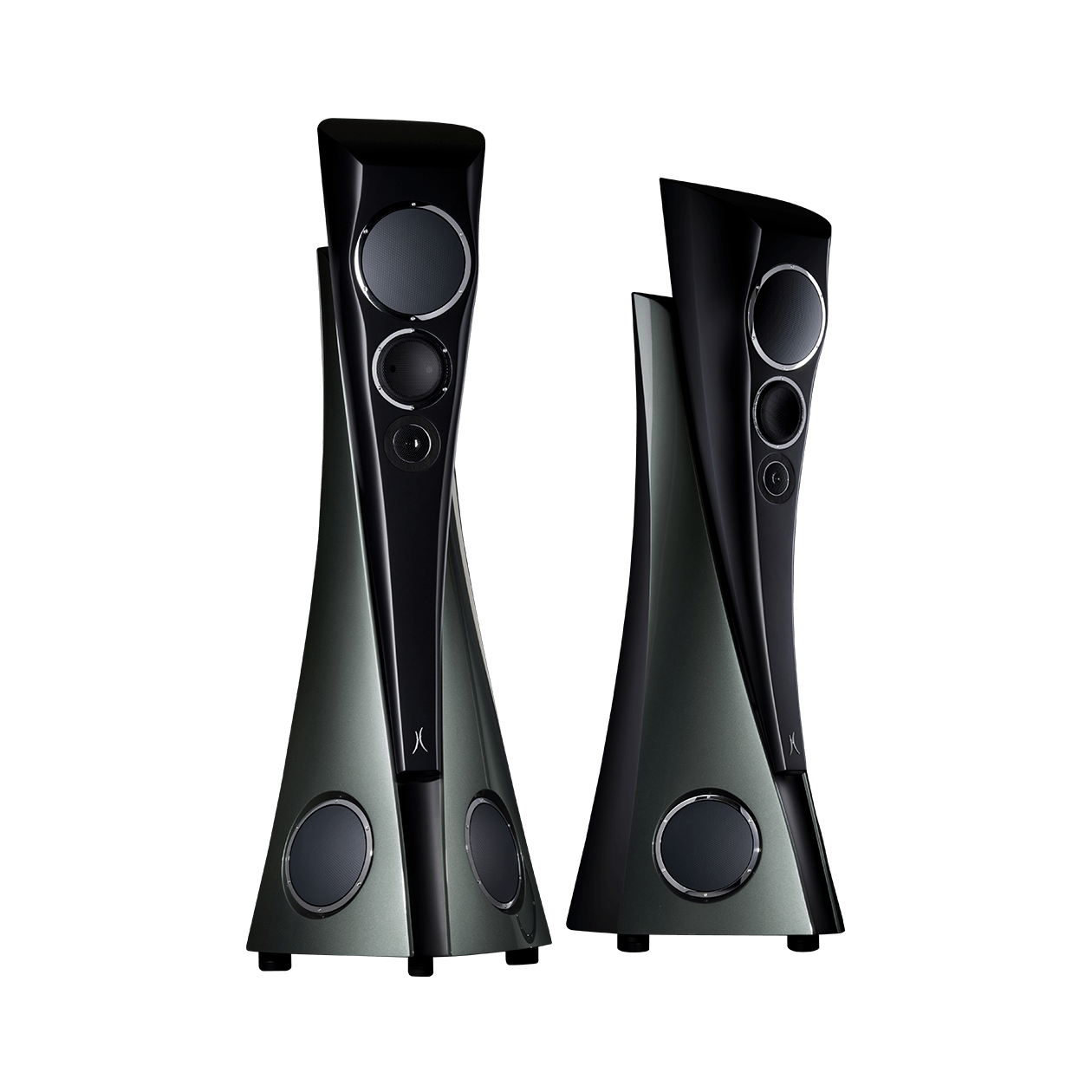

Extreme Limited Edition MK-II
Loudspeaker

Overview

DESIGN PHILOSOPHY

• Some high-end speakers can perform extremely well in certain rooms, but if taken to another room, the results may not be so good. That is the reason we wanted to create a speaker that could be adjusted according the room specifics and listener
  position.
•  Sound waves below 50-100 Hz
• Sound waves over 100 Hz start mirroring and interfering with each other

CABINET & TECHNOLOGY

• The unique shape of the cabinet is highly complicated and differs greatly from a classical box design. In fact, it’s not a box at all!
• Proprietary marble-based composite material and molding technology.
• Constructed with two modules (upper and lower) – the upper module of each loudspeaker is adjustable.
• Curved surfaces and a system of interior chambers.
• Advanced internal dampening
• Bass reflex technology
• Fine tuning the tweeter position
• 250kg weight of each speaker provides stability

A COMBINATION OF THE BEST DRIVERS

• Each speaker has two woofers, one mid-woofer, one midrange and one tweeter. In order to reproduce the full spectrum of sound with the absolute highest quality, a combination of four different driver types has been carefully chosen. The high quality drivers are designed and produced by German driver manufacturer Thiel & Partner GmbH under the brand name Accuton, and are revered globally as the best.
• Woofer – stiff aluminum sandwich membrane with a long linear excursion (custom made)
• Mid-woofer – stiff aluminum sandwich membrane (custom made)
• Midrange – ceramic; super-fast and accurate
• Diamond Tweeter – extremely stiff, precise and stable until 45 kHz

SPECIAL CHAMBERS IN THE LOUDSPEAKERS CABINET

• Woofers and mid-woofer have anti-resonance chambers
• The cabinet around the midrange is curved to eliminate diffraction
• The separated chamber together with the surrounding cabinet surface create dispersion control
• Drivers are positioned on the intentionally curved front panel for increased coherency

CROSSOVERS

• We use specifically engineered and highly precise third order crossovers for the woofers and second order networks for the mid-woofer, midrange and tweeter.
