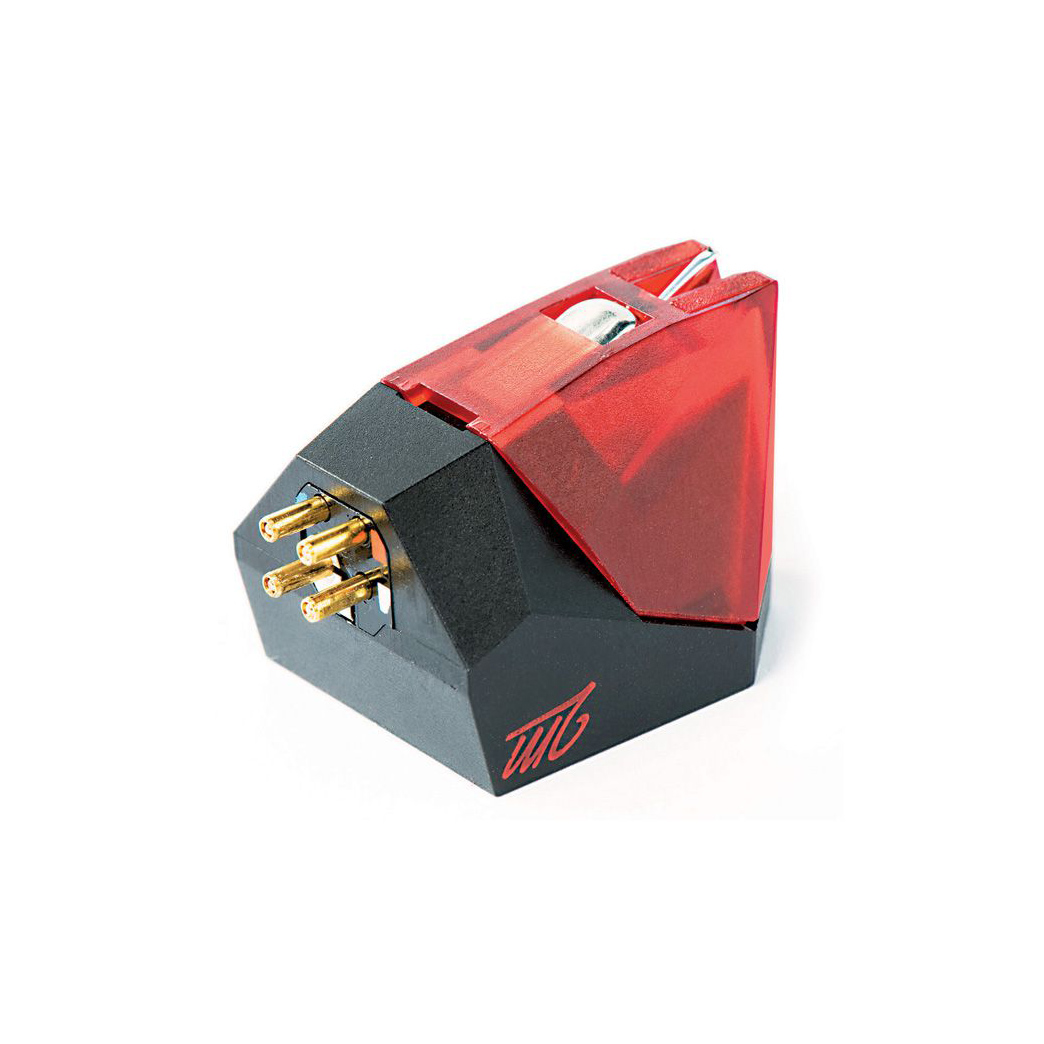

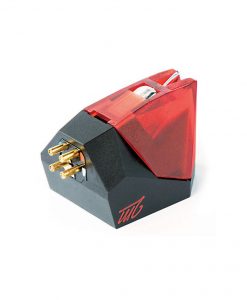

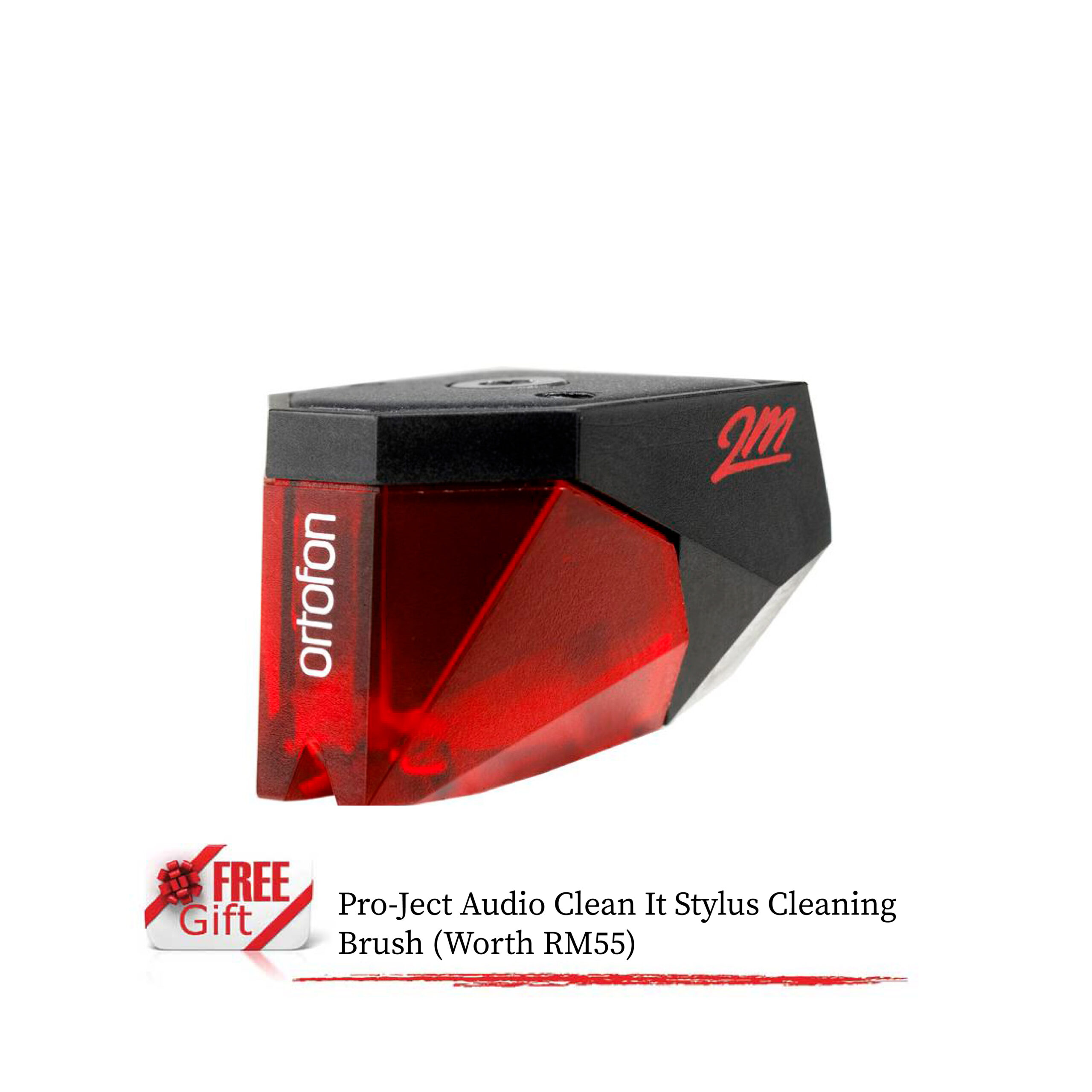

Ortofon
2M Red MM
Cartridge
(Made in Denmark)

Name: Ortofon<br>2M Red MM</br> Cartridge</br>(Made in Denmark)
SKU: 15224
Price: 455.00 MYR
Availability: InStock

RM455.00

1 in stock

Features

an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy
a tipped Elliptical diamond and split pole pins with a copper wire
2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

For more information:

Weight	0.4 kg

Specification

Output Voltage (at 1kHz, 5cm/sec)	5.5mV
Channel Balance at 1kHz	1.5dB
Channel Separation at 1kHz	22dB
Channel Separation at 15kHz	15dB
Frequency Range (at -3dB)	20 Hz – 22 kHz
Frequency Response 20Hz-20kHz:	+3 / -1dB
Tracking Ability at 315Hz	Typically 70μm
Compliance, Dynamic, Lateral	20μm / mN
Stylus Type	Elliptical
Stylus Tip Radius r / R	8 / 18μm
Tracking Force Range	1.6 – 2.0g (16 – 20mN)
Recommended Tracking Force	1.8g (18mN)
Internal Impedance / DC Resistance	1.3kΩ
Internal Inductance	47kΩ
Recommended Load Resistance	47kΩ
Recommended Load Capacitance	150 – 300pF
Cartridge Weight	7.2g
