Ortofon

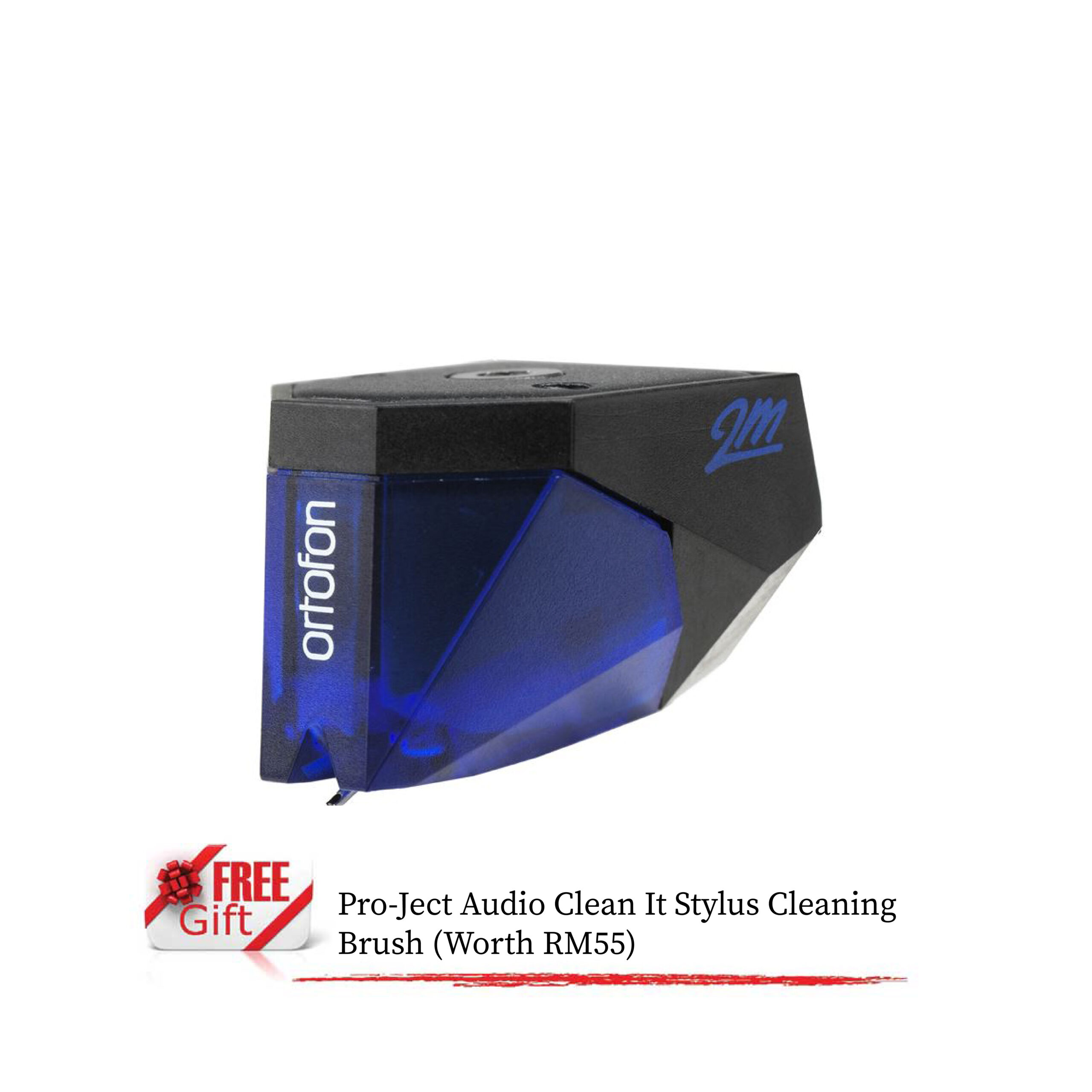

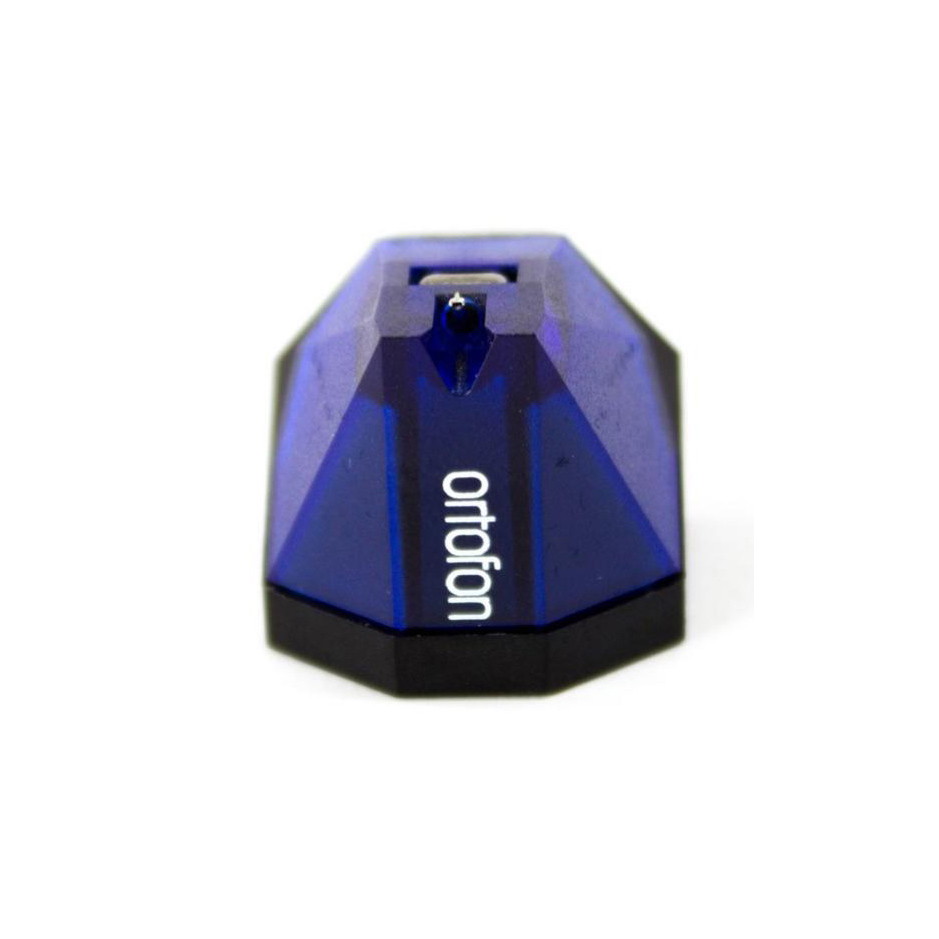

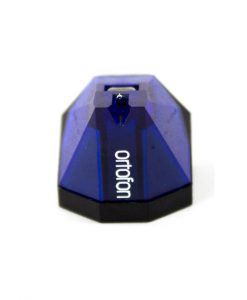

2M Blue MM Cartridge(Made in Denmark)
RM899.00
2 in stock
Features
an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy. Nude Elliptical diamond and split pole pins with a copper wire. We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.
The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 0.4 kg |
|---|
Specification
| Output voltage at 1000 Hz, 5cm/sec. | 5.5mV |
| Channel Balance at 1kHz | 1.5dB |
| Channel Separation at 1kHz | 25dB |
| Channel Separation at 15kHz | 15dB |
| Frequency response | 20-20.000 Hz + 2 / – 1 dB |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Compliance, dynamic, lateral | Typically 70μm |
| Stylus type | Nude Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Tracking force range | 1.6-2.0 g (16-20 mN) |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1.3kΩ |
| Internal Inductance | 700 mH |
| Recommended Load Resistance | 47kΩ |
| Recommended Load Capacitance | 150 – 300pF |
| Cartridge Weight | 7.2g |
