Overview

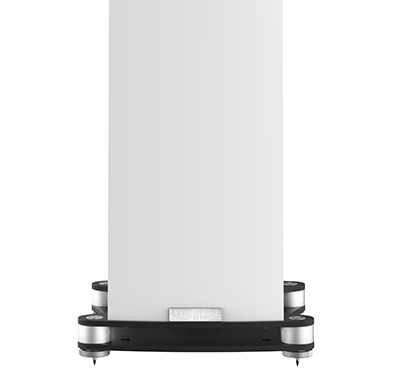

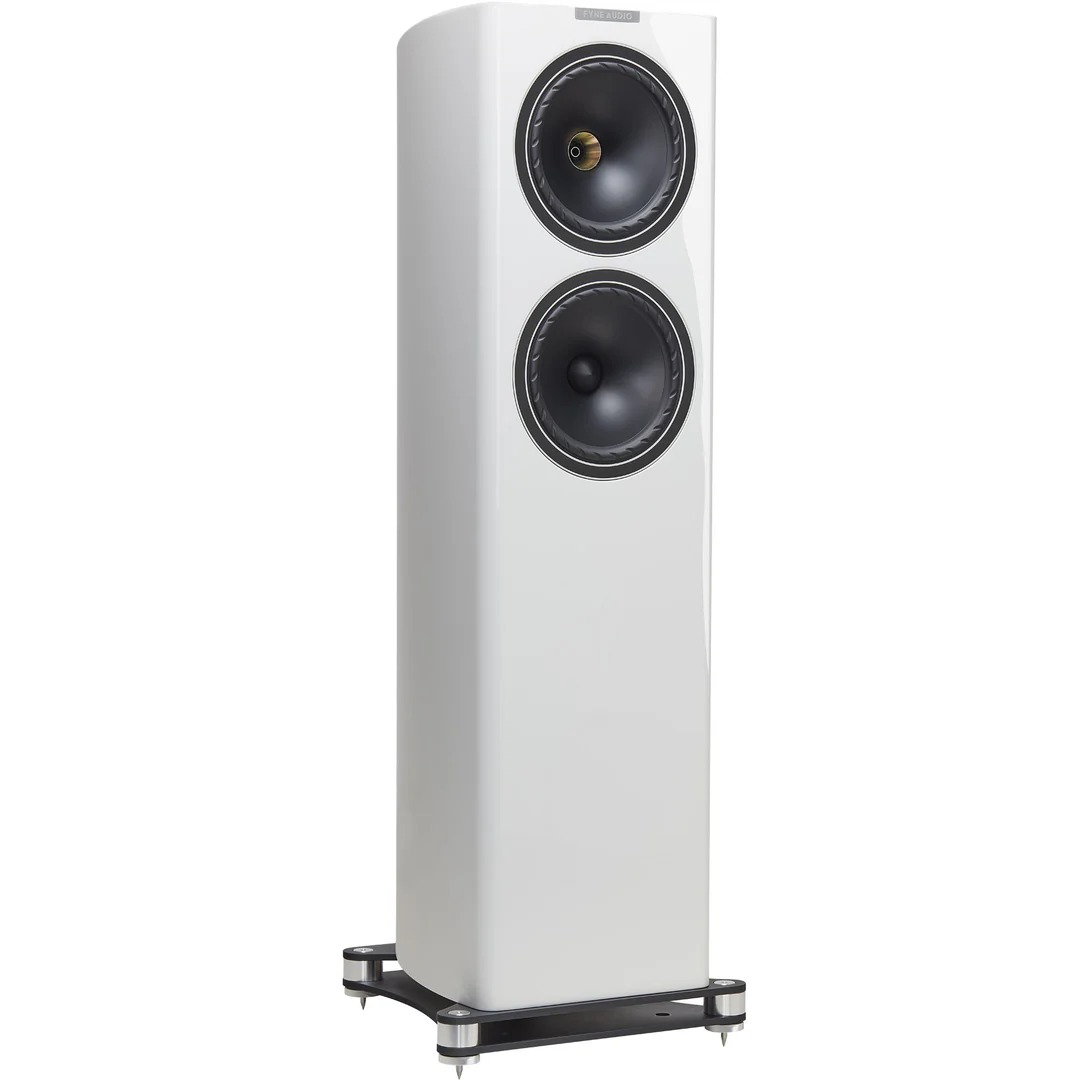

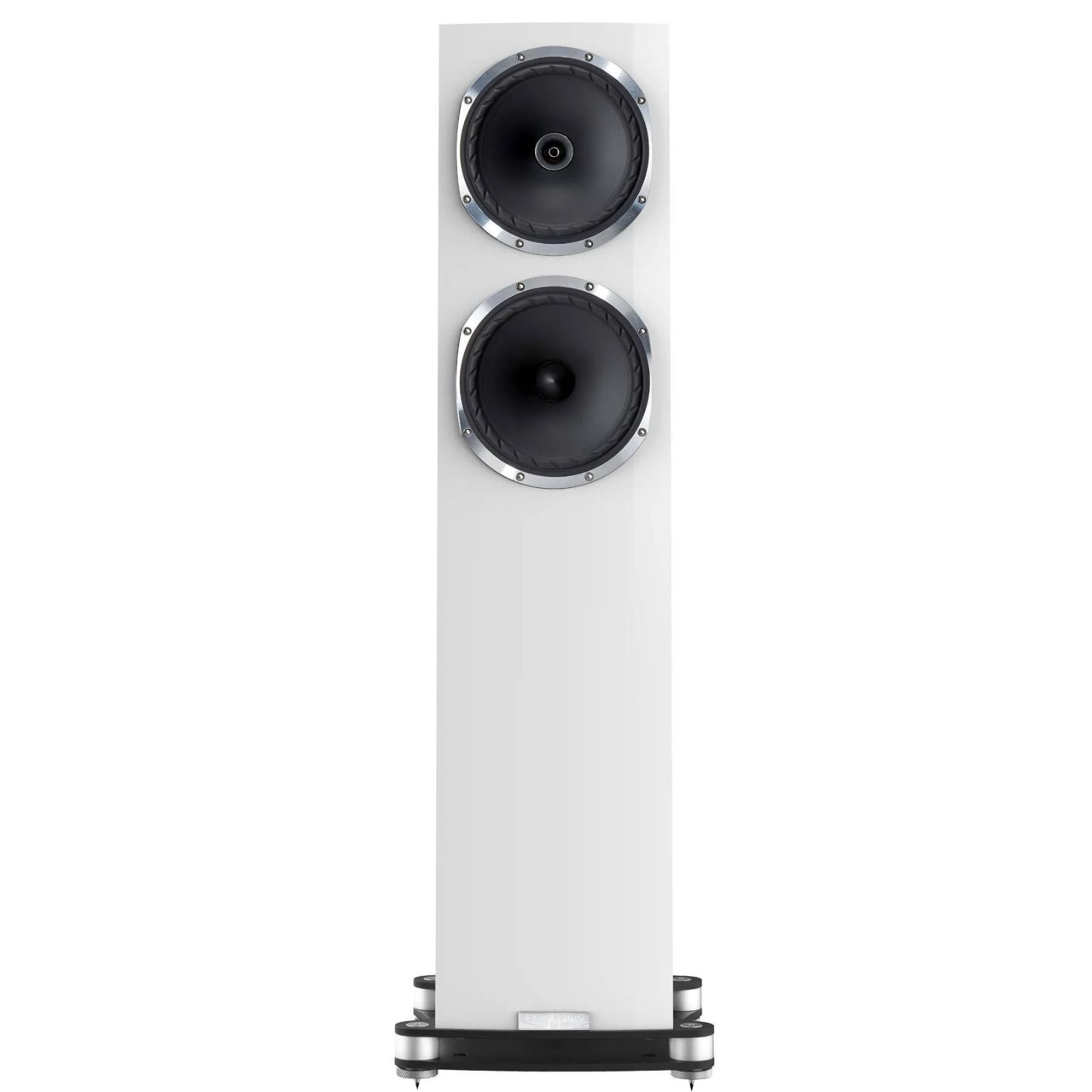

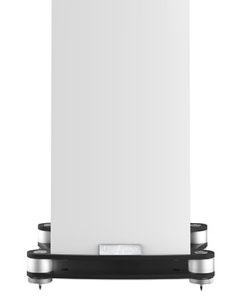

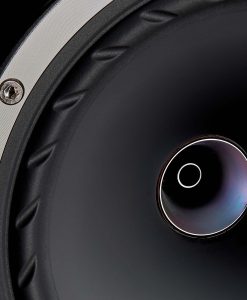

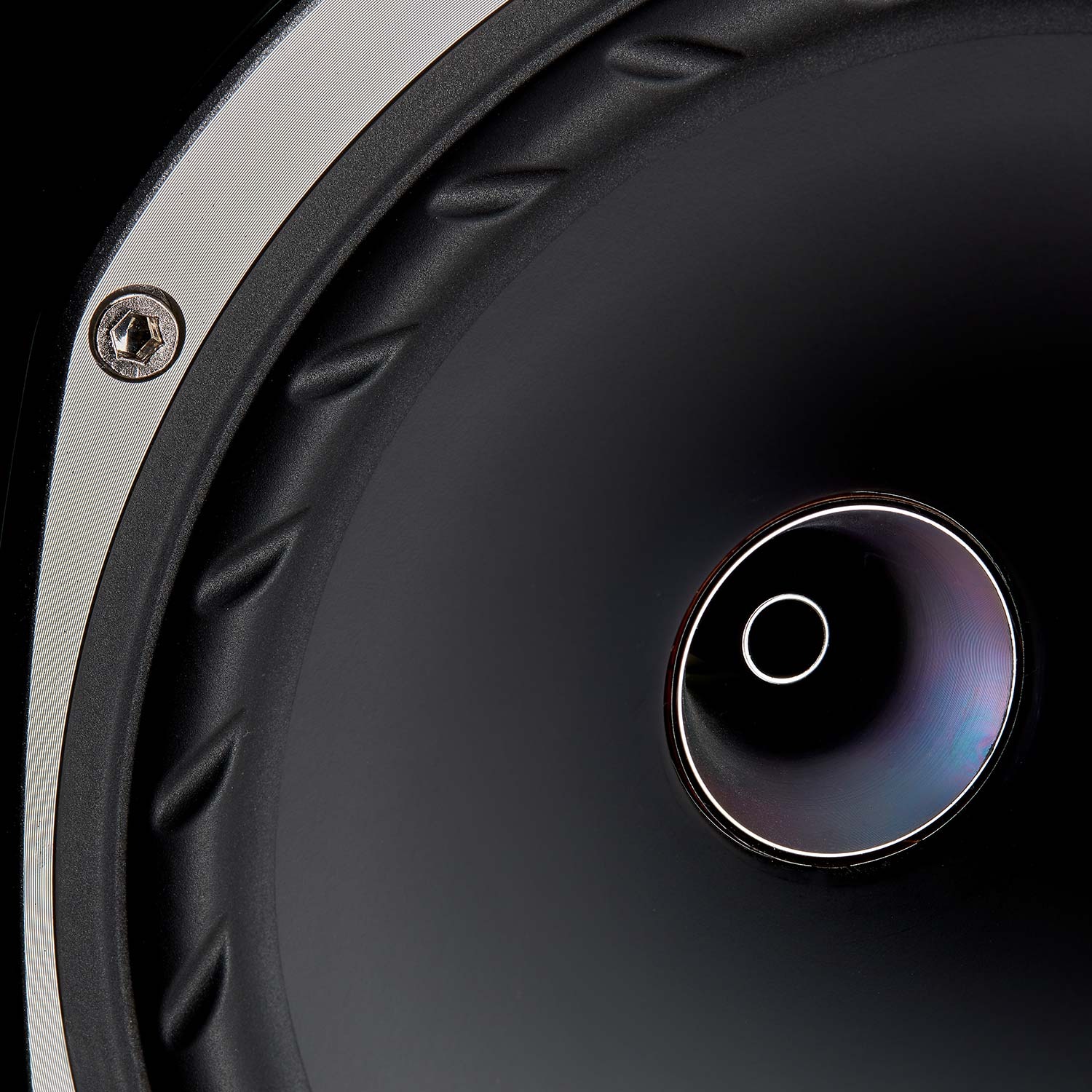

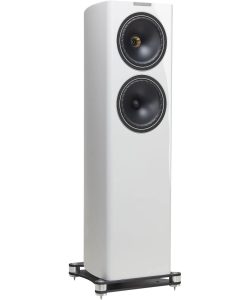

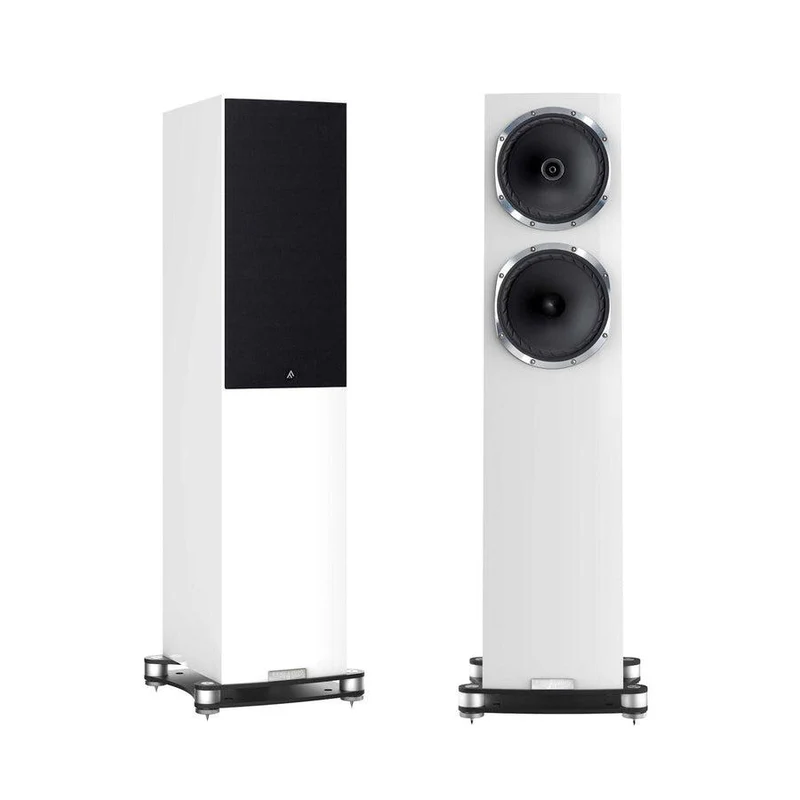

Improving on the F502, the UK built SP edition uses the premium 200mm (8″) IsoFlareTM driver and 200mm (8″) bass/mid driver from the F702, featuring rigid multi-fibre cones and FyneFluteTM roll surrounds. The IsoFlare’s 25mm magnesium compression tweeter has a unique HF wave guide pole piece delivering an incredibly even, full-range frequency response and outstanding Hi-Fi musical imaging. The F502SP also benefits from the F700’s advanced crossover components and aluminium sandwich type plinth with BassTrax tractrix profile bass diffuser, re-engineered to precisely tune the F502SP’s more compact cabinet. The SP is available in high-gloss black and high gloss white as standard, or a luxurious deep gloss lacquered walnut veneer with a diamond machine cut finish on the aluminium driver chassis.
| Weight | 60 kg |
|---|
Specification
| System Type | 2 ½ way downwards firing port with BassTraxTM Tractrix diffuser* twin cavity loading system |
| Recommended amplifier power (Watt RMS) | 30- 200 |
| Continuous power handling (Watt RMS) | 100 |
| Sensitivity (2.83 Volt @ 1m) | 92dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 30Hz – 34kHz |
| Drive unit complement | 1 x 200mm IsoFlare point source driver multi-fibre bass/ midrange cone FyneFluteTM surround with 25mm magnesium dome compression tweeter neodymium magnet system. 1 x 200mm multi-fibre bass cone FyneFluteTM surround. |
| Crossover frequency | 250Hz & 1.7kHz |

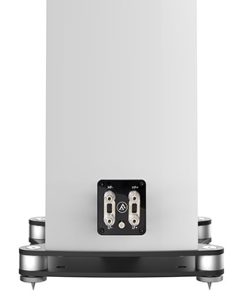

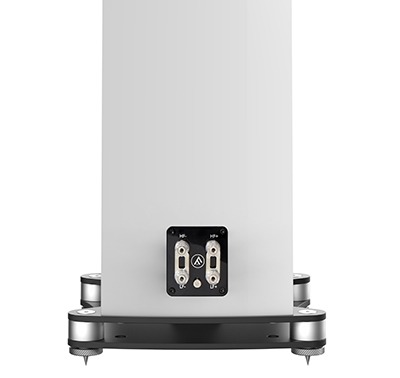

| Crossover type | Bi-wired passive low loss 2nd order low pass 1st order high pass |
| Dimensions – | HxWxD 1111 x 338 x 380mm (43.7 x 13.3 x 15.0”) |
| Weight – | Each 30.4kg (67.0lb) |
