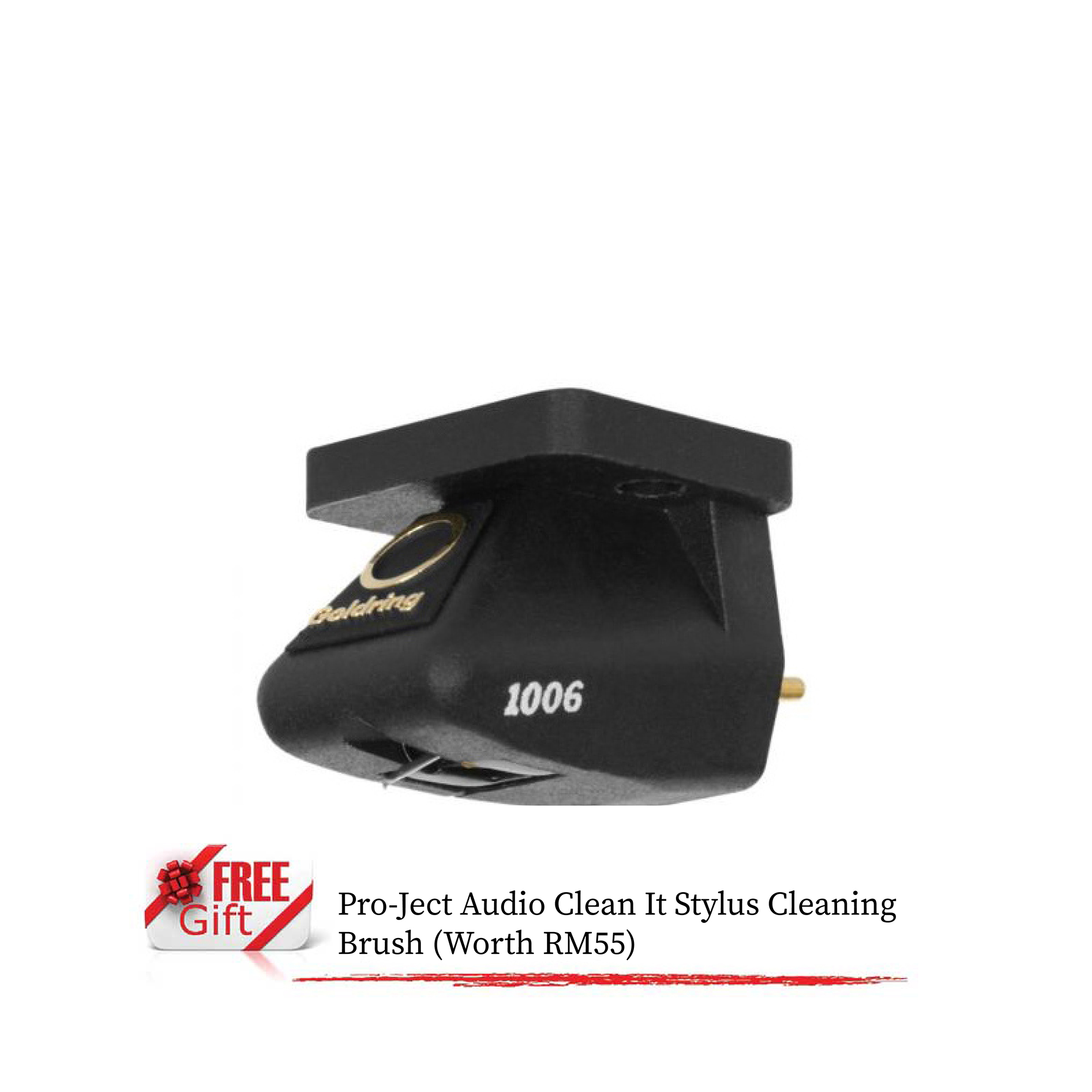

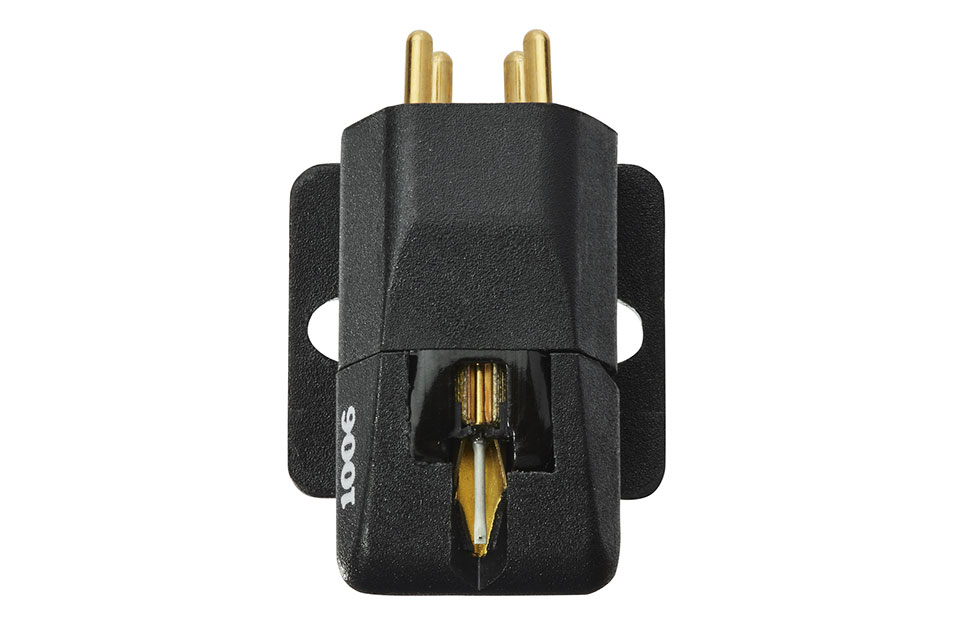

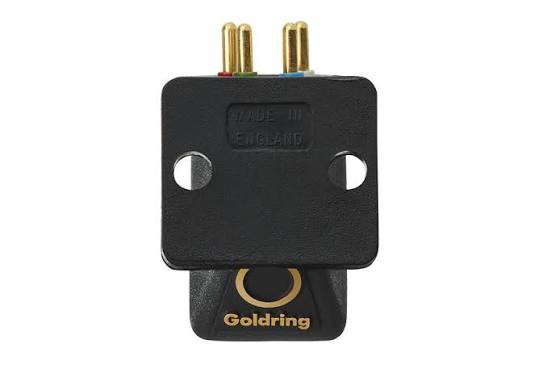

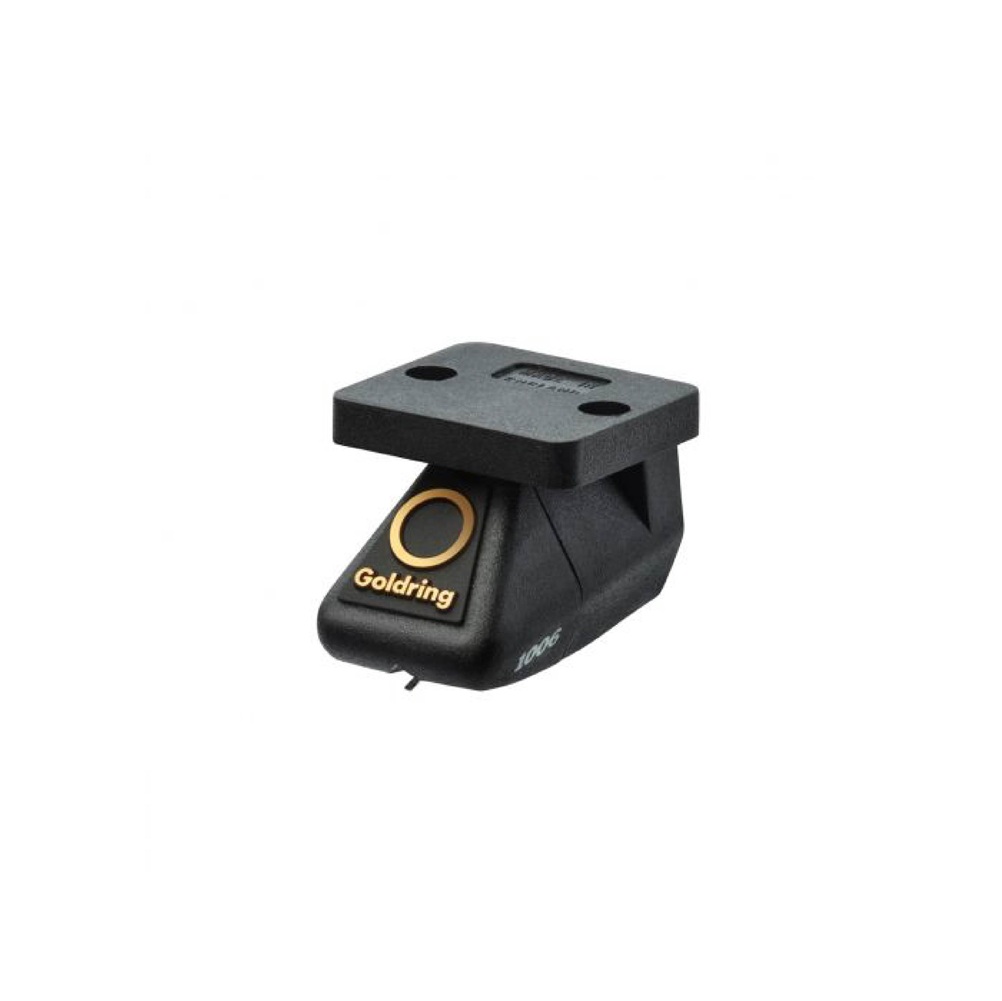

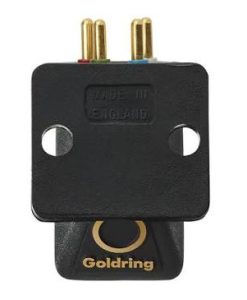

Goldring
1006
Moving Magnet
Cartridge
(Made in England)
RM1,420.00
Overview
This hand-built cartridge features a nude elliptical stylus; its shape enables it to more accurately trace the highest frequency record grooves giving it the advantage over ordinary spherical types. The natural diamond shank also gives the stylus a lower tip mass than cheaper metal bonded types lending the cartridge an improved transient response.
Features
- Low Mass Pocan® Body
- High Efficiency Magnetic Circuit
- Reduced Moving Mass
- Expert Adjustment
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 0.4 kg |
|---|
Specification
| Frequency Response | 20 Hz-20 kHz +/- 3 dB |
| Channel Balance | within 2 dB @ 1 kHz |
| Channel Separation | better than 25 dB @ 1 kHz |
| Sensitivity | 6.5 mV +/-1.5 dB, 1 kHz @ 5 cm/sec |
| Static Compliance | 20 mm/N |
| Dynamic Compliance @ 10 Hz | 10 mm/N |
| Equivalent tip mass | 0.45 mg |
| Vertical Tracking Angle | 24 ° |
| Stylus Profile | Elliptical |
| Stylus Type | Replaceable |
| Load Resistance | 47 kΩ |
| Load Capacitance | 150-200 pF |
| Internal Inductance | 570 mH |
| Internal Resistance | 660 Ω |
| Cartridge Mass | 6.3 g |
| Cartridge Mass (inc. fixings) | 7.6 g |
| Fixing Centre | 0.5″ (12.7 mm) |
| Playing Weight | 1.5 – 2.0 g (1.7 g nom.) |
| Replacement stylus | 1006-D0 |
