SoundBox
Imagine Package

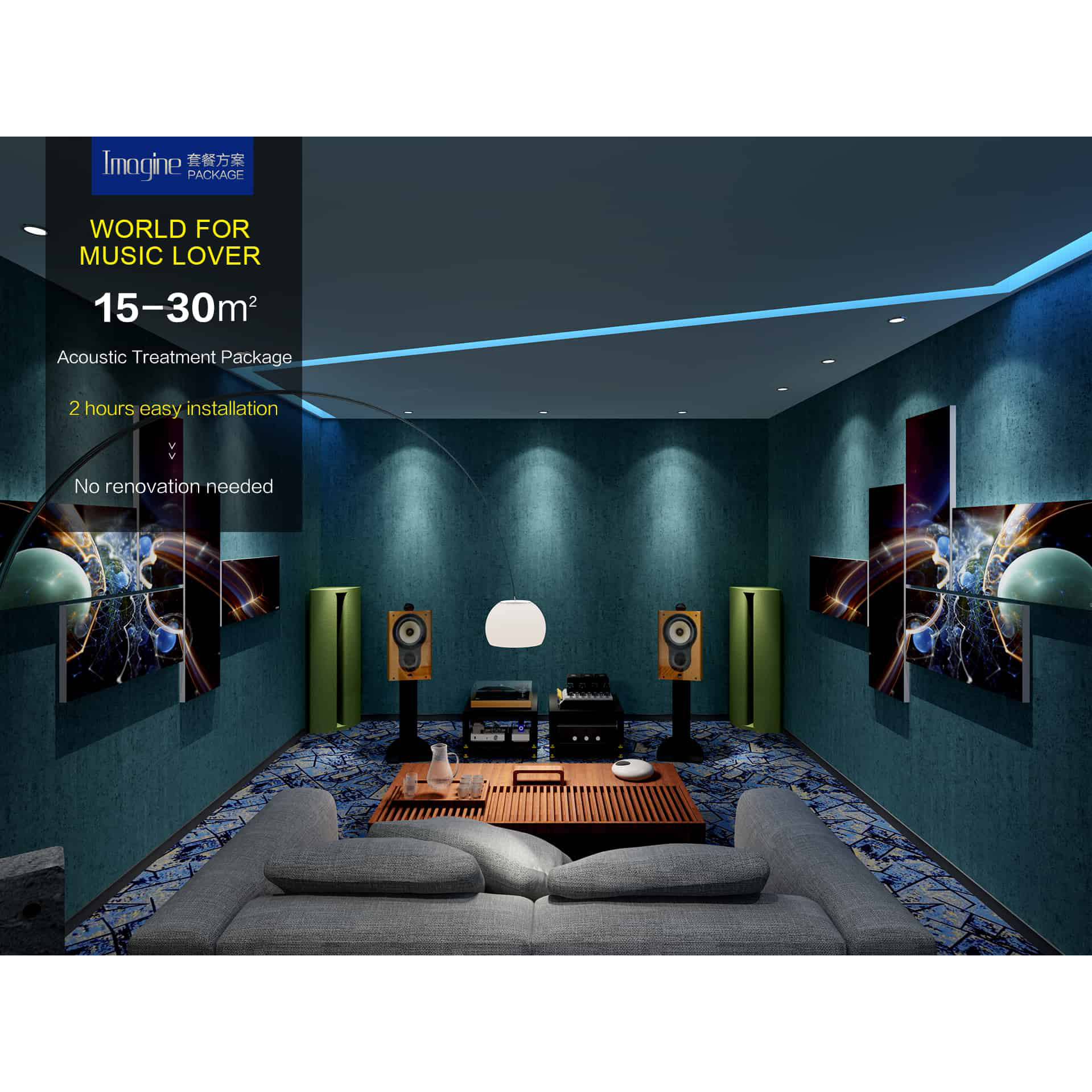

HiFi Room
Acoustic Treatment

Imagine High Resolution Painting Acoustic Panel

• Equipment:
  Seiko UV ultraviolet 2D spray painting machine imported from Japan. Excellent air permeability, does not affect acoustic function.
  USA UV Eco-friendly ink without harmful gas emission
  Diversified raw materials for customers’ choices; Those offered by customers are acceptable It’s a perfect integration when are applied into homes, offices and entertaining spaces.
  Imagine, Perfect combination between acoustic and sounds.
• Material:
  Pure natural green cotton fibre composite acoustic / patent mould aluminium frame profiles
• Finishes:
  Linen double density composite acoustic cloth
• Environmental protection:
  Zero emissions in line with international environmental standards E0
• Installation:
  Anti-resonance aluminium fixing system

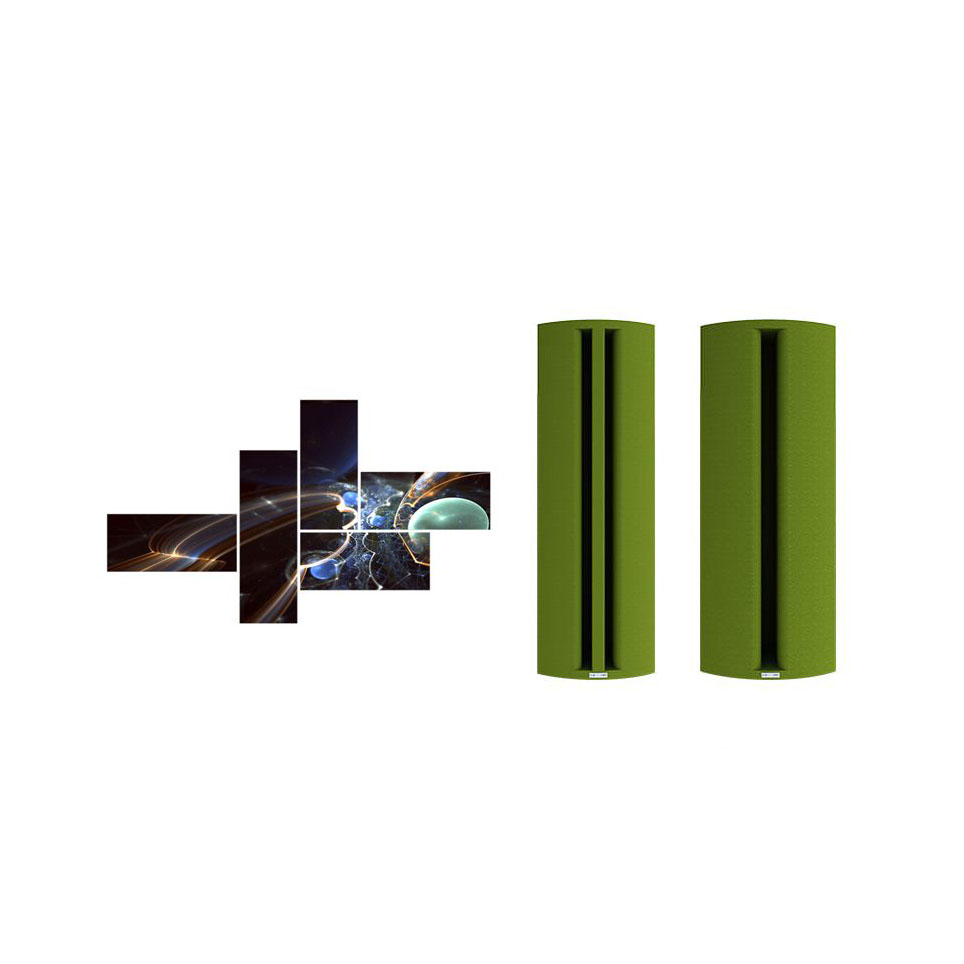

C350W/C300W Corner Basstrap Acoustic Panel
R350W/R300W Cylinder Basstrap Acoustic Panel

Base Material:
Polymer, chemical compound with large molecules

Finish:
E0 ECO water based paint

Features:
Combining high tensile inorganic coating, they are formed by pouring Polymer materials which is with good low absorption character, decreasing weight and overcome traditional drawbacks. Adopting the wise open resonance box model, it is the one of effective approaches to capture 100-250Hz, taming most of problems caused by excess of low frequencies.

Size:
C350W – H1200 * W350 * D350mm ≤3.2Kg/pcs
C300W – H1200 * W300 * D300mm ≤2.8Kg/pcs
R350W – Φ300*1200mm ≤3.5Kg/pcs
R300W – Φ300*1200mm ≤2.8Kg/pcs



Specification

Room dimension:
D4300~6400 * W3500~4700 * H 2600~2800 mm
System:
Hi-Fi / Hi-END
Combination:
R/L absorbs all band of frequencies. Portable basstraps at four corners which standing wave mostly present
Acoustic feature:
To decrease balanced reflected standing wave, improving sound fullness and delicacy
Application:
Decorated room, DIY installation





Performance
