Hi-Fi Room Acoustic Treatment – DQ Package

SoundBox
DQ Package
HiFi Room
Acoustic Treatment

RM15,000.00

All-encompassing frequency absorption with full band frequency diffusion.

Style	Clear

SKU: N/A Categories: Room Acoustic Treatments, Soundbox Acoustic Package Tag: Soundbox

Overview

All-encompassing frequency absorption with full band frequency diffusion.

If you need a complete line of products that is capable of full band frequency diffusion and absorbs low, medium, as well high frequencies in any room, the Hi-Fi DQ is your best bet. Don’t leave any kind of noise problem to chance and get the Hi-Fi DQ line if your aim is to improve frequency performance in your space.

View in 360°: Soundbox-DQ

[iframe src=”https://www.kujiale.com/xiaoguotu/pano/3FO4C6GOY877″ width=”100%” height=”600″]

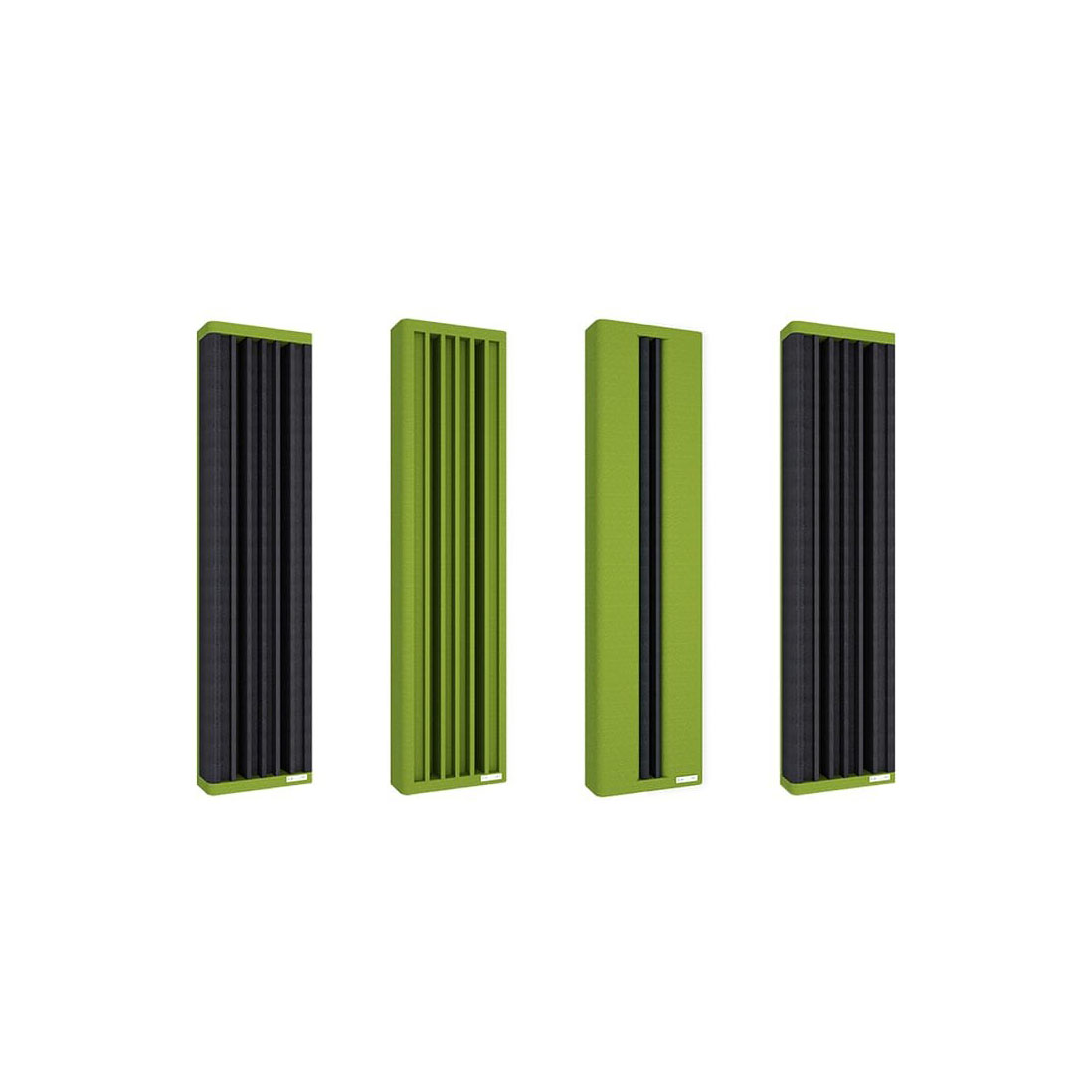

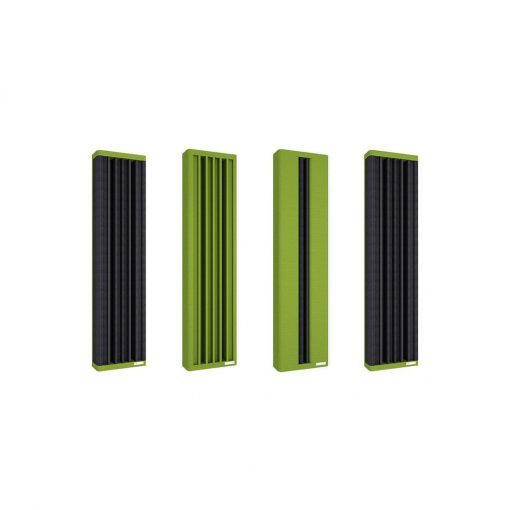

F300H High frequency absorber

Base Material:
Polymer/Polyether polyol fire retardant acoustic foam
Finish:
E0 ECO water based paint
Features:
High-density Polyether polyol acoustic foam improves sound that the model absorbs; QRD array achieves broad band frequency absorption, solving the problem arise from too much high frequency and balanced reflection
Size:
H1200 * W300 * D100mm ≤1.3kg/pcs

F300M Medium frequency absorber

Base Material:
Polymer/Polyether polyol fire retardant acoustic foam
Finish:
E0 ECO water based paint
Features:
The semi-closed cavity structure which formed by pouring polymer material, and the U-type Polyether polyol acoustic foam controls Flow resistance index, form a capture to deal with 300-800Hz
Size:
H1200 * W300 * D100mm≤1.6kg/pcs

F300D Full band frequency diffuser

Base Material:
Polymer,chemical compound with large molecules
Finish:
E0 ECO water based paint
Acoustic structure:
Combining high tensile inorganic coating, Polymer satisfies the technical requirement from design on diffusion frequency and density of materials. At the same time, we decrease product weight so that eliminate defects of traditional materials. QRD array plays diffusion role effectively. When bettering sound dryness in small rooms, it improves sound fullness and surrounding sense without hurting natural RT60.
Size: H1200 * W300 * D100mm ≤2.8kg/pcs

F300W Low Frequency Acoustic Panel

Specification

System:
Hi-Fi / Hi-END

Combination:
25% all band frequencies absorption, 75% medium and high frequencies diffusers, broad band bass traps at four corners which standing wave mostly present

Acoustic feature: To decrease balanced reflected standing wave, improving sound fullness and delicacy

Application:
Decorated room, DIY installation

Performance

Contact:

Sungai Wang Plaza : 03-2143 9406 , 2110 0608
Damansara Utama : 03-7662 5418
One Utama Shopping Mall : 03-7726 6893
Sunway Pyramid : 03-7492 8551

For more information:

Contact : Dicky Ng 012-3308893
Contact : John Yew 016-2861000
Email : [email protected]

Weight	55 kg
Style	Green, Ivory White, Light Brown, Dark Brown

Specification

F300H High frequency absorber

GENERAL
Base Material	Polymer/Polyether polyol fire retardant acoustic foam
Finishing	Eco-friendly water based paint
Acoustic structure	High density Polyether polyol acoustic foam improves sound that the model absorbs; QRD array achieves broad band frequency absorption; solving the problem arise from too much high frequency and balanced reflection
Size	H1200 * W300 * D100mm
Weight	≤ 1.3kg/pcs
Installation	Standard anti-oxidization and anti-resonance treated aluminium fixing system.

F300M Medium frequency absorber

GENERAL
Base Material	Polymer/Polyether polyol fire retardant acoustic foam
Finishing	Eco-friendly water based paint
Acoustic structure	The semi-closed cavity structure which formed by pouring polymer material, and the U-type Polyether polyol acoustic foam controls Flow resistance index, forming a capture to deal with 300-800Hz
Size	H1200 * W300 * D100mm
Weight	≤ 1.6kg/pcs
Installation	Standard anti-oxidization and anti-resonance treated aluminium fixing system

F300D Full band frequency diffuser

GENERAL
Base Material	Polymer, chemical compound with large molecules
Finishing	Eco-friendly water based paint
Acoustic structure	Combining high tensile inorganic coating, Polymer satisfies the technical requirement from design on diffusion frequency and density of materials. At the same time, we decrease product weight so that eliminate defects of traditional materials. QRD array plays diffusion role effectively. When bettering sound dryness in small rooms, it improves sound fullness and surrounding sense without hurting natural RT60.
Size	H1200 * W300 * D100mm ≤ 2.8kg/pcs
Weight	≤ 2.8kg/pcs
Installation	Standard anti-oxidization and anti-resonance treated aluminum fixing system

F300W Low Frequency Acoustic Panel

GENERAL
Base Material	Polymer/Polyether polyol fire retardant acoustic foam
Finishing	Eco-friendly water based paint
Acoustic structure	High density Polyether polyol acoustic foam improves sound that the model absorbs; QRD array and in-coordinated back cavity structure achieve low frequency absorption. A balanced acoustic environment will be obtain via suitable products combination.
Size	H1200 * W300 * D150mm
Weight	≤ 1.6kg/pcs
Installation	Standard anti-oxidization and anti-resonance treated aluminium fixing system
