Overview

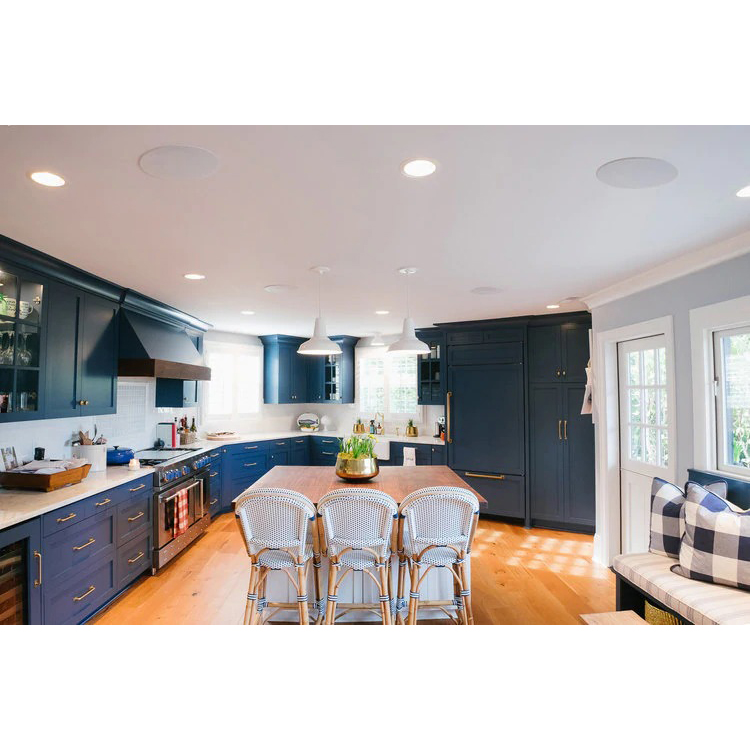

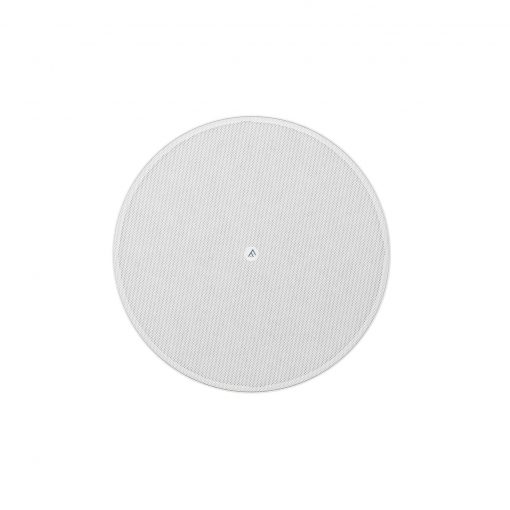

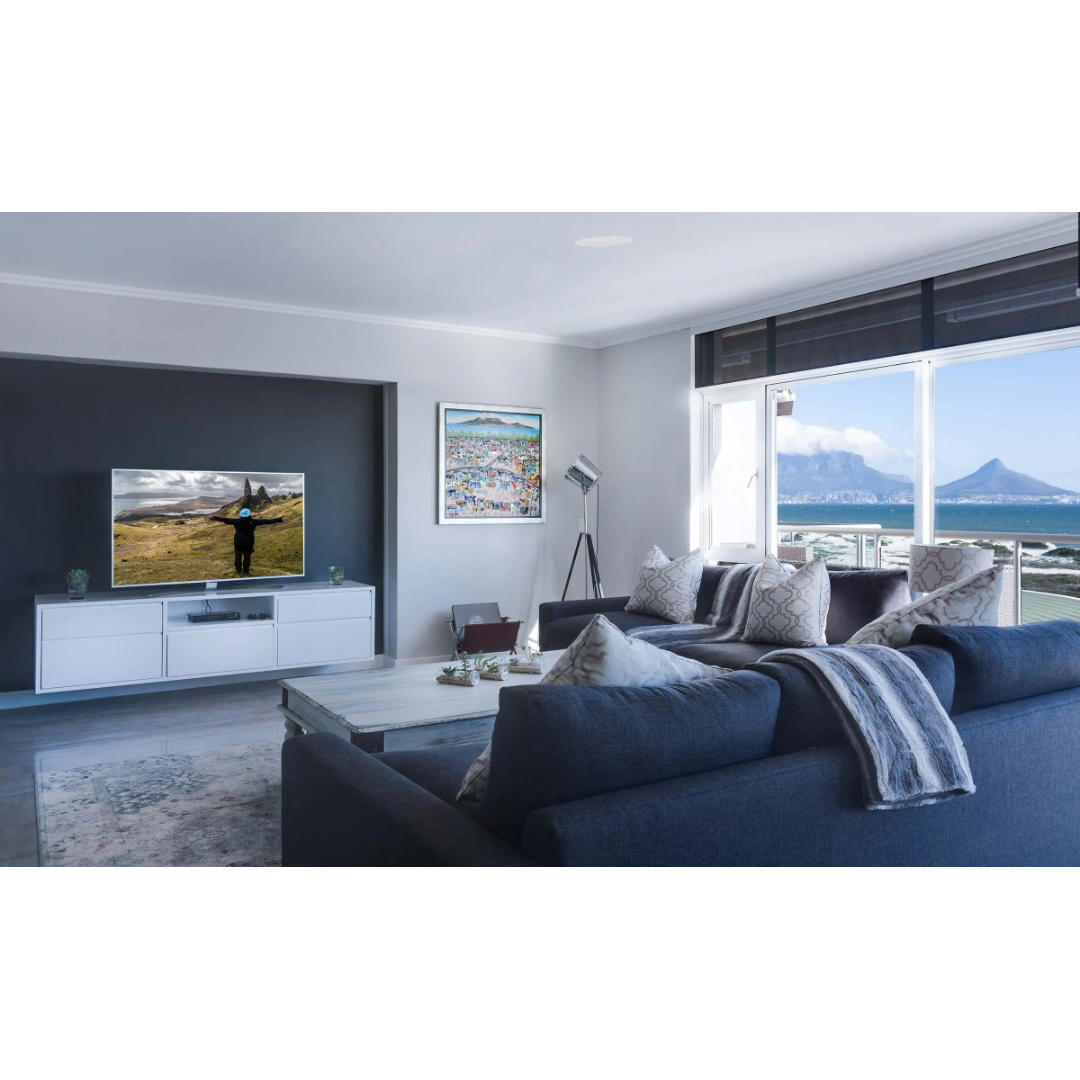

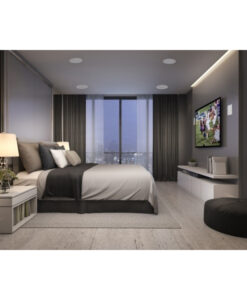

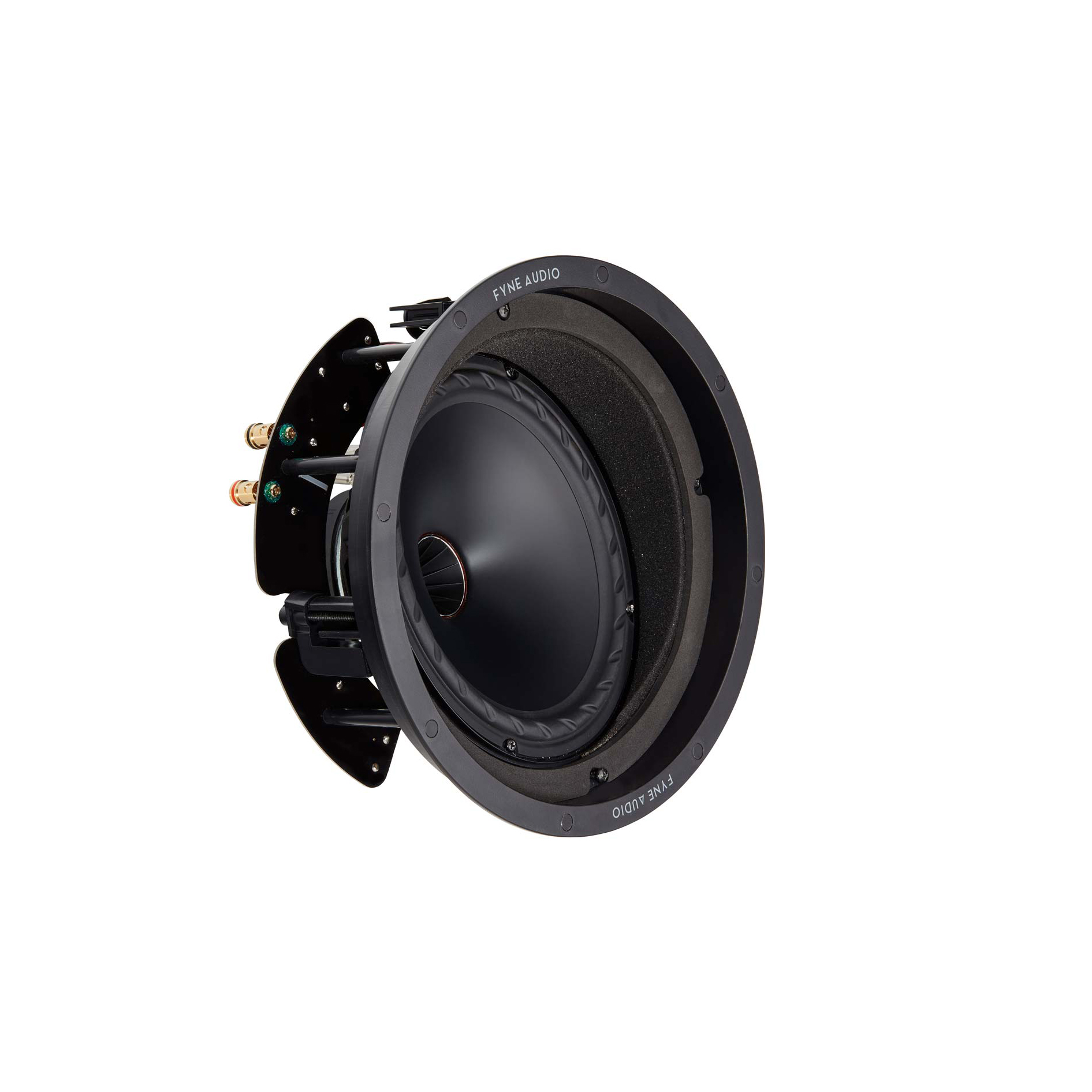

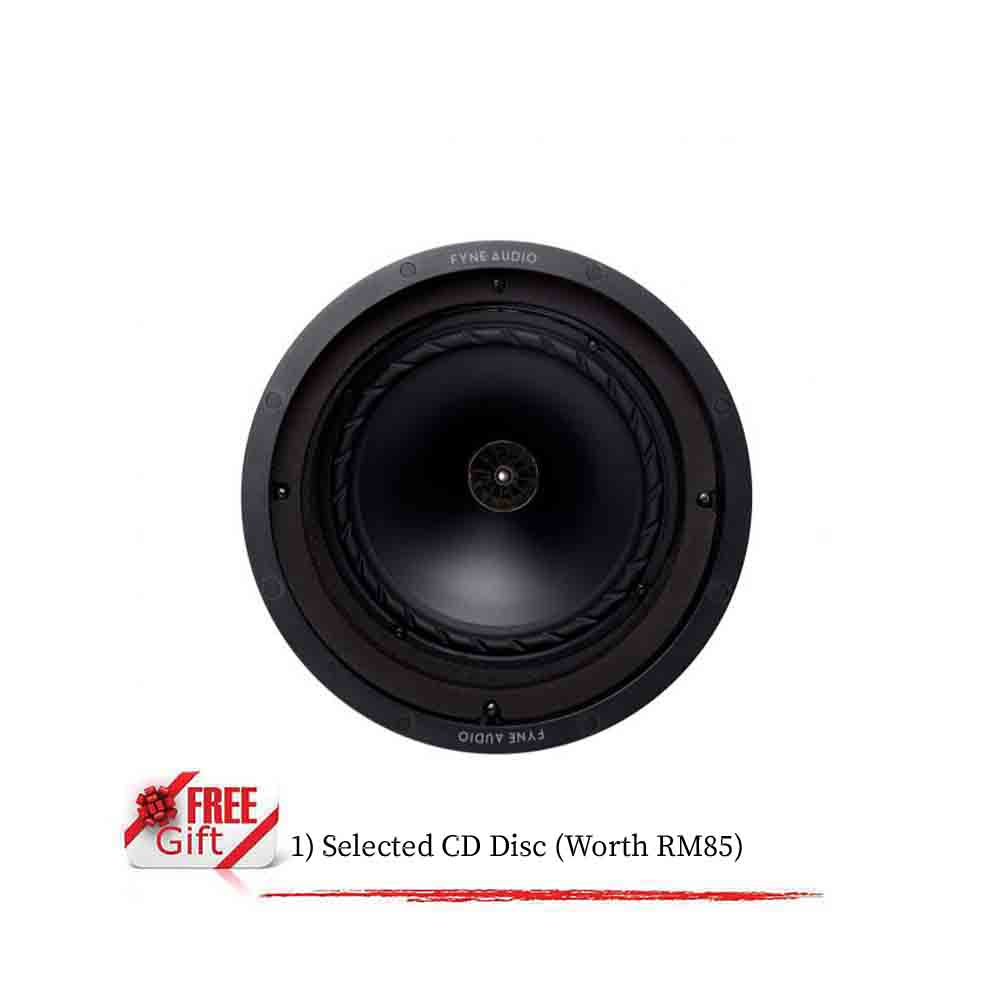

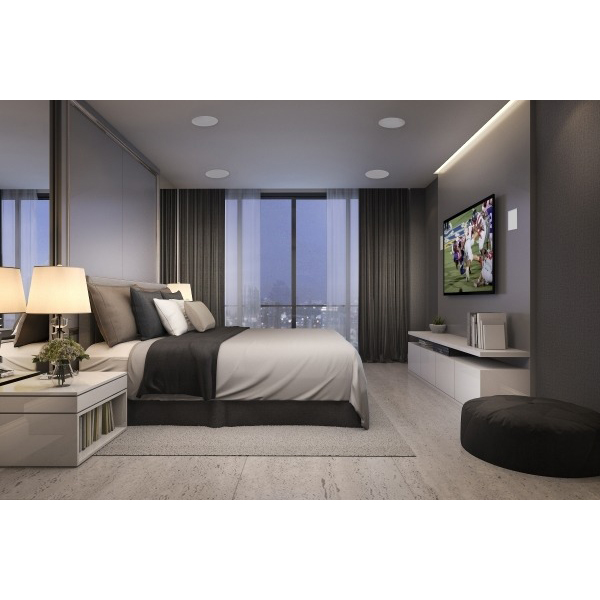

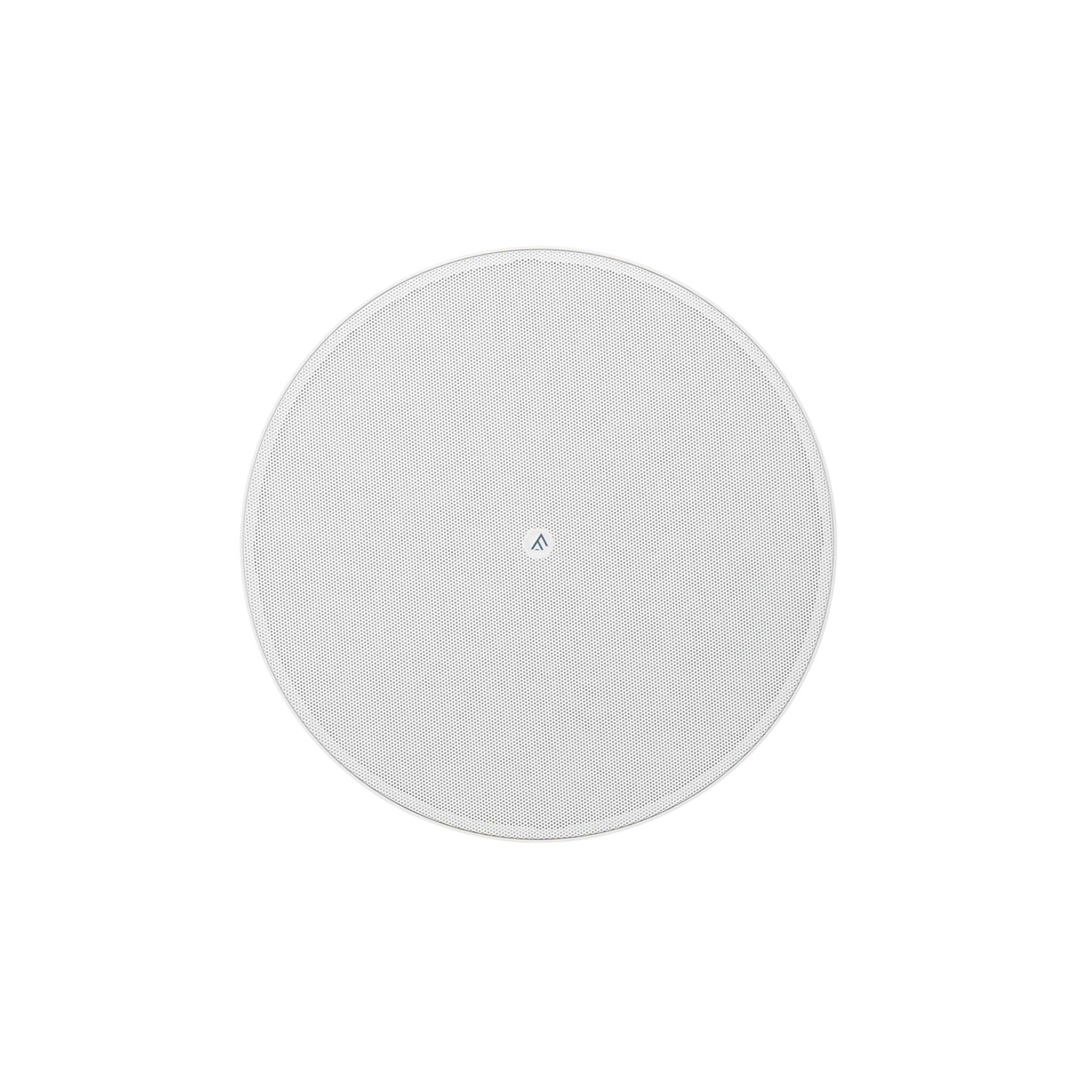

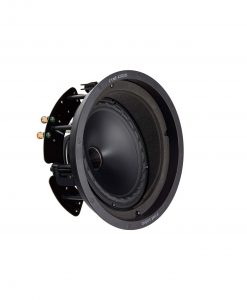

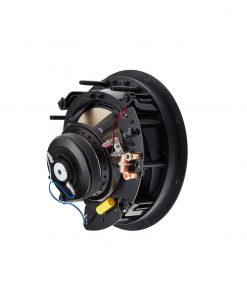

The LCR version of the prestigious FA502iC home install loudspeaker has been designed for custom installations where speaker placement is offset from the listening position. Ideal for Left, Centre and Right channels of home theatre systems, the 200mm (8”) IsoFlare driver is angled at 15 degrees to the mounting surface. The driver can be orientated in the round cut-out to angle the output directly towards the main listening position. With the same easy fitment, power and performance benefits of the standard FA502iC, the LCR model builds on the range’s versatility and is supplied with a paintable, low profile round grille.
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 4 kg |
|---|
Specification
| System Type | 2 way IsoFlare loudspeaker for in-ceiling or in-wall application angled dispersion for LCR applications |
| Recommended amplifier power (Watt RMS) | 30 – 150 |
| Peak power handling (Watt) | 300 |
| Continuous power handling (Watt RMS) | 75 |
| Sensitivity (2.83 Volt @ 1m) | 91dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 35Hz – 34kHz |

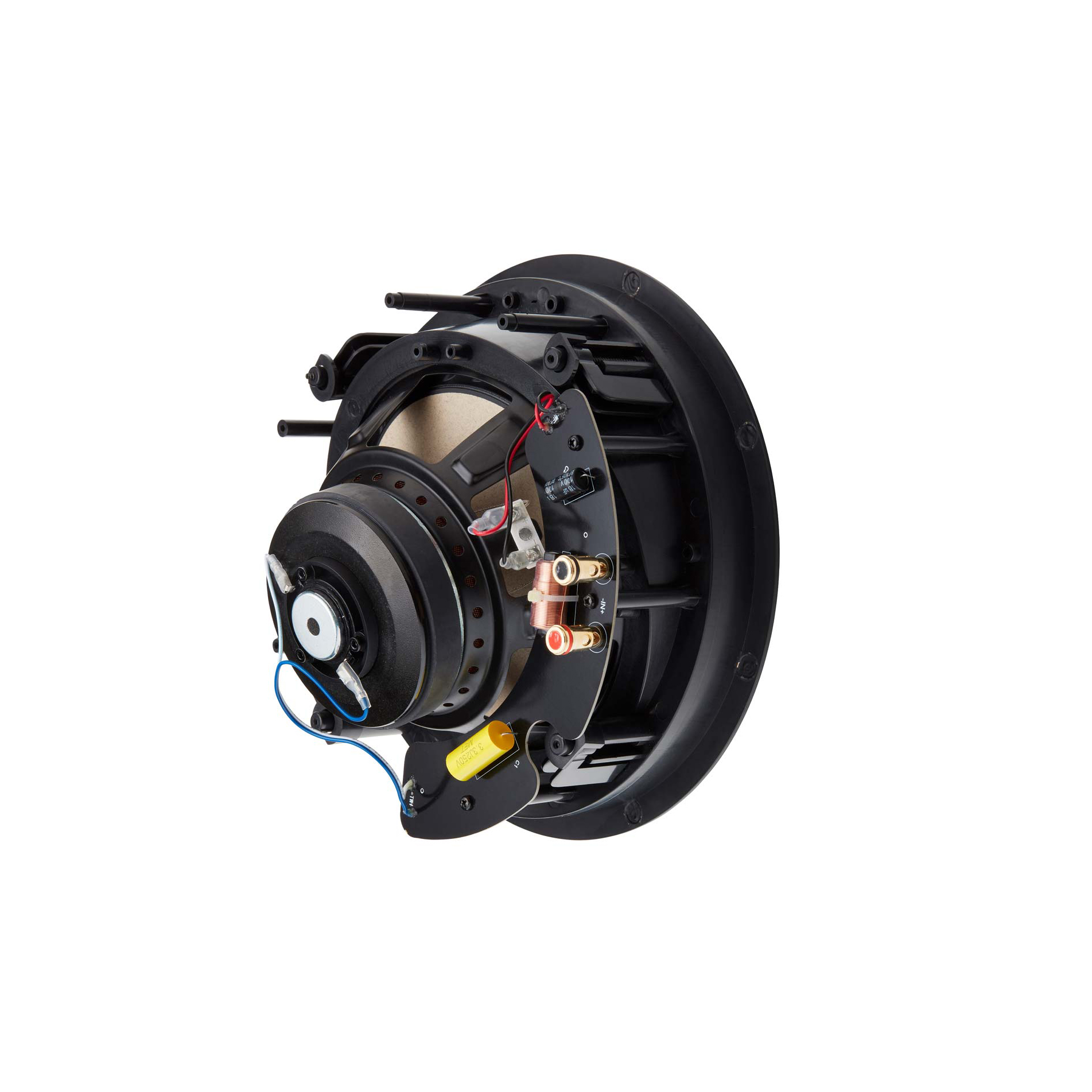

| Drive unit complement | 1 x 200mm (8”) IsoFlare point source driver, multi-fibre bass / midrange cone, FyneFlute surround with 25mm titanium dome compression tweeter |
| Crossover frequency | 1.7kHz |
| Crossover type | Passive 2nd order low pass, 1st order high pass |
| Dimensions – Dia x Depth | 278 x 157mm (10.9 x 6.2”) |
| Square grille dimensions | Not Available |
| Round grille diameter | 288mm (11.3”) |
| Cut-out diameter | 255mm (10.0”) |
| Depth behind mounting surface | 155mm (6.1”) |
| Clamp travel | 0 – 26mm (0 – 1.0”) |
| Suggested min volume | 18 L |
| Weight – Each | 2.4kg (5.2lbs) |
