QED
Reference Audio 40 XLR
Interconnect Cable (1m)

Overview

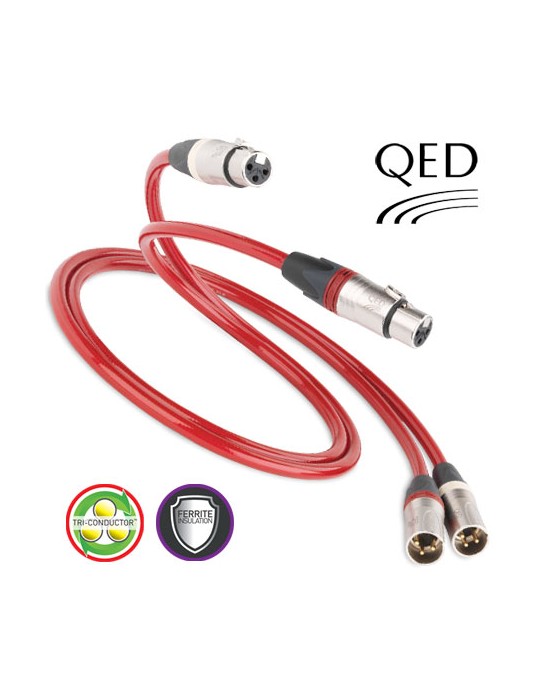

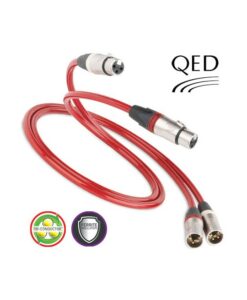

QED Reference Audio 40 XLR Interconnects

• REFERENCE XLR 40 BUILDS ON THE MULTI-AWARD WINNING AUDIO 40 RANGE OF PRODUCTS, NOW AVAILABLE IN XLR FORM.
• XLR 40 is designed primarily for low capacitance as this has been identified by QED as a major factor which leads to a high fidelity experience. Further steps have been taken to eliminate minute timing errors in the cable by the use of a special floating Zn/Mn ferrite jacket alongside use of QEDs unique ‘Tri-Conductor’ technology reducing signal to ground capacitance to vanishingly low levels.

Features

AWARD WINNING HERITAGE

• Reference XLR 40 builds on the multi-award winning Audio 40 range of products, now available in XLR form. QED have joined forces with world renowned professional audio connector supplier Neutrik (UK) to bring you an innovative new XLR balanced interconnect cable with legendary build quality and reliability.

PROFESSIONAL STANDARD NEUTRIK PLUGS

• Neutrik XX-14 Nickel Series XLR gold plated connectors are provided as standard with Reference XLR 40 cables. These connectors are rugged and reliable and are the connector of choice for audio professionals around the world. They are particularly suited to QED’s Tri-Conductor(TM) geometry due to the additional ground spring contacts which make for better shell ground continuity for the unique electrostatic screen which is only connected at the source end of the cable.

JUST LISTEN

• Silver plated conductors, LDPE dielectrics and legendary build quality combine to create audible sonic improvements. We urge you to compare it not only to your favourite cable but also alternative brands and models at any price!

UNIQUE TRI-CONDUCTOR TECHNOLOGY

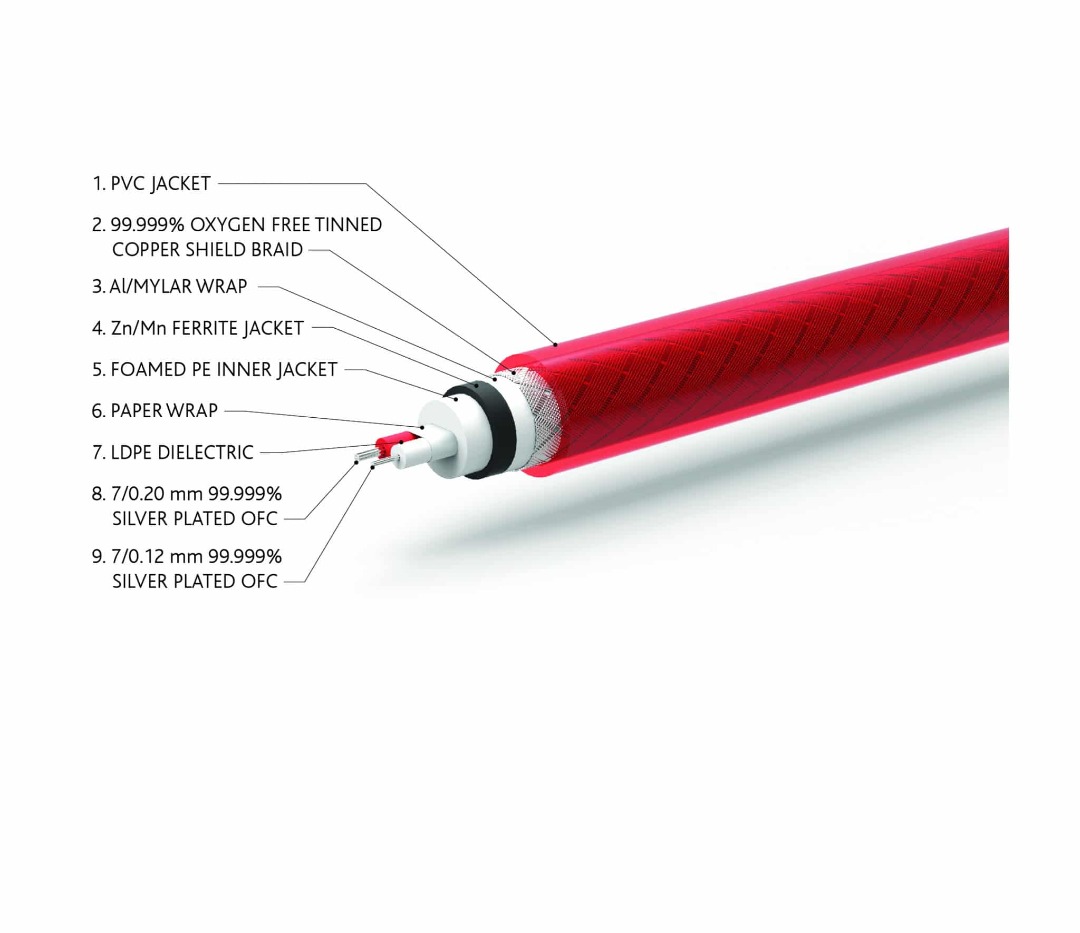

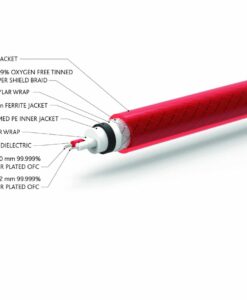

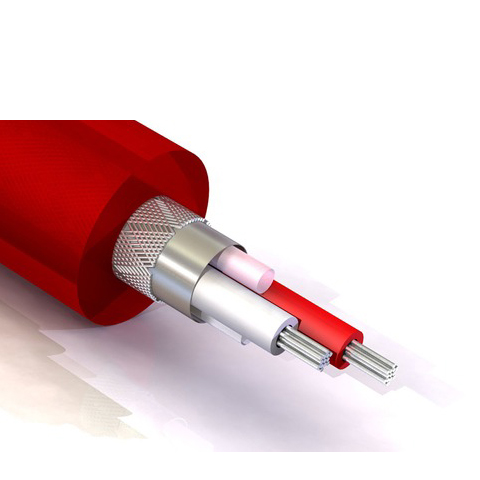

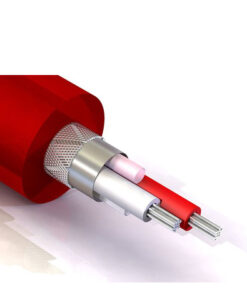

• QEDs unique Tri-Conductor technology uses a third Silver plated 99.999% OFC conductor which is integrally twisted alongside the similarly constructed signal pair to carry the ground return currents. This reduces signal to ground capacitance to vanishingly low levels affording the cable improved common mode rejection of mains hum pickup over ordinary “hot cold and screen” cables. This geometry is particularly effective in pro hi-fi audio applications when connecting pre and power amps using balanced cables.

FLOATING FERRITE JACKET

• Absorbs high frequency noise signal components outside the audio band. When measured using high frequency measurement equipment, Reference Audio 40 products convey a comparably cleaner and tighter signal pattern when its special Zn/Mn ferrite jacket is present. This has a beneficial effect on audio signal micro-timing and may account for the clear preference expressed for the ferrite jacket in listening tests.
