Overview

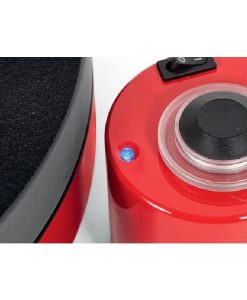

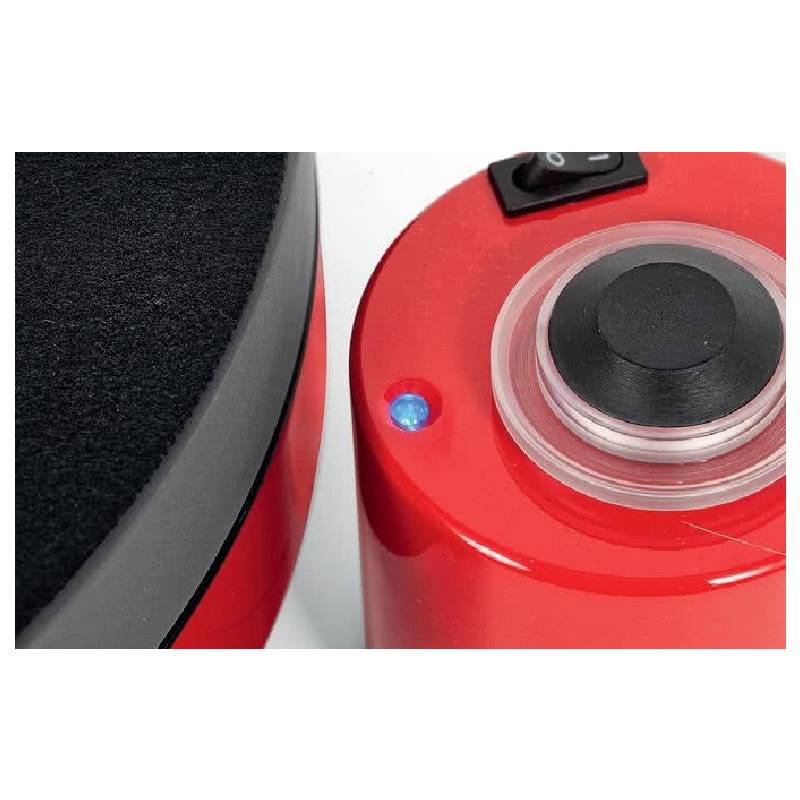

Outboard AC Motor & Acrylic Platter

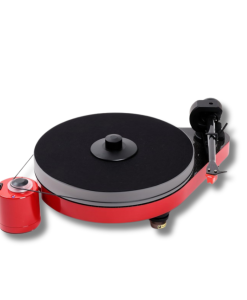

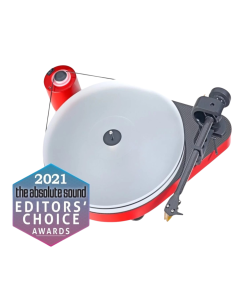

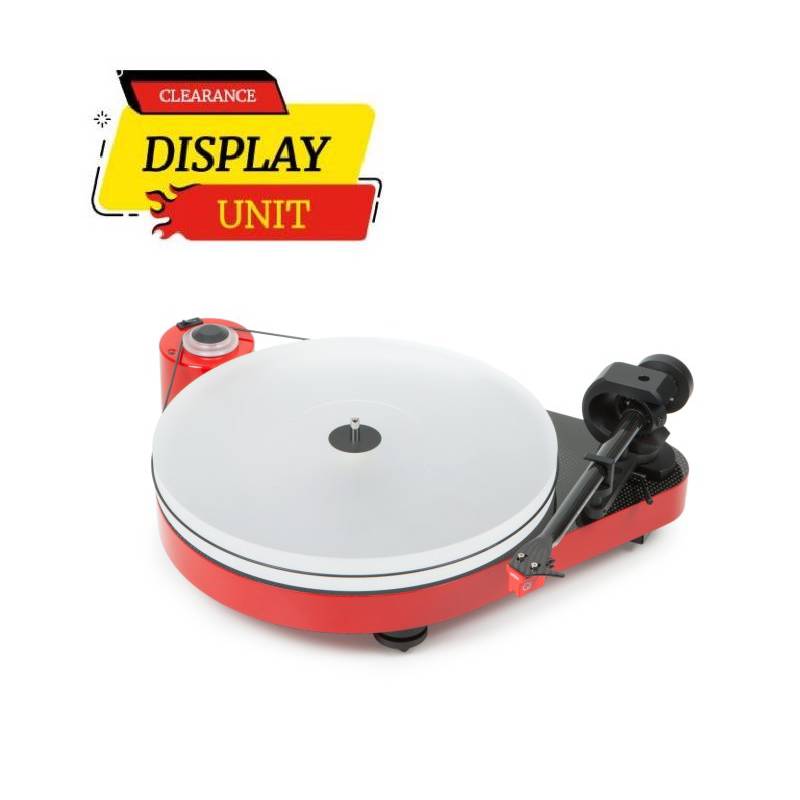

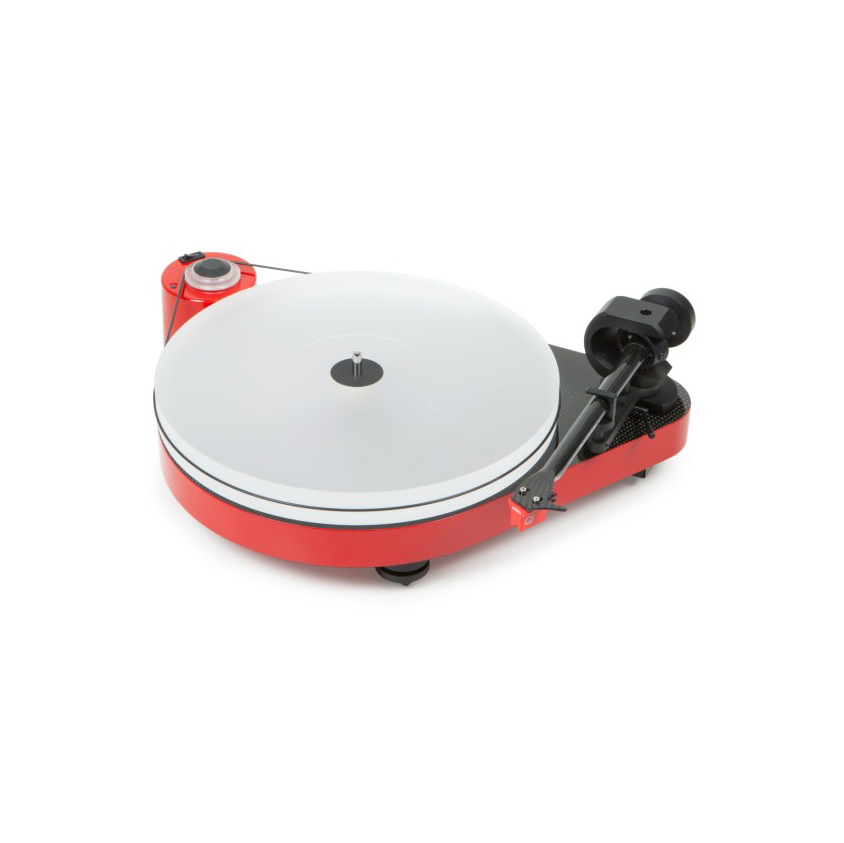

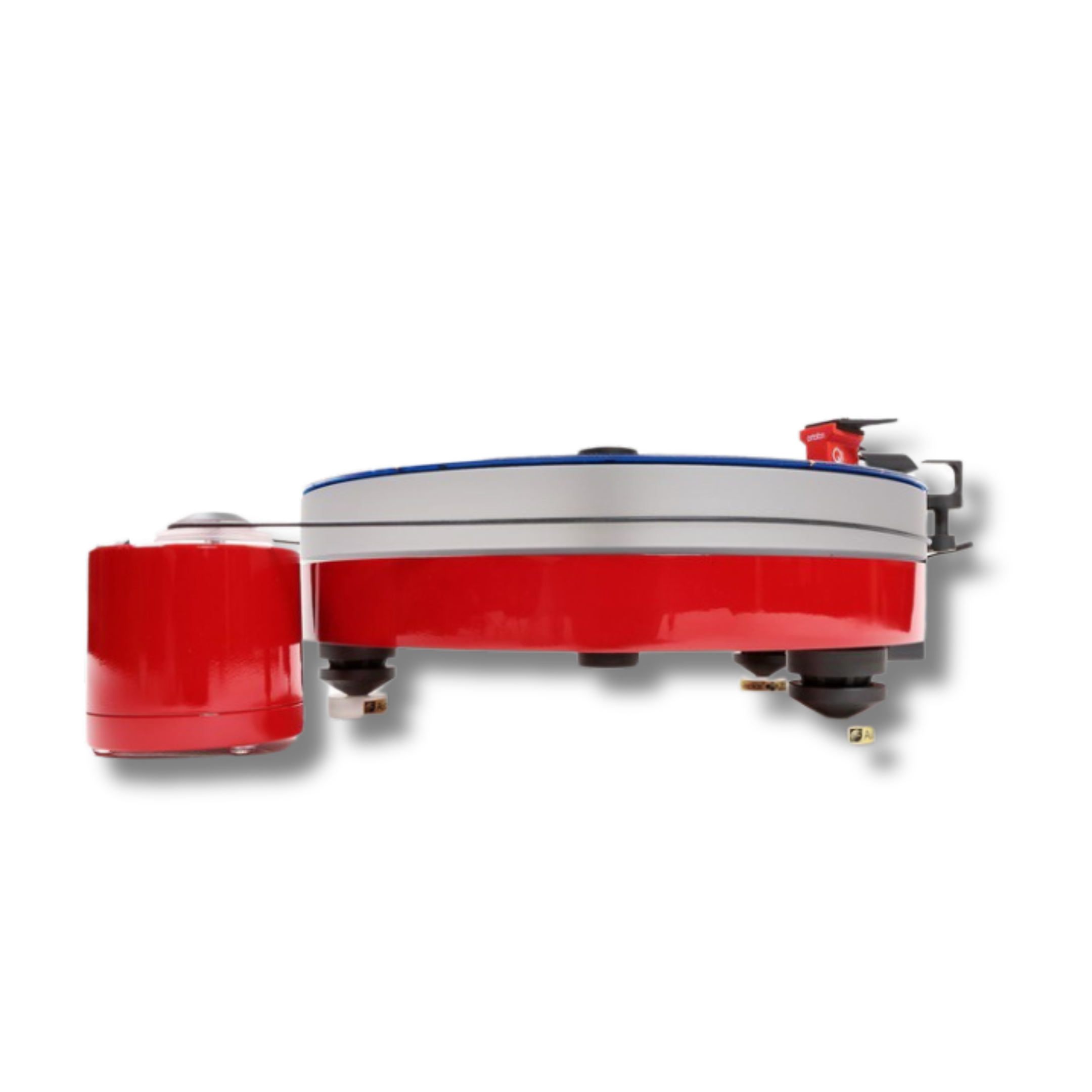

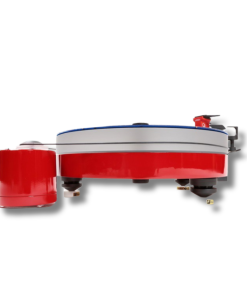

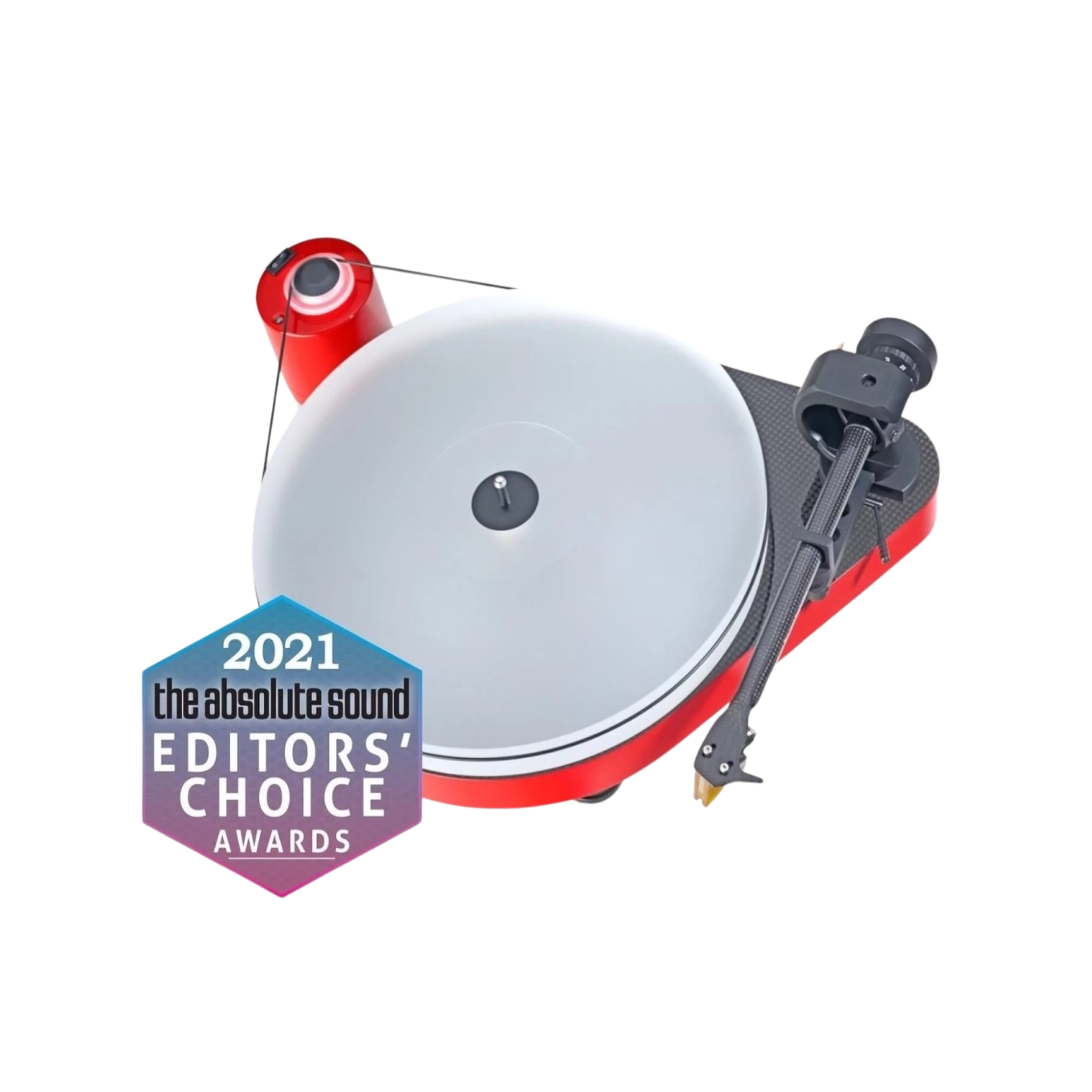

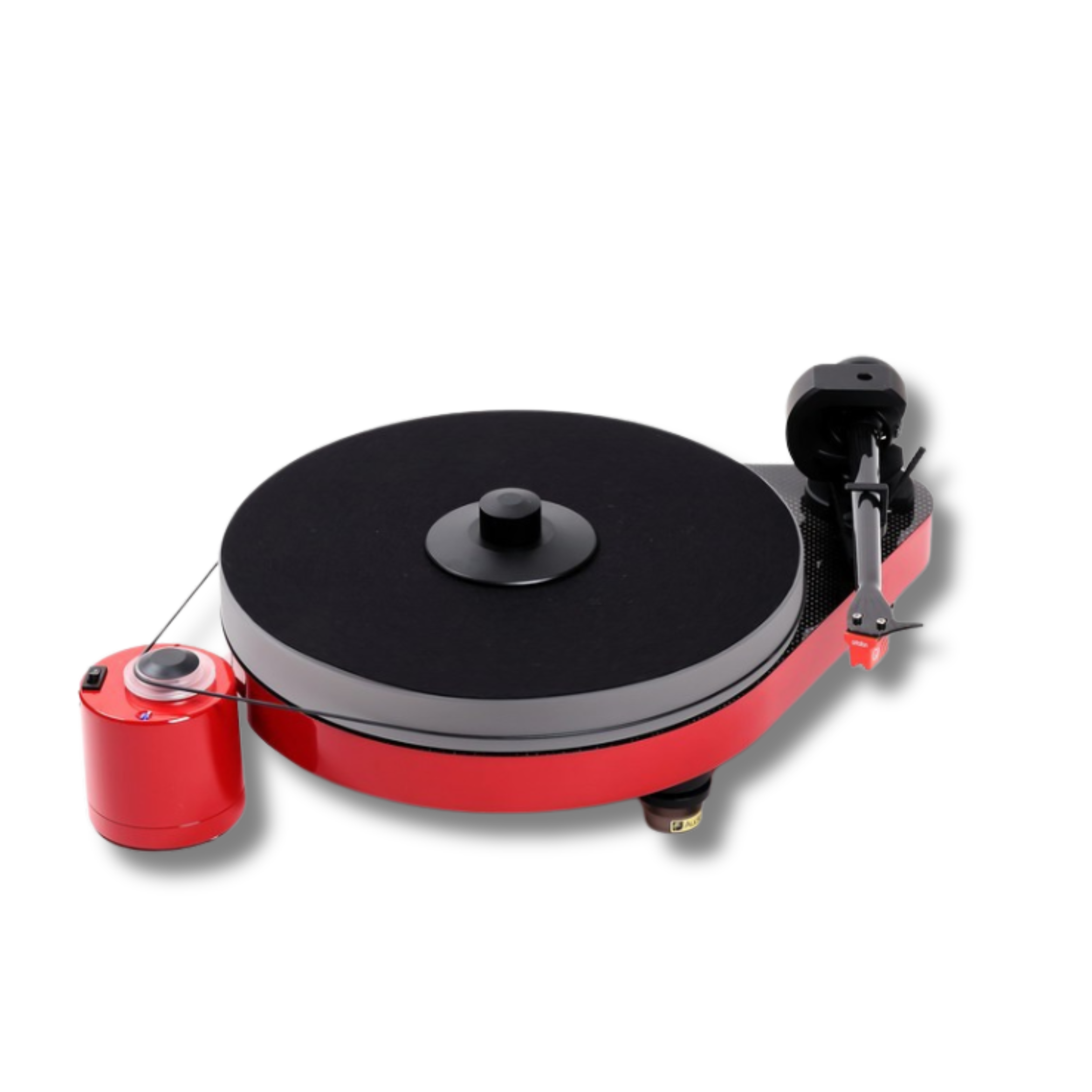

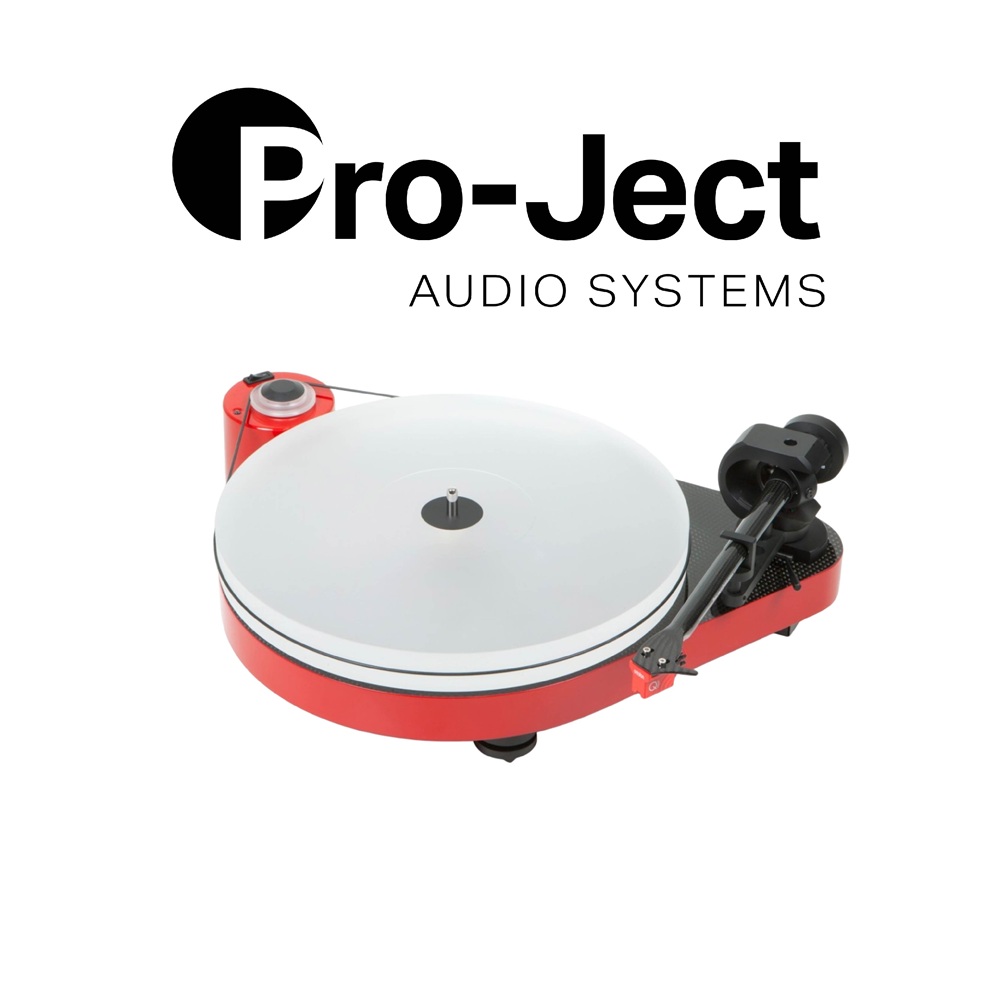

RPM 5 Carbon utilizes a radical concept with a lot of innovations, that originate from its big brother RPM 9 Carbon: A low resonance chassis holds a newly designed inverted platter bearing with ceramic ball for further reduced rumble. The acoustically inert platter is made from acrylic. An outboard 15V AC motor is smoothly driven using an ultra-precision AC generator with DC power supply for further enhanced speed stability. The classy 9“ Evo tonearm, which is made from carbon fiber is suitable for any high-quality MM or MC cartridge. A TPE-damped counterweight eliminates unwanted resonances.
The RPM 5 Carbon is available with or without Ortofon 2M-Silver cartridge. A super shielded, semi-symmetrical, low-capacitance Pro-Ject Connect it E phono cable is included.
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 9 kg |
|---|
Specification
| Speed | 33, 45 (manual speed change) |
| Drive principle | Belt drive |
| Platter | 300 mm acrylic |
| Mains bearing | Stainless steel axle with ceramic ball |
| Speed drift | 33: +/- 0.12% I 45: +/- 0.10% |
| Wow & flutter | 33: +/- 0.17% I 45: +/- 0.08% |
| Signal to noise | 73dB |
| Tonearm | 9” EVO carbon |
| Effective arm length | 230 mm |
| Effective arm mass | 8 g |
| Overhang | 18 mm |
| Tracking force | 0 – 25 mN |
| Included accessories | 15 volts DC / 500 mA power supply |
| Power connection | 110/240 Volt – 50 or 60 Hz |
| Power consumption | 5 watt max / < 0,5 watt standby |
| Dimensions | 430 x 150 x 323 mm (WxHxD) |
| Weight | 8.0 kg net |
Product Reviews
“The RPM 5 is the third turntable I’ve sampled from the Pro-Ject stable and it may be the most successful yet in striking that magic balance between price, performance, accessories and appearance. I heartily recommend […] for further investigation.” #6Moons.com
https://6moons.com/audioreviews/project3/combo.html
“The Pro-Ject RPM 5 Carbon is an interesting and desirable choice for a turntable in its price class. It makes a bold and beautiful visual statement; it is solidly built and not too difficult to set up and maintain.” #Secrets of Home Theater and High Fidelity
