Overview

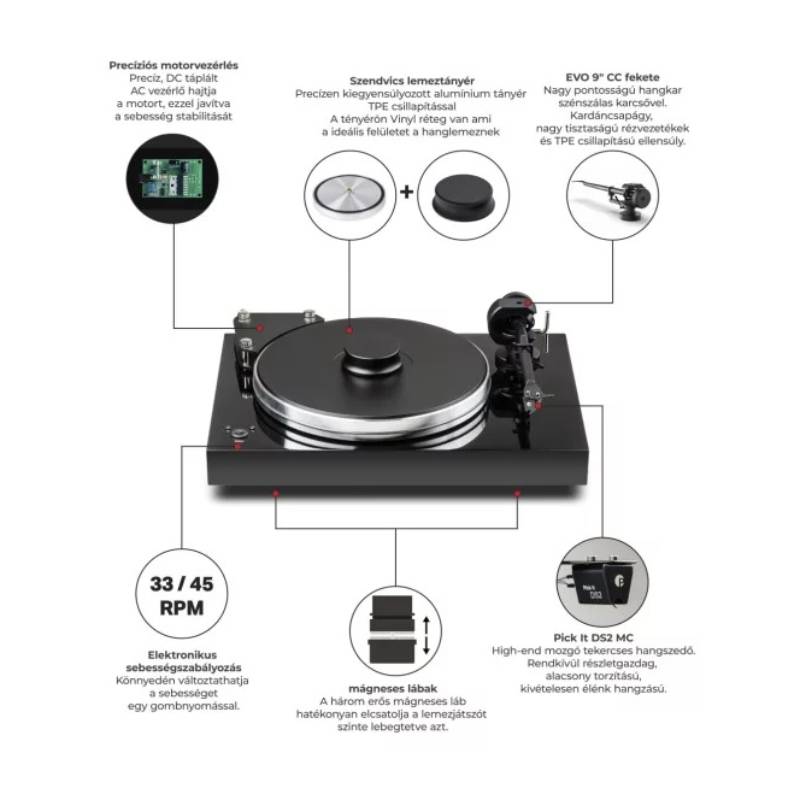

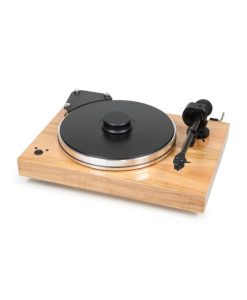

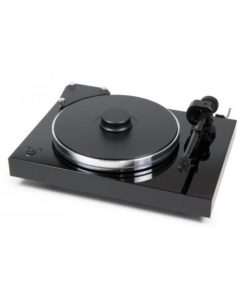

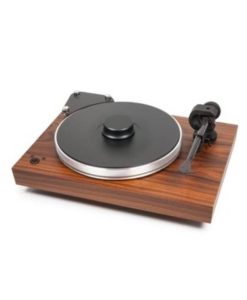

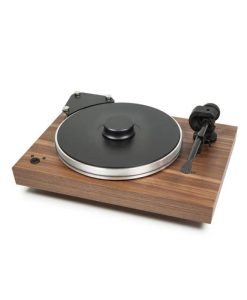

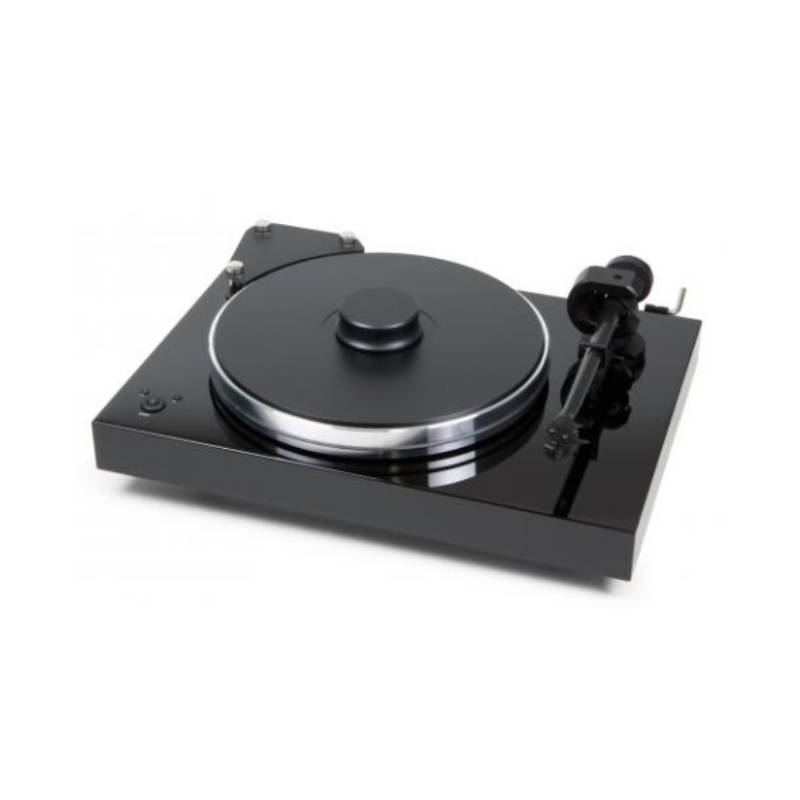

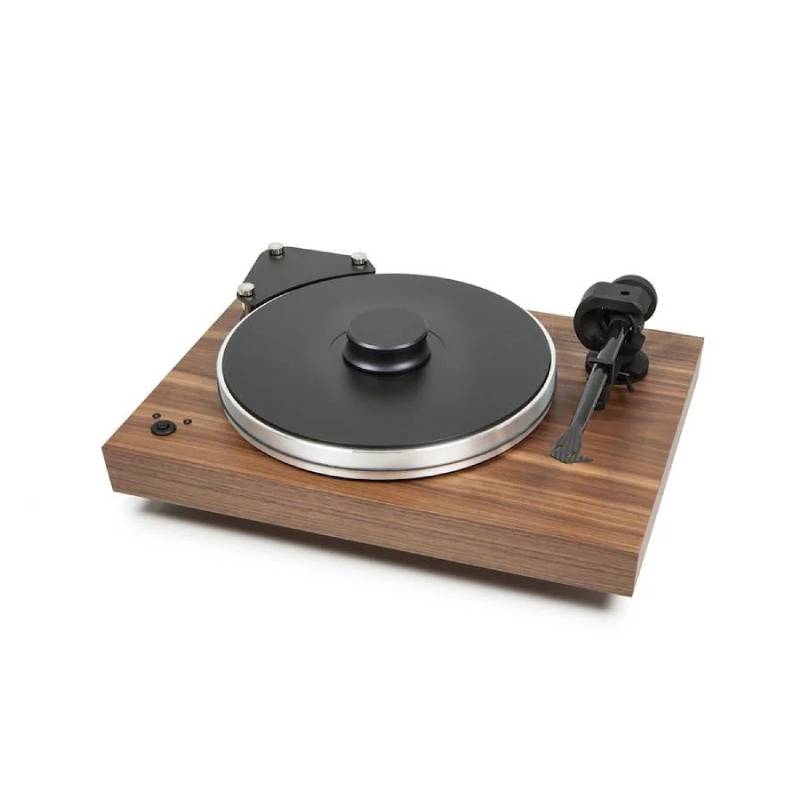

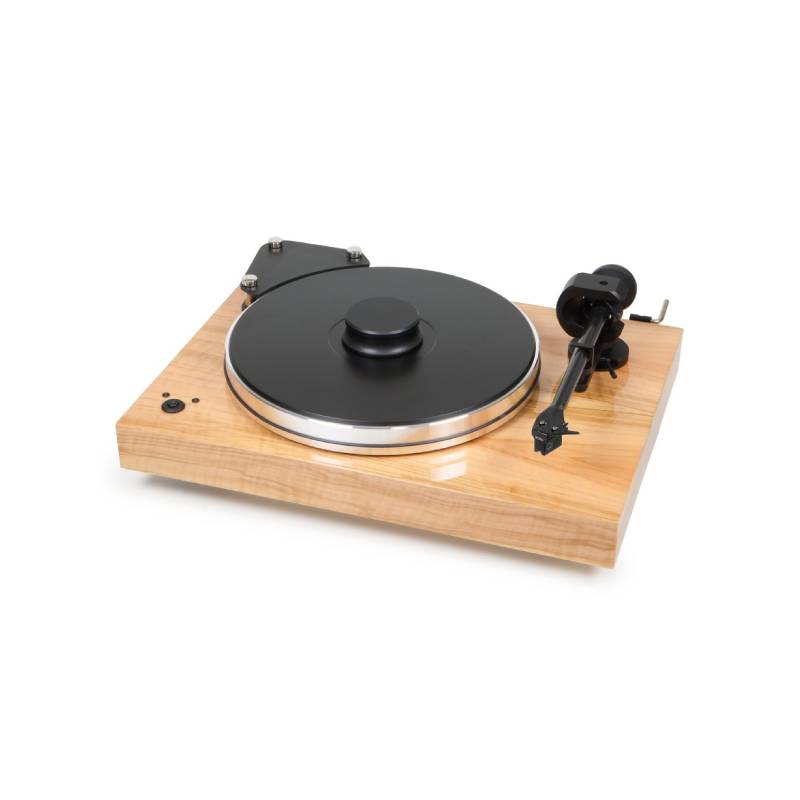

Xtension 9 Evolution incorporates all our turntable design experience from more than 20 years in a slim-line size to fit standard audio racks. Xtension 9 chassis is made from MDF filled with metal granulate, that gives high mass and is non-resonant. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16 kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles. Instead of pure metal for the main platter, we’ve found a perfect alloy which we damped on with thermoplastic elastomers (TPE). Additionally we’ve placed recycled Vinyl records on top (which acts as a perfect mat) and bake this ‘sandwich’ before precision balancing it. The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. Pro-Ject Xtension 9 Evolution includes a top-class high end tonearm “9cc Evolution“ and comes complete with a beautiful dustcover.
The Xtension 9 is an ideal solution for anyone who is looking for the exceptional sound quality of a high-end turntable, but with a more compact foot-print.

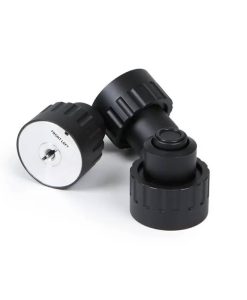

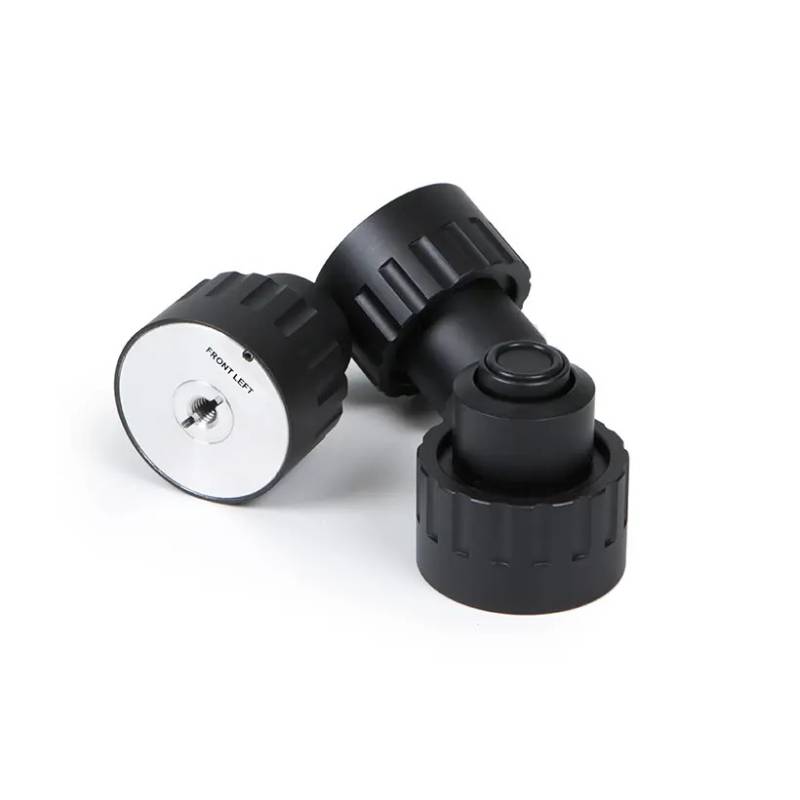

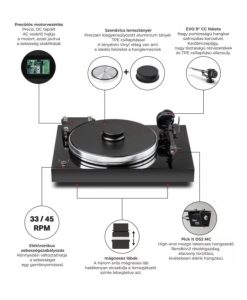

Benefiting from decades of turntable design experience, the Xtension 9’s structure uses a combination of the popular ‘mass-loaded’ and ‘floating turntable’ design principles. Most high-end designs tend to employ one of these principles, but the Xtension 9 uses both. It does this by placing the high-mass, anti-resonant main chassis on three powerful magnetic feet, effectively “floating” the turntable above the stand on which it sits.

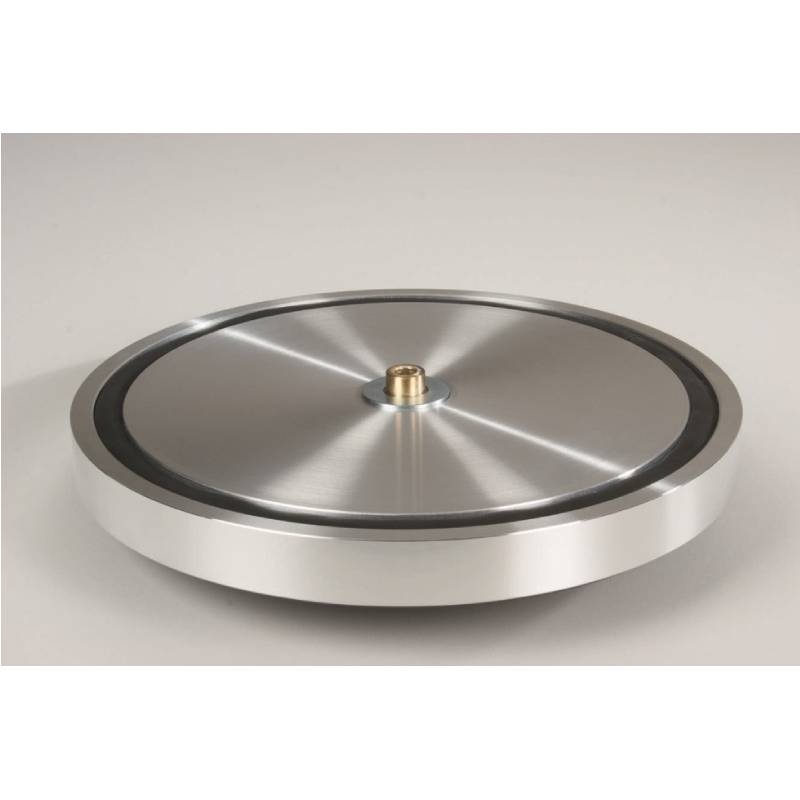

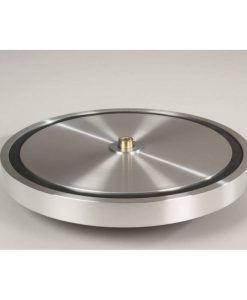

The precision-balanced platter used on the Xtension 9 is made from a purpose-chosen metal alloy, which has then been internally lined with a Thermo-Plastic Elastomer (TPE) compound. The top of the platter is finished with recycled vinyl records, which acts as the perfect playback platform for the playing record – without the need for an extra mat. The result is a resonance-free platter, which runs ultra-silently on an inverted ceramic ball-bearing thanks to some added magnetic isolation.
Operation of the Xtension 9 is made effortlessly simple by the integrated speed control. Providing a clean, regulated power signal to the high-grade motor, the built-in speed control allows for easy switching between 33 and 45RPM speeds.

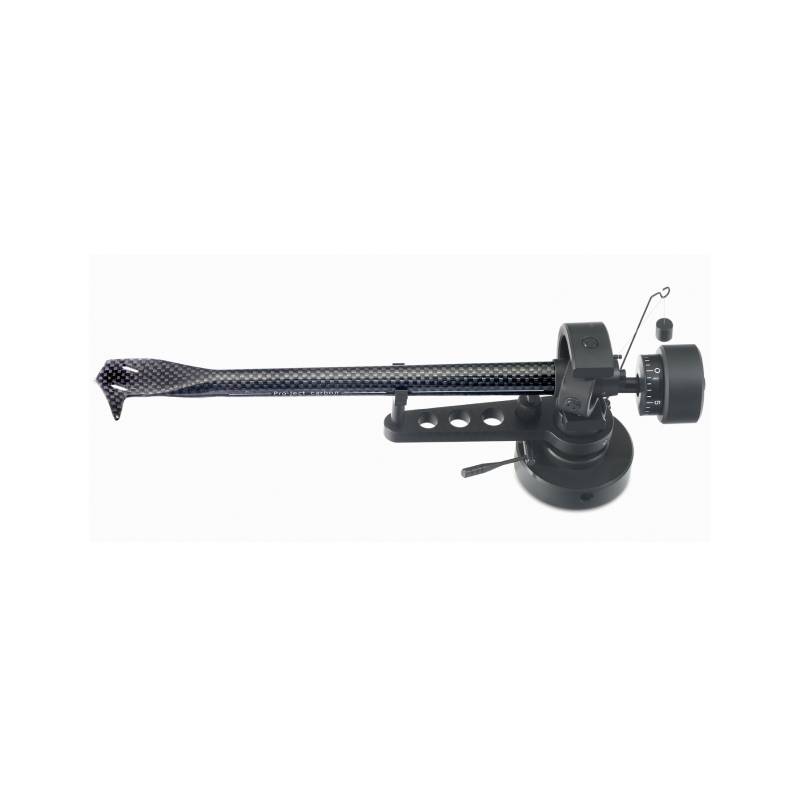

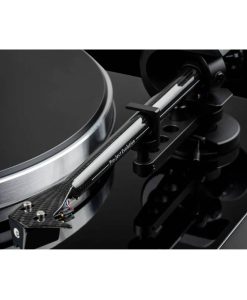

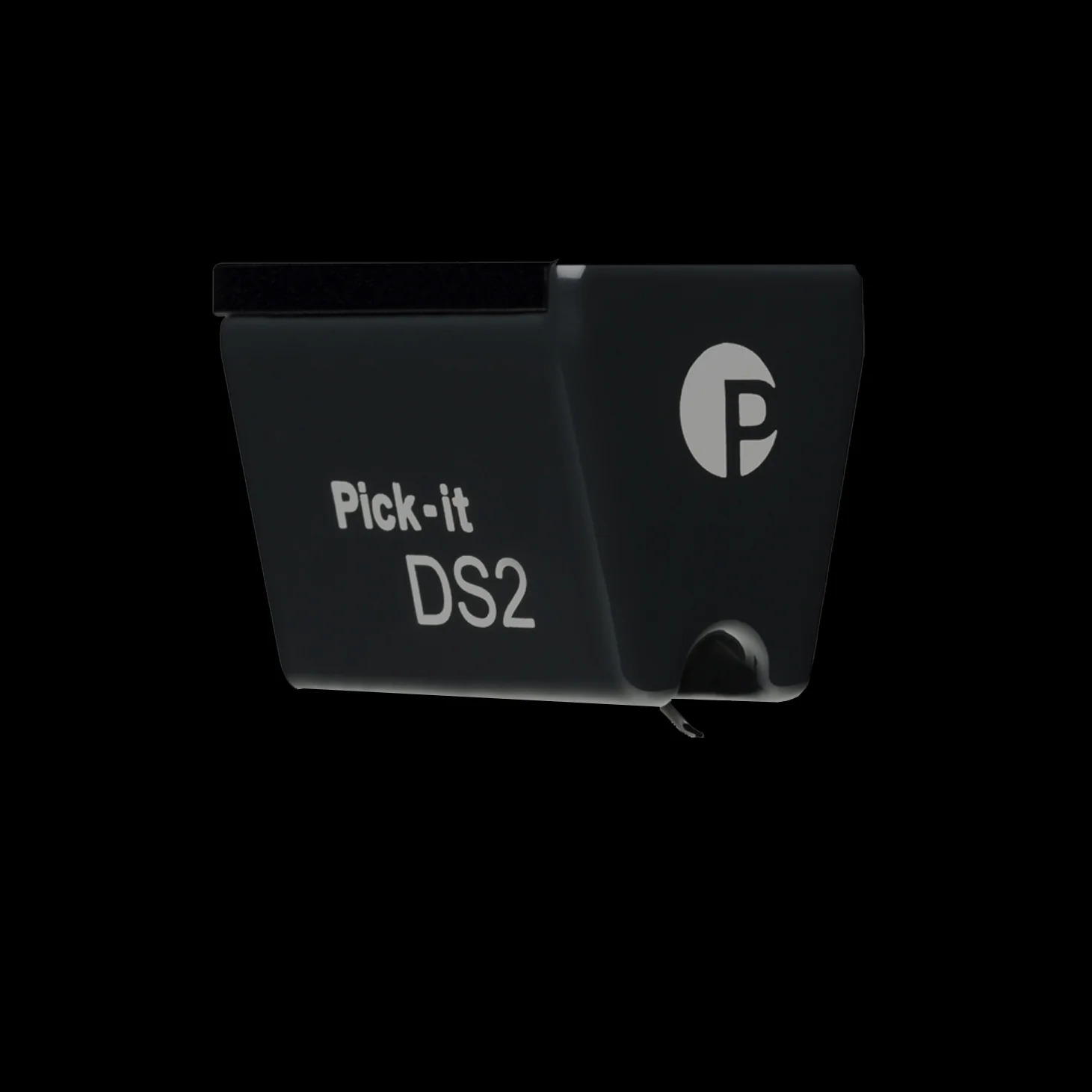

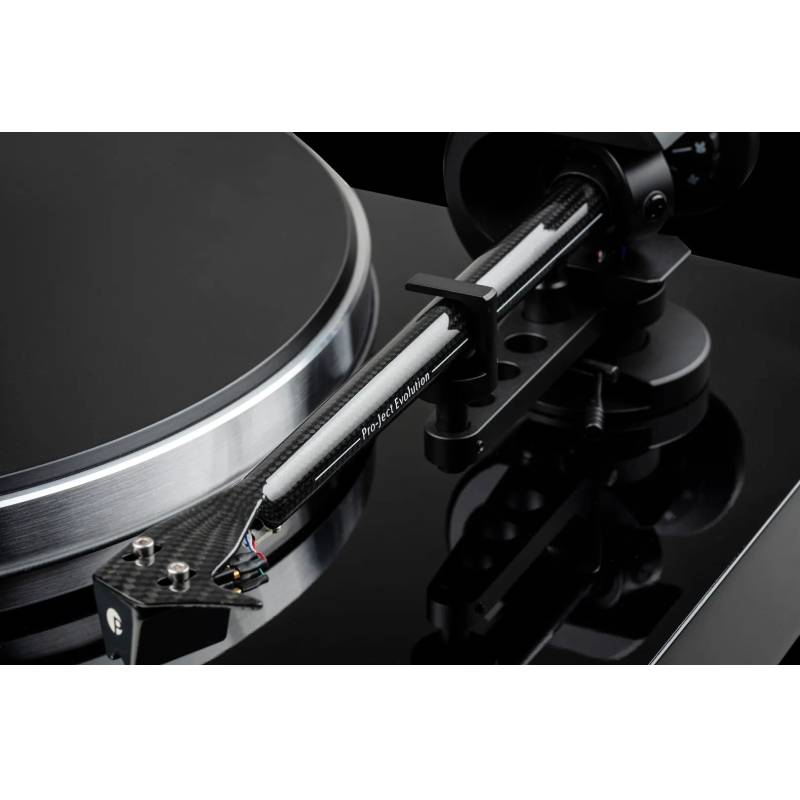

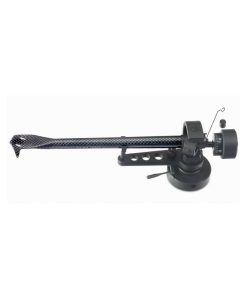

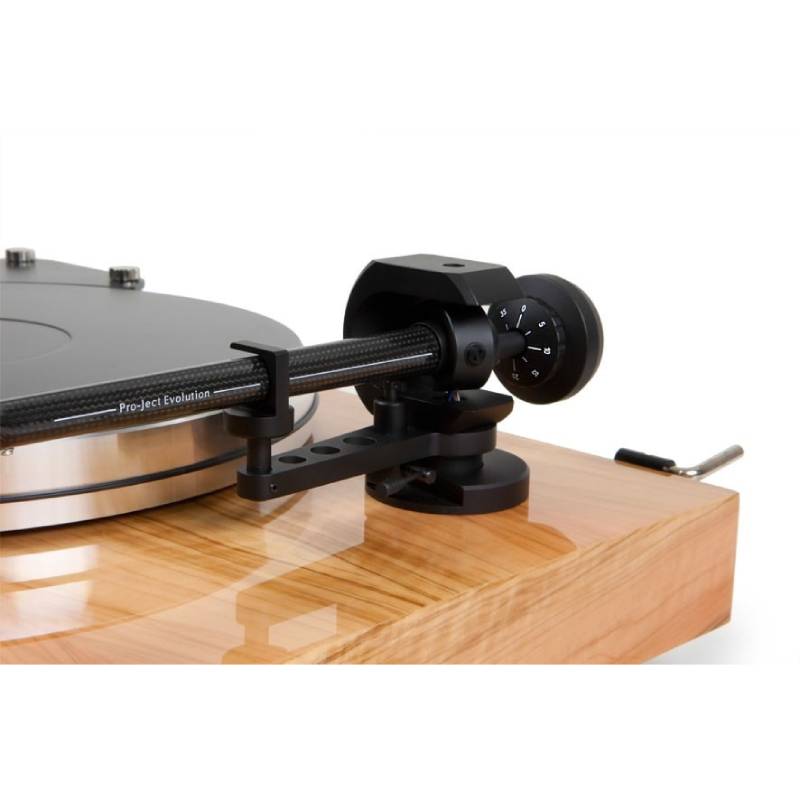

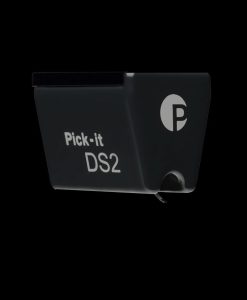

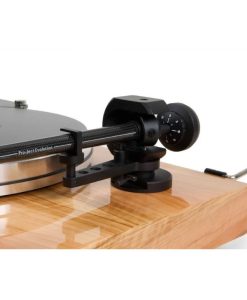

The Xtension 9 SuperPack is sold with Pro-Ject’s popular 9CC Evolution tonearm pre-installed. The 9” tonearm boasts a one-piece conical carbon fibre tube, TPE-damped counterweights and an inverted bearing design that allows for perfect tracking and minimal resonance, even with demanding pick-up cartridges. In the SuperPack version, the tonearm is supplied finished with a Pick-IT DS2 MC moving coil cartridge. The Pick-IT DS2 MC, developed in partnership with Ortofon, combines Pro-Ject’s vast experience with phenomenal sound and high-quality materials, with all of Ortofon’s advanced knowledge of micro-technologies, to deliver a sound performance that puts others to shame.

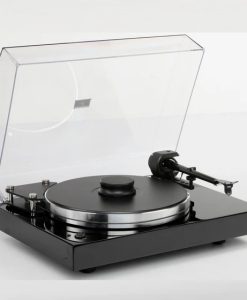

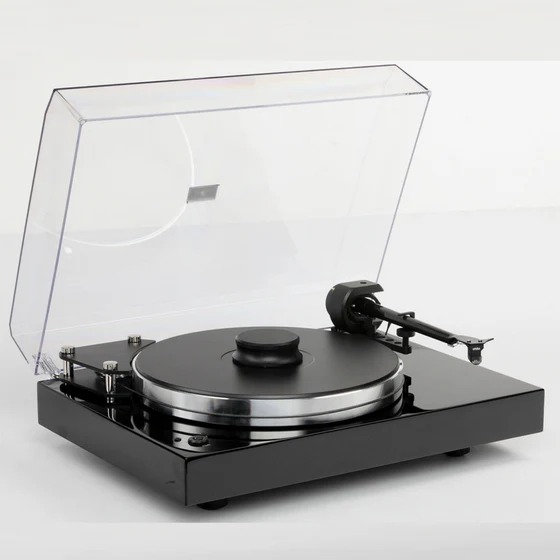

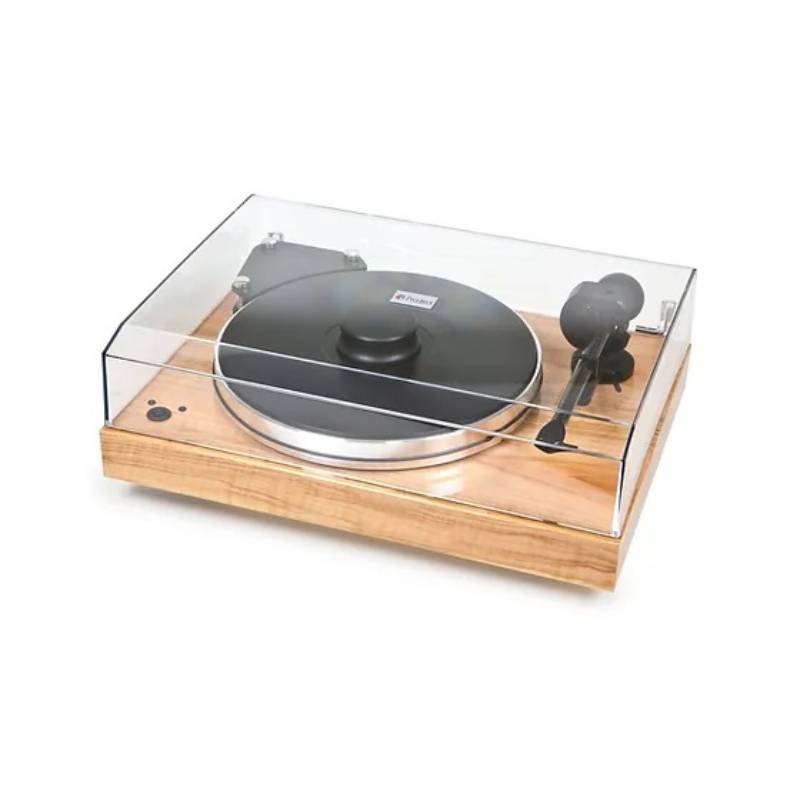

For added convenience, the Xtension 9 SuperPack is supplied with a removable dust cover, a heavy record puck for improved record hold and a high-quality 5P-RCA output cable.
True Balanced Connections
The interconnect cable between a record player and a phono stage is prone to pick up noise on the way. That noise and interference can stem from a lot of unavoidable sources, such as household applicances, wi-fi and bluetooth devices, other power cables and audio amplifiers. Unshielded (i.e. RCA) interconnects can amplify the picked-up noise and make it audible through your speakers, interfering with the pure musical signal.
Balanced (typically XLR) cable connections double the wires carrying the musical signal – with one side inverted. In this case noise still gets picked up by both wires, but with one side reversed. When the signals are re-joined at the phono stage, the picked-up noise is cancelled out by the opposing signals. The benefit of this is a louder, cleaner musical signal that has doubled in size with almost no remaining noise.
Features
- Heavy 16 kg belt drive turntable
- Mass loaded magnetic floating subchassis
- Precision balanced sandwich-platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- MDF chassis filled with metal granulate with low levels of resonance and high mass
- Electronic speed control 33/45 rpm
- Tonearm 9cc Evolution made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
For more information:
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
CMY
Average rating: 0 reviews
| Weight | 18 kg |
|---|---|

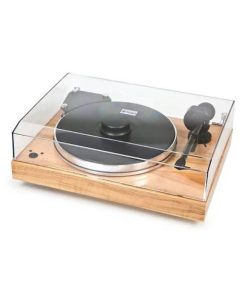

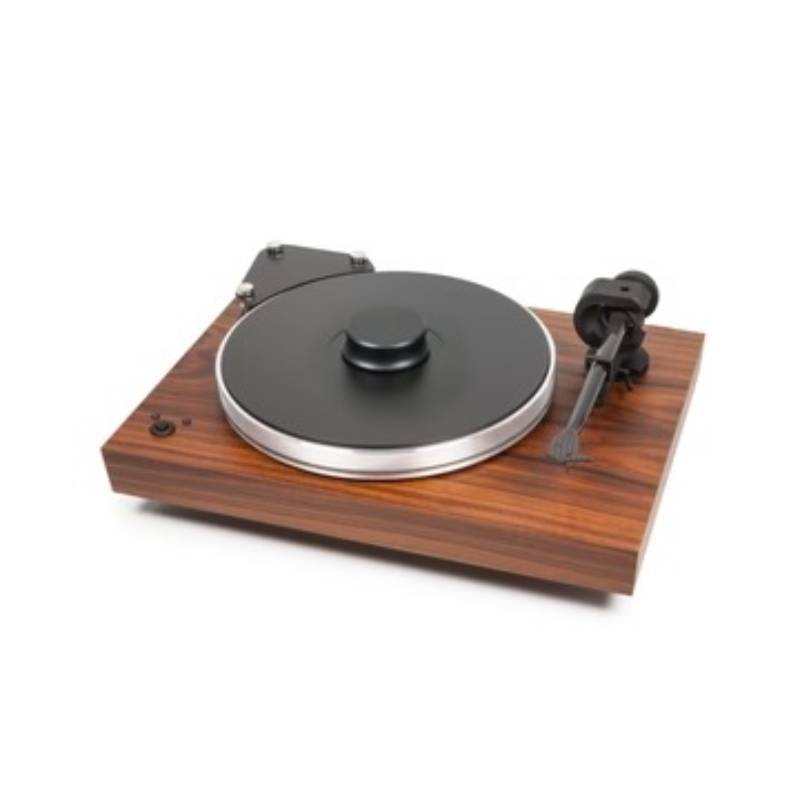

| Color Option | Olive, Walnut, Palisander, High Gloss Black |
Specification
| Speed: | 33 / 45 rpm (electronic speed change) |
| Drive principle: | belt drive |
| Platter weight / diameter: | 5,4 kg / 300mm |
| Speed variance: | ± 0,09% |
| Wow and flutter: | ± 0,1% |
| Signal to noise: | 73dB |
| Tonearm: | 9“ one-piece carbon-fibre tonearm |
| Effective arm length / overhang: | 230mm / 18mm |
| Effective tonearm mass: | 8,5g |
| Tracking force range: | 0-25mN |
| Cartridge weight range from: | 4 – 14g |
| External power supply: | 220-240V/50Hz / 15V/1600mA DC |
| Power consumption: | 4W (max.) / < 1 watt standby |
| Included accessories: | Record Puck, Connect it E 5P to RCA phono cable, dustcover, power supply |
| Dimensions (W x H x D): | 465 x 185 x 350 mm lid closed |
| Weight: | 16kg |
