Primaluna Evo 100 Integrated Amplifier
The EVO 100, also known as the ProLogue Classic Integrated brings you to a world of glorious tube sound and superior engineering and quality.
BAD TUBE INDICATOR
PrimaLuna engineers wanted to make owning a tube amp so simple you would have no excuse not to have your tube dreams come true.
If a tube fails, Adaptive AutoBias will instantly put the amplifier into protection mode so no parts can get damaged. A red LED will light up in front of the tube that needs replacing. (ProLogue Classic illuminates an LED on the front panel.) Simply plug in another tube, and listen. No guesswork. No smoking amp. No getting out the soldering iron or dropping your amp off at UPS.
TOROIDAL POWER TRANSFORMER
Power transformers generate two types of noise, magnetic and acoustic. That’s why toroidal power transformers are used in the very best audio products. Compared to standard transformers, toroids radiate about 1/10 the magnetic field that pollutes music and obscures detail. Additionally, the absence of an air gap typically means toroids have an 8:1 reduction of acoustic noise. As transformers are the most expensive components in any audio product but PrimaLuna doesn’t cut corners. All PrimaLuna products use massive, potted toroidal transformers. PrimaLuna transformers are enclosed in a metal housing and then potted in a non-microphonic resin to further reduce noise and to protect the windings from moisture and deterioration forever.
PROLOGUE CLASSIC OUTPUT TRANSFORMERS
Output transformers are the most important part of any tube amp. They determine how low the bass will reach and how high the top end goes. 250 watts of power will have no top and bottom extension if the output transformers don’t have the bandwidth. We use lower power to extend tube life, and bandwidth to give you slam. Transformers are the most expensive components in an amplifier but again PrimaLuna doesn’t cut corners. PrimaLuna output transformers are custom-designed, wound in-house, and massive. Our DiaLogue Class components feature the largest, widest-bandwidth output transformers we’ve ever made. One reason why no other brand sounds like a PrimaLuna. “The flat tops and bottoms of these squarewaves correlate with the amplifier’s extended low-frequency response; PrimaLuna’s output transformers are of excellent quality.” -John Atkinson, Stereophile Magazine
PrimaLuna’s Adaptive AutoBias is a true, smart technology employing an array of sensors to monitor tubes and make adjustments seamlessly in real time. More important, it is the ONLY circuit of its kind that is truly “adaptive” by addressing “tube pinch off” at higher volumes, therefore reducing distortion by over 50% and greatly extending tube life. Adaptive AutoBias is completely passive and NOT in the signal path. The result is low to no maintenance, long tube life, and the lowest possible distortion for amazing sound.
POINT TO POINT WIRING
You spend a lot of money on interconnects. So why have the signal go right from the RCA jacks or speaker terminals into circuit boards with copper traces so thin you can hardly see them? What’s high-end about that?
PrimaLuna employs Point to Point Wiring on all products. The entire signal path, including resistors and capacitors, is painstakingly hand wired with heavy-gauge cable by craftsman.
NO INTERNAL DAC / NO INTERNAL PHONOSTAGE
Never buy an integrated amp with an internal DAC. Why? Because digital changes, and history shows that integrated amps with “old” digital become unwanted and have almost no resale value.
Built in phonostages are “throw in” and are rarely good quality because manufacturers assume 90% of buyers won’t use them. The external phonostage market is very competitive. You can get something much better for as little as $200, and buy one that actually meets your cartridges needs and YOUR budget.
SMARTWATTS – EXTENDED TUBE LIFE
Tube life is simply a matter of how hard you run the tubes. That’s it. The only way to extend tube life is to run them as close to zero as you possible can, making sure it is not so low you go into crossover distortion. The life of a tube will depend on two things: Plate and screen voltage.
If the plate and screen voltage is high, you are more likely to get tube shorts when you turn the amp on and you get cathode stripping which greatly effects the cathodes ability to spit out electrons. We proudly tell you our tubes run at just about 417 volts for the plates and screens.
PrimaLuna runs their output tubes at a minimum dissipation without going into crossover distortion. When you look at our amps, they provide less power from each tube. With KT-120’s as an example, a PrimaLuna will give you only 21 watts per tube. So running a pair of them you get 42 watts. That’s a lot of power, but the demands per tube are fractional. To get more power the right way is expensive. It requires bigger transformers, sockets, wiring, resistors, capacitors, and the tubes to do it. Which is exactly what PrimaLuna did. But we didn’t stop there.
OUR AMPS ARE PERFECT. BUT YOUR SYSTEM MAY NOT BE
Ask any seasoned tube-head what the most musical output tube is and they will most certainly declare it the EL34. Other amp manufacturers would love to use it. Only PrimaLuna, through our proprietary output transformer designs, can give you EL34 midrange beauty with top-end air that goes on forever. And, bass extension with so much slam, our amps are used to power subwoofers.

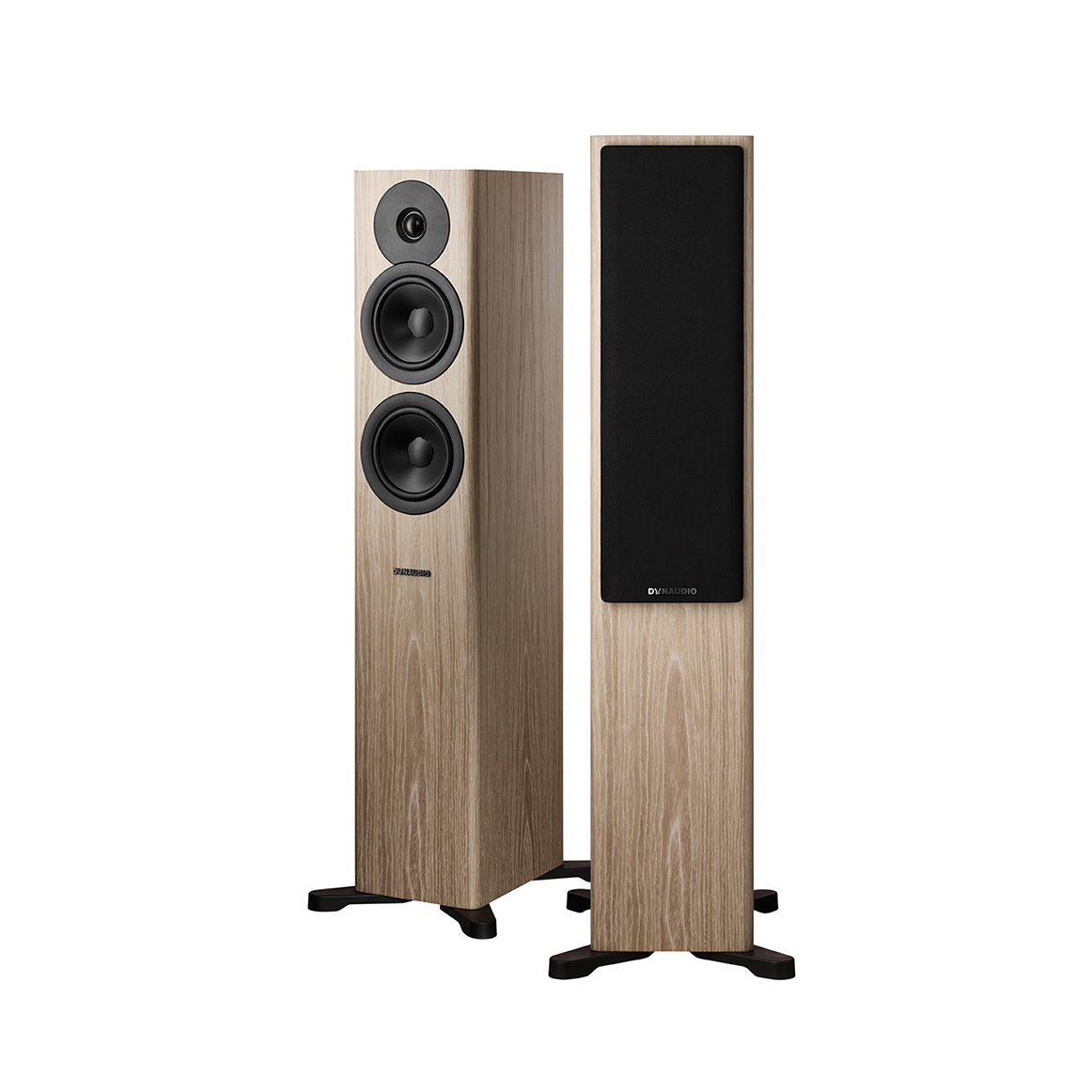

Dynaudio Evoke 30 Floorstand Speaker (Blonde Wood) (Made In Denmark)
Put a pair of floorstanders in your living room and even the least ‘hi-fi’ person in the world will know you mean business. Put a pair of Evoke 30 floorstanders in there and they’ll also know you have taste.
These two-and-a-half-way speakers strike the balance between compactness and restraint, and unabashed, wide-eyed enthusiasm for music.
The new Evoke family will be on-sale in Europe in February 2019. It will arrive in other markets in April.
- Let’s take it from the top
At the head of the table is the all-new Cerotar 28mm precision-coated soft-dome tweeter. And it’s one of our most sophisticated yet.
Our engineers plundered some of our most celebrated technologies – including ingenious airflow systems from the award-winning Esotar Forty anniversary tweeter, the precision coating found on the Contour range and the Hexis from the new Confidence series (more on that in a bit) – and combined them into a new design specifically for the Evoke family.
The Cerotar is driven by a newly-designed strontium carbonate Ferrite+ ceramic magnet system, and features the Confidence’s headline-grabbing Hexis inner dome. This ingenious little dimpled device sits right behind the soft tweeter diaphragm and reduces unwanted resonances while smoothing out the overall frequency response. The result is sweeter treble, better detail and even more clarity – and that means you can listen into the wee hours of the morning without fatigue.
- The low-down on woofers
Evoke 30’s twin 14cm Esotec+ mid/bass drivers are made from MSP (Magnesium Silicate Polymer), a material we’ve been using for our woofer diaphragms since Dynaudio started back in 1977. It provides exactly the right combination of lightness, stiffness and damping to balance the needs of powerful yet precise bass performance with clear, detailed midrange.
Each speaker cone is made from a single piece of MSP. This makes them exactly the right amount of rigid – and means far less physical distortion when they’re playing. It also gives a super-solid physical connection to the glass-fibre voice-coil former on the back (it’s glued directly under the Balance Ribs you’ll see around the centre), which means more of the coil’s motion energy is transferred to the diaphragm.
Evoke 30’s 52mm voice-coils are made from aluminium – which provides the correct mix of weight and winding height to balance bass and midrange frequencies. It gives optimum moving mass while retaining the right grip of midrange performance for a perfectly integrated performance.
Nomex spiders keep everything centred and moving the way it should, while the new Contour-derived surround allows a longer throw ratio for greater punch. And, like the Cerotar tweeter, Evoke 30’s woofers are both driven by ceramic Ferrite+ magnets for greater control, finesse and power.
In non-speaker-designer language, that means “you’ll hear your music the way it was meant to be heard”. No rough edges, nothing standing out where it shouldn’t – and nothing relegated to a supporting act when it should be headlining.
- Timeless Danish design
Evoke has been created for real life. Our designers’ priority was to make the whole family look great in any listening environment. They took models and prototypes home and sat with them, went and scoured interior-design stores and specialist furniture retailers and even sniffed around real houses to gain inspiration.
Evoke 30 is available in four fantastic finishes. Black High Gloss and White High Gloss both use a new lacquering technique that gives a gloriously deep, glass-like look. At the other end of the tactile spectrum are the lovely, natural open veneers of Walnut Wood and Blonde Wood – honest, organic and hygge.
The result is an instant classic. It’s modern, retro, timeless and cutting-edge all at once. It’s the kind of speaker your kids will eye-up expectantly when they’re leaving for university.
- MS HD Power S20 V3 6 Way Filtered UK Mains Block (worth RM990)
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
