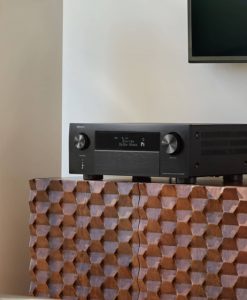

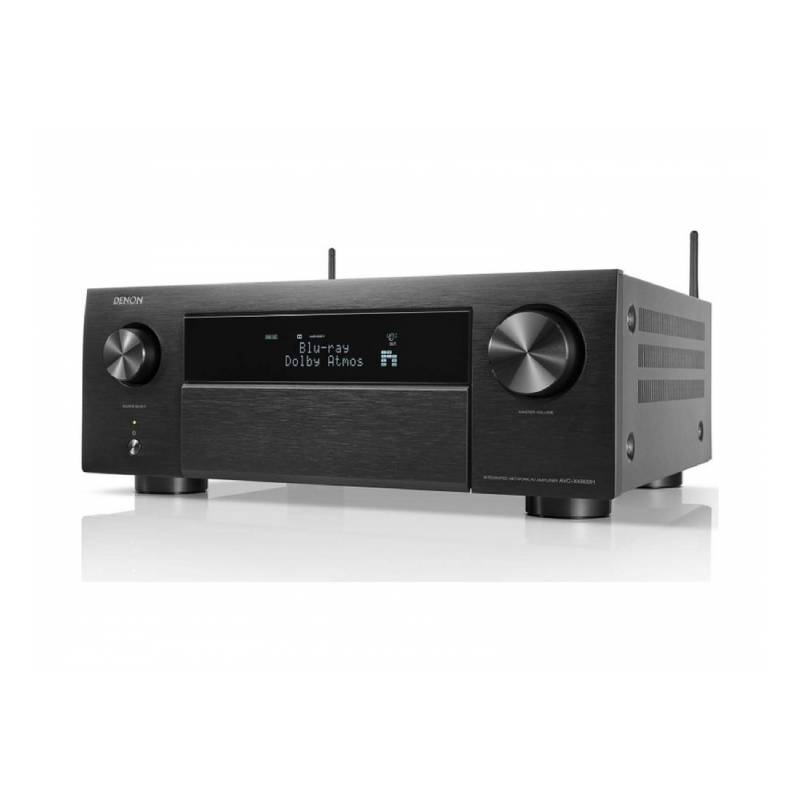

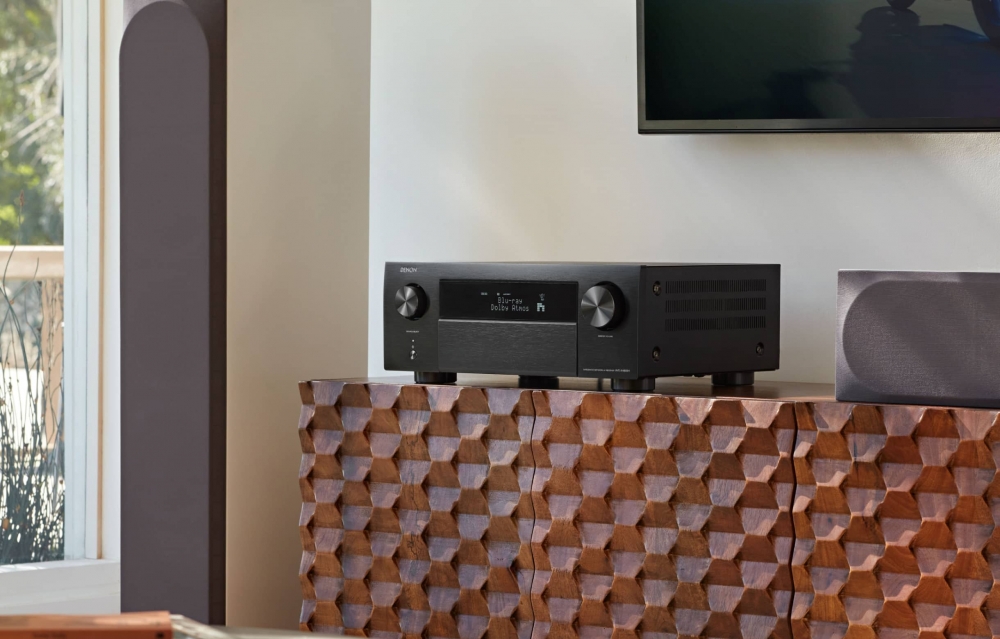

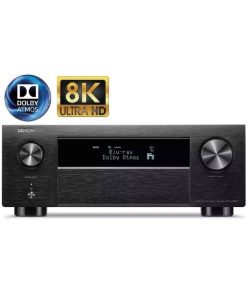

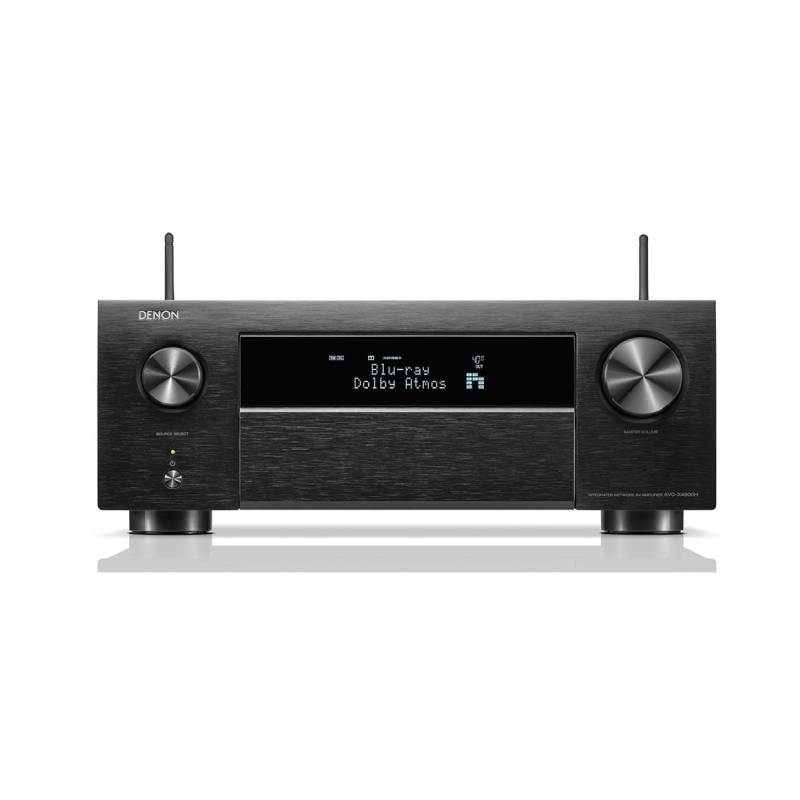

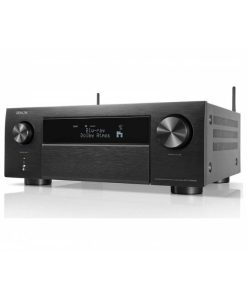

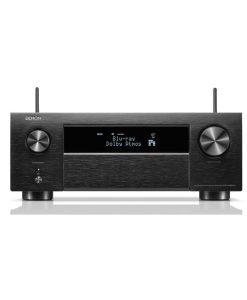

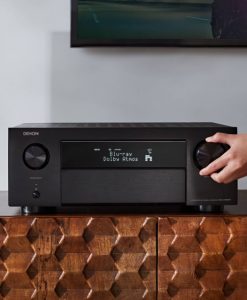

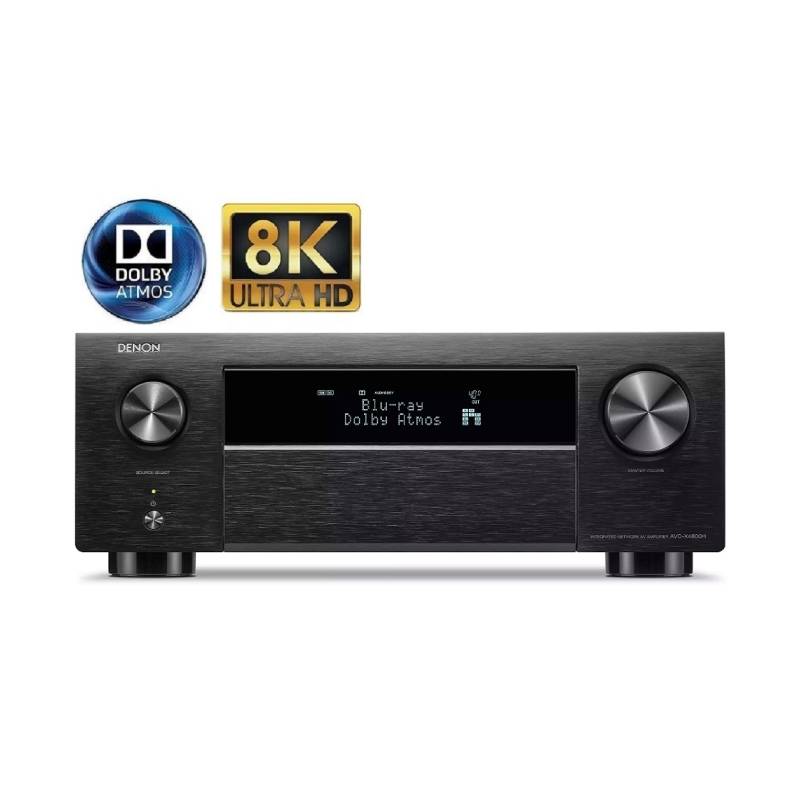

Denon
AVC-X4800H
9.4Ch 8K Atmos
Network AV Amplifier
(Made In Japan)

Specification

Multichannel Surround
DTS HD Master, DTS:X, DTS:X Pro    Yes, Yes, No
DTS Neo:X, DTS Neural:X    No, Yes
DTS Virtual:X    Yes
IMAX Enhanced    Yes
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music    Yes, Yes, Yes, Yes
Dolby ProLogic Ilz, Dolby Surround    No, Yes
Auro 3D    Yes
360 Reality Audio / MPEG H    Yes, Yes
Multichannel Stereo    Yes
Max. Number of Processing (Pre-Amp) Channels    11.4
Sound Enhancements
Mono Block Power Amp Construction    Yes
Discrete Power Amplifier    Yes
D.D.S.C. HD Digital    Yes (32 bit)
Pure Direct    Yes
Clock Jitter Reducer    Yes
Alpha Processing    AL32 Processing Multichannel
Audyssey    MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume    Yes, Yes
Audyssey LFC    Yes
Dirac Live Upgradability    Yes
Compressed Audio Restorer    Yes
Network
Media Server    Yes
HEOS Wireless Multi-Room Technology    Yes
Alexa / Google Voice Assistant / Apple HomePod    Yes, Yes, Yes
Lossy Formats: MP3, WMA, AAC    Yes, Yes, Yes
Lossless Formats: FLAC, ALAC, WAV    Yes, Yes, Yes
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit)    Yes, Yes, Yes
DSD Audio Streaming    Yes (2.8/5.6MHz)
AirPlay 2    Yes
TuneIn    Yes
Spotify Connect    Yes
Roon Tested    Yes
HEOS App Control    Yes
Compatible with Remote APP for Smart Phones    Denon AVR Remote
Ethernet Ports    Yes
Wi-Fi    Yes
Bluetooth    Yes
HDMI
HDMI Inputs: Back, Front    7, No
HDCP2.3 support    Yes
HDMI Outputs: Main, Zone    2, 1
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB    Yes, Yes
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR    Yes , Yes, Yes, Yes, Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming    Yes
Variable Refresh Rate, Quick Frame Transport, Quick Media Switching    Yes, Yes, No
3D Signal Pass-through    Yes
8K Signal Pass-Through, Scaling, GUI Overlay    Yes, Yes, Yes
DSD Audio Capability    Yes
Audio Return Channel (ARC), Enhanced ARC    Yes, Yes
Auto LipSync    Yes
Multi-room CI
Multi-Room Zones    3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analogue    Yes (2ch), Yes (2ch), Yes, Yes
Zone Audio Output: Speaker, Pre-Out    Yes, Yes
Zone HDMI Output from HDMI Source    Yes
IP Control, RS232 Control, Web Control, App Control    Yes, Yes /Yes, Yes
Remote In / Out    Yes, Yes
DC Trigger Output    3
HDMI Diagnostics    Yes
Others
Auto Speaker Setup by Microphone    Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display    2-Line FLD
GUI Languages    9
Setup Assistant    Yes
Quick Select Plus, Quick Select    Yes, No
Variable Crossover    Yes
Optimized Bass Redirection    Yes
Bass Sync    Yes
ECO Mode    Yes
Auto Power Off    Yes
Sleep Timer    Yes

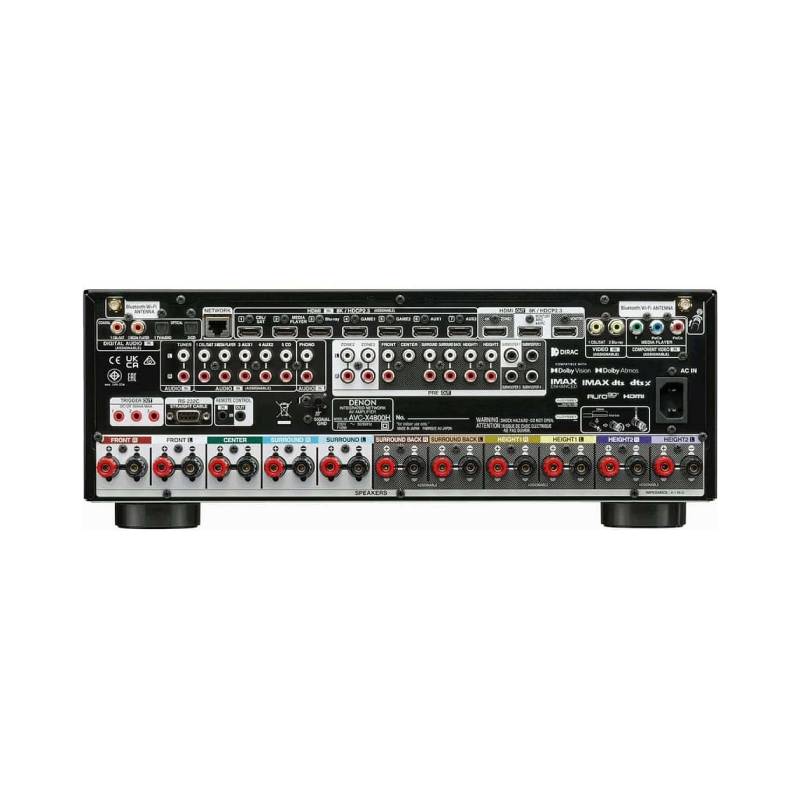

Inputs/Outputs
HDMI In, Out    7, 3
Multi-Room Video Out: Video, HDMI    No, Yes
Analogue In, Out    5, No
Phono (MM) In    Yes
Digital In: Optical, Coaxial    2, 2
Multi-Room Out: Analogue, Digital    2, No
Multichannel Preout    Yes (11.4)
Subwoofer Out    4 (independent)
Speaker Terminal: Gold-Plated Screw, Regular Screw    No, Yes
Number of Speaker Terminals    11
Speaker A / B    Assignable
Bi-amp Drive    Assignable
Multi-Room Speaker Terminal    Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB    No, No, No, No, Yes
USB Audio, Made for iPod, Made for iPhone    Yes, No, No
Specifications
Number of Power Amps    9
Power Output (8 ohm, 20 Hz – 20 kHz, 0.05% 2ch Drive)    125W
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive)    165W
Power Output (6 ohm, 1 kHz, 1% 1ch Drive)    200W
General
Metal Front Panel    Yes

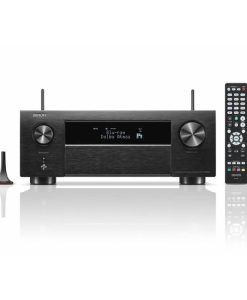

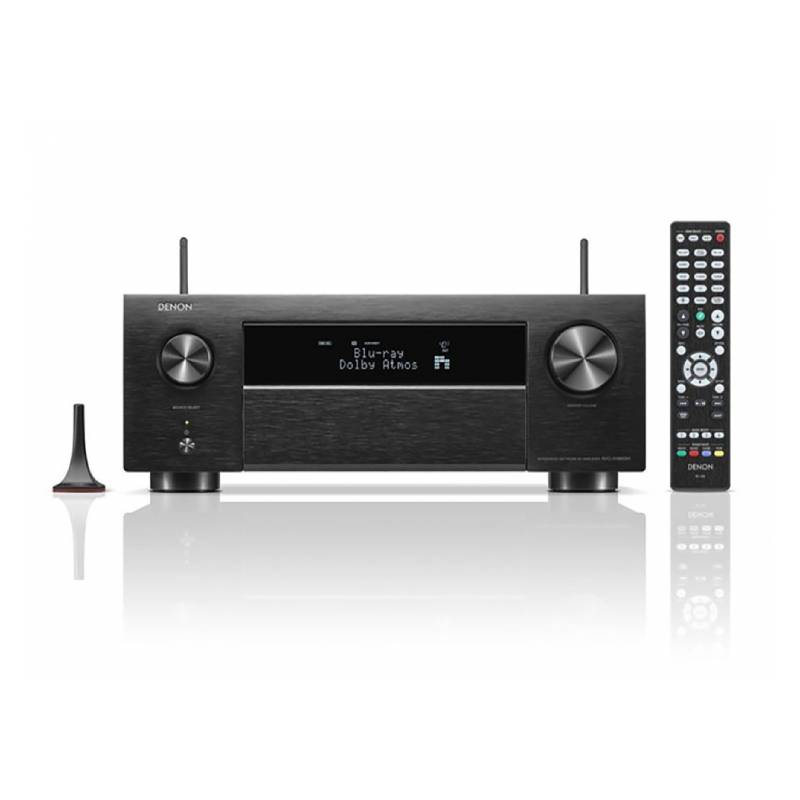

System Remote Control    RC-1252
Pre-Programmed, Learnable, LCD Display    No, No, No
Power Consumption in W    710
Power Consumption No-Sound (ECO On / Off) in W    65 W / 110 W
Standby Consumption in W    0.1
CEC Standby Consumption in W    0.5
Network Standby Consumption in W    Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in mm
( Antenna:Vertical :(W x D x H) in mm)
【 w/o Antenna :(W x D x H) in mm】    434 x 389 x 167
( 434 x 389 x 236 )
【 434 x 379x 167 】
Weight in kg    13.4
Weight in kg (incl. packaging)    16.0
