Clearaudio
Magnify
Tonearm(Made In Germany)
RM14,052.00

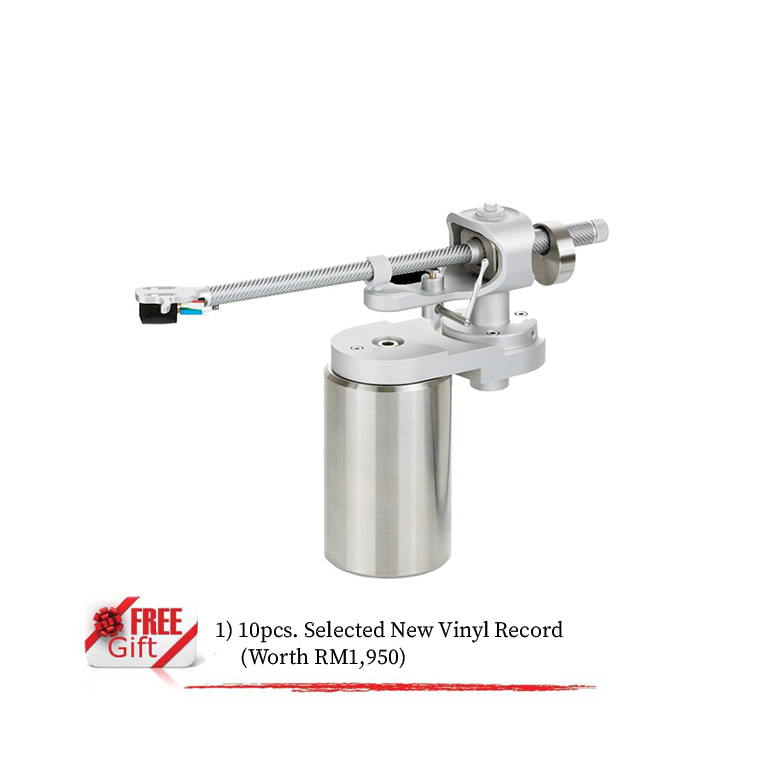

The Magnify is the result of careful optimization to fully exploit the advantages of the extremely lightweight carbon fibre material.
Overview
The Magnify is the result of careful optimization to fully exploit the advantages of the extremely lightweight carbon fibre material.

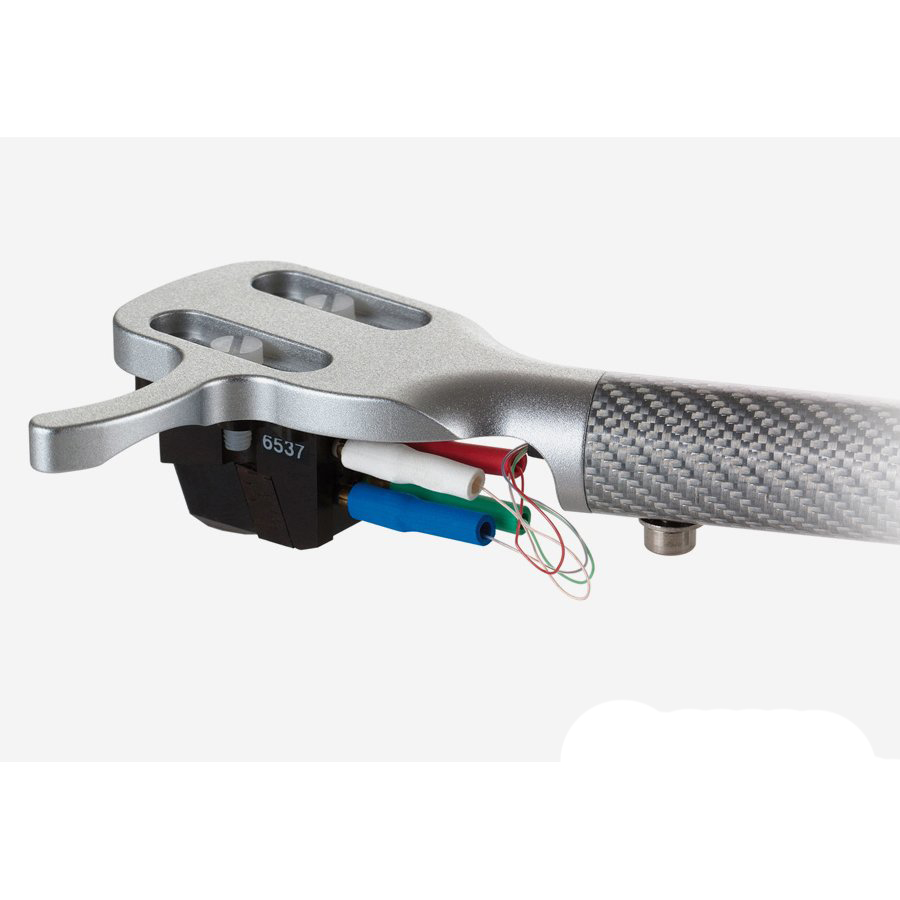

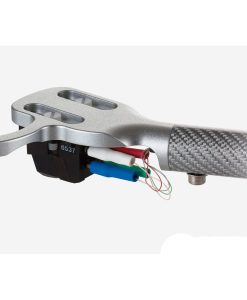

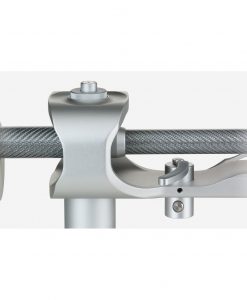

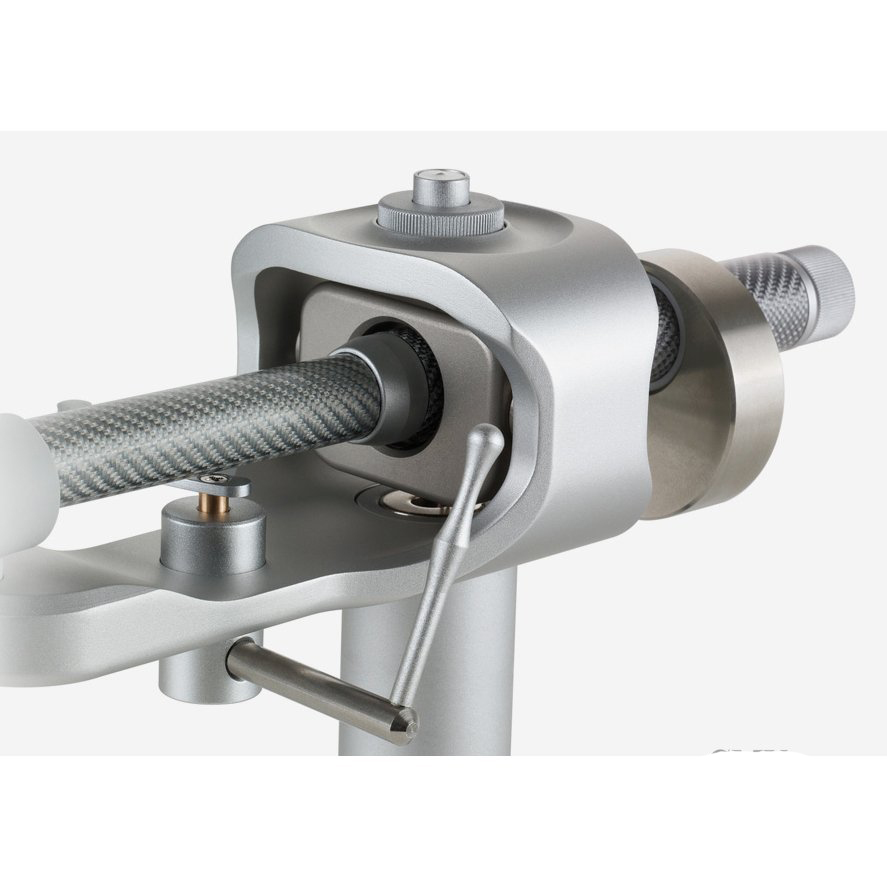

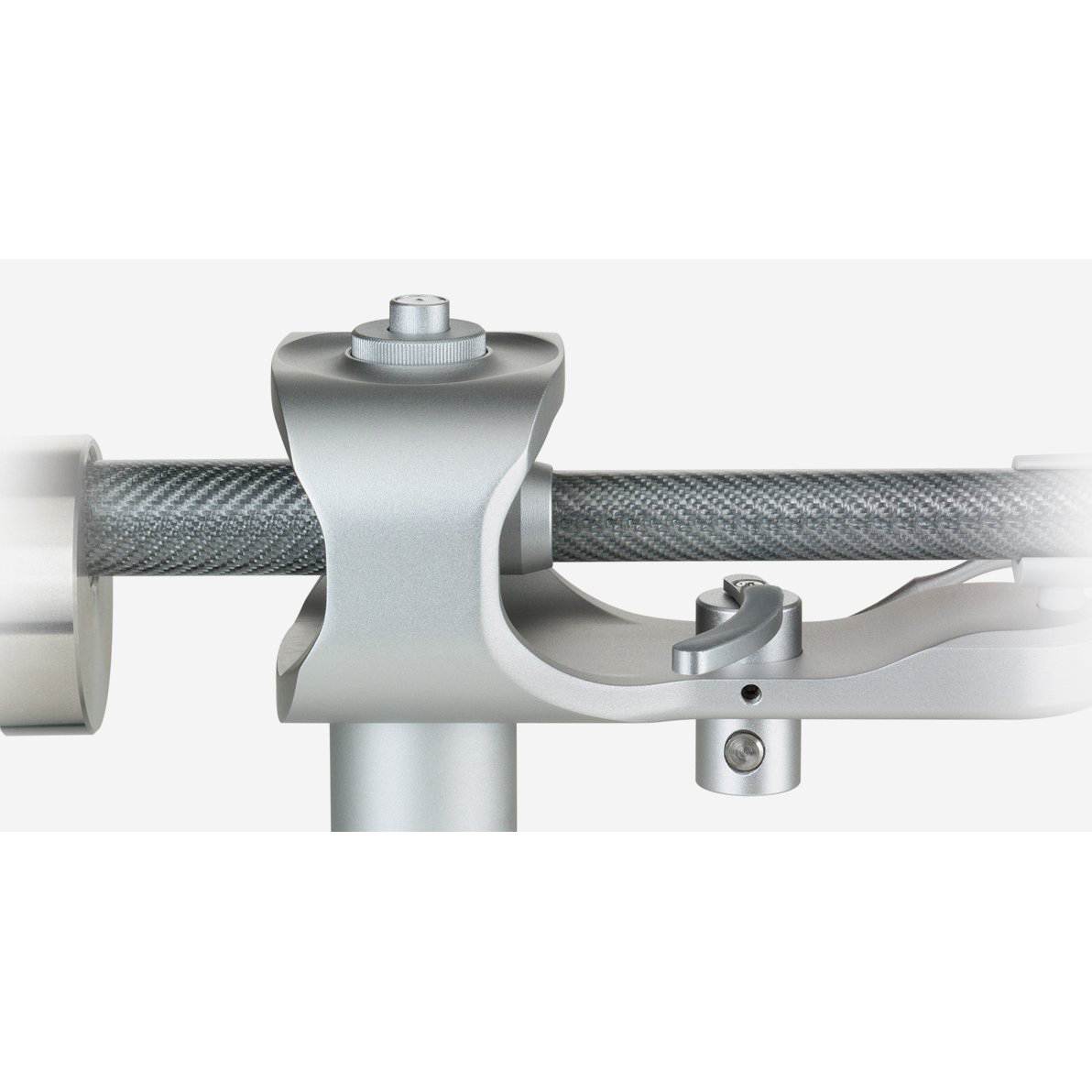

Its hybrid bearing on high-precision balls and magnets make the Magnify tonearm something special. This innovative design not only ensures interference-free and resonance optimized playback, it also noticeably simplifies set-up and adjustment. The headshell and azimuth can be easily fine-tuned and with the optional VTA-Lifter it is possible to adjust the VTA even during playback.
This tonearm defines the standards – not least because it is compatible with many cartridges. It is equipped with high quality Clearaudio DIRECT WIRE in a continuous run from the cartridge connectors to the tonearm cable plugs. A tonearm that stands for ultimate sound clarity.
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 1 kg |
|---|
Specification
| MAGNIFY 9 INCH | |
|---|---|
| CONSTRUCTION DETAILS | The construction principle is based on the Exact tonearm and has been optimized in many details. The tonearm allows:
|
| CARTRIDGE BALANCE RANGE | 4.7 gram – 22 gram |
| NULL POINTS | Inner: 66.04 Outer: 120.9 |
| OVERHANG | 17.31 mm |
| WIRING | clearaudio Sixtream Super Wire (1.1 m) terminated with MPC Cinch |
| DISTANCE FROM PIVOT TO STYLUS | 222 mm |
| OFFSET ANGLE | 25.54 ° |
| MAXIMUM OF TILT ANGLE ACCORDING TO THE RADIUS | 0.123 °/cm |
| MIDDLE SKATINGFACTOR AT A RADIUS OF 133 MM AND 83.9 MM | 0.49 |
| EFFECTIVE TONEARM LENGTH | 9.4 inches (exact 239.3 mm) |
| OVERALL LENGTH | 345 mm |
| MOUNTING STYLE | Clearaudio (diameter of bore 24,85 mm) |
| WEIGHT | 620 gram (incl. Turboweight) |
