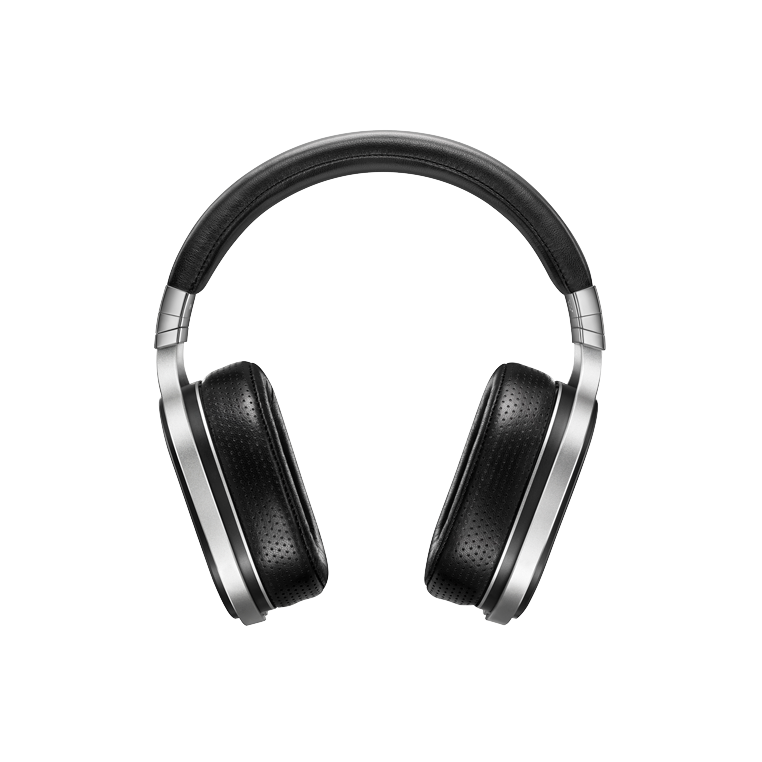

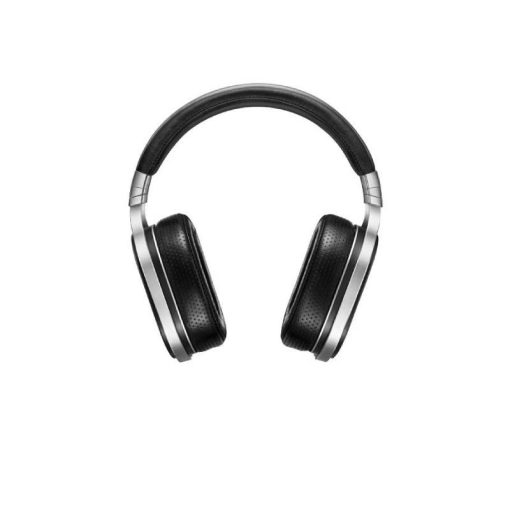

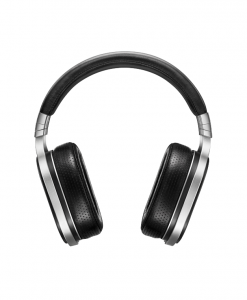

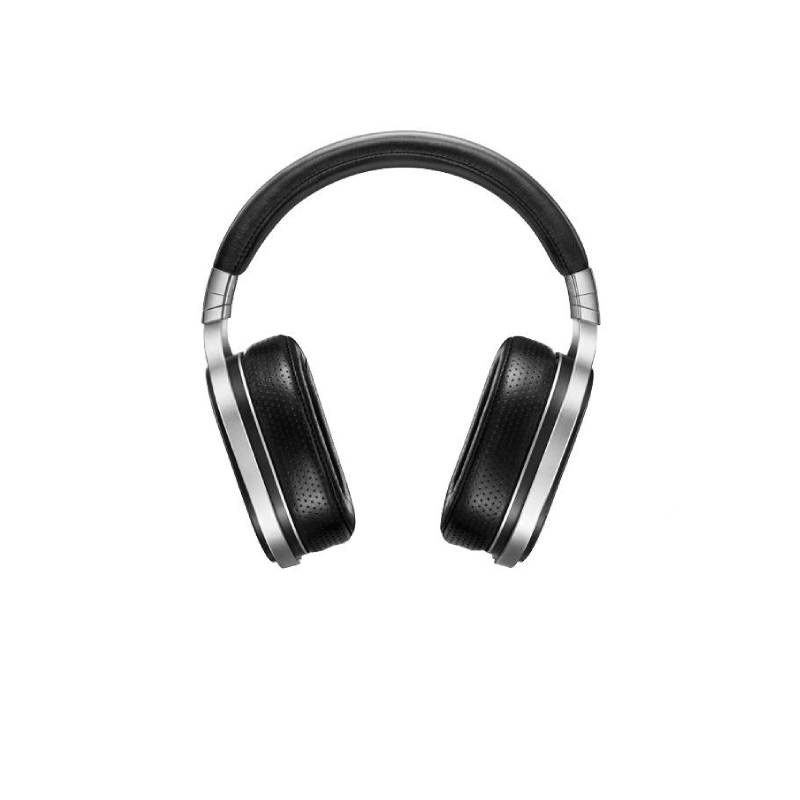

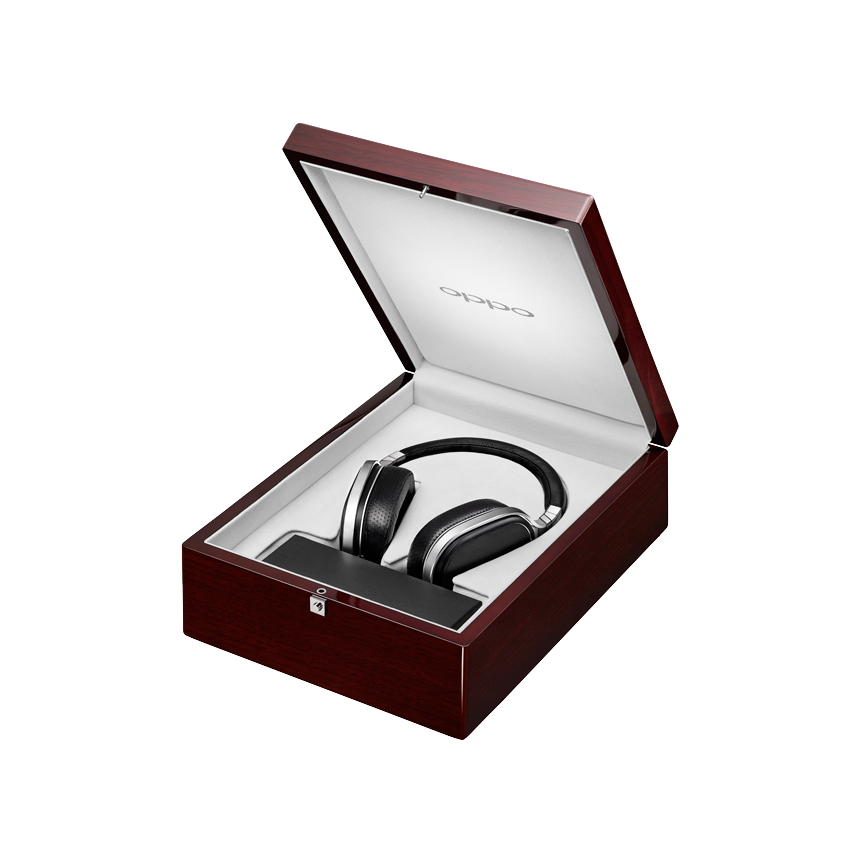

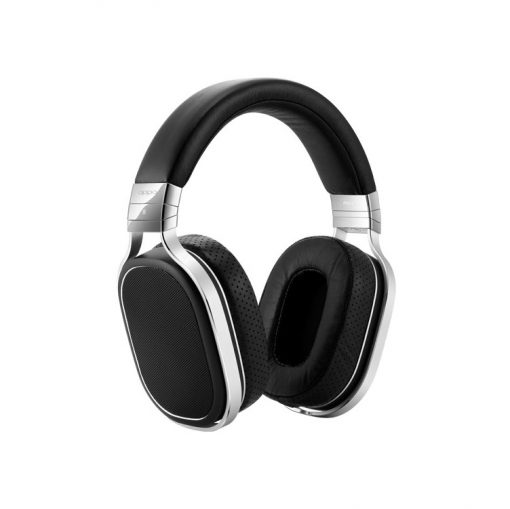

Oppo
PM-1
Planar Magnetic Headphones

Overview

Proprietary Planar Magnetic Technology

Life-like, Natural Sound Quality, High Sensitivity & Scalability

Plush Padding & Reduced Weight for Exceptional Comfort

Features

• Stability, Consistency, Reliability
  Many planar magnetic headphones have large balance deviations between the left and right channels, and accurate stereo reproduction is contingent on having a very close match between the left and right channels. During the OPPO PM-1’s manufacturing process, drivers are closely matched to ensure optimum stereo imaging and soundstage.
• Phase Coherence
  When sound enters our ear, it has a planar wave front with all spectrum components in phase. A typical dynamic headphone driver disrupts this coherence with its phase irregularity, resulting in less than perfect signal peak reconstructions. OPPO’s planar magnetic driver has much better phase coherency since all parts of the diaphragm are vibrating in concert without break up and delayed resonance.
• Double-Sided Spiraling Coils
  The diaphragm utilizes a spiraling pattern of flat aluminum conductors on either side of the driver. The double-sided design allows twice as many conductors to be placed within the magnetic field, which leads to higher sensitivity, better damping, and even drive force.
• Purely Resistive Impedance
  OPPO’s planar magnetic driver has a flat conductor pattern that does not have any inductive components. This eliminates inductance related intermodulation distortion, which is especially common in dynamic drivers with high impedance and a high number of voice coil turns.

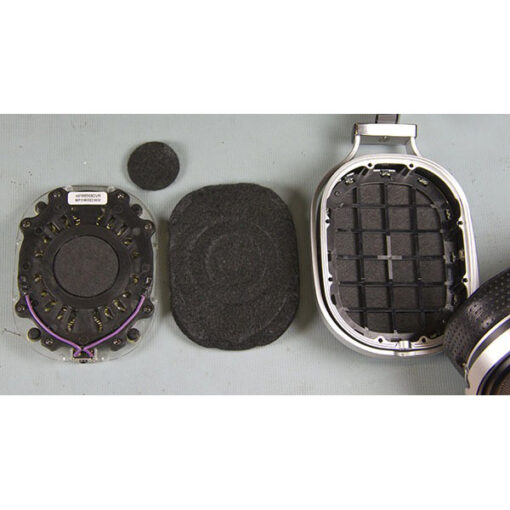

• Diaphragm
  OPPO’s planar magnetic driver diaphragm has 7 layers of thin materials that provide excellent performance, reliability, and longevity. The construction of the diaphragm ensures that it is very stable under thermal stress and vibration.
• High Sensitivity
  Many planar magnetic headphones have a sensitivity far below 100 dB and require very powerful amplifiers to drive. The OPPO PM-1 has a sensitivity of 102 dB, which allows it to pair well with both mobile devices and scale upwards when used with high end headphone amplifiers.
• FEM-Optimized Magnet System
  An FEM-optimized magnet system with very high energy Neodymium magnets is used to maximize sensitivity and consistency of the applied force over the driver area.
