Audiofrog

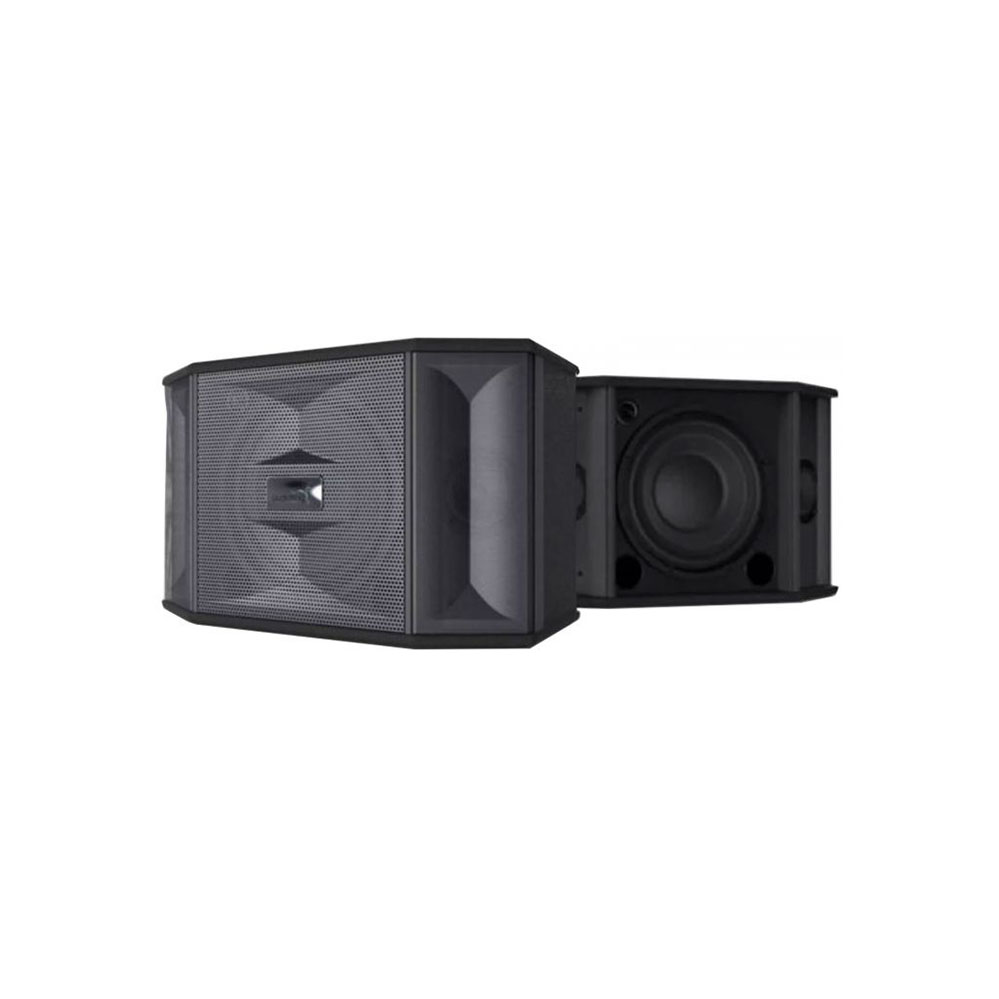

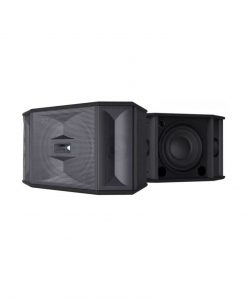

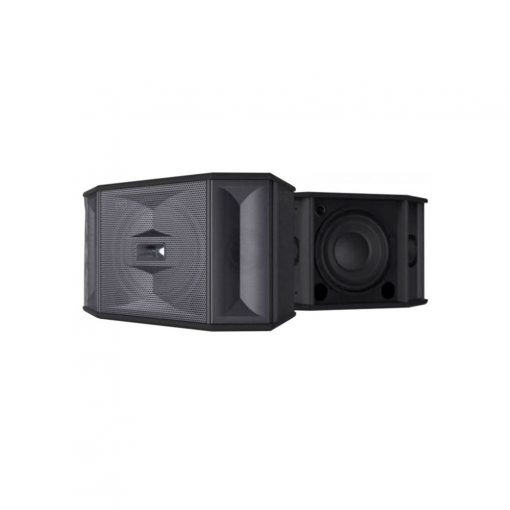

M10F 10″
Karaoke Speaker

Overview

The 2-way M10F features dual 3” high-frequency drivers for coverage across a wide range of seating positions and a 10” woofer in a vented enclosure for maximum low frequency extension and high efficiency. An adjustable high frequency control allow the response to be adapted to the room or adjusted for listener preference. The M10F features an integrated 2-way passive crossover with a second order high pass filter and first order low pass filter for a smooth transition from midrange to high frequencies. 5-way binding post connectors make connections simple using bare wires or banana plugs.

Features

• 10” Paper Cone Woofer for High Efficiency Dual 3” Paper Cone High Frequency Drivers for High Efficiency
• Integrated 3 kHz Passive Crossover (12dB/Octave High Pass Filter, 6dB/oct Low Pass Filter)
• High Frequency Trim Control
• Dual Ports
• 5-Way Binding Post Terminal
• Integrated Metal Mesh Grilles
• Rugged Vinyl Enclosure Finish
• Wall, Stand or Ceiling Mountable (Hardware Not Included)
• LF Driver Size: 10″
• Low Impedance: 6 ohm
• Continuous Power: 200W
• Peak Power: 400W
• Maximum Peak SPL: 92dB
• Frequency Range: 45 – 20k Hz
