Ortofon
OM5E MM
Cartridge
(Made in Denmark)
(Pre-Order)
RM290.00
Out of stock
Overview

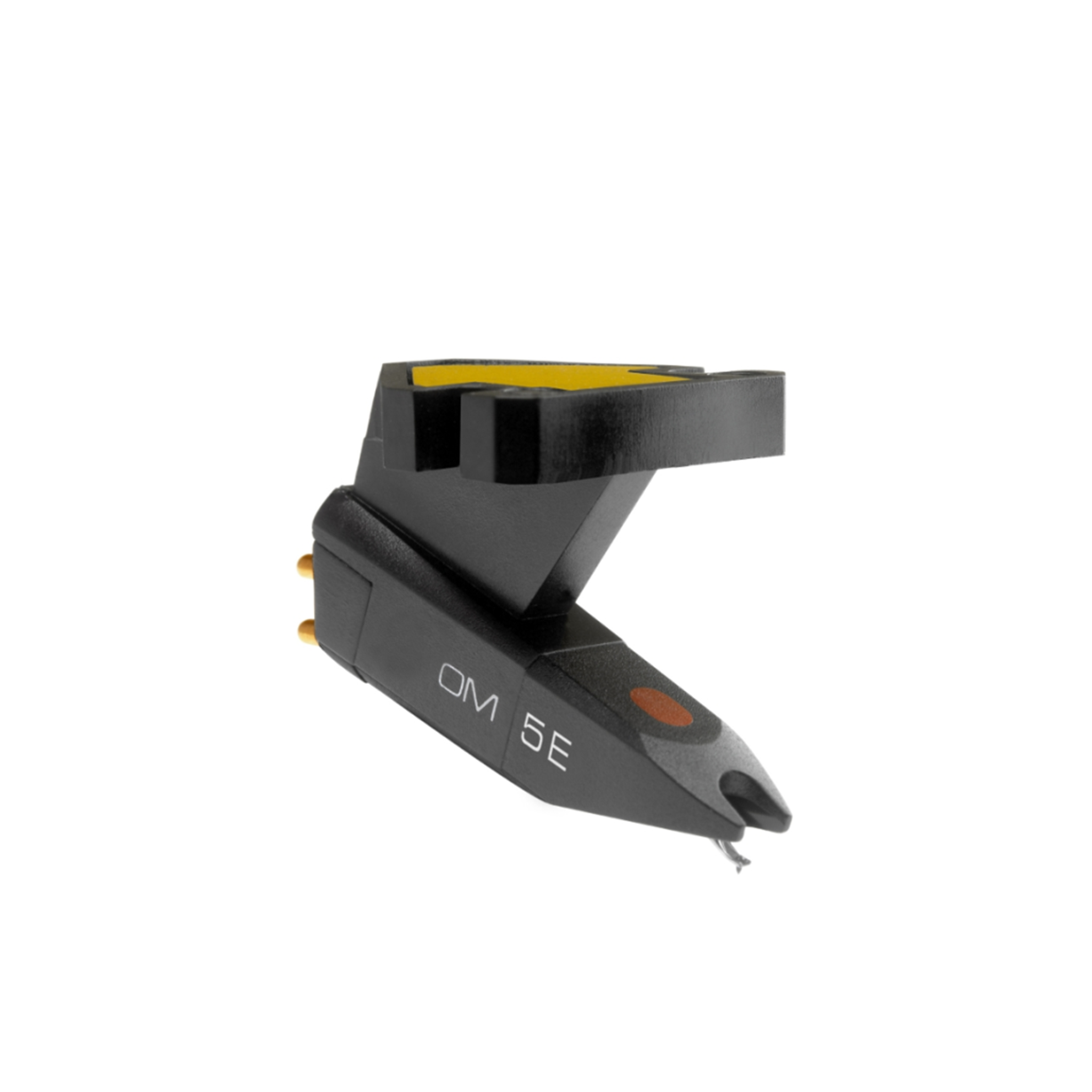

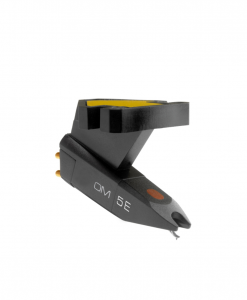

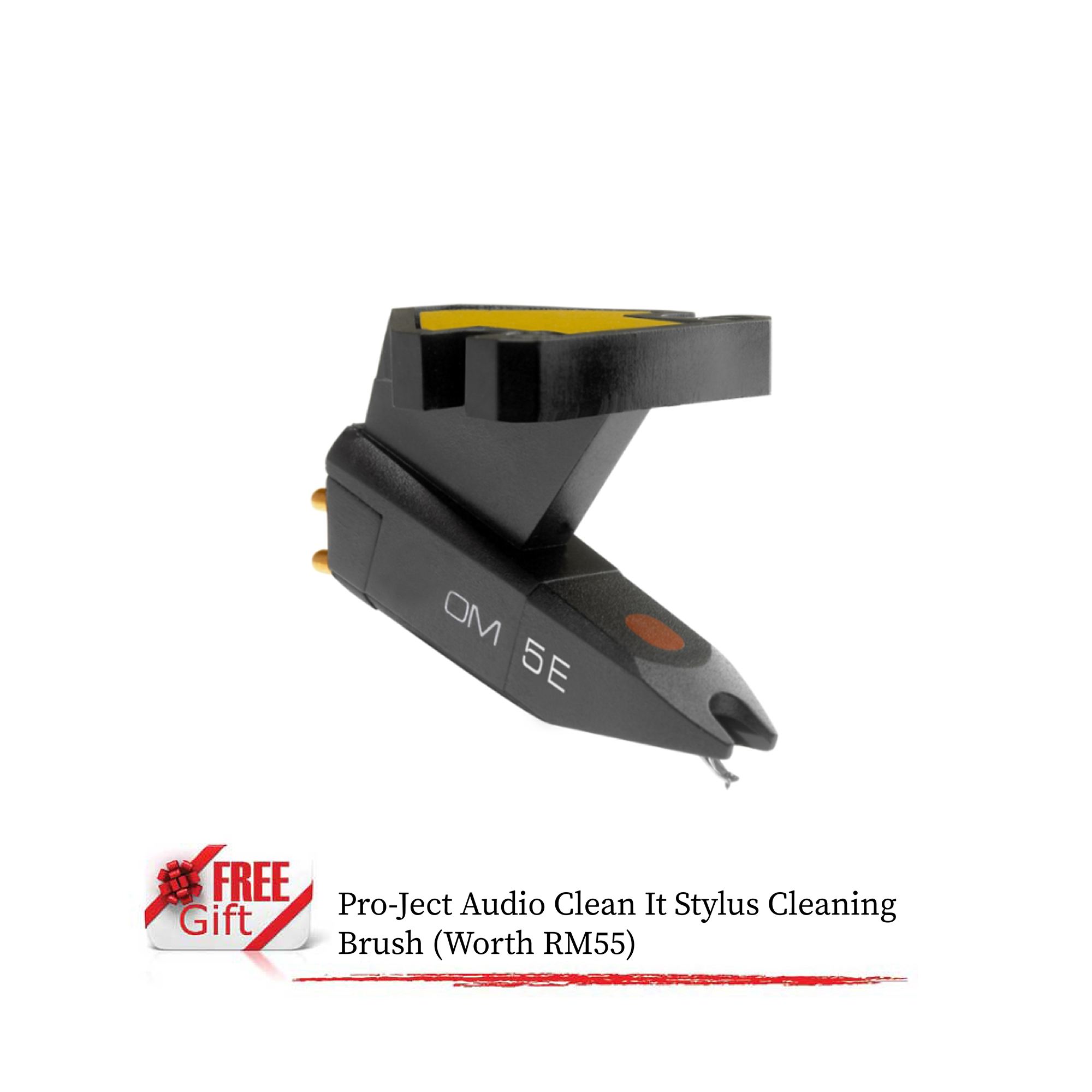

Optimum Match (OM) cartridges match most tonearms perfectly. An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus. A wide range of replacement styli for OM cartridges.With the OM cartridge instantly can make user hear the improvement: music that have been heard many times takes on new dimensions.The OM 5E is a Moving Magnet cartridge for general purpose applications.
Features
- Elliptical stylus that provides balanced.
- Elliptical stylus that provides distortion-free playback.
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| Weight | 0.4 kg |
|---|
Specification
| Output voltage | 1000 Hz, 5cm/sec. – 4.5 mV | ||
| Channel balance | 1 kHz – 1.5 dB | ||
| Channel separation | 1 kHz – 22 dB | ||
| Channel separation | 15 kHz – 15 dB | ||
| Frequency range | 3dB – 20-25.000 Hz | ||
| Frequency response | 20-20.000 Hz ± 2 dB | ||
| Tracking ability at 315Hz at recommended tracking force *) | 65 µm | ||
| Compliance, dynamic, lateral | 20 µm/mN | ||
| Stylus type | Elliptical | ||
| Stylus tip radius | r/R 8/18 µm | ||
| Tracking force range | 1.5-2.0 g (15-20 mN) |
