Overview

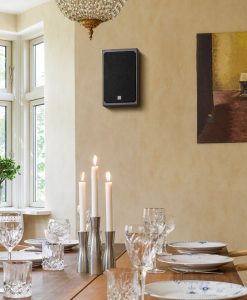

The DALI OBERON ON-WALL is a slim, discreet and surprisingly powerful on-wall speaker, which utilises DALI’s unique on-wall bass port system. It houses an oversized 29 mm ultra-lightweight soft dome tweeter together with a 5.25″ SMC based wood fibre woofer and the unique down-firing bass port system, which DALI has perfected. It combines technologies which make it possible to create a speaker that – despite its compact size – will render audio like a much larger model. For this reason, it’s the perfect choice for both stereo and surround setups.

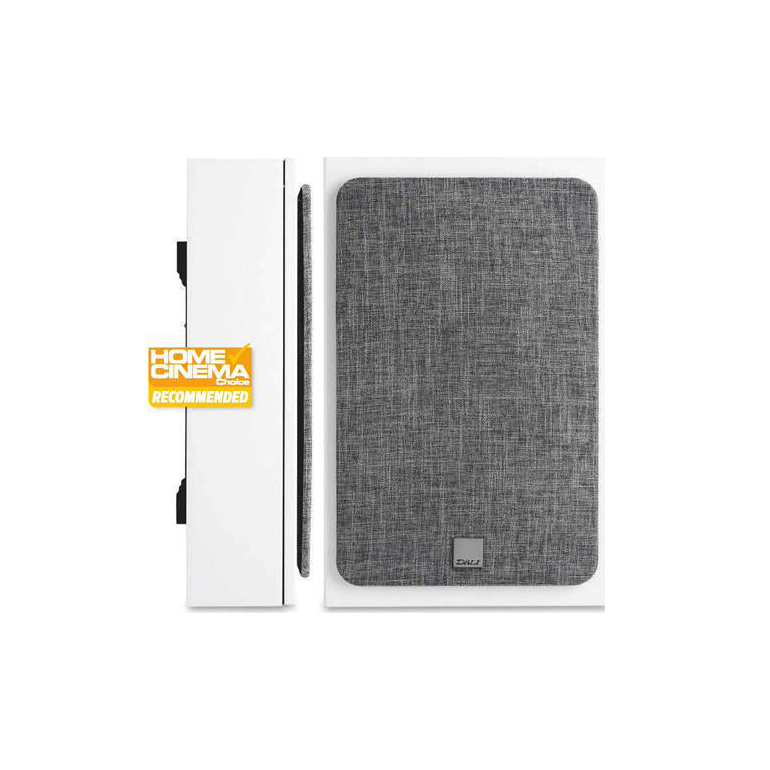

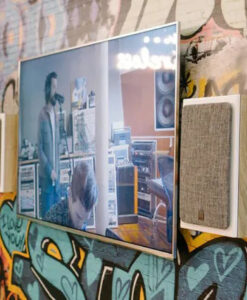

The OBERON ON-WALL is a powerful on-wall speaker with a slim and discreet design. Despite its compact size, the on-wall speaker will render audio like a much larger model, due to its combination of technologies. The slim profile of the speakers makes it easy to integrate into any room.
We have united the best elements from our current speakers and brought them together in the OBERON ON-WALL to deliver on audio quality, looks and versatility. The OBERON ON-WALL houses an oversized 29 mm soft dome tweeter together with a 5.25″ SMC based wood fibre woofer – supported by a unique down-firing bass port design, which lets the OBERON ON-WALL use the wall to extend the bass performance. For this reason, it’s the perfect choice for both stereo and surround setups.
To achieve a wide dispersion pattern in the listening area, the driver materials and geometry applied have been carefully selected. The same principles have been applied in the design of the crossover. As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI loudspeakers are not designed to be toed-in.
Features

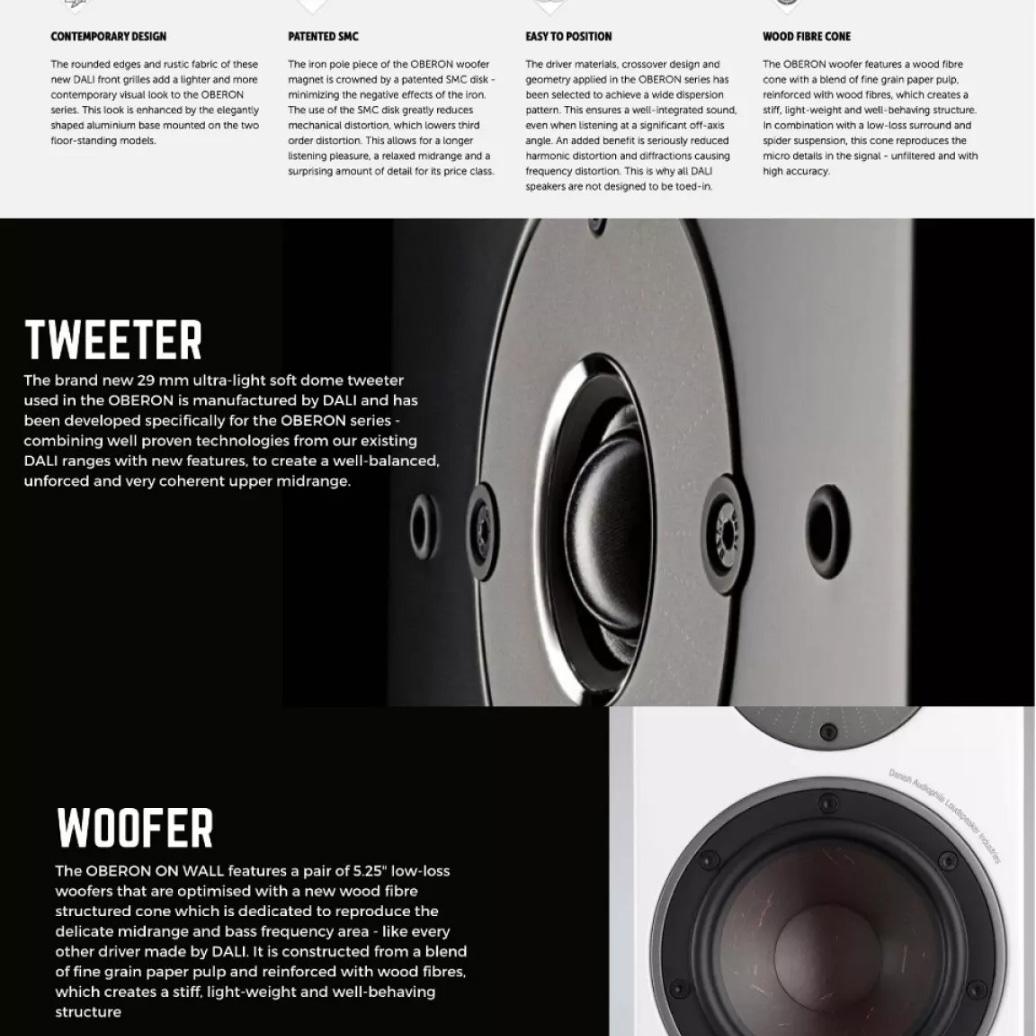

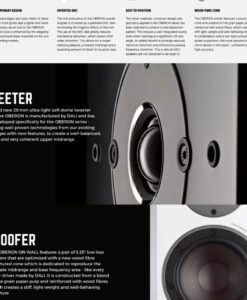

The driver materials, crossover design and geometry applied in the OBERON series has been selected to achieve a wide dispersion pattern. This ensures a well-integrated sound, even when listening at a significant off-axis angle. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion. This is why all DALI speakers are not designed to be toed-in.
The rounded edges and rustic fabric of these new DALI front grilles add a lighter and more contemporary visual look to the OBERON series. This look is enhanced by the elegantly shaped aluminium base mounted on the two floor-standing models.
The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal – unfiltered and with high accuracy.
The iron pole piece of the OBERON woofer magnet is crowned by a patented SMC disk – minimizing the negative effects of the iron. The use of the SMC disk greatly reduces mechanical distortion, which lowers third order distortion. This allows for a longer listening pleasure, a relaxed midrange and a surprising amount of detail for its price class.
| Weight | 12 kg |
|---|---|
| Finishes | White |
| Product series | OBERON |
|---|---|
| Frequency Range (+/-3 dB) [Hz] | 55 – 26,000 |
| Sensitivity (2,83 V/1 m) [dB] | 86.5 |
| Nominal Impedance [ohms] | 6 |
| Maximum SPL [dB] | 107 |
| Recommended Amplifier Power [W] | 25 – 100 |
| Crossover Frequency [Hz] | 2,100 |
| Crossover Principle | 2-way |
| High frequency driver, Quantity | 1 x 29 mm |
| High frequency driver, Diaphragm type | Soft Textile Dome |
| Low frequency driver, Quantity | 1 X 5.25″ |
| Low frequency driver, Diaphragm type | Wood Fibre Cone |
| Enclosure type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 50 |
| Connection Input | Single Wire |
| Recommended Placement | On-Wall |
| Recommended Distance From Wall [cm] | 0 – 10 |
| Dimensions With Base (HxWxD) [mm] | 385 x 245 x 120 |
| Accessories Included | Manual Rubber Feet Front Grille |
| Weight [kg] | 4.9 |
