Overview

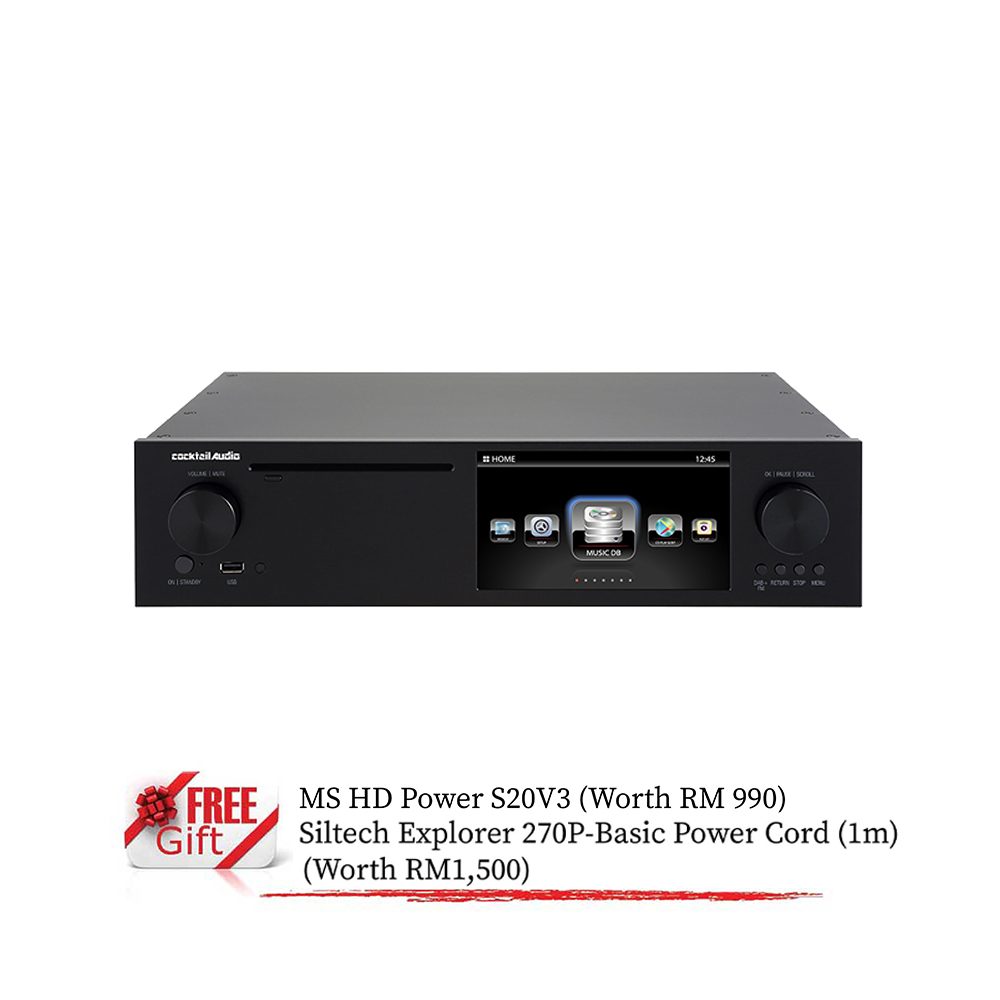

Most versatile and powerful Pure Digital Music Server with database, CD Ripper, Network Streamer and much more
Features
- Equipped with high-performance Dual Core ARM Cortex A9 processor running at 1.0Ghz
- XMOS 32bit/500MIPS 8 Core Powerful Microcontroller
- DDR-1066 1GByte Main Memory and 8GByte Nand Flash Memory
- High speed optical disk drive for quick CD ripping
- 7 inch TFT LCD(1024 x 600 pixels) screen for intuitive GUI
- DAB+/FM Tuner built-in
- USB Audio Class 2.0 Output for connecting to an USB Digital-to-Analogue Converter(DAC)
- I²S Digital Out(RJ45 & HDMI) to support up to Native DSD including 24bit/192Khz
- Giga Fast Ethernet(10/100/1000Mbps) built-in
- Support up to 8TB(Tera Bytes) storage like 3.5″/2.5″ hard disk or SSD
- Using RAID System function, total 16TB storage configuration is possible

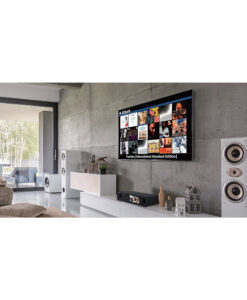

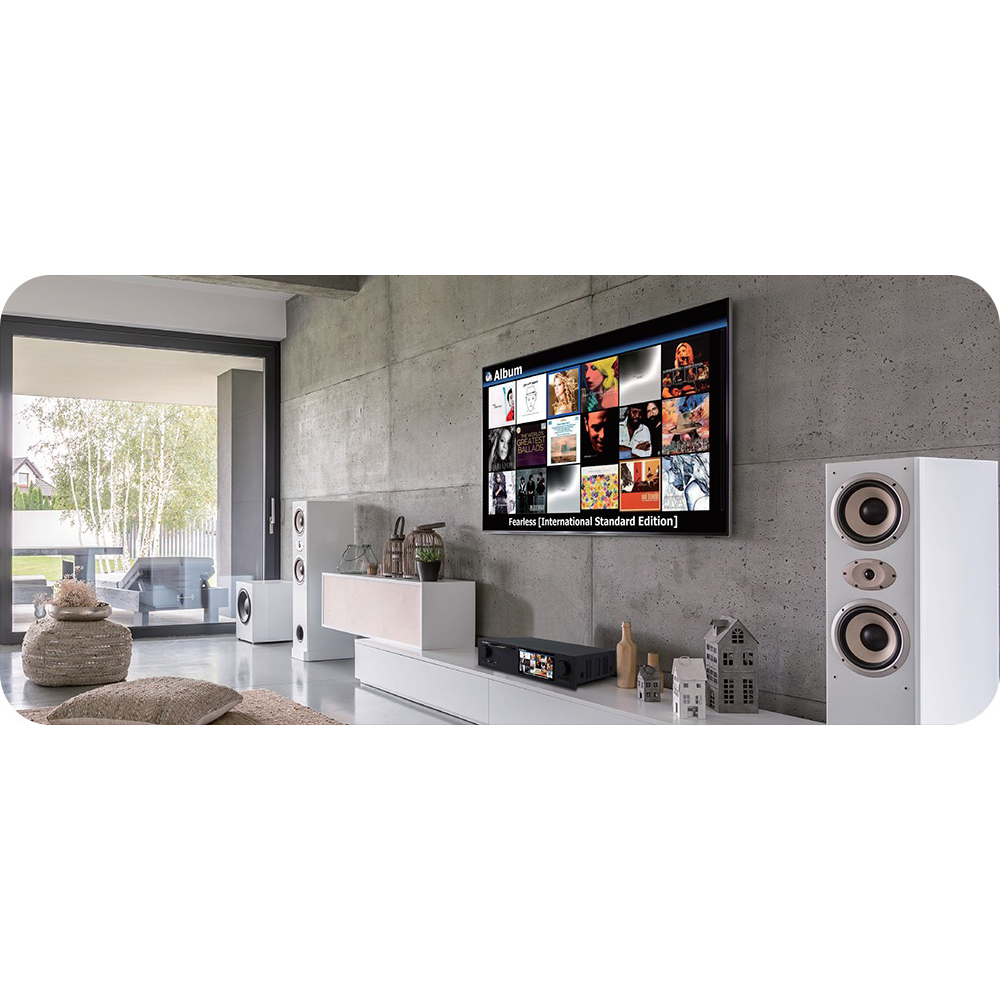

- HDMI Out connector for using an external screen like TV as its GUI screen
- Rugged chassis construction with full aluminum body chassis by CNC cutting
For more information:
- Contact : Dicky Ng 012-3308893
- Contact : John Yew 016-2861000
- Email : [email protected]
| color | Black, Silver |
|---|
Specification
| Model name | cocktailAudio X50(D) | |||
|---|---|---|---|---|
| Host CPU & Memory | CPU: Dual Core ARM Cortex A9 running at 1.0GHz | |||
| Main Memory: DDR-1066 1GByte | ||||
| NAND Flash 8GByte | ||||
| CD Player | Type | Front Loading | ||
| Supported media | CD, CD-DA, CD-R, CD-RW, DVD-R/RW | |||
| Display | 7.0″ TFT LCD(1,024 x 600pixels)(* able to connect to ext. screen via HDMI out) | |||
| Interface | Key & Jog(Volume/Scroll), IR Remote Control, Customized Remote App for iOS and Android devices, Web Interface |
|||

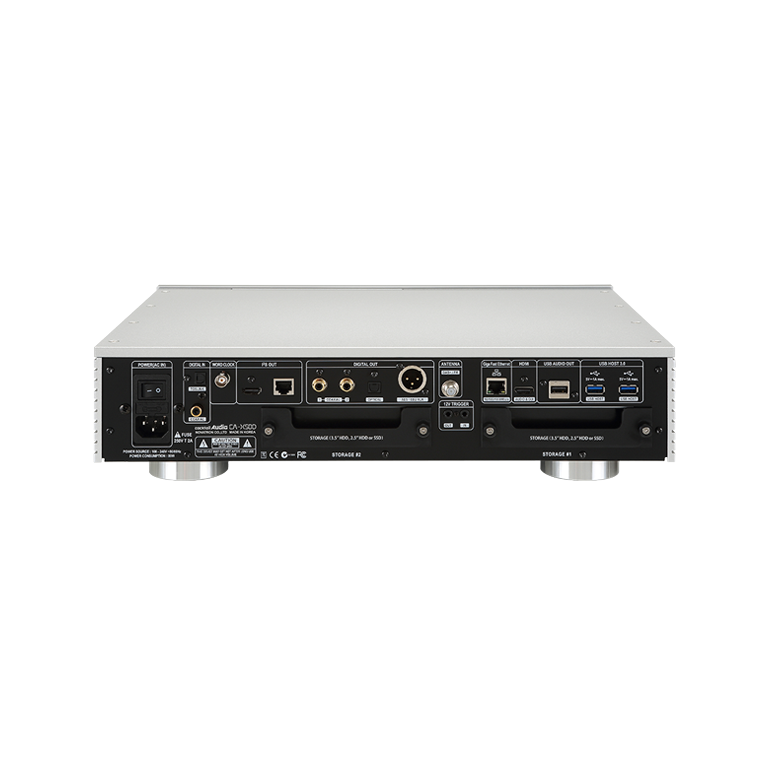

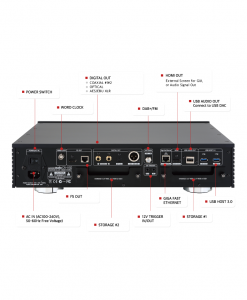

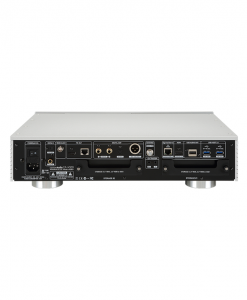

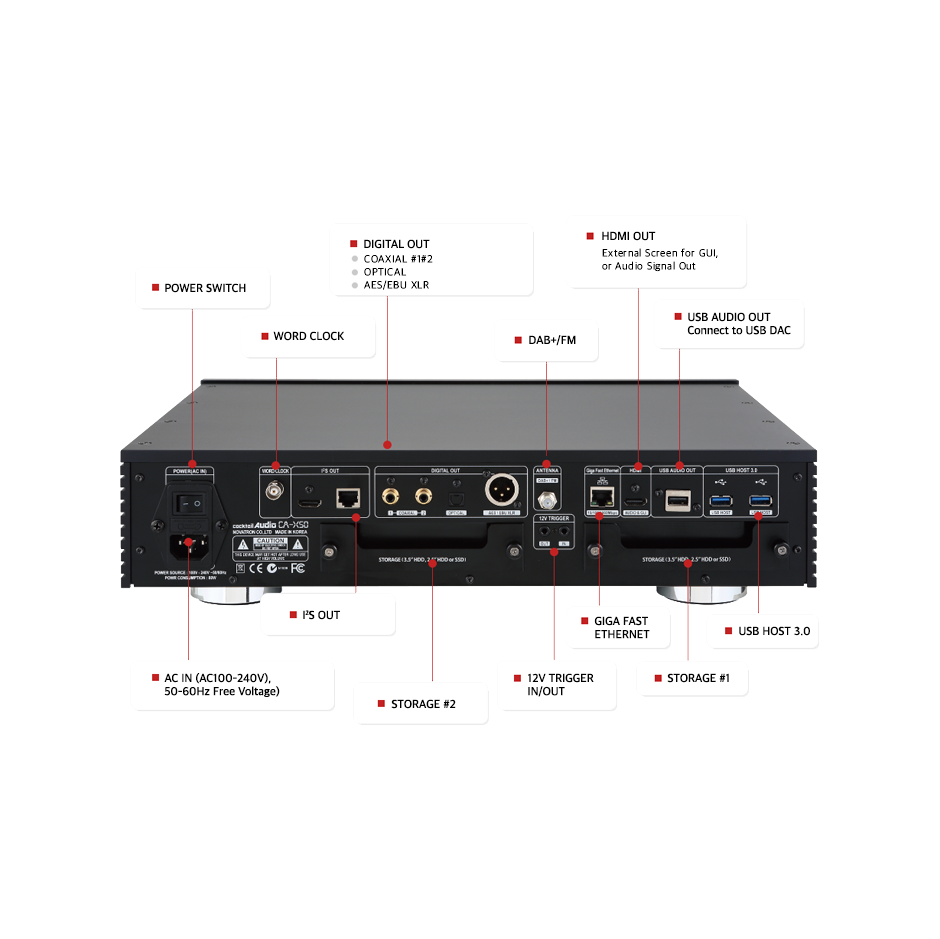

| Digital out (Variable/Fixed) |
COAXIAL x 2 | S/PDIF 75ohm RCA, Sample rate: up to 24bit/192KHz | ||
| TOSLINK x 1 | S/PDIF, Sample rate: up to 24bit/192KHz | |||
| AES/EBU/XRL x 1 | 110ohm, Sample rate: up to 24bit/192KHz | |||
| I²S Out x 2 | RJ45 | Native DSD, DoP, PCM up to 24bit/192Khz | ||
| HDMI | Native DSD, DoP, PCM up to 24bit/192Khz | |||
| USB Audio x 1 | USB Audio Class 2.0 Out(supported up to DSD256) | |||
| HDMI Out x 1 | HDMI Audio Out(*Shared with HDMI Out for external screen) | |||
| Word Clock Out | up to 192KHz | |||
| Digital Input (For X50D only) |
COAXIAL x 1 | Sample Rate up to 24bit/192Khz | ||
| TOSLINK x 1 | Sample Rate up to 24bit/192Khz | |||
| Supported Storage | Hard Disk | 2.5″ SATA, up to 8TB | * Two(2) Storage Decks * RAID System for two storages (3 modes: Mirror, Stripe or Big) |
|
| 3.5″ SATA, up to 8TB | ||||
| SSD | 2.5″ SATA, up to 8TB | |||
| Tuner | DAB+/FM | DAB+/FM Tuner built-in(Selectable for DAB/DAB+ or FM Radio) | ||
| Connectivity | USB Host | USB3.0(5V/1A) x 2 at rear USB2.0(5V/1A) x 1 at front |
||
| Network | Wired | Giga Fast Ethernet(10/100/1000Mbs) | ||
| Wireless(Option) | ※ 802.11b/g/n WiFi USB dongle(Option) | |||
| 12V Trigger | Out | Max 200mA, 12V | ||
| In | Max 12V | |||
| HDMI Out | Connect to external screen(* Shared with HDMI Audio Out) | |||
| Codec & Format supported |
MQA, DSD(DSD64, DSD128, DSD256), DXD(24Bit/352.8Khz), HD WAV(24Bit/192KHz), HD FLAC(24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS, CAF, etc |
|||

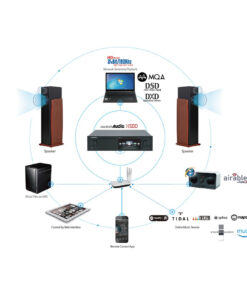

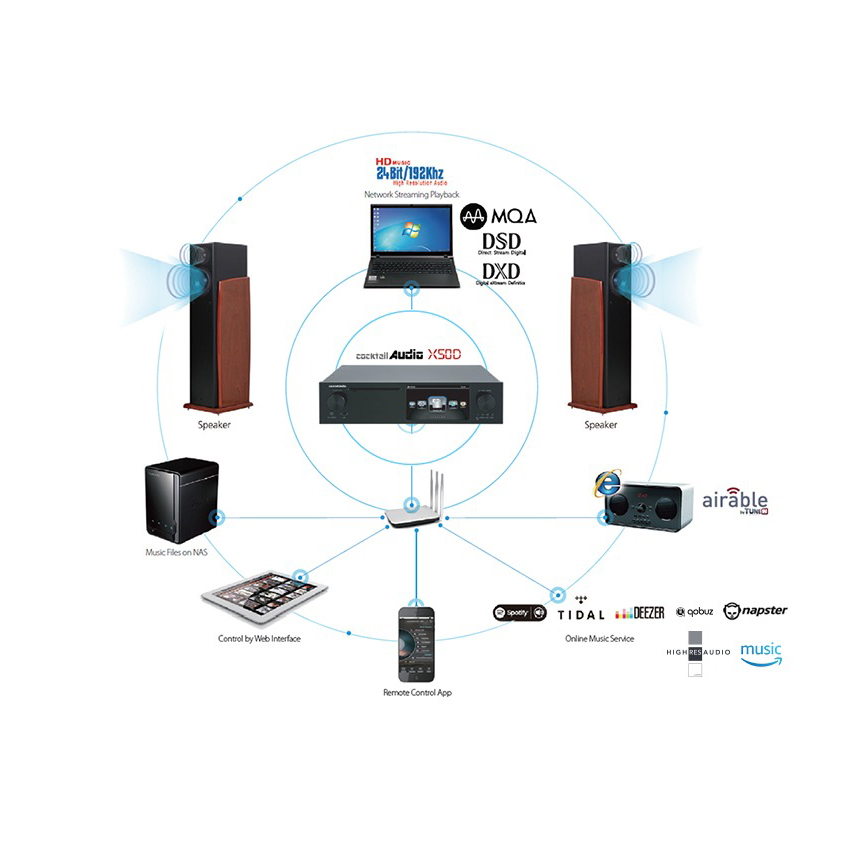

| Network Protocols Supported |
UPnP(DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server, etc |
|||
| Internet Services |
Internet Radio | Airable | ||
| Online Music Services | TIDAL, Deezer, Qobuz, Spotify Connect | |||
| Supported OSD languages | English, German, French, Spanish, Italian, Polish, Dutch, Russian, Traditional Chinese, Japanese, Korean(To be added by request) | |||
| Power Source | AC110 – 240V / 50 – 60Hz Free Voltage | |||
| Mechanical | Material | Front | 13mm thickness aluminum by CNC cutting | |
| Knob | Aluminum by CNC cutting | |||
| Body | Full aluminum by CNC cutting | |||
| Dimension | Without foot | 441mm(W) x 330mm(D) x 80mm(H) | ||
| With foot | 441mm(W) x 330mm(D) x 100mm(H) | |||
| Certificate | CE, FCC, EMI, etc | |||
