Cayin

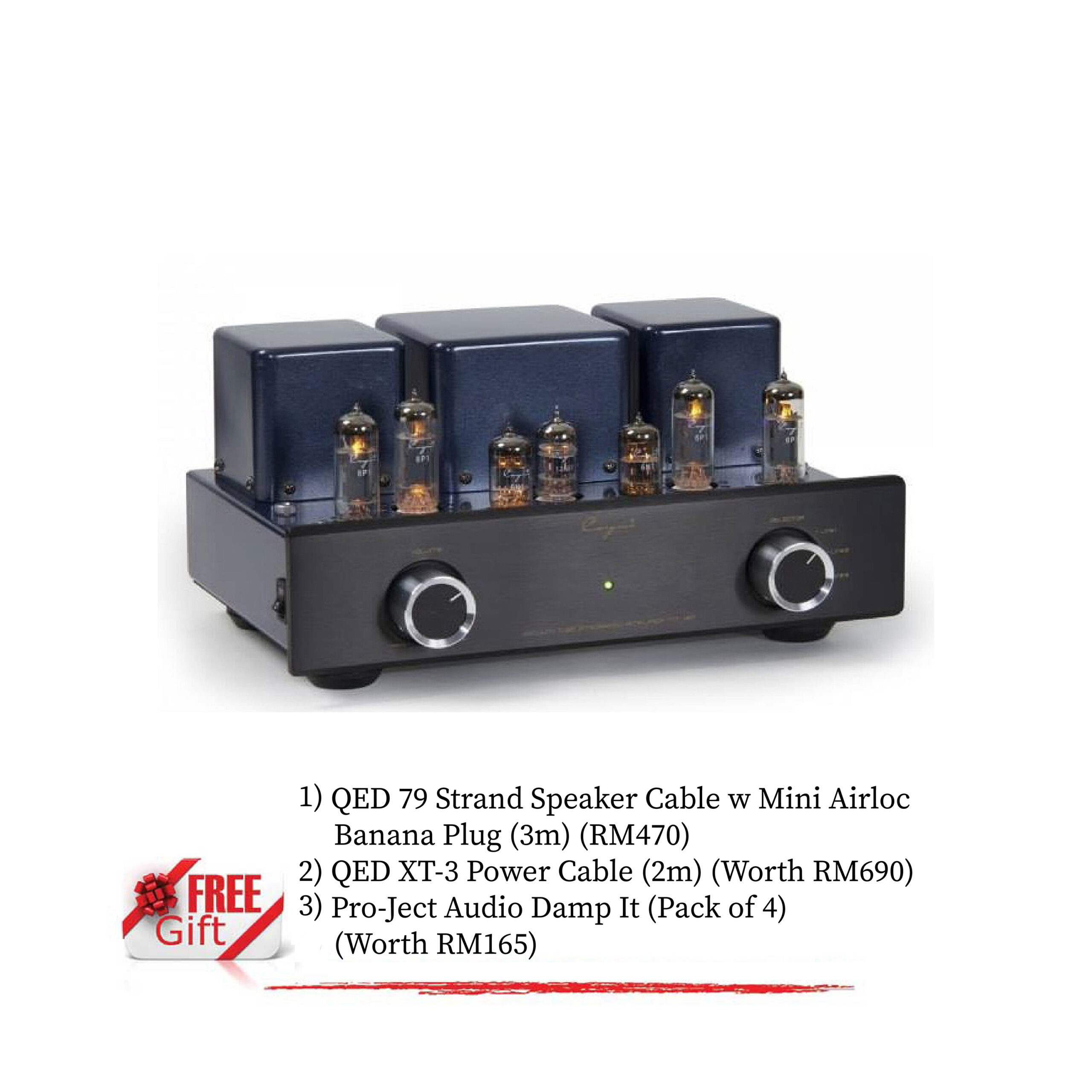

MT-12N EL84 (Black)
Integrated Amplifier
(New Version)
(Pre-Order)

From RM2,995.00

Option	Clear

SKU: N/A Categories: Amplifiers, Cayin, Cayin, Integrated Amplifiers Tag: Cayin

Overview

Four EL84s are used for class AB1 P.P amplification. This vacuum tube not only is of great speed to the music signal, but also high dynamic.
The toroid power transformer and EI audio transformer are specially manufactured for Cayin MT-12 by applying our unique workmanship, which has low magnetic leakage, wide frequency response and low impedance.

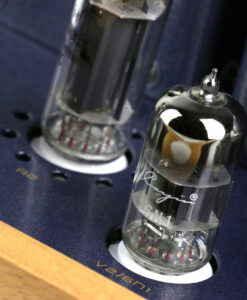

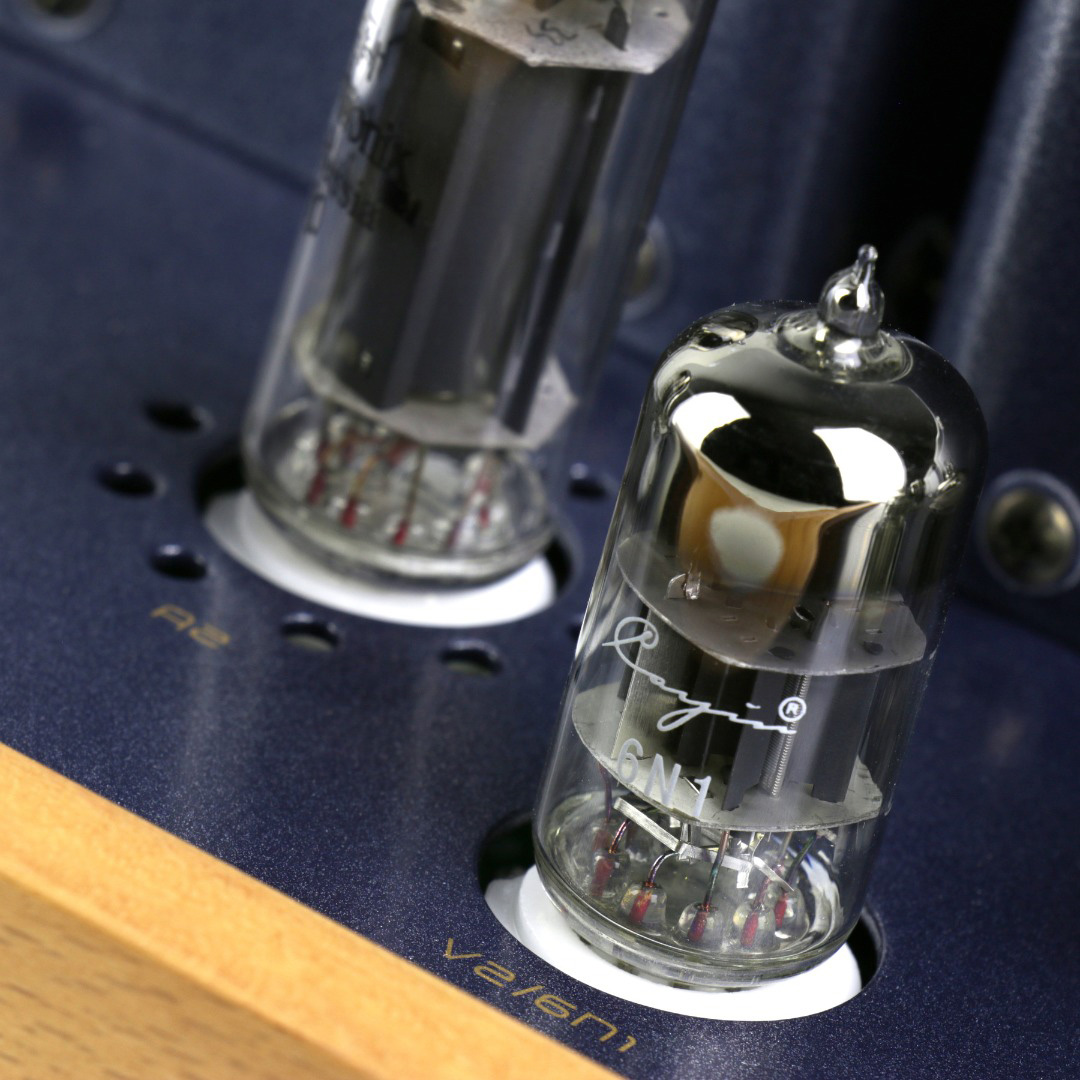

One 12AU7 and two 6N1s are used in the preamplifier.
With headphone output.
The high quality capacitor is selected in the coupling circuit.
The input position is selected in the coupling circuit.
All-vacuum tube design, all hand-made.

For more information:

Weight	9 kg
Option	Basic, Purchase With Purchase

Specification

Power in Watt	2×12W (RMS,8Ω)
Power stage operating class	A/B
Frequency response	20Hz~20kHz -0.5dB
Total harmonic distortion (THD%)	1% (1 kHz)
Signal to Noise Ratio	86dB
Colour	Black

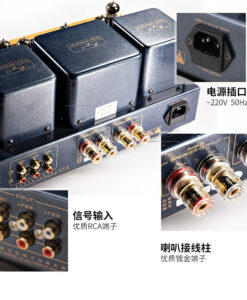

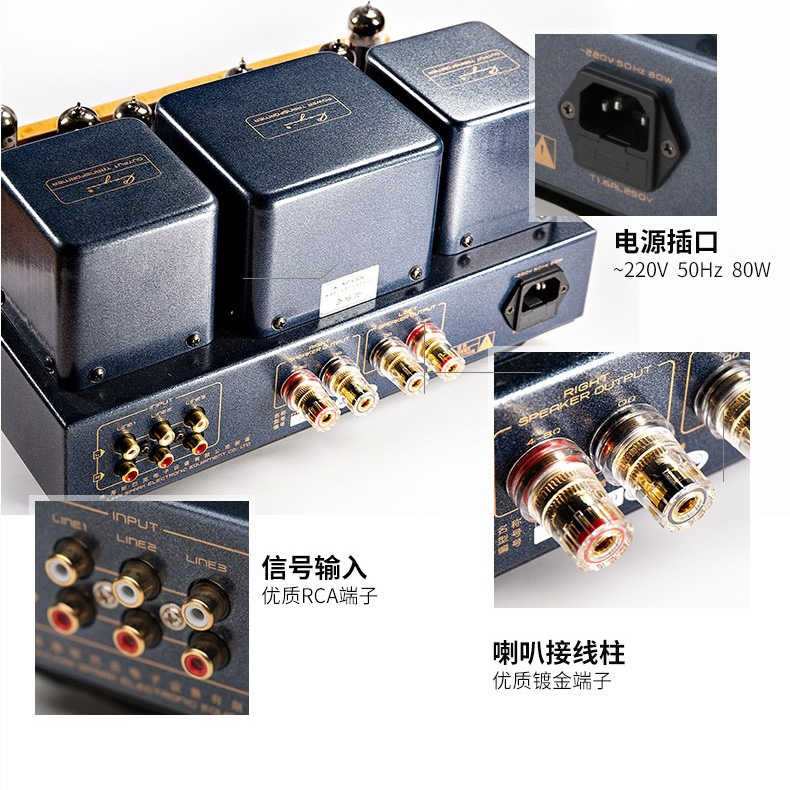

Rear entrances	3 x Line-In (RCA)

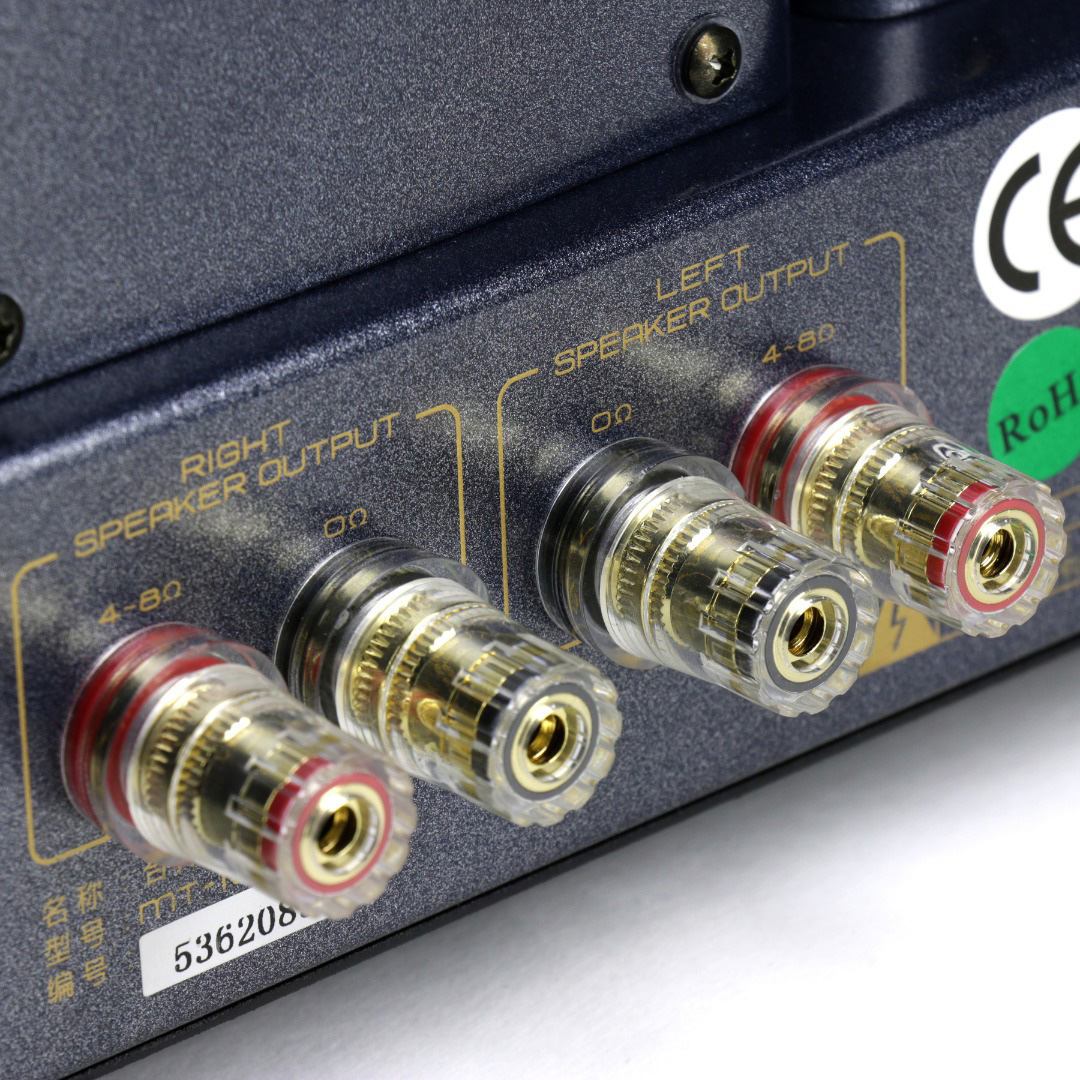

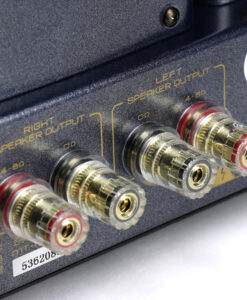

Exits Back	speaker terminals (4Ω, 8Ω)
In addition	Tubes: 1 x 12AX7 / 2 x 12AU7 / 4 x EL84.
Energy consumption	120W max
Dimensions	(W x D x H): 330mm × 180mm × 272mm
Weight	9kg
